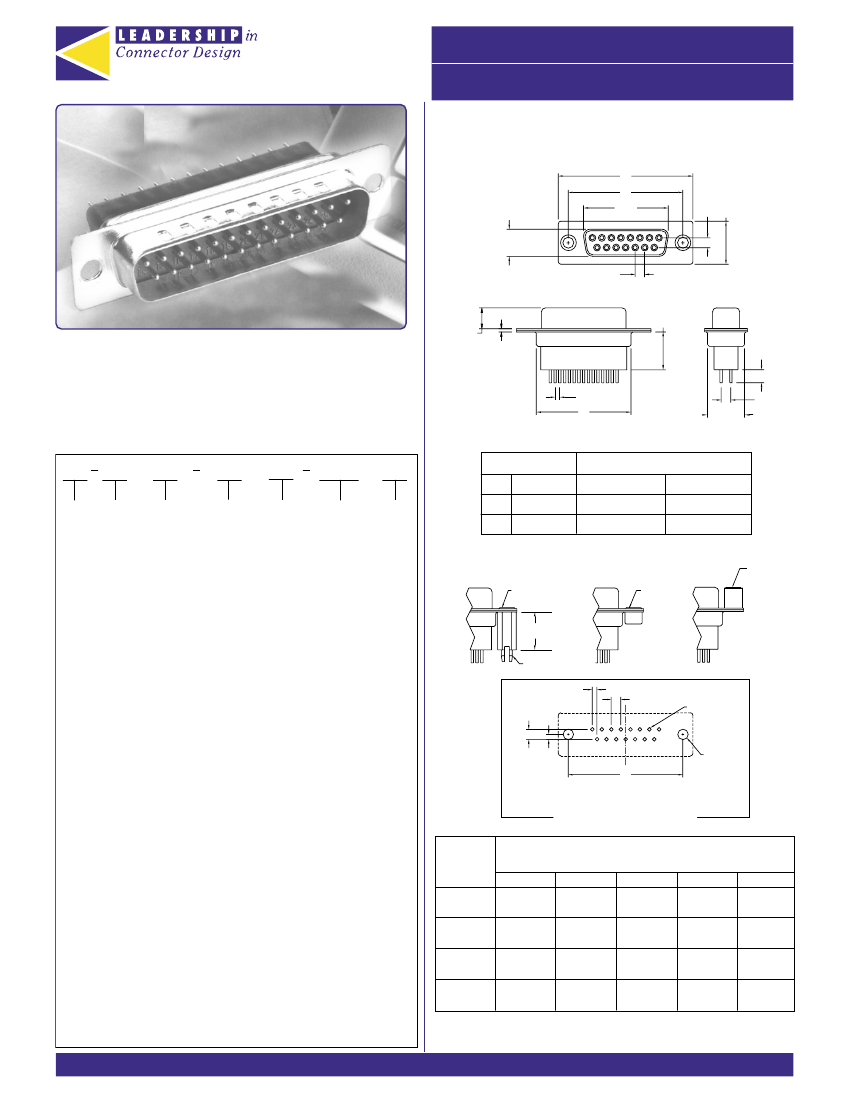

D-SUBMINIATURE CONNECTORS
KYCON
K88 Series
K88 Series Dimensions
Dimensions in mm [In]
C
B
A, A1
8.36 Plug Interior,
7.90 Socket Exterior
2.77 [.109]
5.9 Plug,
6.0 Socket
K88 Series
Vertical PCB Mount
High Profile
Ordering Information
K88
B
F
Pin
Length
0.99 [.039]
10.98 Max.
12.55 [.494]
2.84 [.112]
L1
1.385 [.054]
D
10.72±0.25
2.84 [.112]
Recommended Pin Lengths and Board Locks
25
S
BRBJ
30
Pin Length (L1)
(D)
3.80mm
5.20mm
7.20mm
(E)
(F)
Board Lock Type and Length (L2)
(BR)
(BRA)
(BRB)
-K Option
#4-40 UNC
Bushing
11.00mm
12.70mm
14.50mm
-R Option
#4-40 UNC
Internal
Thread
Series Shell
Type
Number Contact
of
Type
Contacts
Mounting Plating
Options Options
Type
K88-Kycon D-Subminiature Connector Vertical
PCB Termination, High Profile
Shell Size
E-9 Contacts
A-15 Contacts
B-25 Contacts
C-37 Contacts
Pin Length
D-Precision Formed 3.80mm
E-Precision Formed 5.20mm
F-Precision Formed 7.20mm
Number of Contacts
9, 15, 25, 37
Contact Type
P-Pin Contact (Plug)
S-Socket Contact (Receptacle)
Mounting Options
K-with (4-40) Bushings
KJ-with (4-40) Bushings and (4-40) Hex Jack Screws
BR-with (4-40) Tin Plated 11.00mm long Boardlocks
BRJ-with (4-40) Tin Plated 11.00mm long Boardlocks
and (4-40) Hex Jack Screws
BRA-with (4-40) Tin Plated 12.70mm long Boardlocks
BRAJ-with (4-40) Tin Plated 12.70mm long Boardlocks
and (4-40) Hex Jack Screws
BRB-with (4-40) Tin Plated 14.50mm long Boardlocks
BRBJ-with (4-40) Tin Plated 14.50mm long Boardlocks
and (4-40) Hex Jack Screws
R-with Round Riveted Jack Screws
Plating Options and Performance Specifications
(see page 4)
-BR, -BRA , -BRB Option
#4-40 UNC
L2
Board Lock
1.385 [.054]
2.77 [.109]
Ø1.09 [.043]
2.84 [.112]
1.42 [.056]
Ø3.05 [.120]
B
(Top View)
Recommended PCB Layout
Number
of Contacts
(Shell Size)
9 (E)
15 (A)
25 (B)
37 (C)
Dimensions (Inch/mm)
A
.643
16.33
.971
24.66
1.511
38.38
2.159
54.84
A1
.666
16.92
.994
25.25
1.534
38.96
2.182
55.42
B
.984
24.99
1.312
33.32
1.852
47.04
2.500
63.50
C
1.213
30.81
1.541
39.14
2.088
53.04
2.729
69.32
D
.755
19.18
1.083
27.51
1.614
41.00
2.272
57.71
A = Exterior of Female Shell (S)
A1 = Interior of Male Shell (P)
2002
18
KYCON, Inc. • Tel: +1 408-494-0330 • US: 1-888-KYCON-22 • Fax: +1 408-494-0325 • www.kycon.com
D-SUBMINIATURE CONNECTORS
KYCON
Performance Specifications
Materials and Finish
Shell
Steel Material, Tin Finish, and Indentations (Dimples) on Plug Only
Insert
Standard: PBT Thermoplastic, Black Color, 30% Glass Filled, 94V-0 Rated
Reflow Compatible: High Temperature Thermoplastic, Black Color,
30% Glass Filled, 94V-0 Rated
Contact Material
Pin: Brass .040 (1.02) Diameter Standard; .030 (0.76) Diameter High Density
Socket: Phosphor Bronze (Precision Formed Contact)
Brass (Precision Machined Contact)
Contact Finish-Standard
Gold Flash Over 0.0001 (0.00254) Nickel on Mating End of Contacts
Tin/Lead Over Nickel or Gold Flash Over Nickel on Solder Tails
Riveted Insert
Brass Material, Nickel Finish
KYCON continues
its leadership in
D-Subminiature
connectors by
offering a complete
line of sizes and
options.
PC99 Colors Available:
• HD15: Blue
• DB15: Gold
• DB25: Burgundy
• DB09: Teal
Mechanical Characteristics
LR78160
Contact Retention
Precision Machined Contact 10 Lbs, Precision Formed Contact 10 Lbs
Contact Extraction Force
Typ. 4 Oz.
Contact Insertion Force
Typ. 9 Oz.
Durability
1,000 Insertion Cycles Min (With Standard Plating)
Operating Temperature Rating
-55°C to +125°C
Electrical Characteristics
Contact Current Rating
Precision Machined Contact 7.6 Amps
Precision Formed Contact 5.0 Amps (Except K99 Series)
Contact Resistance
Precision Machined Contact 5 Milliohms Max
Precision Formed Contact 8 Milliohms Max
Dielectric Withstanding Voltage
1000 V AC Min for 1 Minute
Insulation Resistance
5000 Megohms Min
Processing Characteristics
Soldering Temperature Rating
High Temperature Plastic: 230°C for 30 Seconds, 260°C for 10 Seconds
Plating Options
Designator Plating Description
KYCON Tech Support:
1-888-KYCON-22
or E-mail: sales@kycon.com
Standard
15
30
Gold Flash over Nickel on Contacts. Gold Flash over Nickel or Tin/Lead over Nickel on Solder Tails.
15µ" Gold over Nickel on Mating End of Contacts. Tin/Lead over Nickel on Solder Tails.
30µ" Gold over Nickel on Mating End of Contacts. Tin/Lead over Nickel on Solder Tails.
2002
4
KYCON, Inc. • Tel: +1 408-494-0330 • US: 1-888-KYCON-22 • Fax: +1 408-494-0325 • www.kycon.com
