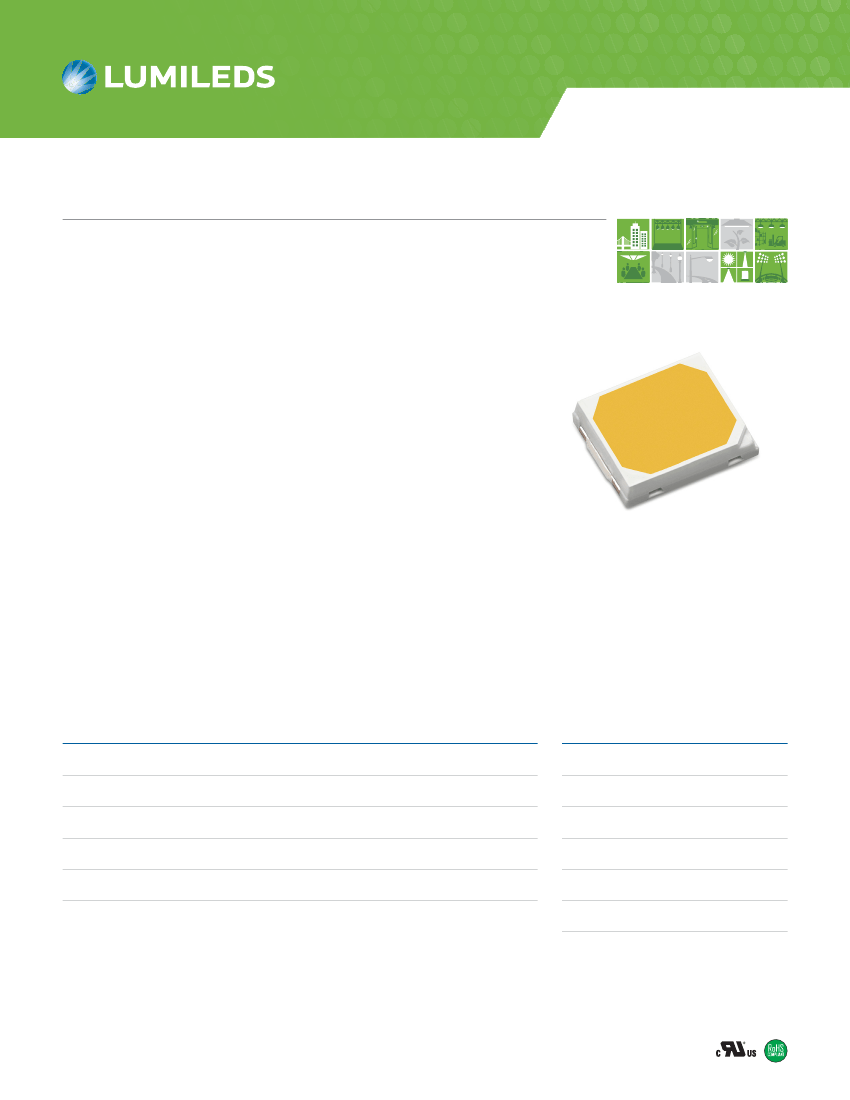

IllumInatIon
luXEon 2835 line
Perfected performance, built on a
proven legacy
LUXEON 2835 Line is a collection of compact devices that allows for
design freedom and provides a superior overall system solution when a
project requires high lumen output and good efficacy. With an industry
standard footprint, the LUXEON 2835 Line is the perfect upgrade for
other 2835 products and other common mid power offerings. The
LUXEON 2835 Line is color targeted for application needs and delivers
efficacy and reliability for a variety of applications.
FEaturEs and BEnEFIts
Various configurations of voltage and die count to meet a wide range
of application requirements
Industry standard footprint for drop-in replacement designs
Maximum drive current of up to 480mA allows for reduction of LED count
6V and 9V hot-color targeting and 1/9
th
micro-color binning enable tight
color control
2-, 3-, 4- and 5-step MacAdam ellipse color kits available
PrImary aPPlIcatIons
Panel / Soft Lights
Linear
Troffers
Downlights
Retrofit Lamps
More…
DS216 LUXEON 2835 Line Product Datasheet ©2021 Lumileds Holding B.V. All rights reserved.
No. E507562
Table of Contents
General Product Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Product Test Conditions
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Part Number Nomenclature
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Lumen Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Environmental Compliance
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Performance Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Product Selection Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Optical Characteristics
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Electrical and Thermal Characteristics.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Characteristics Curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Spectral Power Distribution Characteristics
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Light Output Characteristics
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Forward Current Characteristics.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Radiation Pattern Characteristics
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Product Bin and Labeling Definitions
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Decoding Product Bin Labeling
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Luminous Flux Bins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Color Bin Definition
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Forward Voltage Bins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Mechanical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Reflow Soldering Guidelines
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
JEDEC Moisture Sensitivity
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Solder Pad Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Packaging Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Pocket Tape Dimensions
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Reel Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
DS216 LUXEON 2835 Line Product Datasheet 20210127 ©2021 Lumileds Holding B.V. All rights reserved.
i
General Product Information
Product Test Conditions
LUXEON 2835 Line LEDs are tested with a 20ms monopulse specified below at a junction temperature, T
j
, of 25°C. Forward voltage
and luminous flux are binned at a T
j
of 25°C. LUXEON 2835E 6V, LUXEON 2835E 9V and LUXEON 2835C 6V color is hot-targeted at
a T
j
of 85°C and LUXEON 2835 HE 3V, LUXEON 2835N 3V, LUXEON 2835E 3V, LUXEON 2835C 3V and LUXEON 2835C 3V TVS color
is cold-targeted at a T
j
of 25°C.
60mA/100mA – LUXEON 2835E
65mA
120mA
– LUXEON 2835 HE, LUXEON 2835N 3V
– LUXEON 2835C
Part Number Nomenclature
Part numbers for LUXEON 2835 Line follow the convention below:
L 1 2 8 –
A A B B C D
3 5 0 0 0
E F
Where:
A A
–
designates nominal ANSI CCT (18=1800K, 22=2200K, 27=2700K, 30=3000K, 35=3500K, 40=4000K, 50=5000K,
57=5700K, 65=6500K)
B B
–
C
D
E
F
–
–
–
–
designates minimum CRI (80=80CRI and 90=90CRI)
designates product line (E, C, N, H, etc)
designates voltage of the part (A=3V, B=6V and C=9V)
designates Lumileds internal code (T=TVS included)
designates Lumileds internal code (1, 2, 3, etc.=shares the same base part)
Therefore, the following part number is used for a LUXEON 2835C 3000K 80CRI, 6V LED:
L 1 2 8 –
3 0 8 0 C B
3 5 0 0 0
0 1
Lumen Maintenance
Please contact your local Sales Representative or Lumileds Technical Solutions Manager for more information about the long-
term performance of this product.
Environmental Compliance
Lumileds LLC is committed to providing environmentally friendly products to the solid-state lighting market. LUXEON 2835 Line
is compliant to the European Union directives on the restriction of hazardous substances in electronic equipment, namely the
RoHS Directive 2011/65/EU and REACH Regulation (EC) 1907/2006. Lumileds LLC will not intentionally add the following restricted
materials to its products: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB) or polybrominated
diphenyl ethers (PBDE).
DS216 LUXEON 2835 Line Product Datasheet 20210127 ©2021 Lumileds Holding B.V. All rights reserved.
2
Performance Characteristics
Product Selection Guide
Table 1. Product performance of LUXEON 2835 Line at specified test conditions.
VoltagE
Product
nomInal
cct
[1]
2700K
3000K
3500K
4000K
5000K
5700K
6500K
2700K
3000K
3500K
4000K
5000K
5700K
6500K
2700K
3000K
3500K
4000K
5000K
5700K
6500K
2700K
3000K
3500K
4000K
5000K
5700K
6500K
1800K
2200K
2700K
3000K
3500K
4000K
5000K
5700K
6500K
1800K
2200K
2700K
3000K
3500K
4000K
5000K
5700K
6500K
mInImum
crI
[2, 3]
80
80
80
80
80
80
80
90
90
90
90
90
90
90
80
80
80
80
80
80
80
90
90
90
90
90
90
90
80
80
80
80
80
80
80
80
80
90
90
90
90
90
90
90
90
90
lumInous FluX
[2, 3]
(lm)
mInImum
23.0
24.0
24.0
26.0
26.0
26.0
26.0
19.0
20.0
20.0
21.0
21.0
21.0
21.0
49.0
51.0
53.0
55.0
55.0
55.0
55.0
42.0
42.0
44.0
46.0
46.0
46.0
46.0
21.9
26.6
30.3
32.3
33.7
34.3
34.3
34.3
33.7
18.0
23.1
26.2
27.3
28.4
29.3
29.3
29.3
29.1
tyPIcal
27.6
28.6
29.6
30.1
30.1
30.1
29.9
23.5
24.8
25.7
26.3
26.3
26.3
26.0
58.2
60.2
61.2
63.8
63.8
63.8
63.8
49.8
51.9
53.5
54.6
54.6
54.6
54.6
23.3
28.3
32.5
34.4
35.9
36.5
36.5
36.5
35.9
19.1
24.6
27.9
29.0
30.2
31.2
31.2
31.2
31.0
tyPIcal
lumInous
EFFIcacy (lm/W)
158.6
164.4
170.1
173.0
173.0
173.0
171.8
135.1
142.5
147.7
151.1
151.1
151.1
149.4
161.7
167.2
170.0
177.2
177.2
177.2
177.2
138.3
144.2
148.6
151.7
151.7
151.7
151.7
130.3
158.3
181.8
192.4
200.8
204.2
204.2
204.2
200.8
106.9
137.6
156.1
162.2
169.0
174.5
174.5
174.5
173.4
tEst
currEnt
(ma)
60
60
60
60
60
60
60
60
60
60
60
60
60
60
120
120
120
120
120
120
120
120
120
120
120
120
120
120
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
Part numBEr
L128-2780EA3500001
L128-3080EA3500001
L128-3580EA3500001
L128-4080EA3500001
L128-5080EA3500001
L128-5780EA3500001
L128-6580EA3500001
L128-2790EA3500001
L128-3090EA3500001
L128-3590EA3500001
L128-4090EA3500001
L128-5090EA3500001
L128-5790EA3500001
L128-6590EA3500001
L128-2780CA3500001
L128-3080CA3500001
L128-3580CA3500001
L128-4080CA3500001
L128-5080CA3500001
L128-5780CA3500001
L128-6580CA3500001
L128-2790CA3500001
L128-3090CA3500001
L128-3590CA3500001
L128-4090CA3500001
L128-5090CA3500001
L128-5790CA3500001
L128-6590CA3500001
L128-1880NA3500001
L128-2280NA3500001
L128-2780NA3500001
L128-3080NA3500001
L128-3580NA3500001
L128-4080NA3500001
L128-5080NA3500001
L128-5780NA3500001
L128-6580NA3500001
L128-1890NA3500001
L128-2290NA3500001
L128-2790NA3500001
L128-3090NA3500001
L128-3590NA3500001
L128-4090NA3500001
L128-5090NA3500001
L128-5790NA3500001
L128-6590NA3500001
LUXEON
2835E
LUXEON
2835C
3V
LUXEON
2835N
Table 1 continued on next page.
1.
Correlated color temperature is cold-targeted at T
j
=25°C for 3V products (LUXEON 2835 HE, LUXEON 2835N 3V, LUXEON 2835E 3V, LUXEON 2835C 3V, and LUXEON 2835C 3V TVS).
Correlated color temperature is hot-targeted at T
j
=85°C for 6V and 9V products (LUXEON 2835E 6V, LUXEON 2835E 9V, and LUXEON 2835C 6V).
2.
Luminous flux and CRI specs are based upon mounted package on highly reflective surface at T
j
=25°C. Typical CRI is approximately 2 points higher than the minimum CRI specified, but this is
not guaranteed.
3.
Lumileds maintains a tolerance of ±2 on CRI and ±7.5% on luminous flux measurements.
DS216 LUXEON 2835 Line Product Datasheet 20210127 ©2021 Lumileds Holding B.V. All rights reserved.
3
Table 1. Product performance of LUXEON 2835 Line at specified test conditions, continued.
VoltagE
Product
nomInal
cct
[1]
3000K
3500K
4000K
5000K
5700K
6500K
1800K
2200K
2700K
3000K
3500K
4000K
5000K
5700K
6500K
1800K
2200K
2700K
3000K
3500K
4000K
5000K
5700K
6500K
2700K
3000K
3500K
4000K
5000K
5700K
3000K
3500K
4000K
5000K
5700K
6500K
1800K
2200K
2700K
3000K
3500K
4000K
5000K
5700K
6500K
mInImum
crI
[2, 3]
70
70
70
70
70
70
80
80
80
80
80
80
80
80
80
90
90
90
90
90
90
90
90
90
95
95
95
95
95
95
70
70
70
70
70
70
80
80
80
80
80
80
80
80
80
lumInous FluX
[2, 3]
(lm)
mInImum
32.4
32.8
34.0
34.0
33.7
33.6
22.1
26.0
30.5
31.5
32.7
33.5
33.5
33.5
33.0
17.9
22.9
24.3
25.4
26.7
27.4
27.4
27.4
27.0
23.4
24.3
24.7
25.4
25.9
26.3
32.4
32.8
34.0
34.0
33.7
33.6
22.1
26.0
30.5
31.5
32.7
33.5
33.5
33.5
33.0
tyPIcal
37.1
37.7
38.6
38.6
38.1
38.1
23.5
29.1
34.0
34.9
36.4
36.8
36.8
36.8
36.5
19.0
24.4
27.9
29.5
30.4
31.0
31.0
31.0
30.9
27.2
28.2
28.5
29.0
29.6
30.0
37.1
37.7
38.6
38.6
38.1
38.1
23.5
29.1
34.0
34.9
36.4
36.8
36.8
36.8
36.5
tyPIcal
lumInous
EFFIcacy (lm/W)
210.6
214.0
219.1
219.1
216.3
216.3
133.4
165.2
193.0
198.1
206.6
208.9
208.9
208.9
207.2
107.9
138.5
158.4
167.5
172.6
176.0
176.0
176.0
175.4
154.4
160.1
161.8
164.6
168.0
170.3
210.6
214.0
219.1
219.1
216.3
216.3
133.4
165.2
193.0
198.1
206.6
208.9
208.9
208.9
207.2
tEst
currEnt
(ma)
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
65
Part numBEr
L128-3070HA3500001
L128-3570HA3500001
L128-4070HA3500001
L128-5070HA3500001
L128-5770HA3500001
L128-6570HA3500001
L128-1880HA3500001
L128-2280HA3500001
L128-2780HA3500001
L128-3080HA3500001
L128-3580HA3500001
L128-4080HA3500001
L128-5080HA3500001
L128-5780HA3500001
L128-6580HA3500001
L128-1890HA3500001
L128-2290HA3500001
L128-2790HA3500001
L128-3090HA3500001
L128-3590HA3500001
L128-4090HA3500001
L128-5090HA3500001
L128-5790HA3500001
L128-6590HA3500001
L128-2795HA3500001
L128-3095HA3500001
L128-3595HA3500001
L128-4095HA3500001
L128-5095HA3500001
L128-5795HA3500001
L128-3070HA35000B1
L128-3570HA35000B1
L128-4070HA35000B1
L128-5070HA35000B1
L128-5770HA35000B1
L128-6570HA35000B1
L128-1880HA35000B1
L128-2280HA35000B1
L128-2780HA35000B1
L128-3080HA35000B1
L128-3580HA35000B1
L128-4080HA35000B1
L128-5080HA35000B1
L128-5780HA35000B1
L128-6580HA35000B1
3V
LUXEON
2835 HE
Table 1 continued on next page.
1.
Correlated color temperature is cold-targeted at T
j
=25°C for 3V products (LUXEON 2835 HE, LUXEON 2835N 3V, LUXEON 2835E 3V, LUXEON 2835C 3V, and LUXEON 2835C 3V TVS).
Correlated color temperature is hot-targeted at T
j
=85°C for 6V and 9V products (LUXEON 2835E 6V, LUXEON 2835E 9V, and LUXEON 2835C 6V).
2.
Luminous flux and CRI specs are based upon mounted package on highly reflective surface at T
j
=25°C. Typical CRI is approximately 2 points higher than the minimum CRI specified, but this is
not guaranteed.
3.
Lumileds maintains a tolerance of ±2 on CRI and ±7.5% on luminous flux measurements.
DS216 LUXEON 2835 Line Product Datasheet 20210127 ©2021 Lumileds Holding B.V. All rights reserved.
4
京公网安备 11010802033920号
EEWORLD
