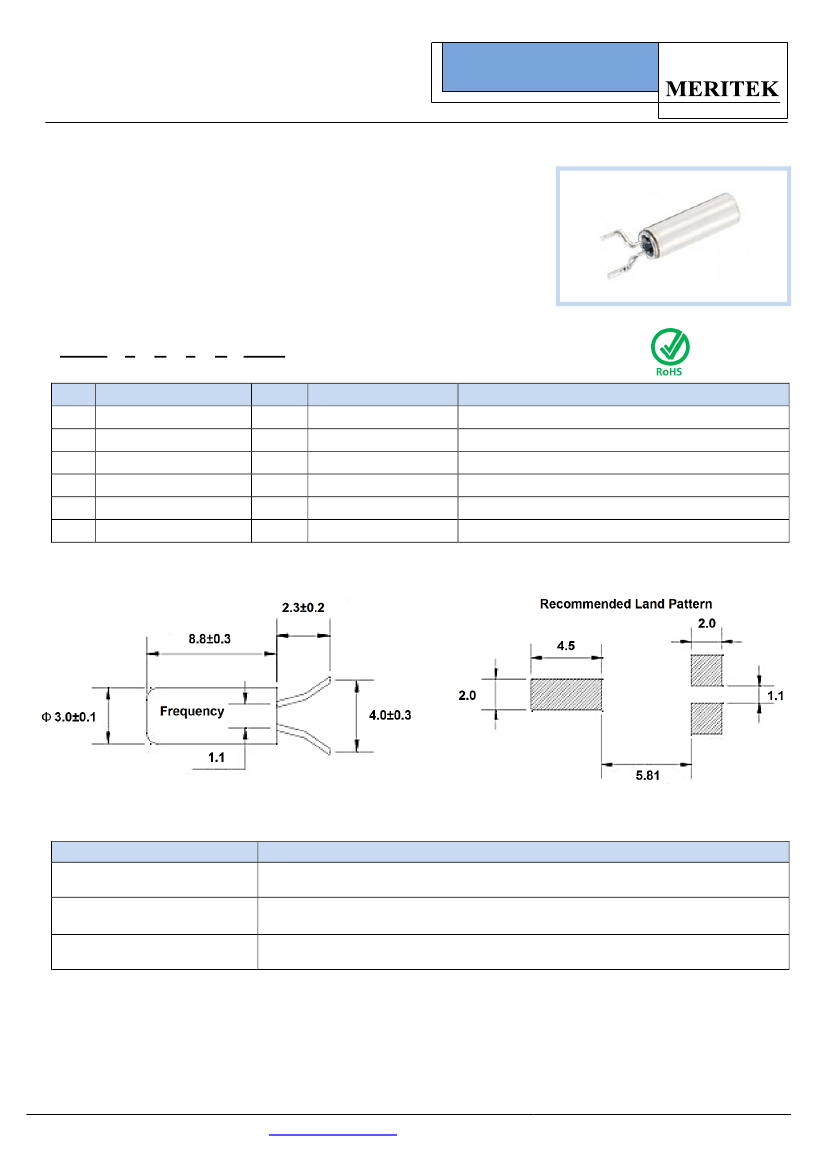

Cylindrical Crystal Unit
SMD 8.8 x 3.2mm Type
F
EATURE
Surface Mount
MXTR series
Applications: Consumer Electronics, Microprocessor Clocks
P
ART
N
UMBERING
S
YSTEM
MXTR
(1)
No
(1)
(2)
(3)
(4)
(5)
(6)
F
(2)
H
(3)
J
(4)
A 20M0
(5)
(6)
Code
MXTR
F
H
J
A
20M0
Description
Crystal Unit
F: 20pF
H: ±30ppm
J: ±50ppm
A: -10~+60°C
20M0: 20.00MHz
Series Reference
Clylindrical SMD Crystal 8.8x3.2mm
E: 18pF, R: Series Resonance (see options)
H: ±30ppm, J: ±50ppm (see options)
J: ±50ppm
B: 0~+70°C, A: -10~+60°C (see options)
4M0 ~ 70M0 (M denotes decimal point)
Item
Meritek Series
Load Capacitance
Frequency Tolerance
Frequency Stability
Operating Temp.
Frequency
D
IMENSIONS AND
R
ECOMMENDED
P
ATTERN
(Unit:mm)
A
VAILABLE
O
PTIONS
Parameters
Load Capacitance
Frequency Tolerance
Operating Temperature
Part Number Options
A: 10pF, B: 12pF, C: 15pF, D: 16pF, E: 18pF, F: 20pF, K: 22pF, G: 25pF, H: 30pF, L: 32pF
H: ±30ppm, J: ±50ppm
B: 0~+70°C, A: -10~+60°C
Note: Custom options available. Contact Meritek for more information.
Meritek Electronics Corporation
|
www.meritekusa.com
Rev.7a 12/20/2017
Cylindrical Crystal Unit
SMD 8.8 x 3.2mm Type
E
LECTRICAL
C
HARACTERISTICS
Parameters
Nominal Frequency Range
Operation Mode
Load Capacitance
Frequency Tolerance (at
25ºC)
Freq Stability over Oper Temp.
Operating Temperature
Storage Temperature
Drive Level
Aging
Shunt Capactiance
Insulation Resistance
4.0 ~ 5.999 Fundamental
6.0 ~ 9.999 Fundamental
Equivalent Series
Resistance
10.0 ~ 32.000 Fundamental
32.001 ~ 35.999 3 OT
36.0 ~ 70.000 3 OT/AT
*Specifications subject to change without notice.
rd
rd
MXTR series
Characteristic
4.000 ~ 70.000 MHz
4.000 ~ 32.000 MHz
32.001 ~ 70.000 MHz (standard frequencies)
16.0 pF (see options)
±30 ppm (see options)
±50 ppm
-10 ~ +60°C (see options)
-40 ~ +85°C
100 µW
Fundamental
3 Overtone
rd
max
.
±5 ppm / year
5.0 pF max.
500 MΩ min. (@100Vdc ±15V)
150 Ω max.
100 Ω max.
50 Ω max.
100 Ω max.
80 Ω max.
Meritek Electronics Corporation
|
www.meritekusa.com
Rev.7a 12/20/2017
