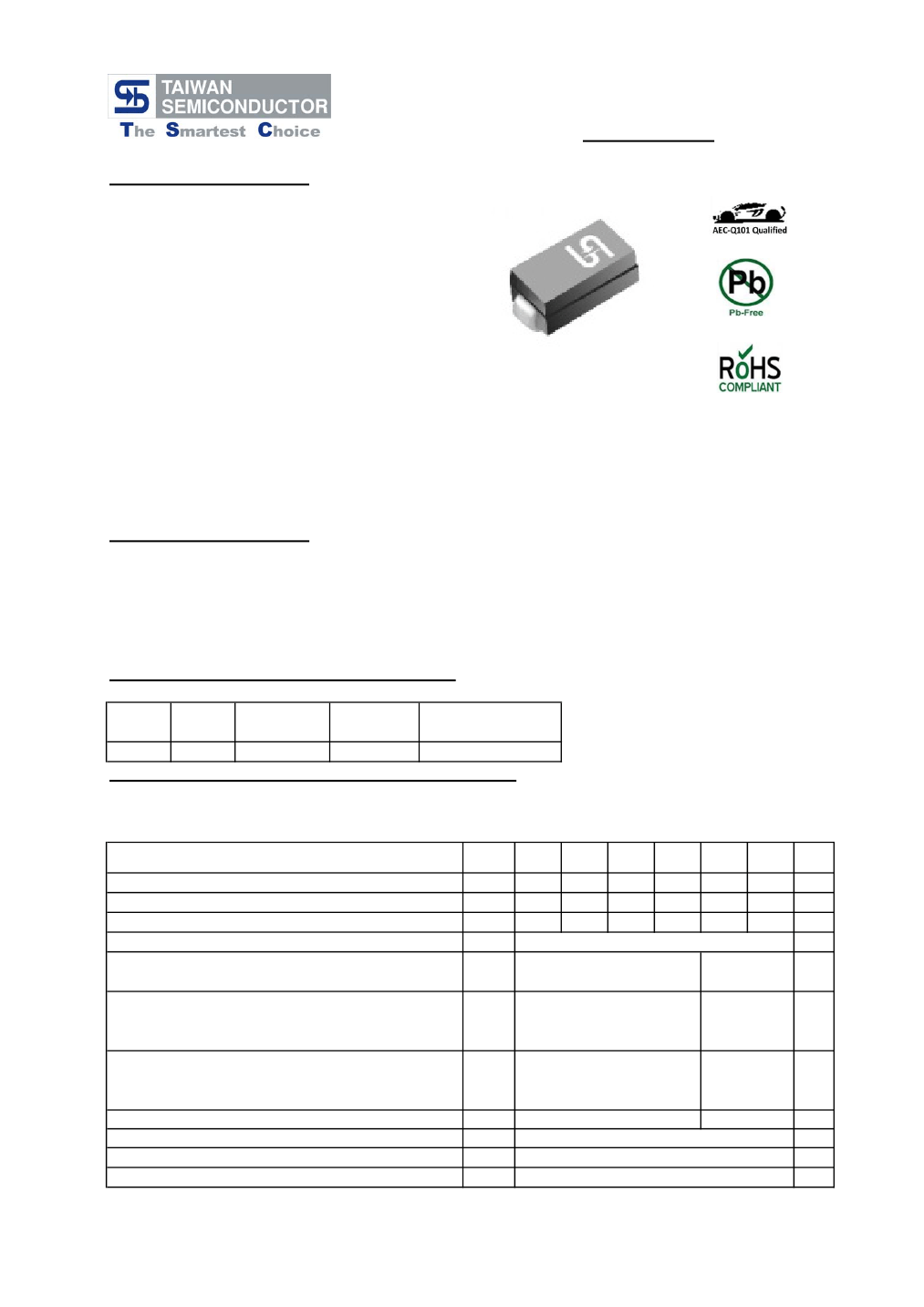

MUR105S - MUR160S
1.0 AMP. Surface Mount Ultrafast Power Rectifiers
SMB/DO-214AA
Features
For surface mounted application
Easy pick and place
Glass passivated junction chip
Low profile package
Built-in strain relief
Hideal for automated placement
Ultrafast recovery time for high efficiency
Low forward voltage, low power loss
High temperature soldering guarateed:
260℃/10 seconds on terminals
Meet MSL level 1, per J-STD-020D,
lead free maximum peak of 260℃
Plastic material used carriers Underwritters
Laboratory Classcification 94V-0
Epitaxial construction
Green compound with suffix "G" on packing
code & prefix "G" on datecode
Mechanical Data

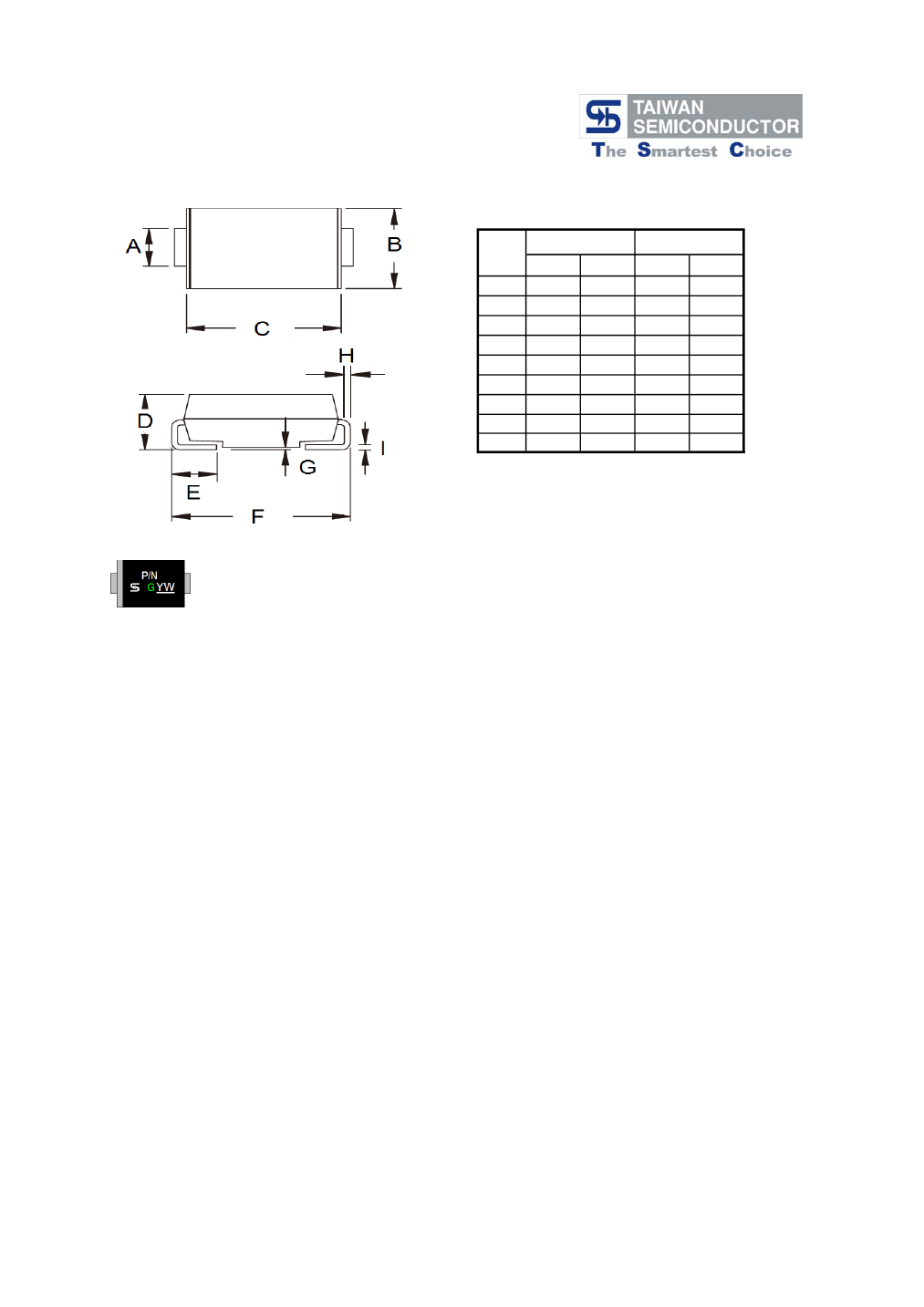

Case: SMB/DO-214AA
Molding Compound meet UL 94V-0 flammability rating
Terminals: Pure tin plated, leads free, solderable
per MIL-STD-750, Method 2026
Polarity: Indicated by cathode band
Weight:0.097 grams
Ordering Information (example)
Part No.
MUR105S
Package
SMB

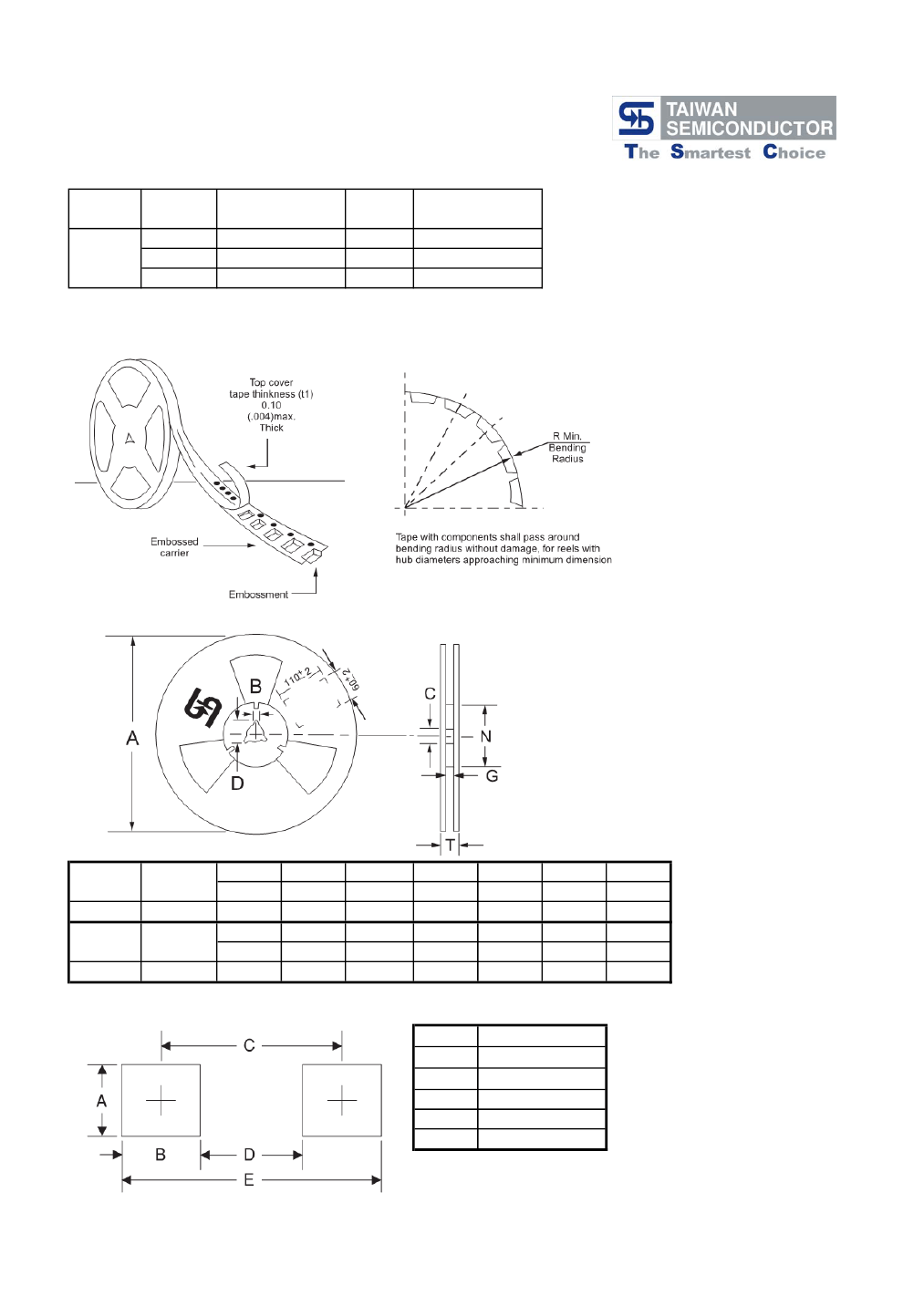

Packing
850 / 7" REEL
Packing
code
R5
Green Compound
Packing code
R5G
Maximum Ratings and Electrical Characteristics
Rating at 25
℃
ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Type Number
Maximum Repetitive Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
Peak Forward Surge Current, 8.3 ms Single Half Sine-wave
Superimposed on Rated Load (JEDEC method )
Maximum Instantaneous Forward Voltage (Note 1) @ 1.0A
@ T
A
=25℃
@ T
A
=150℃
Maximum DC Reverse Current at Rated DC Blocking Voltage
@ T
A
=25
℃
@ T
A
=150
℃
Maximum Reverse Recovery Time (Note 2)
Typical Thermal Resistance (Note 4)
Operating Temperature Range
Storage Temperature Range
Note 1: Pulse Test with PW=300usec, 1% Duty Cycle
Symbol
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
MUR
105S
50
35
50
MUR
110S
100
70
100
MUR
115S
150
105
150
1
40
MUR
120S
200
140
200
MUR
140S
400
280
400
MUR
160S
600
420
600
Units
V
V
V
A
35
A
V
F
0.875
0.710
2
50
25
17
-65 to + 175
-65 to + 175
1.25
1.05
5
150
50
O
V
I
R
T
rr
R
θJL
T
J
T
STG
uA
uA
ns
C/W
O
O
C
C
Note 2: Reverse Recovery Test Condition:I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
Version:F13

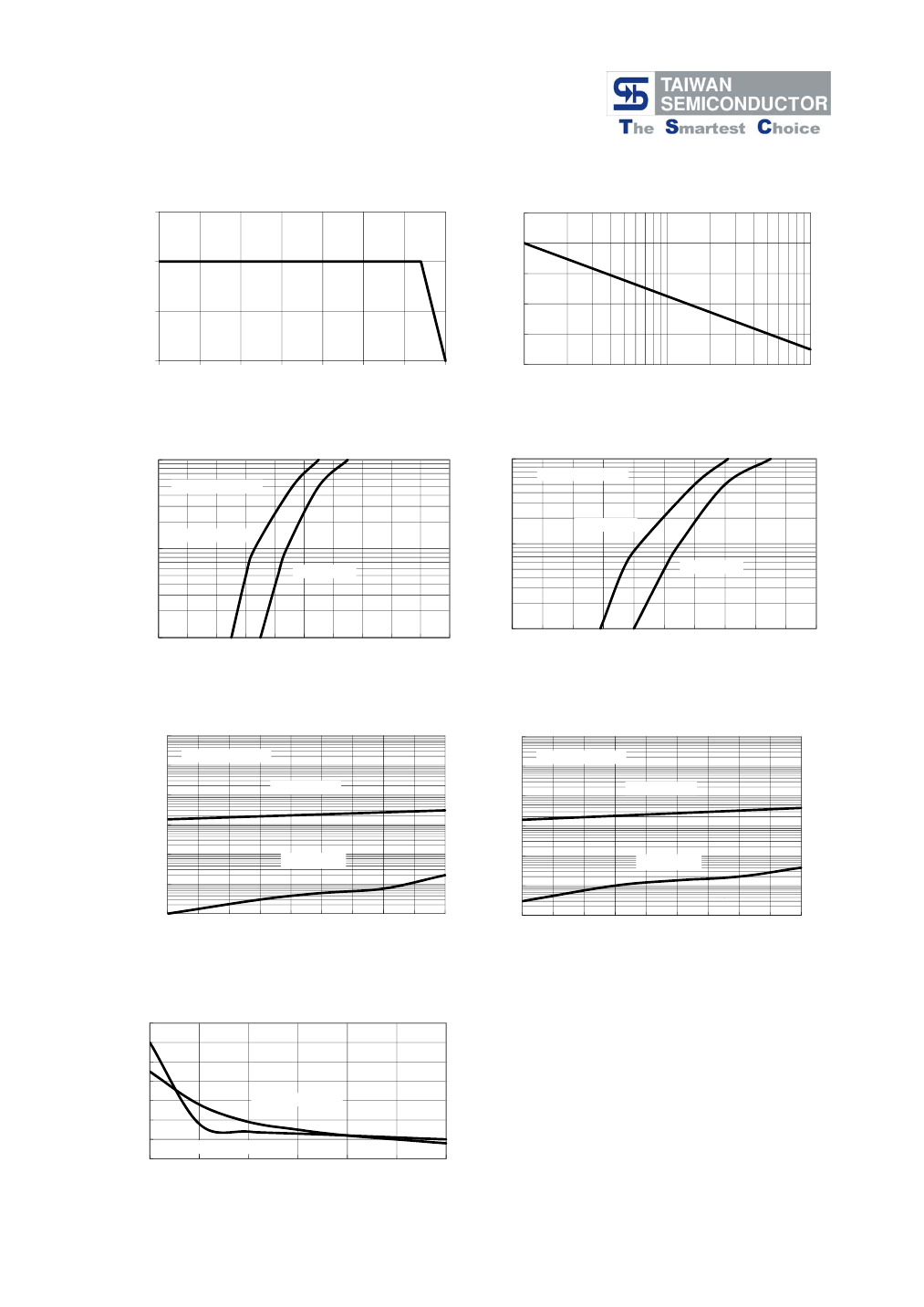

RATINGS AND CHARACTERISTIC CURVES (MUR105S THRU MUR160S)
1.5
AVERAGE FORWARD CURRENT (A)
PEAK FORWARD SURGE CURRENT
(A)
FIG.1 MAXIMUM FORWARD CURRENT DERATING
CURVE
FIG. 2 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
50
40
30
20
10
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
1
0.5
0
0
25
50
75
100
125
150
175
LEAD TEMPERATURE (
o
C)
FIG. 3 TYPICAL FORWARD CHARACTERISTICS
INSTANTANEOUS FORWARD
CURRENT(A)
10
MUR105S-120S
10
FIG. 4 TYPICAL FORWARD CHARACTERISTICS
MUR140S-160S
INSTANTANEOUS FORWARD
CURRENT(A)
1
TA=150℃
TA=25℃
TA=150℃
1
TA=25℃
0.1
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
2
0.1
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
2
FORWARD VOLTAGE (V)
FORWARD VOLTAGE (V)
FIG. 5 TYPICAL REVERSE CHARACTERISTICS
INSTANTANEOUS REVERSE CURRENT
(uA)
1000
INSTANTANEOUS REVERSE
CURRENT (uA)
100
10
1
0.1
TA=25℃
MUR105S-120S
TA=150℃
1000
100
10
1
0.1
0.01
FIG. 6 TYPICAL REVERSE CHARACTERISTICS
MUR140S-160S
TA=150℃
TA=25℃
0.01
0.001
10
20
30
40
50
60
70
80
90
100
PERCENT OF RATED PEAK REVERSE VOLTAGE.(%)
0.001
10
20
30
40
50
60
70
80
90
100
PERCENT OF RATED PEAK REVERSE VOLTAGE.(%)
FIG. 7 TYPICAL JUNCTION CAPACITANCE
70
60
CAPACITANCE (pF)
50
40
30
20
10
0
0
MUR140S-160S
4
8
12
16
20
24
MUR105S-120S
REVERSE VOLTAGE (V)
Version:F13
