M24308/23-25K datasheet, PDF - EEWORLD Datasheet

M24308/23-25K: DescriptionD Subminiature Connector,; CategoryThe connector The connector; File Size6MB，118 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

M24308/23-25K Overview

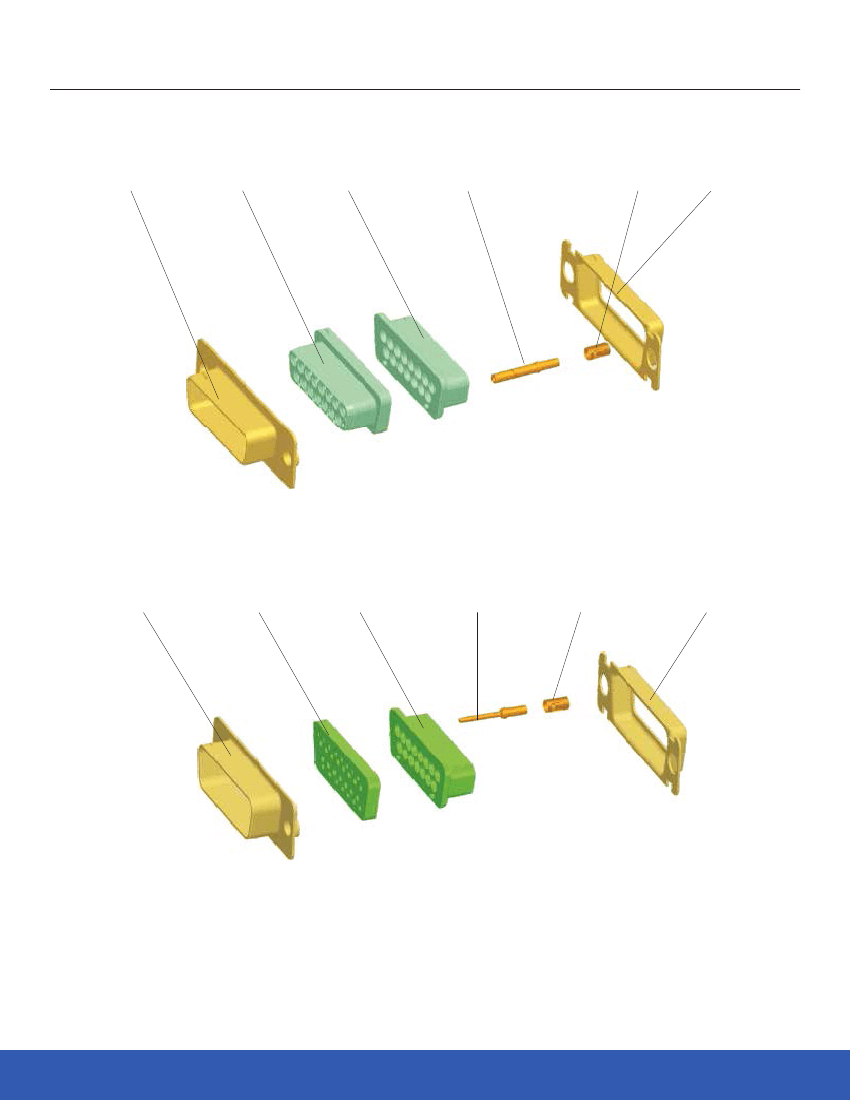

D Subminiature Connector,

Parameter Name	Attribute value
Objectid	7412945868
Reach Compliance Code	unknown
ECCN code	EAR99
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	MALE
contact mode	STAGGERED
Contact resistance	7.3 mΩ
Contact style	RND PIN-SKT
Durability	500 Cycles
empty shell	NO
Filter function	NO
maximum insertion force	17.792 N
Insulation resistance	5000000000 Ω
Insulator color	NATURAL
insulator material	GLASS FILLED POLYESTER
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	JACKSCREW
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
Rated current (power)	7.5 A
Guideline	UL
Shell surface	ZINC NICKEL
Shell material	STEEL
Housing size	1/E
Termination type	SOLDER
Total number of contacts	9
UL Flammability Code	94V-0

Amphenol

Pcd

D-SUB CONNECTORS

12.2018
