25000N series
Professional slide switches
Distinctive features and specifications
UG1410A
K
Professional grade slide switches for PC boards
K
Approved according to UL 1054
K
Wave solderable
Not washable in aqueous process
K
Available with flush, high and side actuator
K
Various actuator lengths
ELECTRICAL SPECIFICATIONS
MATERIALS
E
• Max. current/voltage rating with resistive load :
- silver contacts (A) : 1A 30VDC
- gold plated brass contacts (LD) : 100mA 30VDC
• Minimum load :
- silver contacts (A) : 100mA 10V
- gold plated brass contacts (LD) : 10µA 5VDC - 10mA 50mV
• Initial contact resistance :
- silver contacts (A) : 10mΩ max.
- gold plated brass contacts (LD) : 50mΩ max.
• Insulation resistance : 1.000 MΩ min. at 500VDC
• Dielectric strength :
1.000 Vrms 50 Hz min. between terminals
2.000 Vrms 50 Hz min. between poles
2.000 Vrms 50 Hz min. between terminals and frame
• Electrical life : 10.000 cycles at full load
• Low level or mechanical life : 20.000 cycles
APPROVALS
2A 250VAC
4A 125VAC
• Case : PBT
• Actuator : polyamide, glass
filled
• Cover : polyamide, glass filled
• Contacts
A
: silver
LD
: brass, gold plated
• Terminal seal : epoxy
GENERAL SPECIFICATIONS
Availability
: consult factory for details of approved models.
Marking
: To order switches marked UL, complete the “Options and
Approvals” box of ordering format.
• Operating temperature :
-40°C to +85°C
• Overall length : 14 mm (.551)
• Actuator height (outside case) :
- high : 2,80 mm (.110)
- extra high : 6 mm (.236)
- side : 2,3 mm (.090)
- long side : 6 mm (.236)
• Travel : 4 mm (.157)
The company reserves the right to change specifications without notice.
E-14
www.apem.com
APEM
25000N series
Professional slide switches
Overview
25
N
SERIES
Actuator and terminals
1
Flush or high actuator,
terminal spacing
2,54 (.100)
Flush or high actuator,
terminal spacing
5,08 (.200)
Side actuator, terminal
spacing 2,54 (.100)
Side actuator, terminal
spacing 5,08 (.200)
Number of poles
3
4
Single pole
Double pole
6
9
Electrical functions
ON
ON
-
OFF
ON
ON
Version
N
For all models
4
3
5
Contact materials
A
Silver
LD
Gold plated brass
B
H
H6
Blank
-6
Actuator
Flush
High
Extra high
Side
Long side
Options and approvals
X601
Special contact :
lower rating
E
Other : see following pages.
ABOUT THIS SERIES
On the following pages, you will find successively :
- model structure of switches (including actuator options)
- contact options
Dimensions
: first dimensions are in mm while inches are shown as bracketed numbers.
: please note that not all combinations of above numbers are available.
Refer to the following pages for further information.
NOTICE
Packaging unit
: single pole : 100 pieces - double pole : 50 pieces
APEM
www.apem.com
E-15
25000N series
Professional slide switches
•
Epoxy sealed terminals standard
• 1 and 2 pole configurations
•
UL approved models
: see next page.

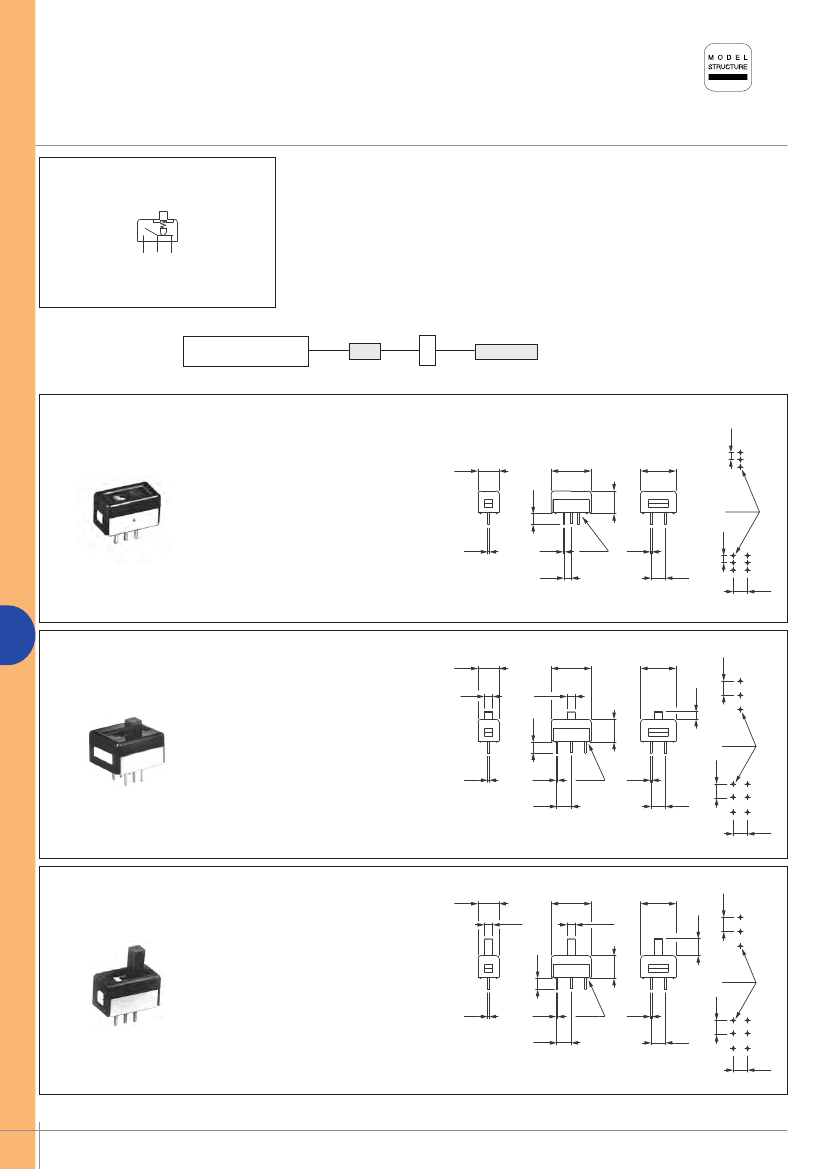

MODEL
STRUCTURE
Flush actuator : 25000NB
Terminal spacing
2,54 (.100)
Single pole
25136N B
25139N B
Double pole
25146N B
25149N B
Terminal spacing
5,08 (.200)
Single pole
25436N B
25439N B
Double pole
25446N B
25449N B
7.50
(.295)
Shown with 2,54 mm terminal spacing
2.54
(.100)
Ø1.10
(.043DIA)
0.60
(.023)
2.54
(.100)
5.08
(.200)
14.10
(.555)
3.80
(.149)
12.50
(.465)
0.60
(.023)
0.50
(.019)
2.54
(.100)
EPOXY
8.10
(.318)
5.08
(.200)
E
High actuator : 25000NH
Terminal spacing
2,54 (.100)
Single pole
25136N H
25139N H
Double pole
25146N H
25149N H
Terminal spacing
5,08 (.200)
Single pole
25436N H
25439N H
Double pole
25446N H
25449N H
3.80
(.149)
2.80
(.110)
3.00
(.118)
3.00
(.118)
0.60
(.023)
8.10
(.318)
0.50
(.019)
5.08
(.200)
EPOXY
0.60
(.023)
5.08
(.200)
5.08
(.200)
5.08
(.200)
Ø1.10
(.043DIA)
7.50
(.295)
Shown with 5,08 mm terminal spacing
14.10
(.555)
12.50
(.465)
5.08
(.200)
Extra high actuator : 25000NH6
Terminal spacing
2,54 (.100)
Single pole
25136N H6
25139N H6
Double pole
25146N H6
25149N H6
Terminal spacing
5,08 (.200)
Single pole
25436N H6
25439N H6
Double pole
25446N H6
25449N H6
3.80
(.149)
6.00
(.236)
Ø1.10
(.043DIA)
0.60
(.023)
5.08
(.200)
5.08
(.200)
3.00
(.118)
3.00
(.118)
0.60
(.023)
0.50
(.019)
5.08
(.200)
EPOXY
8.10
(.318)
5.08
(.200)
7.50
(.295)
Shown with 5,08 mm terminal spacing
14.10
(.555)
12.50
(.465)
5.08
(.200)
E-16
www.apem.com
APEM
25000N series
Professional slide switches

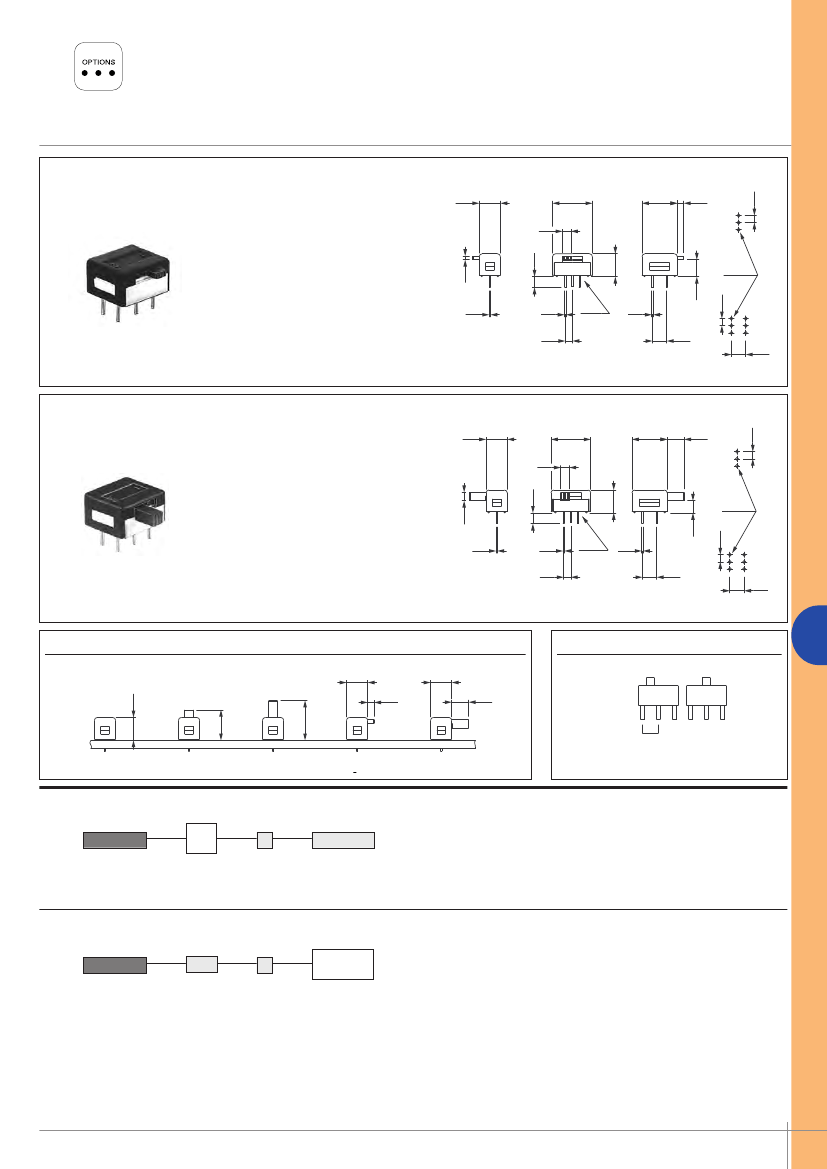

Side actuator : 25000N
Terminal spacing
2,54 (.100)
Single pole
25336N
25339N
Double pole
25346N
25349N
Terminal spacing
5,08 (.200)
Single pole
25536N
25539N
Double pole
25546N
25549N
Shown with 2,54 mm terminal spacing
3.00
(.118)
2.54
(.100)
Ø1.10
(.043DIA)
0.60
(.023)
2.54
(.100)
6.00
(.236)
5.08
(.200)
5.08
(.200)
Ø1.10
(.043DIA)
2.54
(.100)
4.30
(.169)
2.54
(.100)
5.08
(.200)
7.50
(.295)
14.10
(.555)
12.50
(.465)
2.30
(.090)
3.80
(.149)
1.30
(.051)
0.60
(.023)
0.50
(.019)
2.54
(.100)
EPOXY
Long side actuator : 25000N-6
Terminal spacing
2,54 (.100)
Single pole
25336N -6
25339N -6
Double pole
25346N -6
25349N -6
Terminal spacing
5,08 (.200)
Single pole
25536N -6
25539N -6
Double pole
25546N -6
25549N -6
Shown with 2,54 mm terminal spacing
7.50
(.295)
3.00
(.118)
14.10
(.555)
12.50
(.465)
6.00
(.236)
3.80
(.149)
3.00
(.118)
0.60
(.023)
0.50
(.019)
2.54
(.100)
EPOXY
8.10
(.318)
0.60
(.023)
8.10
(.318)
5.08
(.200)
PCB MOUNTING
7.50
(.295)
8.10
(.318)
2.30
(.090)
7.50
(.295)
6.00
(.236)
POSITIONS AND CONNECTIONS
2
1
1
2
2
1
1
2
2
1
1
E
10.80
(.425)
14.10
(.555)
B
H
H6
6
Function 6
Function 9
ON
ON
-
OFF
ON
ON
CONTACT MATERIALS
A
LD
Silver
Brass, gold plated
OPTIONS AND APPROVALS
X601
X693
X693UL
Silver plated brass contacts - Lower rating 3VA 30VDC. Min quantity : 5.000 pieces per model and shipment.
Flame retardant plastic materials
Switches approved and marked UL (silver contacts only)
APEM
www.apem.com
E-17
