251-975-0630G: DescriptionRF SMA Connector, Female, Panel Mount, Cable Mount, Crimp Terminal, Jack; CategoryThe connector The connector; File Size46KB，1 Pages; ManufacturerWinchester Electronics

Download Datasheet Parametric Compare View All

251-975-0630G Overview

RF SMA Connector, Female, Panel Mount, Cable Mount, Crimp Terminal, Jack

251-975-0630G Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	APPLICABLE CABLE: RG-316
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	251
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	18 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	CRIMP
voltage standing wave ratio	1.51
Base Number Matches	1

Preview

Download Datasheet

View All

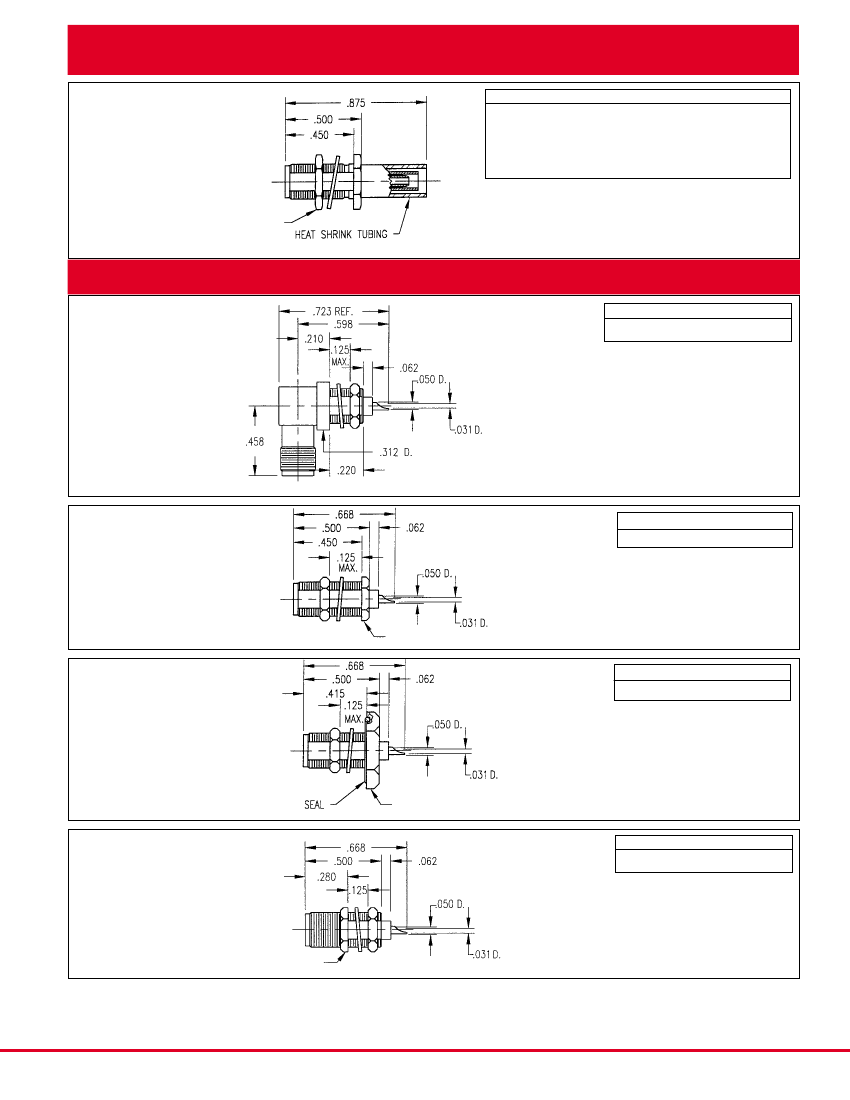

SMA STAINLESS STEEL:

Straight

Bulkhead Jack

Non-Captive

Contact

Crimp Flexible Cable

Part Number

251-975-0630G

251-975-0631G

251-975-1160G

251-975-1161G

Cable

Mounting Hole

RG-316

No. 075

RG-316 double shielded No. 075

RG-303, 141

No. 075

RG-142, 400

No. 075

5/16 HEX TYP

• See page 83 for mounting hole layout.

• See page 108 for cable assembly procedures: No. 9-04

• Part number shown is for gold plated.

• For passivated version change suffix to “P”.

SMA STAINLESS STEEL:

Right Angle

Jack

Bulkhead Mount Receptacle

Part Number

253-075-0000G

Mounting Hole

No. 075

• See page 83 for mounting hole layout.

• Part number shown is for gold plated.

• For passivated version change suffix to “P”.

Straight

Bulkhead Jack

(Rear Mount)

Part Number

Mounting Hole

251-075-0000G

No. 075

• See page 83 for mounting hole layout.

• Part number shown is for gold plated.

• For passivated version change suffix to “P”.

5/16 HEX TYP

Straight

Bulkhead Jack

(Rear Mount)

Part Number

Mounting Hole

251-075-0004G

No. 075

• See page 83 for mounting hole layout.

• Part number shown is for gold plated.

• For passivated version change suffix to “P”.

7/16 HEX TYP

Straight

Bulkhead Jack

(Front Mount)

Part Number

Mounting Hole

251-075-0002G

No. 075

• See page 83 for mounting hole layout.

• Part number shown is for gold plated.

• For passivated version change suffix to “P”.

5/16 HEX TYP

Note: Dimensions shown in inches.

Winchester/Retconn

400 Park Road • Watertown, Connecticut 06795-5000 • Phone: (860) 945-5000 • FAX: (860) 945-3950 • Internet: http://www.litton-wed.com

RF/7
