MCC
Micro Commercial Components
TM
omponents
20736
Marilla
Street Chatsworth
!"#
$
% !"#
2KBP005
THRU
2KBP10
2.0
Amp Glass
Passivated Bridge
Rectifier
50 to 1000 Volts
KBPL
A
Features
•
•
•
•
•
•
Halogen
free available upon request by adding suffix "-HF"
Glass Passivate Die Construction
Epoxy meets UL 94 V-0 flammability rating
Moisture Sensitivity Level 1
Ideal for Printed Circuit Boards
Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates
Compliant. See ordering information)
Maximum Ratings
Operating Temperature: -55 C to +165 C
Storage Temperature: -55 C to +165 C
MCC
Part Number
2KBP005
2KBP01
2KBP02
2KBP04
2KBP06
2KBP08
2KBP10
Maximum
Recurrent
Peak Reverse
Voltage
50V
100V
200V
400V
600V
800V
1000V
I
F(AV)
I
FSM
Maximum
RMS Voltage
35V
70V
140V
280V
420V
560V
700V
2.0A
60A
Maximum DC
Blocking
Voltage
B
50V
100V
200V
400V
600V
800V
1000V
T
a
=
50
C
8.3ms, half sine
I
F
=
2.0A
per
+
AC
-
I
C
Electrical Characteristics @ 25 C Unless Otherwise Specified
Average Forward
Current
Peak Forward Surge
Current
Maximum
Forward
Voltage Drop Per
Element
Maximum DC
Reverse Current At
Rated DC Blocking
Voltage
H
D
G
V
F
1.2V
E
I
R
10
A
0.5mA
T
a
= 25 C
T
a
= 125 C
DIM
A
B
C
D
E
G
H
I
DIMENSIONS
INCHES
MIN
.559
.42
.50
.146
.142
.046
.028
.561
MM
MIN
14.22
10.60
12.7
3.70
3.60
1.17
0.70
14.25
Notes: 1.High Temperature Solder Exemption Applied,See EU Directive Annex Notes 7
MAX
.60
.46
---
.153
.161
.054
.034
---
MAX
15.24
11.68
---
3.90
4.10
1.37
0.90
---
Revision:
C
www.mccsemi.com
1 of 3
2013/10/31
2KBP005~2KBP10
MCC
Micro Commercial Components

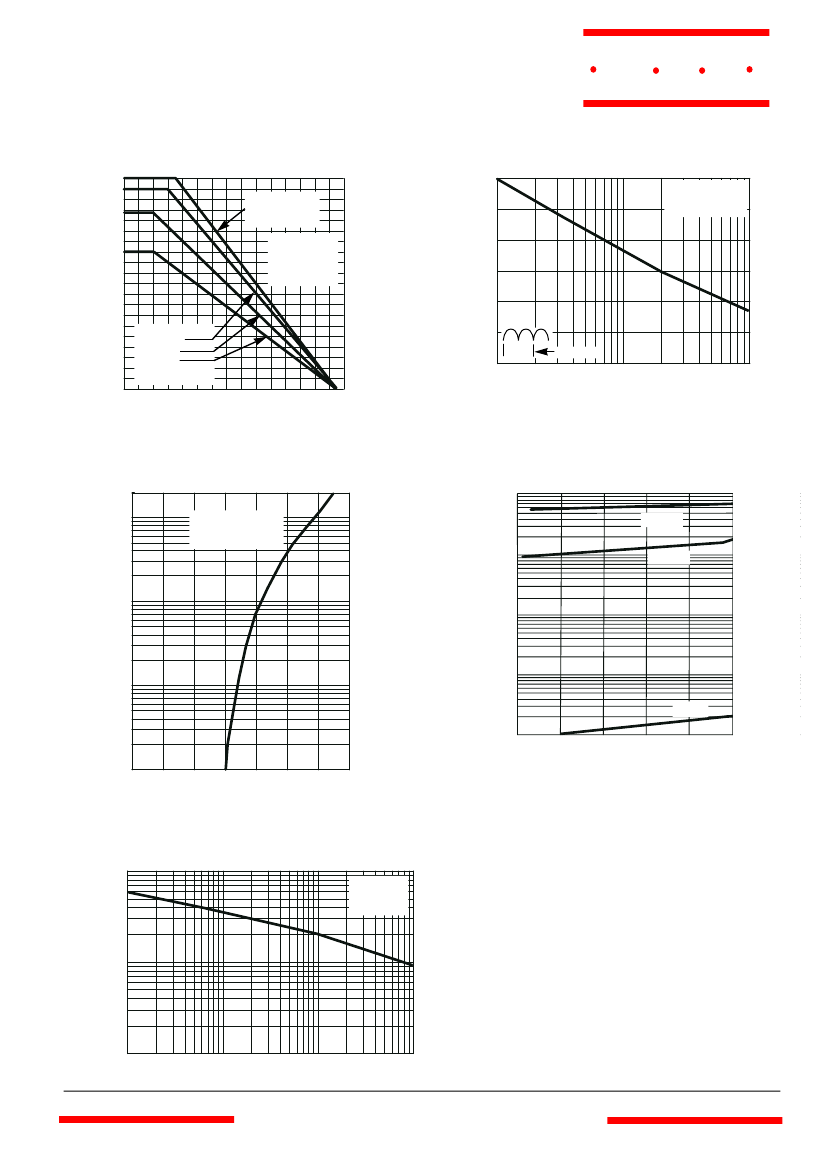

FIG. 2 - MAXIMUM NON-REPETITIVE PEAK
FORWARD SURGE CURRENT PER LEG
TM
FIG. 1 - DERATING CURVE OUTPUT
RECTIFIED CURRENT
60 H
Z
RESISTIVE OR
INDUCTIVE LOAD
AVERAGE FORWARD OUTPUT CURRENT,
AMPERES
PEAK FORWARD SURGE CURRENT,
AMPERES
2.0
60
50
40
30
20
10
1.0 CYCLE
T
J
=150°C
SINGLE SINE-WAVE
(JEDEC Method)
1.5
1.0
P.C.B.
MOUNTED WITH
0.47 x 0.47”
(12 x 12mm)
COPPER PADS
0.5
CAPACITIVE LOAD
Ipk/I
AV
=5.0
Ipk/I
AV
=10
Ipk/I
AV
=20
(PER LEG)
0
100
120
140
160 170
1
10
NUMBER OF CYCLES AT 60 H
Z
100
0
20
40
60
80
AMBIENT TEMPERATURE, °C
FIG. 3 - TYPICAL FORWARD CHARACTERISTICS
PER LEG
INSTANTANEOUS REVERSE CURRENT, MICROAM-
PERES
FIG. 4 - TYPICAL REVERSE LEAKAGE
CHARACTERISTICS PER LEG
20
10
INSTANTANEOUS FORWARD CURRENT,
AMPERES
T
J
=25°C
PULSE WIDTH=300µs
1% DUTY CYCLE
100
T
J
=125°C
10
T
J
=100°C
1
1
0.1
T
J
=25°C
0.1
0.01
0
20
40
60
80
100
0.01
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
PERCENT OF RATED PEAK REVERSE
VOLTAGE, %
INSTANTANEOUS FORWARD VOLTAGE,
VOLTS
FIG. 5 - TYPICAL JUNCTION CAPACITANCE
PER LEG
100
JUNCTION CAPACITANCE, pF
T
J
=25°C
f=1.0 MHz
Vsig=50mVp-p
10
1
0.1
1
10
100
REVERSE VOLTAGE, VOLTS
Revision:
C
www.mccsemi.com
2 of 3
2013/10/31
MCC
Micro Commercial Components
TM
Ordering Information :
Device
Part Number-BP
Note : Adding "-HF" suffix for halogen free, eg. Part Number-BP-HF
Packing
Bulk:
1Kpcs/Box
***IMPORTANT NOTICE***
Micro Commercial Components Corp.
reserves the right to make changes without further notice to any product herein to
make corrections, modifications , enhancements , improvements , or other changes .
Micro Commercial Components
Corp .
does not assume any liability arising out of the application or use of any product described herein; neither does it
convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all
risks of such use and will agree to hold
Micro Commercial Components Corp .
and all the companies whose products are
represented on our website, harmless against all damages.
***LIFE SUPPORT***
MCC's products are not authorized for use as critical components in life support devices or systems without the express written
approval of Micro Commercial Components Corporation.
***CUSTOMER AWARENESS***
Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking
strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages
customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on
our web page cited
below.
Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine
parts, have full traceability, meet MCC's quality standards for handling and storage.
MCC will not provide any warranty
coverage or other assistance for parts bought from Unauthorized Sources.
MCC is committed to combat this global
problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized
distributors.
www.mccsemi.com
Revision:
C
3 of 3
2013/10/31
