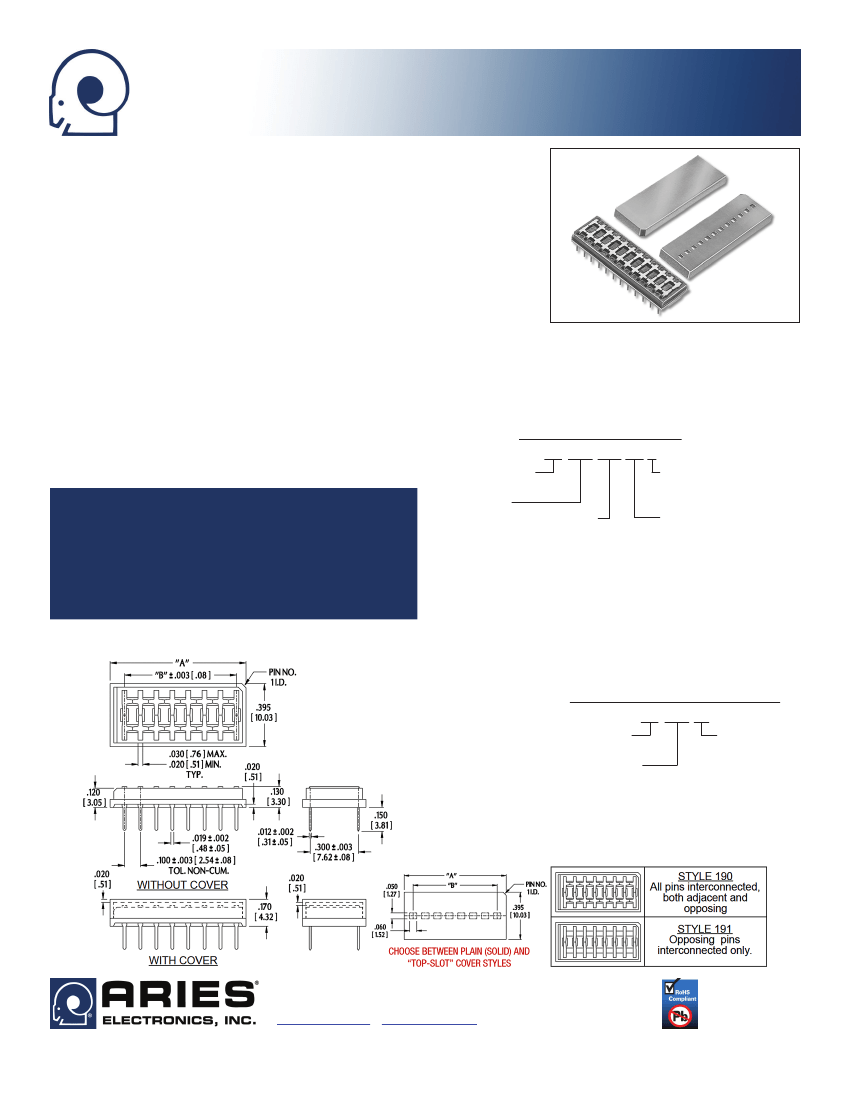

Series 680
Program Header and Cover
FEATURES
• Complete versatility for programming within the unit itself, thus eliminating the need
for DIP switches in many situations.
• Available pre-programmed from Aries, or do-it-yourself using Aries Hand Tool P/N
T-680. Consult Data Sheet 22002 for Programming Tool information.
• Available with plain (solid) or “top-slot” press-on covers. Plain covers protect pro-
grams while “top-slot” covers allow programming of opposing pins through square
openings on top.
GENERAL SPECIFICATIONS
• STANDARD BODY AND COVER: black UL 94V-0 Glass filled 4/6 Nylon
• PINS: Brass 260 3/4-hard, ASTM B-36
CUSTOMIZATION:
In addition to the standard products shown
• PIN PLATING: “-T” 50-150µ [1.27µ] min. matte Sn per ASTM B545-97(2004)
on this page, Aries specializes in custom design and production.
e1 over 50µ [1.27µ] min. Ni per SAE AMS-QQ-N-290B; “-TL” 50-150µ [1.27 -
Special materials, platings, sizes, and configurations can be
furnished, depending on the quantity.
NOTE:
Aries reserves the
3.81µ] min. 60/40 Sn/Pb per SAE AMS-P-81728 over 50µ [1.27µ] min. Ni per
right to change product general specifications without notice.
SAE AMS-QQ-N-290B
• CURRENT RATING: 1 amp
• OPERATING TEMPERATURE: 221°F [105°C]
ORDERING INFORMATION
MOUNTING CONSIDERATIONS
• SUGGESTED PCB HOLE SIZE: 0.032 ±0.002 [0.81±0.05] dia.
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
“A” # PINS PER ROW x 0.100 [2.54] +0.050 [1.27]
“B” (# PINS PER ROW -1) x 0.100 [2.54]
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
XX-680-19X XX X
No. of Pins
4 thru 24
Series
Interconnection Styles
see below
Optional Top Slot = “C”
preassembled to header
Style 191 only
Plating
T = Sn
TL = Sn/Pb
COVER ORDERING INFORMATION
XX-68X-10
No. of Pins
4 thru 24
Cover Series
655 = Plain
658 = Top Slot
Cover No.
Bristol, PA 19007-6810 USA
TEL (215) 781-9956 • FAX (215) 781-9845
WWW.ARIESELEC.COM • INFO@ARIESELEC.COM
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
16005
Rev. AA
