CEDM8001
SURFACE MOUNT SILICON
P-CHANNEL
ENHANCEMENT-MODE
MOSFET
w w w. c e n t r a l s e m i . c o m
DESCRIPTION:
The CENTRAL SEMICONDUCTOR CEDM8001 is
a P-Channel Enhancement-mode silicon MOSFET,
manufactured by the P-Channel DMOS Process,
designed for high speed pulsed amplifier and driver
applications. This MOSFET offers low rDS(ON) and low
theshold voltage.
MARKING CODE: F
COMPLEMENTARY N-CHANNEL: CEDM7001
SOT-883L CASE
APPLICATIONS:
• Load/Power switches
• DC - DC converters
• Battery powered portable equipment
MAXIMUM RATINGS:
(TA=25°C)
Drain-Source Voltage
Gate-Source Voltage
Continuous Drain Current (Steady State)
Continuous Drain Current
Power Dissipation
Operating and Storage Junction Temperature
FEATURES:
• 100mW Power Dissipation
• 0.4mm low package profile
• Low rDS(ON)
• Low threshold voltage
• Logic level compatible
• Small leadless surface mount package
SYMBOL
VDS
VGS
ID
ID
PD
TJ, Tstg
20
10
100
200
100
-65 to +150
UNITS
V
V
mA
mA
mW
°C
ELECTRICAL CHARACTERISTICS:
(TA=25°C unless otherwise noted)
SYMBOL
TEST CONDITIONS
MIN
TYP
IGSSF, IGSSR VGS=10V, VDS=0
IDSS
BVDSS
VGS(th)
rDS(ON)
rDS(ON)
rDS(ON)
gFS
Crss
Ciss
Coss
Qg(tot)
Qgs
Qgd
ton
toff
VDS=20V, VGS=0
VGS=0, ID=100μA
VDS=VGS, ID=250μA
VGS=4.0V, ID=10mA
VGS=2.5V, ID=10mA
VGS=1.5V, ID=1.0mA
VDS=10V, ID=100mA
VDS=3.0V, VGS=0, f=1.0MHz
VDS=3.0V, VGS=0, f=1.0MHz
VDS=3.0V, VGS=0, f=1.0MHz
VDS=10V, VGS=4.5V, ID=100mA
VDS=10V, VGS=4.5V, ID=100mA
VDS=10V, VGS=4.5V, ID=100mA
VDD=3.0V, VGS=2.5V, ID=10mA
VDD=3.0V, VGS=2.5V, ID=10mA
100
15
45
15
0.658
0.158
0.181
35
80
20
0.6
1.9
2.4
MAX
1.0
1.0
1.1
8.0
12
45
UNITS
μA
μA
V
V
Ω
Ω
Ω
mS
pF
pF
pF
nC
nC
nC
ns
ns
R8 (19-September 2014)
CEDM8001
SURFACE MOUNT SILICON
P-CHANNEL
ENHANCEMENT-MODE
MOSFET

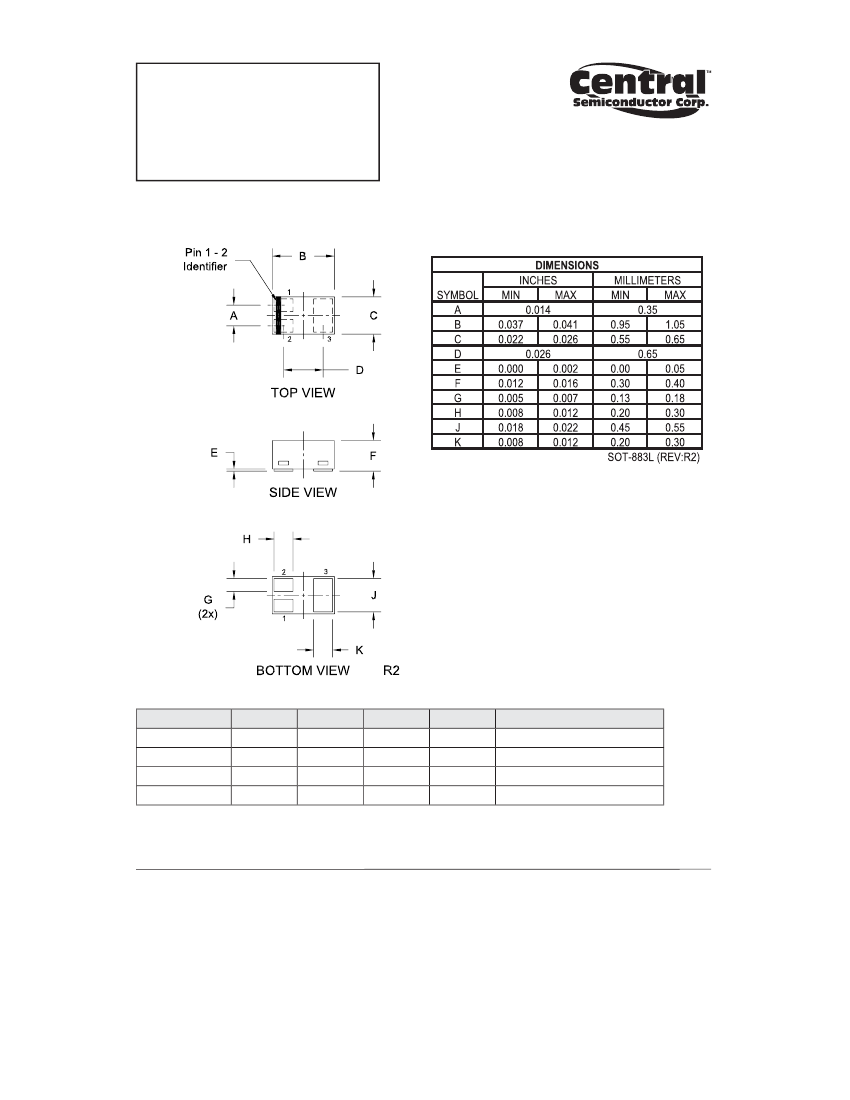

SOT-883L CASE - MECHANICAL OUTLINE
LEAD CODE:
1) Gate
2) Source
3) Drain
MARKING CODE: F
Package Type Options
(all dimensions are maximum - in mm)
Package
SOT-883L
SOT-883VL
SOT-953
SOT-523
Length
1.05
1.05
1.05
1.70
Width
0.65
0.65
1.05
1.70
Height
0.40
0.32
0.50
0.78
PD (mW)
100
100
250
250
Central Item Number
CEDM8001
CEDM8001VL
CMNDM8001
CMUDM8001
R8 (19-September 2014)
w w w. c e n t r a l s e m i . c o m
CEDM8001
SURFACE MOUNT SILICON
P-CHANNEL
ENHANCEMENT-MODE
MOSFET

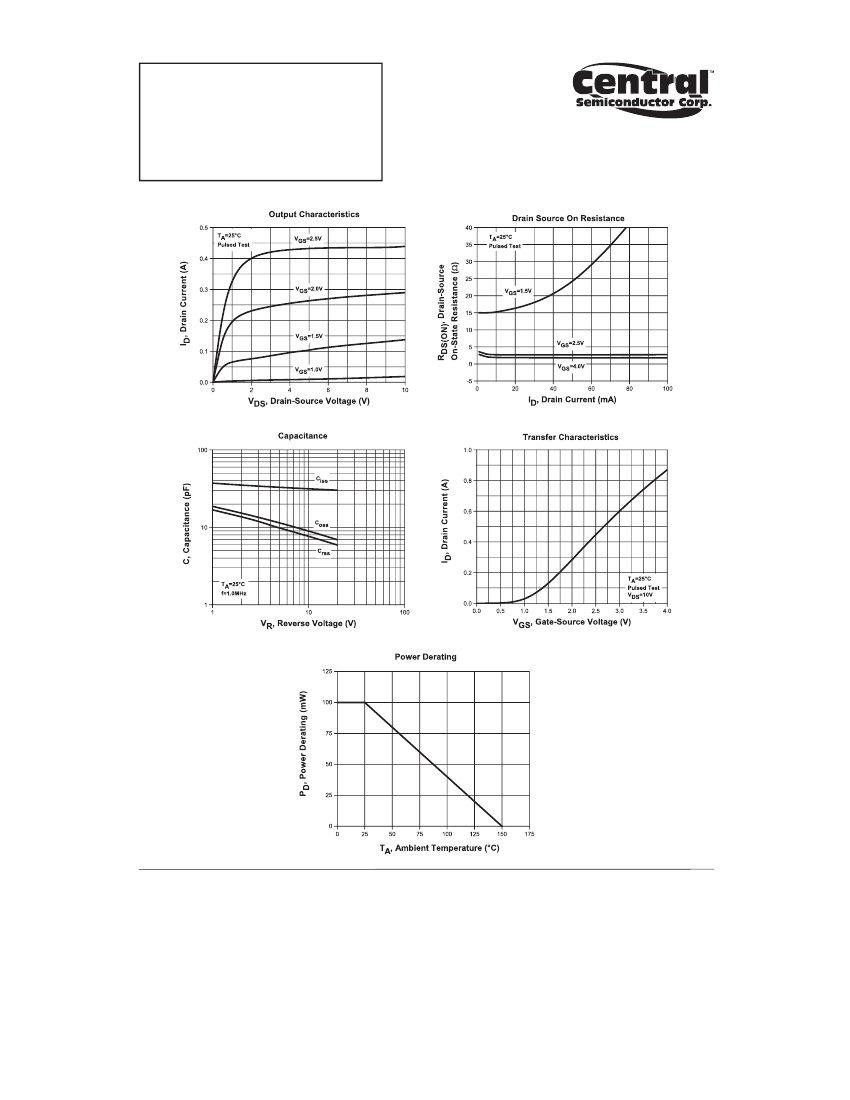

TYPICAL ELECTRICAL CHARACTERISTICS
R8 (19-September 2014)
w w w. c e n t r a l s e m i . c o m
