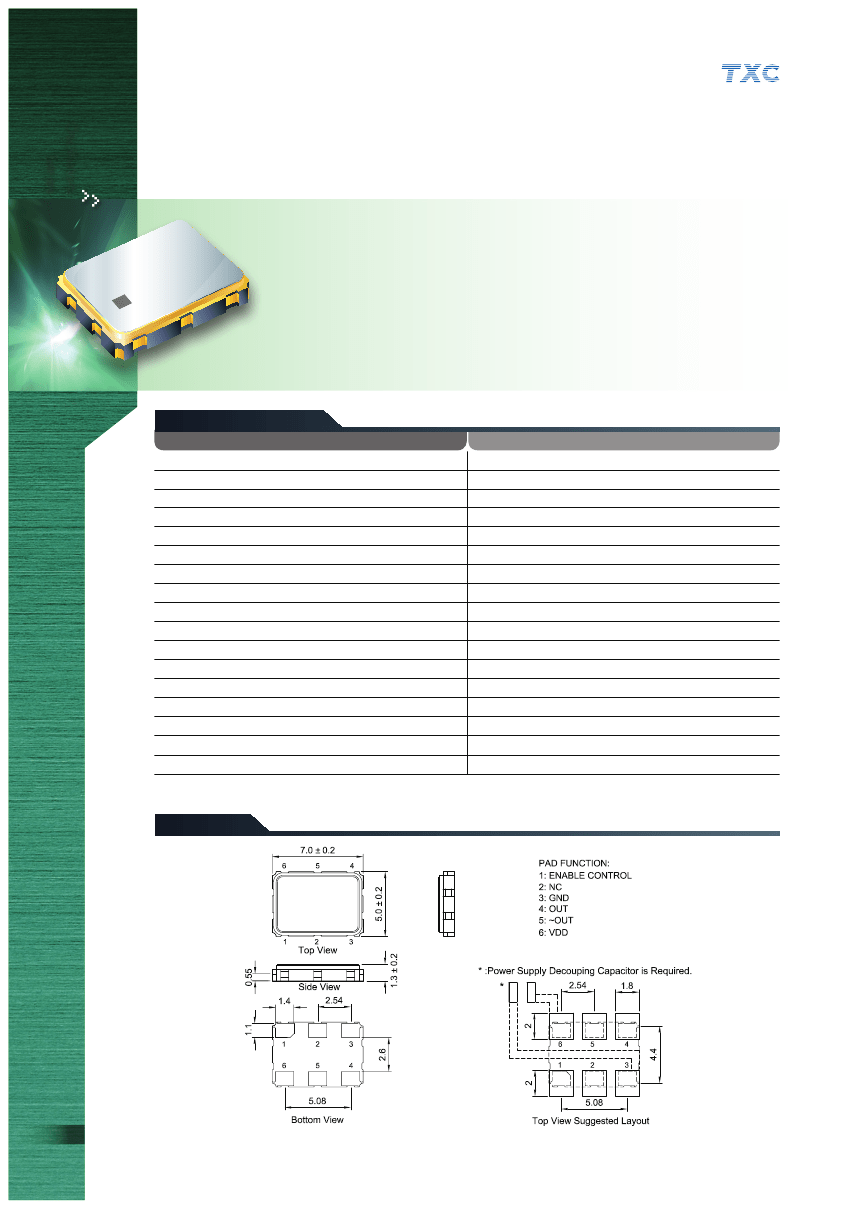

SMD Voltage Controlled
Crystal Oscillators
7.0 x 5.0 x 1.3 mm BN Series
Features
6R
Ae 80
N
C B 22.0
TX
8
．
oltage Controlled Crystal Oscillator (VCXO).
V
．
Fundamental solution.
Think of Frequency Think of
come visit our site http://www.txccorp.com
Oscillatots
Series
Remark : Specification subject to change without prior notice. Please confirm with our sales. http://www.txccorp.com
．
LVDS output ,output frequencies 60 MHz to 200 MHz.
．
Wide pull range and good linearity.
．
Low phase noise, low jitter.
．
Tri-State function available.
．
Applications : SDH / SONET, Ethernet, Base Stations.
．
RoHS Compliant / Pb Free.
Electrical Specifications
Item / Type
Output Type
Output Load
Oscillation Mode
Supply Voltage
Frequency Range
Operating Temperature Range
Storage Temperature Range
Voltage Vol ( Max. ) / Voh ( Min. )
Rise ( Tr ) / Fall ( Tf ) Time ( 20 % ~ 80 % )
Supply Current
Symmetry
Start-up Time
Absolute Pulling Range ( APR ) *
Nominal Control Voltage
Control Voltage Range
Linearity
Phase Jitter ( 12 KHz ~ 20 MHz )
BN
LVDS
100
Ω
Fundamental
3.3 V
60 ~ 200 MHz
-10 ~ + 70
℃
, - 40 ~ + 85
℃
, or specify
- 55 ~ + 125
℃
0.9 V / 1.6 V
1 ns Max.
80 mA
45 ~ 55 %
10 ms Max.
±
50 ppm Min. , or specify
1.65 V
0 ~ 3.3 V
±
10 % Max.
±
10 ps Max.
* APR=(Pull Range) - (Frequency tolerance at 25
℃
, variation over temperature, supply voltage variation, and aging.)
Dimensions
Units: mm
60
