3KP5.0(C)(A)
THRU
3KP220(C)(A)
3000Watts Transient
Voltage Suppressor
5.0 to 220 Volts
R-6
Features
3000 Watts Peak Power
Low Inductance
.
Unidirectional and Bidirectional unit
.
Voltage Range: 5.0 to 220 Volts.
..
UL Recognized File # E331408
Lead Free Finish/RoHS Compliant(Note 1) ("P" Suffix designates
RoHS Compliant. See ordering information)
Mechanical Data
.
.
Epoxy meets UL 94 V-0 flammability rating
Moisture Sensitivity Level 1
Marking : Cathode band(For Uni-directional ) and type number
Suffix "C" of part number denotes Bi-directional unit.
Halogen
free available upon request by adding suffix "-HF"
•
D
Electrical Characteristics @ 25
O
C Unless Otherwise Specified
RATING
Peak Pulse Power Dissipation on
10/1000us waveform (Note
2,FIG.1)
SYMBOL
VALUE
UNITS
P
PPM
Minimum
3000
Watts
A
Cathode
B
Steady State Power Dissipation at
TL = 75
o
C , Lead lengths.375",
(9.5mm) (Note
3)
P
M(AV)
8
Watts
D
Operating junction and Storage
Temperature Range
P
,
T
STG
J
-55 to
+ 175
o
C
C
Notes :
1.High Temperature Solder Exemption Applied, see EU Directive Annex 7.
2.Non-repetitive current pulse , per Fig. 3 and derated above T
A
= 25 per Fig. 2 .
3.Mounted on Copper Pad area of 1.6¡Á1.6" (40¡Á40mm) per Fig. 5.
DIM
A
B
C
D
DIMENSIONS
INCHES
MIN
.340
.340
.048
1.000
MM
MIN
8.60
8.60
1.20
25.40
MAX
.360
.360
.052
---
MAX
9.10
9.10
1.30
---
NOTE
Revision:
C
www.mccsemi.com
1 of 4
2013/07/18
MCC
3KP Series
REVERSE
BREAKDOWN BREAKDOWN
TEST
STAND-
VOLTAGE
VOLTAGE
PART NUMBER
CURRENT
OFF
V
BR
(V)
V
BR
(V)
I
T
(mA)
VOLTAGE
MIN.@I
T
MAX.@I
T
UNI-POLAR
BI-POLAR
V
RWM
(V)
3KP5.0A
3KP5.0CA
5.0
6.40
7.00
50
3KP6.0A
3KP6.0CA
6.0
6.67
7.37
50
3KP6.5A
3KP6.5CA
6.5
7.22
7.98
50
3KP7.0A
3KP7.0CA
7.0
7.78
8.60
50
3KP7.5A
3KP7.5CA
7.5
8.33
9.21
5
3KP8.0A
3KP8.0CA
8.0
8.89
9.83
5
3KP8.5A
3KP8.5CA
8.5
9.44
10.40
5
3KP9.0A
3KP9.0CA
9.0
10.00
11.10
5
3KP10A
3KP10CA
10.0
11.10
12.30
5
3KP11A
3KP11CA
11.0
12.20
13.50
5
3KP12A
3KP12CA
12.0
13.30
14.70
5
3KP13A
3KP13CA
13.0
14.40
15.90
5
3KP14A
3KP14CA
14.0
15.60
17.20
5
3KP15A
3KP15CA
15.0
16.70
18.50
5
3KP16A
3KP16CA
16.0
17.80
19.70
5
3KP17A
3KP17CA
17.0
18.90
20.90
5
3KP18A
3KP18CA
18.0
20.00
22.10
5
3KP20A
3KP20CA
20.0
22.20
24.50
5
3KP22A
3KP22CA
22.0
24.40
26.90
5
3KP24A
3KP24CA
24.0
26.70
29.50
5
3KP26A
3KP26CA
26.0
28.90
31.90
5
3KP28A
3KP28CA
28.0
31.10
34.40
5
3KP30A
3KP30CA
30.0
33.30
36.80
5
3KP33A
3KP33CA
33.0
36.70
40.60
5
3KP36A
3KP36CA
36.0
40.00
44.20
5
3KP40A
3KP40CA
40.0
44.40
49.10
5
3KP43A
3KP43CA
43.0
47.80
52.80
5
3KP45A
3KP45CA
45.0
50.00
55.30
5
3KP48A
3KP48CA
48.0
53.30
58.90
5
3KP51A
3KP51CA
51.0
56.70
62.70
5
3KP54A
3KP54CA
54.0
60.00
66.30
5
3KP58A
3KP58CA
58.0
64.40
71.20
5
3KP60A
3KP60CA
60.0
66.70
73.70
5
3KP64A
3KP64CA
64.0
71.10
78.60
5
3KP70A
3KP70CA
70.0
77.80
86.00
5
3KP75A
3KP75CA
75.0
83.30
92.10
5
3KP78A
3KP78CA
78.0
86.70
95.80
5
3KP85A
3KP85CA
85.0
94.40
104.00
5
3KP90A
3KP90CA
90.0
100.00
111.00
5
3KP100A
3KP100CA
100.0
111.00
123.00
5
3KP110A
3KP110CA
110.0
122.00
135.00
5
3KP120A
3KP120CA
120.0
133.00
147.00
5
3KP130A
3KP130CA
130.0
144.00
159.00
5
3KP150A
3KP150CA
150.0
167.00
185.00
5
3KP160A
3KP160CA
160.0
178.00
197.00
5
3KP170A
3KP170CA
170.0
189.00
209.00
5
3KP180A
3KP180CA
180.0
200.00
221.00
5
3KP190A
3KP190CA
190.0
211.00
233.00
5
3KP200A
3KP200CA
200.0
222.00
246.00
5
3KP210A
3KP210CA
210.0
233.00
258.00
5
3KP220A
3KP220CA
220.0
244.00
270.00
5
For bidirectional type having Vrwm of 10 volts and less, the IR limit is double.
For parts without A , the V is + 10%
BR
Micro Commercial Components
TM
3KP
MAXIMUM
CLAMPING
VOLTAGE
@Ipp Vc(V)
9.2
10.3
11.2
12.0
12.9
13.6
14.4
15.4
17.0
18.2
19.9
21.5
23.2
24.4
26.0
27.6
29.2
32.4
35.5
38.9
42.1
45.4
48.4
53.3
58.1
64.5
69.4
72.7
77.4
82.4
87.1
93.6
96.8
103.0
113.0
121.0
126.0
137.0
146.0
162.0
177.0
193.0
209.0
243.0
259.0
275.0
289.0
310.0
329.2
349.5
371.1
REVERSE
PEAK
LEAKAGE
PULSE
CURRENT @ V
RWM
I
R
(µ
Ipp (A)
A)
326.1
291.3
267.9
250.0
232.6
220.6
208.3
194.8
176.5
164.8
150.8
139.5
129.3
123.0
115.4
108.7
102.7
92.6
84.5
77.1
71.3
66.1
62.0
56.3
51.6
46.5
43.2
41.3
38.8
36.4
34.4
32.1
31.0
29.1
26.5
24.8
23.8
21.9
20.5
18.5
16.9
15.5
14.4
12.3
11.6
10.9
10.4
9.7
9.1
8.6
8.1
5000
5000
2000
1000
250
150
50
20
15
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
Revision: C
www.mccsemi.com
2 of 4
2013/07/18
3KP Series

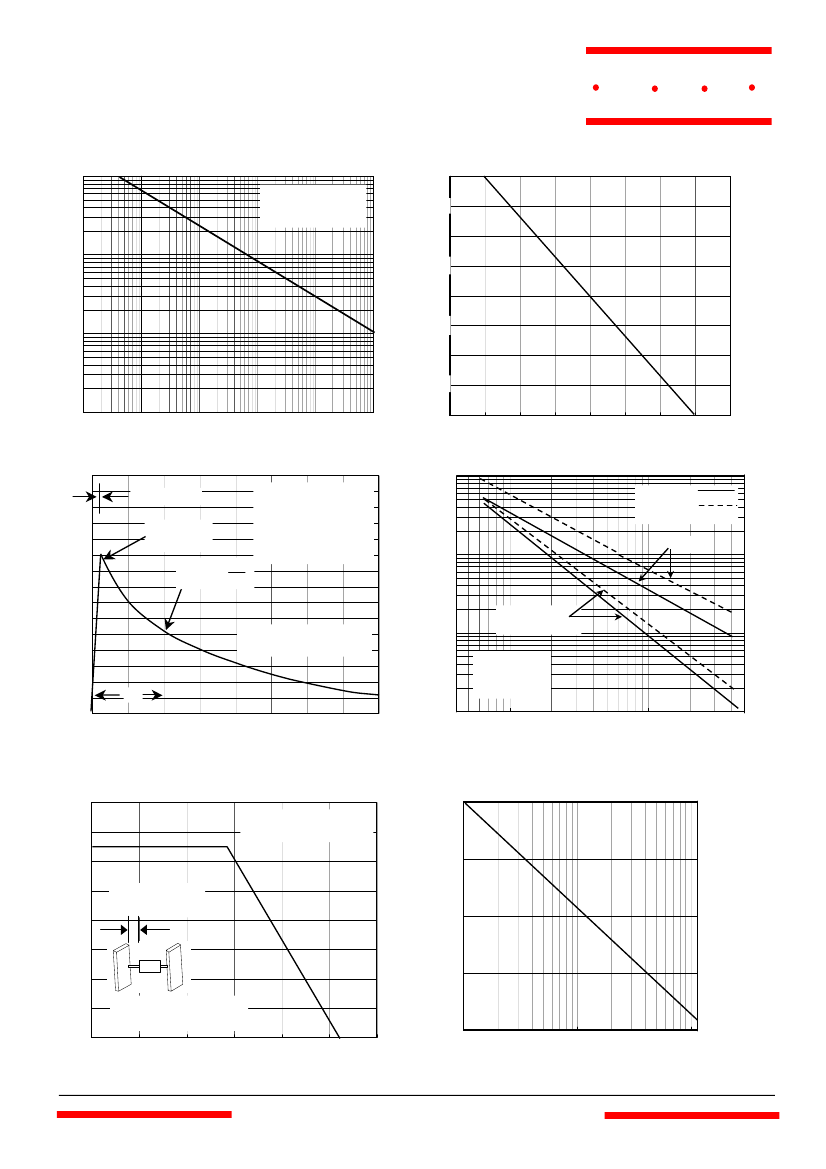

RATINGS AND CHARACTERISTIC CURVES (TA=25 C unless otherwise noted)
Fig. 1 - Peak Pulse Power Rating Curve
100
Non-repetitive pulse
waveform shown in
Fig.3 T
A
= 25°C
100
87.5
75
o
MCC
TM
Micro Commercial Components
Fig.2 - Pulse Derating Curve
P
PPM
-Peak Pulse Power (kW)
P
PPM
-Peak Pulse Power (kW)
0.1µs
1.0µs
10µs
100µs
1.0ms
10ms
10
62.5
50
37.5
25
12.5
0
0
25
50
75
100
125
150
175
200
1
0.1
t
d
- Pulse Width (sec.)
Fig.3 - Pulse Waveform
150
t
r
= 10µsec.
TA - Ambient Temperatur(°C)
Fig. 4 - Typical Junction Capacitance
10000
T
J
= 25°C
Pulse Width(td)is defined
as the point where the
peak current decays to
50% of I
PPM
10000
Unidirectional
Bidirectional
I
PPM
- Peak Pulse Current,% I
RSM
100
Half Value- I
PPM
2
1000
C
J
- Capacitance
Peak Value
I
PPM
V
R
= 0
1000
50
10/1000µsec.Waveform
100
as defined by R.E.A.
V
R
= Rated
Stand-off Voltage
100
f = 1MHz
Vsig = 50mVp-p
T
J =
25°C
td
0
0
1.0
2.0
10
3.0
14.0
10
5
10
10
100
500
1000
t - Time(ms)
VWM - Reverse Stand-Off Voltage (V)
Fig. 5 - Steady State Power Derating Curve
8
300
Fig.6 - Maximum Non-repetitive Forward Surge current
I
FSM
,Peak Forward Surge Currnet (A)
P
PM(AV)
,Steady State Power Dissipation (W)
60Hz
Resistive or Inductive Load
6
0.375" (9.5mm)
Lead Lengths
4
250
200
2
1.6x1.6x0.040"(40x40x1mm)
Copper Heat Sinks
150
100
0
0
0.2
0.4
0.6
0.8
1
1.2
1
10
100
1000
T
L
- Lead Temperature (°C)
Number of Cycles at 60 H
Z
Revision: C
www.mccsemi.com
3 of 4
2013/07/18
MCC
Micro Commercial Components
TM
Ordering Information :
Device
Part Number-TP
Part Number-AP
Part Number-BP
Note : Adding "-HF" suffix for halogen free, eg. Part Number-TP-HF
Packing
Tape&Reel:
500pcs/Reel
Ammo Packing:
450pcs/Ammo
Box
Bulk:
4.8Kpcs/Carton
