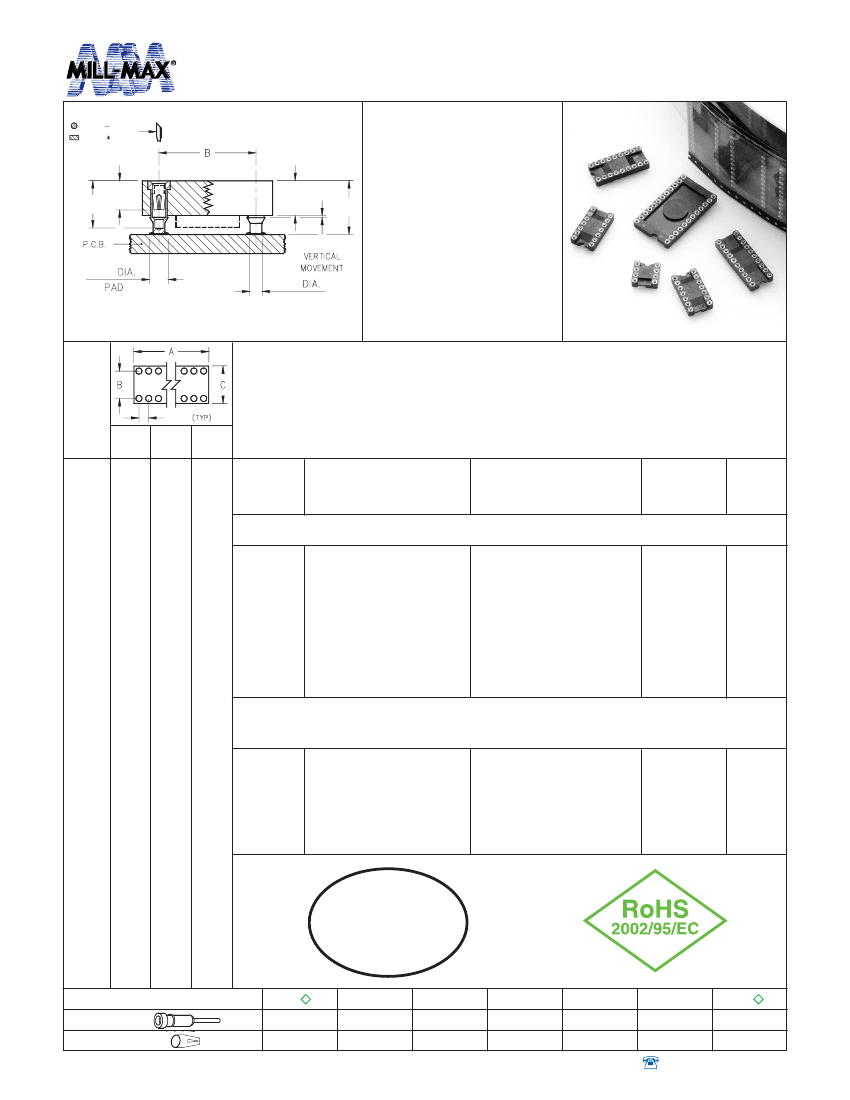

DUAL-IN-LINE SOCKETS
Surface Mount, Auto Placement, Stub Tail
Closed Frame
0,38
0,25
0,64
0,46
Series 214
3,76
2,44
2,79
4,22
0,20
1,5
0,97
•
Closed frame insulator is
vision system compatible.
•
High-temp Nylon 46
insulator, suitable for
infra-red and vapor phase
soldering.
•
Unique floating contacts
compensate for unevenly
screened solder paste.
•
Available packaged in
tubes or on tape & reel
per EIA-481.
•
Uses Mill-Max #1434 pin.
Total number
of pins
Ordering Information
2,54
A
B
C
QTY PER
TUBE
TUBE PACKAGING
TAPE & REEL PACKAGING TAPE WIDTH QTY PER
(mm)
REEL
VACUUM PAD TOP SURFACE ONLY
6
8
14
16
18
20
7,6
10,1
17,7
20,3
22,8
25,3
7,62 10,1
7,62 10,1
7,62 10,1
7,62 10,1
7,62 10,1
7,62 10,1
67
50
28
25
22
20
214-XX-306-01-670800
214-XX-308-01-670800
214-XX-314-01-670800
214-XX-316-01-670800
214-XX-318-01-670800
214-XX-320-01-670800
214-XX-306-01-670799
214-XX-308-01-670799
214-XX-314-01-670799
214-XX-316-01-670799
214-XX-318-01-670799
214-XX-320-01-670799
16
16
32
32
44
44
750
1000
750
750
750
750
VACUUM PAD TOP AND BOTTOM
24
28
32
40
30,5 15,24 17,7
35,5 15,24 17,7
40,6 15,24 17,7
50,8 15,24 17,7
16
14
12
10
214-XX-624-01-670800
214-XX-628-01-670800
214-XX-632-01-670800
214-XX-640-01-670800
214-XX-624-01-670799
214-XX-628-01-670799
214-XX-632-01-670799
NOT AVAILABLE
44
56
56
400
400
400
XX= Plating Code
See Below
SPECIFY PLATING CODE XX=
13
0,25µm Au
0,76µm Au
91
10µ” Au
93
30µ” Au
99
5,08µm Sn/Pb
41
200µ” Sn
10µ” Au
43
200µ” Sn
30µ” Au
44
5,08µm Sn
5,08µm Sn
Sleeve (Pin)
Contact (Clip)
200µ” Sn/Pb 200µ” Sn/Pb
5,08µm Sn/Pb
