2231-T039 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> 2231-T039

2231-T039: DescriptionVariable Inductor, Shielded, ROHS COMPLIANT; CategoryPassive components inductor; File Size113KB，1 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric View All

2231-T039 Overview

Variable Inductor, Shielded, ROHS COMPLIANT

2231-T039 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
ECCN code	EAR99
Inductor Applications	RF INDUCTOR
Inductor type	VARIABLE INDUCTOR
Manufacturer's serial number	QU-7
Number of functions	1
Number of terminals	5
Shape/Size Description	PCB MOUNT, VERTICAL ADJUSTER
shield	YES
surface mount	NO
Terminal location	RADIAL
Terminal shape	WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

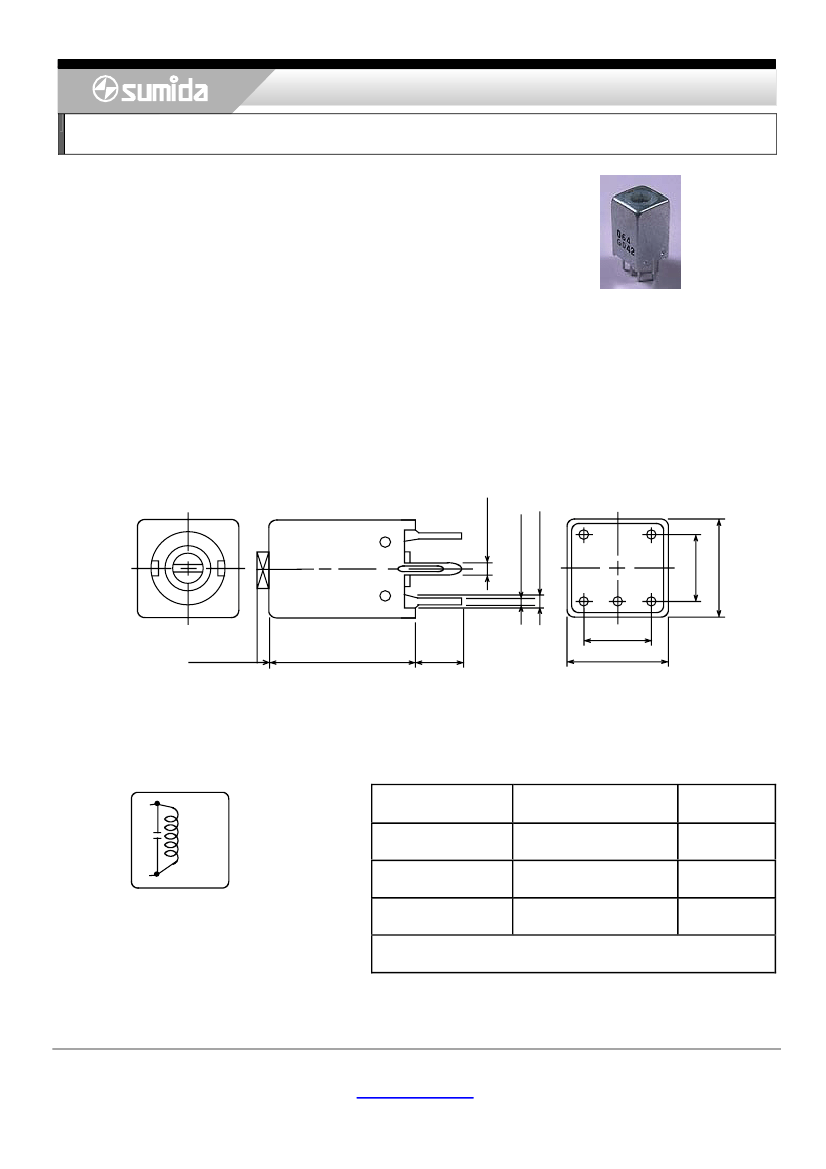

RF COILS < Pin Type: QU Series>

Type: QU-7

◆

Product Description

・7.8×7.6mm

Max.(L×W), 12.5mm Max. Height.

・Inductance:0.1~25µH

Max.

・Operating

frequency: 30MHz Max.

・In

addition to the reference versions of parameters shown here,

custom designs are available to meet your exact requirements

◆

Feature

・Variable

shielded type.

・Internally

assembled condenser is available.

・Ideally

used in quadrature detector coil.

・RoHS

Compliance

◆

Dimensions (mm)

1.0±0.2

φ0.5±0.1

φ0.95 Max.

4.5±0.2

Core out

1.0 Max.

12.5 Max.

±0.5

3.0

4.5±0.2

7.5±0.3

＊

Dimension does not include solder used on coil.

＊

Pin pitch should be measured at the root of terminal.

◆

Connection (Bottom View)

③

②

①

◆

Specification

(Part No. 2231-T039)

④

Item

Turning frequency

(1-3)

10.7MHz±1% Variable

30 Min.

82pF±10%

Measuring

Conditions

⑥

Unloaded Qu

Capacity (Int.)

10.7MHz

“S”is

winding start.

Ext. stray capacity 5pF between (1-3) at measuring.

Please refer to the sales offices on our website for a representative near you

www.sumida.com

7.3±0.3

1/1
