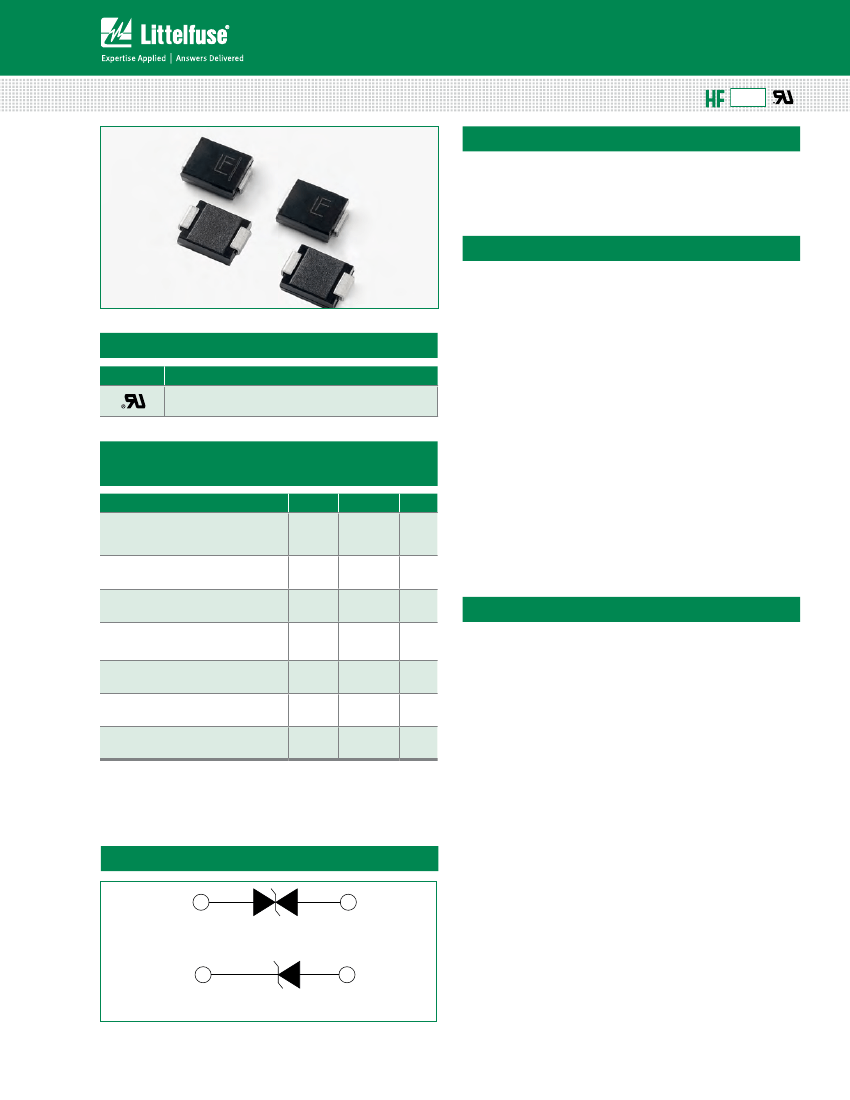

Surface Mount – 3000W > SMDJ-HR series
Transient Voltage Suppression Diodes
SMDJ-HR Series
Uni-directional
RoHS
TVS Diode Arrays
(SPA
™
Family of Products)
Bi-directional
Description
The SMDJ-HR High Reliability series is designed
specifically to protect sensitive electronic equipment from
voltage transients induced by lightning and other transient
voltage events.
Features
• Low incremental surge
resistance
• Typical I
R
less than 2µA
above 12V
• High temperature
soldering guaranteed:
260°C/40 seconds at
x (T
J
- 25))
terminals
(αT:Temperature Coefficient)
• Plastic package has
• Glass passivated chip
underwriters laboratory
junction
flammability 94V-O
• 3000W peak pulse power
• eet MSL level1, per
M
capability at 10/1000μs
J-STD-020, LF maximun
waveform, repetition rate
peak of 260
°
C
(duty cycles):0.01%
• Matte tin lead–free plated
• Fast response time:
• Halogen free and RoHS
typically less than 1.0ps
from 0V to BV min
compliant
• Excellent clamping
capability
• For surface mounted
applications in order to
optimize board space
• Low profile package
• Built-in strain relief
•
V
BR
@T
J
= V
BR
@25°C x (1+αT
Applications
TVS devices are ideal for the protection of I/O Interfaces,
V
CC
bus and other vulnerable circuits used in Telecom,
Computer, Industrial and Consumer electronic applications.
Agency Approvals
AGENCY
AGENCY FILE NUMBER
E230531
Maximum Ratings and Thermal Characteristics
(T
A
=25
O
C unless otherwise noted)
Parameter
Peak Pulse Power Dissipation at
T
A
=25ºC by 10/1000µs waveform
(Fig.1)(Note 1), (Note 2)
Power Dissipation on infinite heat
sink at T
A
=50
O
C
Peak Forward Surge Current, 8.3ms
Single Half Sine Wave (Note 3)
Maximum Instantaneous Forward
Voltage at 100A for Unidirectional
only
Operating Junction and Storage
Temperature Range
Typical Thermal Resistance Junction
to Lead
Typical Thermal Resistance Junction
to Ambient
Symbol
P
PPM
P
M(AV)
I
FSM
V
F
T
J
, T
STG
R
uJL
R
uJA
Value
3000
6.5
300
3.5
-55 to 150
15
75
Unit
W
W
A
V
°C
°C/W
°C/W
Notes:
1. Non-repetitive current pulse , per Fig. 3 and derated above T
A
= 25
O
C per Fig. 2.
2. Mounted on copper pad area of 0.31x0.31” (8.0 x 8.0mm) to each terminal.
3. Measured on 8.3ms single half sine wave or equivalent square wave for unidirectional
device only, duty cycle=4 per minute maximum.
Functional Diagram
Bi-directional
Cathode
Uni-directional
Anode
SMDJ-HR Series
1
55
©2013 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 11/18/13
Surface Mount – 3000W > SMDJ-HR series
Transient Voltage Suppression Diodes
Electrical Characteristics
Part
Number
(Uni)
SMDJ5.0A-HR
SMDJ6.0A-HR
SMDJ6.5A-HR
SMDJ7
.0A-HR
SMDJ7
.5A-HR
SMDJ8.0A-HR
SMDJ8.5A-HR
SMDJ9.0A-HR
SMDJ10A-HR
SMDJ11A-HR
SMDJ12A-HR
SMDJ13A-HR
SMDJ14A-HR
SMDJ15A-HR
SMDJ16A-HR
SMDJ17A-HR
SMDJ18A-HR
SMDJ20A-HR
SMDJ22A-HR
SMDJ24A-HR
SMDJ26A-HR
SMDJ28A-HR
SMDJ30A-HR
SMDJ33A-HR
SMDJ36A-HR
SMDJ40A-HR
SMDJ43A-HR
SMDJ45A-HR
SMDJ48A-HR
SMDJ51A-HR
SMDJ54A-HR
SMDJ58A-HR
SMDJ60A-HR
SMDJ64A-HR
SMDJ70A-HR
SMDJ75A-HR
SMDJ78A-HR
SMDJ85A-HR
SMDJ90A-HR
SMDJ100A-HR
SMDJ110A-HR
SMDJ120A-HR
SMDJ130A-HR
Note:
1. For bidirectional type having V
R
of 10 volts and less, the I
R
limit is double.
2. 100% High Temperature Storage Life test and Reflow Simulation.
3. 100% HTRB(High Temperature Reverse Bias). For Unidirectional, 150C/100%VR/96hours,
for Bidirectional, 150C/100%VR/192hrs(96hours for each direction for Bidirectional).
4. Each lot of parts will pass group B test requirement.
Part
Number
(Bi)
Reverse
TVS
Marking
Arrays
(SPA
™
Family
Test
Products)
Diode
Stand off Breakdown Current Maximum
of
Clamping
Voltage V
UNI
RDE
RDG
RDK
PDM
PDP
PDR
PDT
PDV
PDX
PDZ
PEE
PEG
PEK
PEM
PEP
PER
PET
PEV
PEX
PEZ
PFE
PFG
PFK
PFM
PFP
PFR
PFT
PFV
PFX
PFZ
RGE
PGG
PGK
PGM
PGP
PGR
PGT
PGV
PGX
PGZ
PHE
PHG
PHK
BI
DDE
DDG
DDK
DDM
DDP
DDR
DDT
DDV
DDX
DDZ
DEE
DEG
DEK
DEM
DEP
DER
DET
DEV
DEX
DEZ
DFE
DFG
DFK
DFM
DFP
DFR
DFT
FVH
FXH
FZH
GEH
GGH
GKH
GMH
GPH
GRH
GTH
GVH
GXH
GZH
HEH
HGH
HKH
Voltage
V
R
(Volts)
5.0
6.0
6.5
7
.0
7
.5
8.0
8.5
9.0
10.0
11.0
12.0
13.0
14.0
15.0
16.0
17
.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
33.0
36.0
40.0
43.0
45.0
48.0
51.0
54.0
58.0
60.0
64.0
70.0
75.0
78.0
85.0
90.0
100.0
110.0
120.0
130.0
(Volts) @ I
T
BR
MIN
6.40
6.67
7
.22
7
.78
8.33
8.89
9.44
10.00
11.10
12.20
13.30
14.40
15.60
16.70
17
.80
18.90
20.00
22.20
24.40
26.70
28.90
31.10
33.30
36.70
40.00
44.40
47
.80
50.00
53.30
56.70
60.00
64.40
66.70
71.10
77
.80
83.30
86.70
94.40
100.00
111.00
122.00
133.00
144.00
MAX
7
.00
7
.37
7
.98
8.60
9.21
9.83
10.40
11.10
12.30
13.50
14.70
15.90
17
.20
18.50
19.70
20.90
22.10
24.50
26.90
29.50
31.90
34.40
36.80
40.60
44.20
49.10
52.80
55.30
58.90
62.70
66.30
71.20
73.70
78.60
86.00
92.10
95.80
104.00
111.00
123.00
135.00
147
.00
159.00
I
T
(mA)
10
10
10
10
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Voltage V
C
@ I
pp
(V)
9.2
10.3
11.2
12.0
12.9
13.6
14.4
15.4
17
.0
18.2
19.9
21.5
23.2
24.4
26.0
27
.6
29.2
32.4
35.5
38.9
42.1
45.4
48.4
53.3
58.1
64.5
69.4
72.7
77
.4
82.4
87
.1
93.6
96.8
103.0
113.0
121.0
126.0
137
.0
146.0
162.0
177
.0
193.0
209.0
Maximum Maximum
Agency
Peak
Reverse
Approval
Pulse
Leakage I
R
Current I
pp
@ V
R
(A)
(µA)
326.1
291.3
267
.9
250.0
232.6
220.6
208.3
194.8
176.5
164.8
150.8
139.5
129.3
123.0
115.4
108.7
102.7
92.6
84.5
77
.1
71.3
66.1
62.0
56.3
51.6
46.5
43.2
41.3
38.8
36.4
34.4
32.1
31.0
29.1
26.5
24.8
23.8
21.9
20.5
18.5
16.9
15.5
14.4
800
800
500
200
100
50
20
10
5
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
SMDJ5.0CA-HR
SMDJ6.0CA-HR
SMDJ6.5CA-HR
SMDJ7
.0CA-HR
SMDJ7
.5CA-HR
SMDJ8.0CA-HR
SMDJ8.5CA-HR
SMDJ9.0CA-HR
SMDJ10CA-HR
SMDJ11CA-HR
SMDJ12CA-HR
SMDJ13CA-HR
SMDJ14CA-HR
SMDJ15CA-HR
SMDJ16CA-HR
SMDJ17CA-HR
SMDJ18CA-HR
SMDJ20CA-HR
SMDJ22CA-HR
SMDJ24CA-HR
SMDJ26CA-HR
SMDJ28CA-HR
SMDJ30CA-HR
SMDJ33CA-HR
SMDJ36CA-HR
SMDJ40CA-HR
SMDJ43CA-HR
SMDJ45CA-HR
SMDJ48CA-HR
SMDJ51CA-HR
SMDJ54CA-HR
SMDJ58CA-HR
SMDJ60CA-HR
SMDJ64CA-HR
SMDJ70CA-HR
SMDJ75CA-HR
SMDJ78CA-HR
SMDJ85CA-HR
SMDJ90CA-HR
SMDJ100CA-HR
SMDJ110CA-HR
SMDJ120CA-HR
SMDJ130CA-HR
SMDJ-HR Series
2
56
©2013 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 11/18/13
Surface Mount – 3000W > SMDJ-HR series
Transient Voltage Suppression Diodes

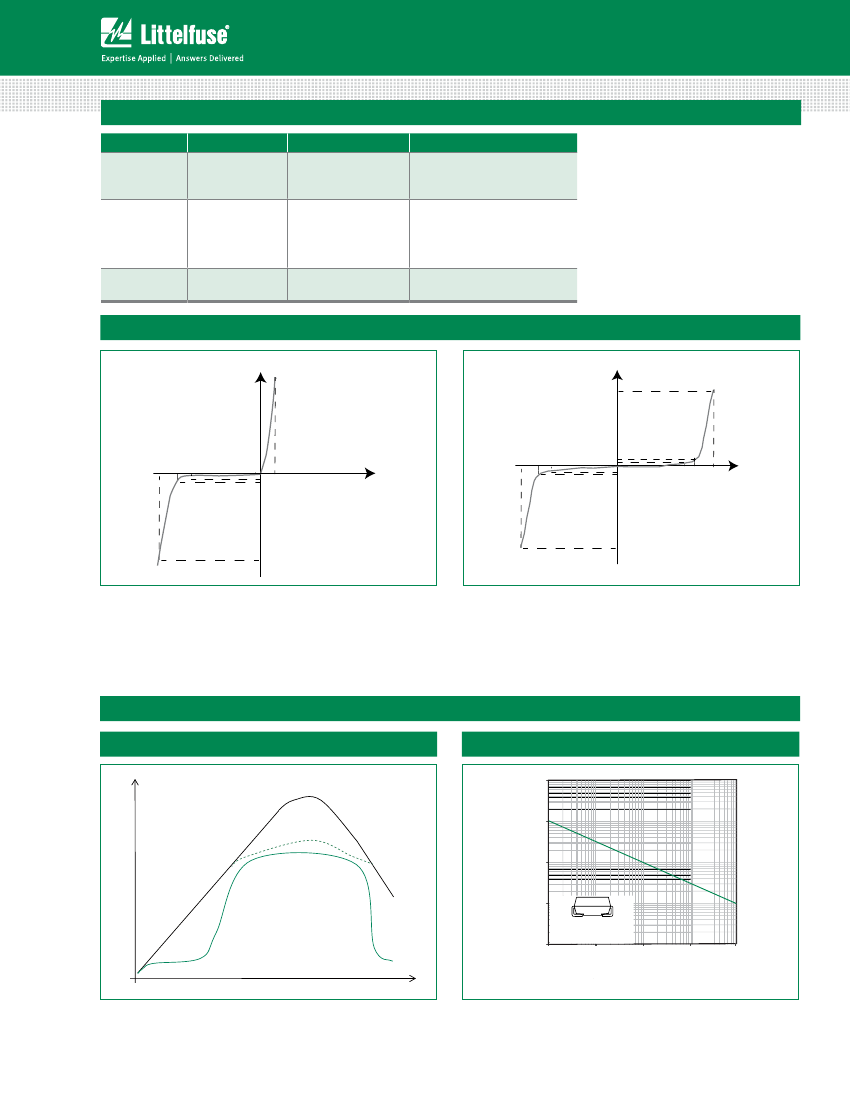

Group B Test Requirement
Screen
Surge test
Method
Condition
Requirement
TVS Diode Arrays
(SPA
™
Family of Products)
Maximum clamping
Voltage (V
C
) @ Peak
Plus Current (I
PP
)
Applied voltage
100% V
R
@150°C
I
R
@V
R
, V(
BR
)@I
T
Sample Size 45 perform 10x
Accept 0 failures
Sample size 45
340 hours (680 hours for
bi-direction products, each
direction 340 hours)
Accept 0 failures
Sample size 45
Accept 0 failures
10/1000
µ
s Peak
Pluse Waveform
Burn - In
(HTRB)
MIL -STD-750,
Method 1038.5
Electrical test
--
I-V Curve Characteristics
Uni-directional
Bi-directional
I
pp
Vc V
BR
V
R
I
R
V
F
I
T
V
Vc V
BR
V
R
I
T
I
R
I
R
I
T
V
R
V
BR
Vc
V
I
pp
I
pp
P
PPM
V
R
V
BR
V
C
I
R
V
F
Peak Pulse Power Dissipation
-- Max power dissipation
Stand-off Voltage
-- Maximum voltage that can be applied to the TVS without operation
Breakdown Voltage
-- Maximum current that flows though the TVS at a specified test current (I
T
)
Clamping Voltage
-- Peak voltage measured across the suppressor at a specified Ippm (peak impulse current)
Reverse Leakage Current
-- Current measured at V
R
Forward Voltage Drop for Uni-directional
A

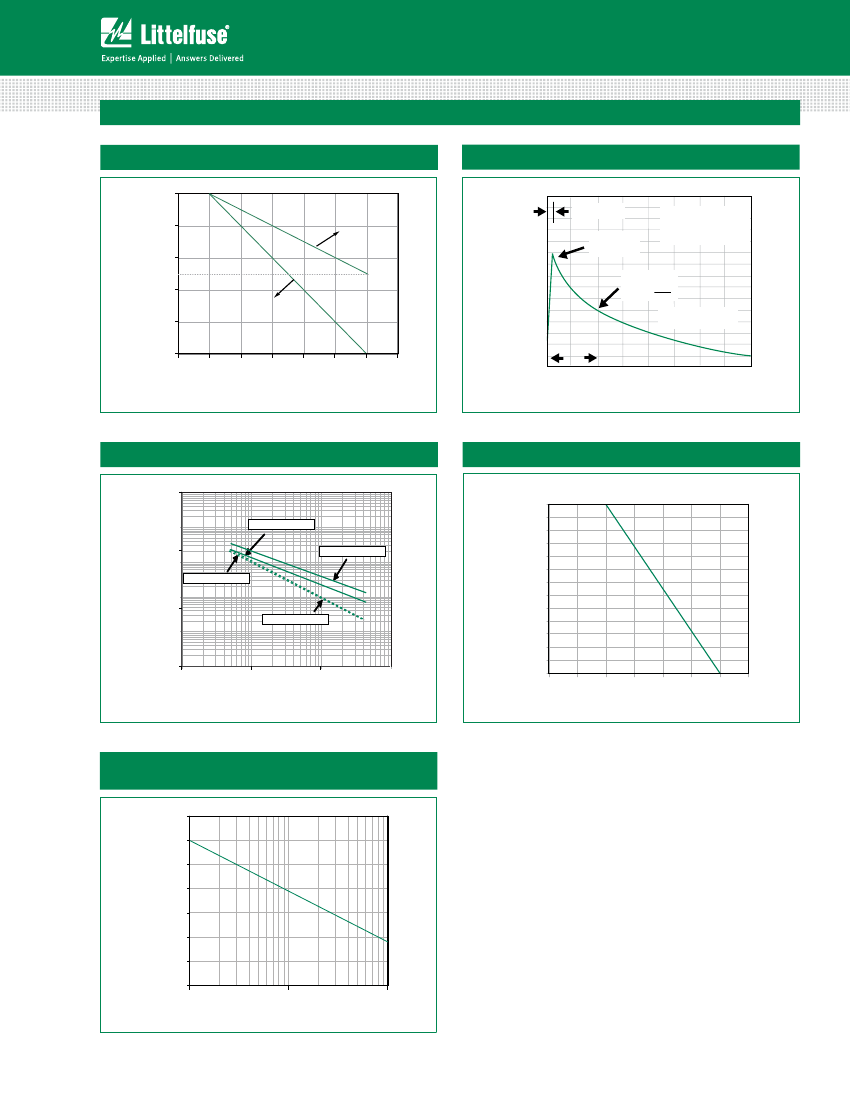

Ratings and Characteristic Curves
(T =25°C unless otherwise noted)
Figure 1 - TVS Transients Clamping Waveform
Voltage Transients
Figure 2 - Peak Pulse Power Rating
1000
P
PPM
-Peak Pulse Power (KW)
Voltage Across TVS
Voltage or Current
100
Current Through TVS
10
1
0.31x0.31" (8.0x8.0mm)
0.1
Copper Pad Area
0.001
Time
0.01
0.1
1
t
d
-Pulse Width (ms)
10
continues on next page.
SMDJ-HR Series
3
57
©2013 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 11/18/13
Surface Mount – 3000W > SMDJ-HR series
Transient Voltage Suppression Diodes
Ratings and Characteristic Curves
(T =25°C unless otherwise noted)
(Continued)
A
Figure 3 - Peak Pulse Power
100
TVS Diode Arrays
(SPA
™
Figure 4 -
of Products)
Family
Pulse Waveform
150
I
PPM
- Peak Pulse Current, % I
RSM
Peak Pluse Power
(Single Pluse)
Peak Pulse Power (P
PP
) or Current
(I
PP
) Derating in Percentage %
tr=10µsec
Peak Value
IPPM
80
60
50
40
Average Power
TJ=25°C
Pulse Width(td) is defined
as the point where the peak
current decays to 50% of IPPM
100
Half Value
IPPM
IPPM
2
( )
10/1000µsec. Waveform
as defined by R.E.A
20
0
50
0
25
50
75
100
125
150
175
0
td
T
j
- initial temperature (ºC)
0
1.0
2.0
t-Time (ms)
3.0
4.0
Figure 5 - Typical Junction Capacitance
100000
10000
1000
Uni-directional @ VR
Bi-directional V= OV
Figure 6 - Steady State Power Derating Curve
Uni-directional V= OV
100
Bi-directional @ VR
10
1
1.0
10.0
100.0
1000.0
V
BR
- Reverse Breakdown Voltage (V)
6.5
6
5.5
5
4.5
4
3.5
3
2.5
2
1.5
1
0.5
0
P
M(AV)
, Steady Sate Power
Dissipation (W)
Cj (pF)
0
25
50
75
100
125
150
175
T
A
- Ambient Temperature(ºC)
Figure 7 - Maximum Non-Repetitive Peak Forward
Surge Current Uni-Directional only
350
I
FSM
- Peak Forward Surge Current
(A)
300
250
200
150
100
50
0
1
10
Number of Cycles at 60 Hz
4
58
©2013 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 11/18/13
100
SMDJ-HR Series
Surface Mount – 3000W > SMDJ-HR series
Transient Voltage Suppression Diodes
Soldering Parameters
Reflow Condition
TVS Diode Arrays
(SPA
™
Family of Products)
Lead–free assembly
150°C
200°C
60 – 180 secs
3°C/second max
3°C/second max
217°C
60 – 150 seconds
260
+0/-5
°C
20 – 40 seconds
6°C/second max
8 minutes Max.
280°C
Temperature (T)
T
P
Ramp-up
t
p
Critical Zone
T
L
to T
P
- Temperature Min (T
s(min)
)
Pre Heat
- Temperature Max (T
s(max)
)
- Time (min to max) (t
s
)
Average ramp up rate (Liquidus Temp
(T
L
) to peak
T
S(max)
to T
L
- Ramp-up Rate
Reflow
- Temperature (T
L
) (Liquidus)
- Time (min to max) (t
s
)
T
L
T
s(max)
t
L
T
s(min)
Ramp-down
Preheat
t
s
25˚C
t 25˚C to Peak
Time (t)
Peak Temperature (T
P
)
Time within 5°C of actual peak
Temperature (t
p
)
Ramp-down Rate
Time 25°C to peak Temperature (T
P
)
Do not exceed
Environmental Specifications
High Temp. Storage
JESD22-A103
JESD22-A108
JESD22-A106
JEDEC-J-STD-020C, Level 1
JESD22-A101
JESD22-B106C
Physical Specifications
Weight
Case
Polarity
Terminal
0.007 ounce, 0.21 grams
JEDEC DO214AB. Molded plastic body
over glass passivated junction
Color band denotes positive end
(cathode) except Bidirectional.
Matte Tin-plated leads, Solderable per
JESD22-B102D
HTRB
Thermal Shock
MSL
H3TRB
RSH
Dimensions
DO-214AB (SMC J-Bend)
Cathode Band
(for Uni-directional products only)
Dimensions
A
Inches
Min
0.114
0.260
0.220
0.079
0.030
0.002
0.305
0.006
0.129
0.094
-
0.094
Max
0.126
0.280
0.245
0.103
0.060
0.008
0.320
0.012
-
-
0.165
-
Millimeters
Min
2.900
6.600
5.590
2.060
0.760
0.051
7
.750
0.152
3.300
2.400
2.400
Max
3.200
7
.110
6.220
2.620
1.520
0.203
8.130
0.305
-
-
4.200
-
A
B
H
D
F
G
C
B
C
D
E
F
G
H
I
J
K
L
E
J
K
L
I
Solder Pads
(all dimensions in mm)
SMDJ-HR Series
5
59
©2013 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 11/18/13
京公网安备 11010802033920号
EEWORLD
