nRF2401AG

Description
RF transceiver 1.9-3.6V 1mbit xcvr 2.4ghz shckbrst
CategoryTopical application    Wireless rf/communication
File Size377KB,40 Pages
ManufacturerNordic
Websitehttp://www.nordicsemi.com
Environmental Compliance
Download Datasheet Parametric Compare View All

nRF2401AG Online Shopping

Suppliers Part Number Price MOQ In stock
nRF2401AG - - View Buy Now

nRF2401AG Overview

RF transceiver 1.9-3.6V 1mbit xcvr 2.4ghz shckbrst

nRF2401AG Parametric

Parameter NameAttribute value
ManufactureNordic Semiconduc
Product CategoryRF Transceive
RoHSYes
Frequency Range2.4 GHz
Maximum Data Rate1 Mbps
Modulation FormGFSK
Output Powe0 dBm
Operating Supply Voltage1.9 V to 3.6 V
Maximum Operating Temperature+ 85 C
Package / CaseQFN-24
PackagingTray
Minimum Operating Temperature- 40 C
Mounting StyleSMD/SMT
Factory Pack Quantity490
PRODUCT SPECIFICATION
Single chip 2.4 GHz Transceiver
FEATURES
nRF2401A
Wireless mouse, keyboard, joystick
Keyless entry
Wireless data communication
Alarm and security systems
Home automation
Surveillance
Automotive
Telemetry
Intelligent sports equipment
Industrial sensors
Toys
APPLICATIONS
True single chip GFSK transceiver in a small

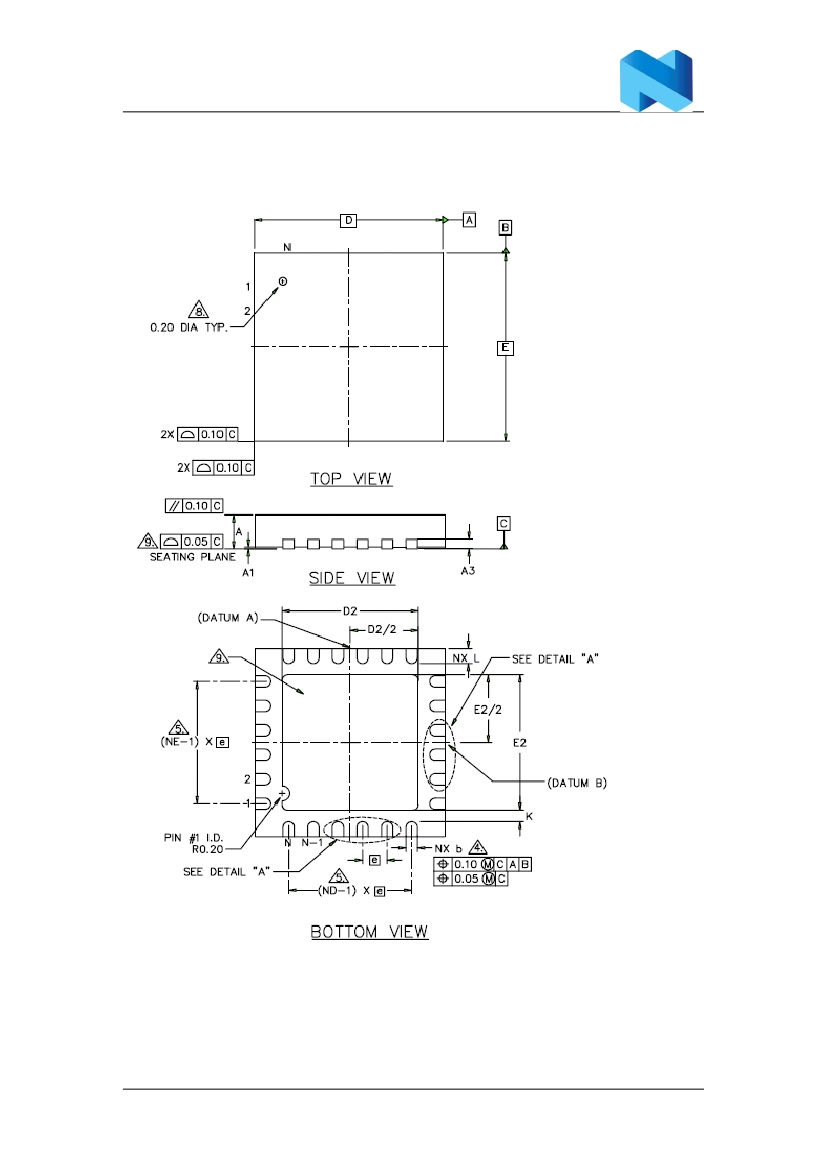

24-pin package (QFN24 5x5mm)
Data rate 0 to1Mbps
Only 2 external components
Multi channel operation
125 channels
Channel switching time <200µs.
Support frequency hopping
Data slicer / clock recovery of data
Address and CRC computation
DuoCeiver™ for simultaneous dual receiver
topology
ShockBurst™ mode for ultra-low power
operation and relaxed MCU performance
Power supply range: 1.9 to 3.6 V
Low supply current (TX), typical 10.5mA peak
@ -5dBm output power
Low supply current (RX), typical 18mA peak in
receive mode
100 % RF tested
No need for external SAW filter
World wide use
GENERAL DESCRIPTION
nRF2401A is a single-chip radio transceiver for the world wide 2.4 - 2.5 GHz ISM
band. The transceiver consists of a fully integrated frequency synthesizer, a power
amplifier, a crystal oscillator and a modulator. Output power and frequency channels
are easily programmable by use of the 3-wire serial interface. Current consumption is
very low, only 10.5mA at an output power of -5dBm and 18mA in receive mode.
Built-in Power Down modes makes power saving easily realizable.
QUICK REFERENCE DATA
Parameter
Minimum supply voltage
Maximum output power
Maximum data rate
Supply current in transmit @ -5dBm output power
Supply current in receive mode
Temperature range
Sensitivity
Supply current in Power Down mode
Value
1.9
0
1000
10.5
18
-40 to +85
-93
900
Unit
V
dBm
kbps
mA
mA
°C
dBm
nA
Table 1 nRF2401A quick reference data
Nordic Semiconductor ASA
Revision: 1.1
- Vestre Rosten 81, N-7075 Tiller, Norway
-
Phone +4772898900
-
Page 1 of 40
Fax +4772898989
March 2006

nRF2401AG Related Products

nRF2401AG nRF2401AG-REEL7
Description RF transceiver 1.9-3.6V 1mbit xcvr 2.4ghz shckbrst RF transceiver 1.9-3.6V 1mbit xcvr 2.4ghz shckbrst
Manufacture Nordic Semiconduc Nordic Semiconduc
Product Category RF Transceive RF Transceive
RoHS Yes Yes
Frequency Range 2.4 GHz 2.4 GHz
Maximum Data Rate 1 Mbps 1 Mbps
Modulation Form GFSK GFSK
Output Powe 0 dBm 0 dBm
Operating Supply Voltage 1.9 V to 3.6 V 1.9 V to 3.6 V
Maximum Operating Temperature + 85 C + 85 C
Package / Case QFN-24 QFN-24
Packaging Tray Reel
Minimum Operating Temperature - 40 C - 40 C
Mounting Style SMD/SMT SMD/SMT
Factory Pack Quantity 490 1500
