831018785 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> 831018785

831018785: DescriptionHCMOS Output Clock Oscillator, 12MHz Nom,; CategoryPassive components oscillator; File Size4MB，2 Pages; ManufacturerWurth Elektronik

Download Datasheet Parametric View All

831018785 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	831018785	-	-	View	Buy Now

831018785 Overview

HCMOS Output Clock Oscillator, 12MHz Nom,

831018785 Parametric

Parameter Name	Attribute value
Objectid	8338884384
Reach Compliance Code	compliant
Other features	STANDBY; ENABLE/DISABLE FUNCTION; TR
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Nominal operating frequency	12 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	HCMOS
Output load	15 pF
physical size	7.2mm x 5.2mm x 1.4mm
longest rise time	10 ns
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	45/55 %
Terminal surface	Nickel/Gold (Ni/Au)

Preview

Download Datasheet

View All

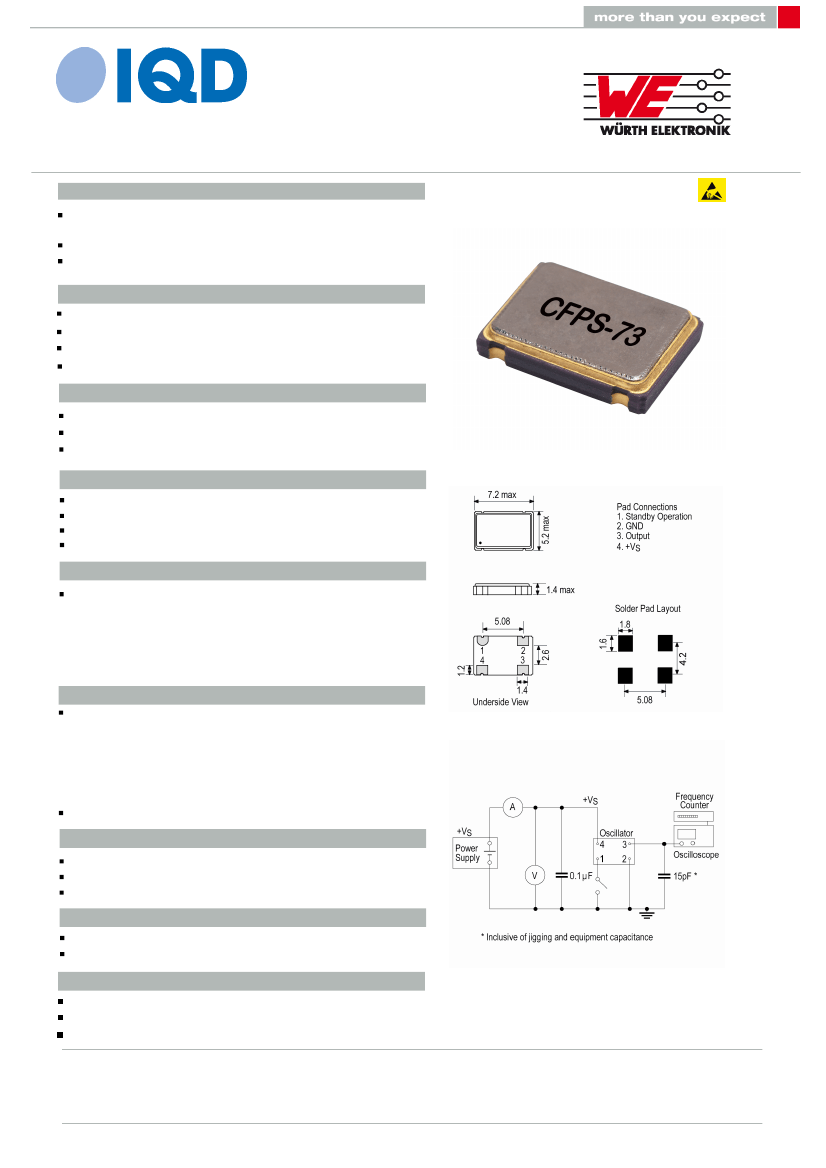

Crystal Clock Oscillator Specification

IQD Part No. + Packaging: LFSPXO018785Reel

Wurth Part No.

831018785

Description

Standard 7 x 5mm crystal oscillator in a ceramic package with a

seam sealed metal lid, hermetically sealed.

Model

CFPS-73

Model Issue number

Frequency Parameters

Frequency

Frequency Stability

Operating Temperature Range

Ageing

Electrical Parameters

12.0MHz

100.00ppm

-40.00 to 85.00°C

±3ppm per year max

3.3V ±10%

Supply Voltage

Current Draw

7.000mA

Note: parameters are referenced to 15pF load

Output Details

Outline (mm)

Output Compatibility

Drive Capability

Rise and Fall Time

Duty Cycle

Output Control

HCMOS

15pF std, 50pF max

10.0ns max

45/55

Standby Operation:

Logic ‘1’ (>70% VS) to pad 1 enables oscillator output

Logic ‘0’ (<30% VS) to pad 1 disables oscillator output; the

oscillator output goes to the high impedance state

No connection to pad 1 enables oscillator output

Standby Current: 10µA max

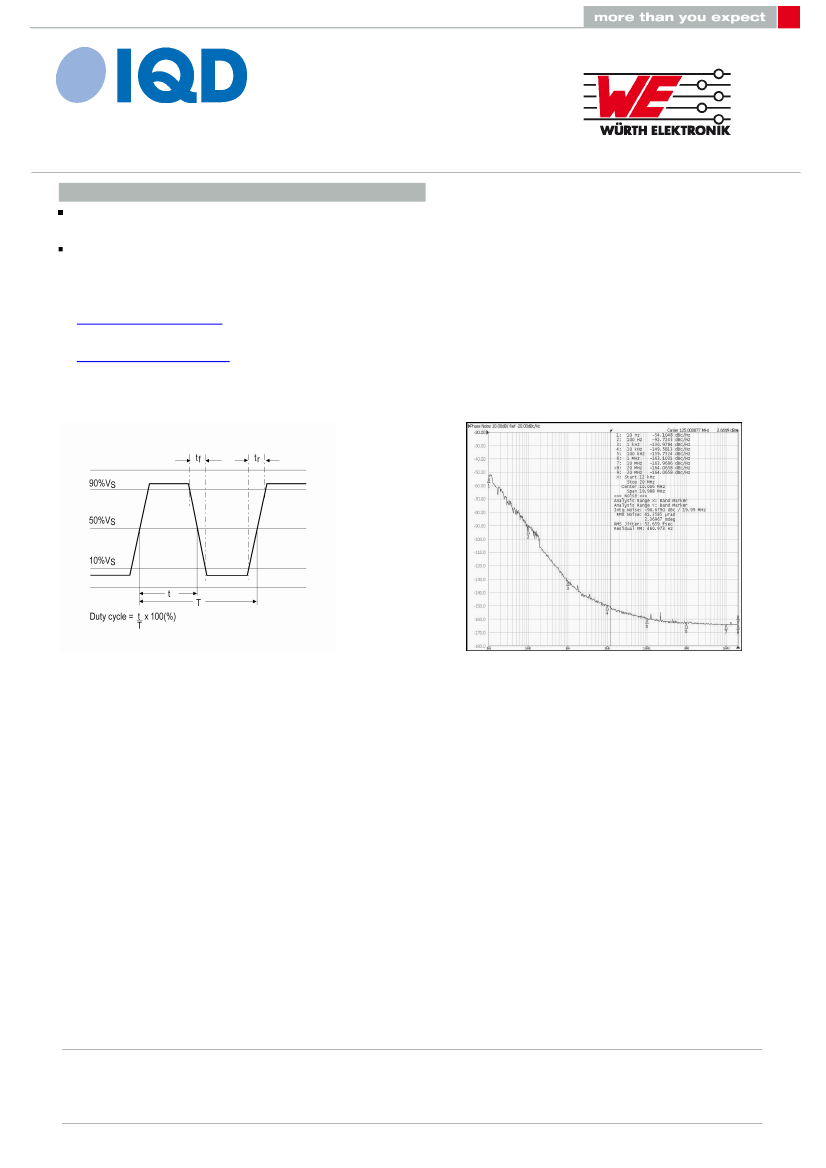

Noise Parameters

Phase Noise @125MHz (typical):

10Hz

-54dBc

100Hz -92dBc

1kHz

-130dBc

10kHz -149dBc

100kHz -159dBc

1MHz -163dBc

RMS Phase Jitter @125MHz: 52fs typical

Environmental Parameters

Test Circuit

Shock: MIL-STD-202, Method 213, Condition E

Vibration: MIL-STD-883, Method 2007, Condition A

Storage Temperature Range: -55 to 125°C

Manufacturing Details

RoHS Terminations

RoHS Reflow Temp

Compliance

NiAu

260degC 10s

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

CONTACT INFORMATION:

Compliant

Not Applicable

Würth Elektronik eiSos GmbH & Co. KG

Max-Eyth-Str. 1, 74638 Waldenburg, Germany

Tel: +49(0) 7942 945-0

Printed on 9 Nov 18 9:37 using WE Part Data Sheet V1.00018

Email: eiSos@we-online.de

Web: www.we-online.com

Page 1 of 2
