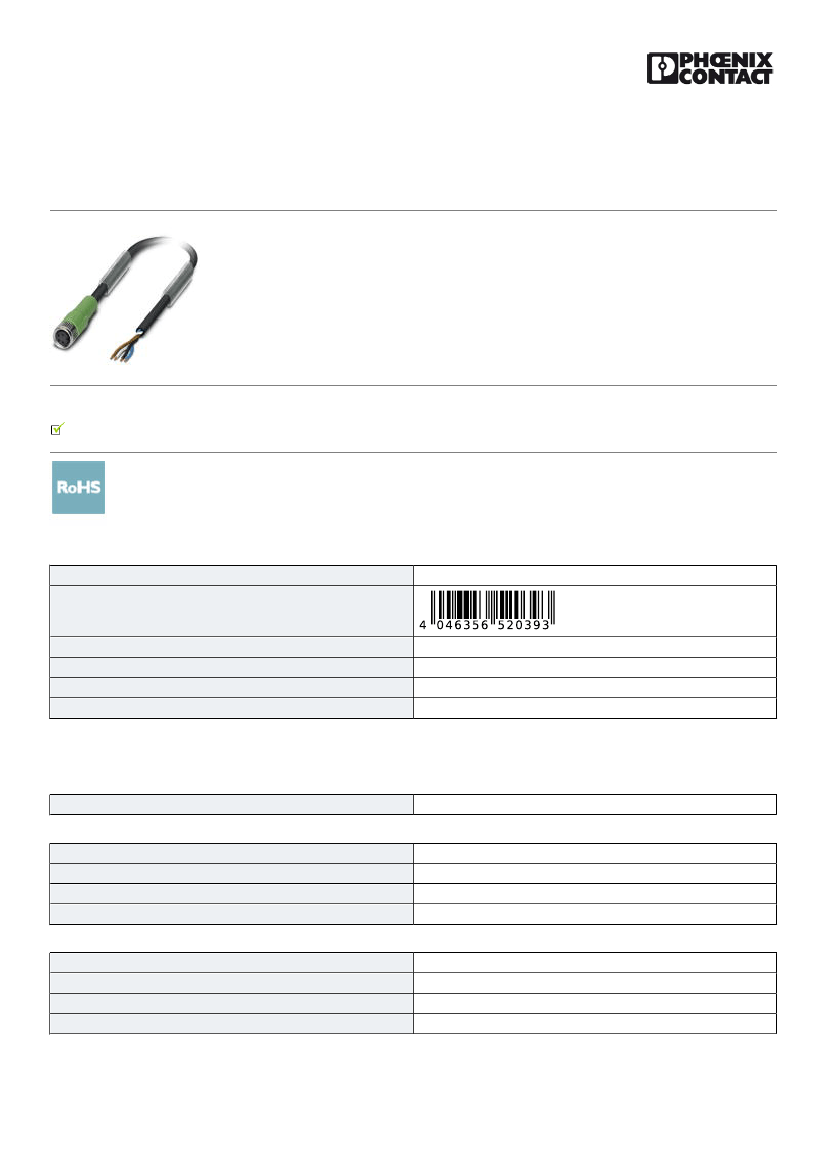

Sensor/actuator cable - SAC-4P-10,0-PVC/M 8FS - 1401062
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Sensor/actuator cable, 4-position, PVC, black RAL 9005, free cable end, on Socket straight M8, cable length:
10 m
Your advantages
Easy and safe: 100% electrically tested plug-in components
Key Commercial Data
Packing unit
GTIN
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
4046356520393
298.000 g
85444290
Germany
1 pc
Technical data
Dimensions
Length of cable
10 m
Ambient conditions
Ambient temperature (operation)
Degree of protection
-25 °C ... 90 °C (Plug / socket)
IP65
IP67
IP68
General
Rated current at 40°C
Rated voltage
Number of positions
4A
48 V AC
60 V DC
4
12/22/2018 Page 1 / 8
https://www.phoenixcontact.com/in/products/1401062
Sensor/actuator cable - SAC-4P-10,0-PVC/M 8FS - 1401062
Technical data
General
Insulation resistance
Coding
Standards/regulations
Status display
Protective circuit/component
Overvoltage category
Degree of pollution
Insertion/withdrawal cycles
≥ 100 MΩ
A - standard
M8 connector IEC 61076-2-104
No
unwired
II
3
≥ 100
Material
Flammability rating according to UL 94
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Sealing material
HB
CuSn
Ni/Au
TPU GF
TPU, hardly inflammable, self-extinguishing
Zinc die-cast, nickel-plated
NBR
Standards and Regulations
Standard designation
Standards/regulations
Flammability rating according to UL 94
M8 connector
IEC 61076-2-104
HB
Cable
Cable type
Cable type (abbreviation)
Cable abbreviation
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Thickness, insulation
Wire colors
Overall twist
External sheath, color
External cable diameter D
Cable weight
Outer sheath, material
Material conductor insulation
Conductor material
Insulation resistance
PVC black
PVC
LiYY
4x 0.25 mm² (Signal line)
24
14x 0.15 mm
1.17 mm ±0.05 mm
≥ 0.23 mm (Core insulation)
≥ 0.76 mm (Outer cable sheath)
brown, white, blue, black
4 wires, twisted
black RAL 9005
4.4 mm ±0.15 mm
33 kg/km
PVC
PVC
Bare Cu litz wires
≥ 100 MΩ*km (at 20 °C)
12/22/2018 Page 2 / 8
https://www.phoenixcontact.com/in/products/1401062
Sensor/actuator cable - SAC-4P-10,0-PVC/M 8FS - 1401062
Technical data
Cable
Conductor resistance
Nominal voltage, cable
Test voltage, cable
Flame resistance
Ambient temperature (operation)
max. 79 Ω/km (at 20 °C)
≤ 300 V
≥ 3000 V
As per UL-Style 2464
-40 °C ... 80 °C (cable, fixed installation)
-25 °C ... 80 °C (cable, flexible installation)
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

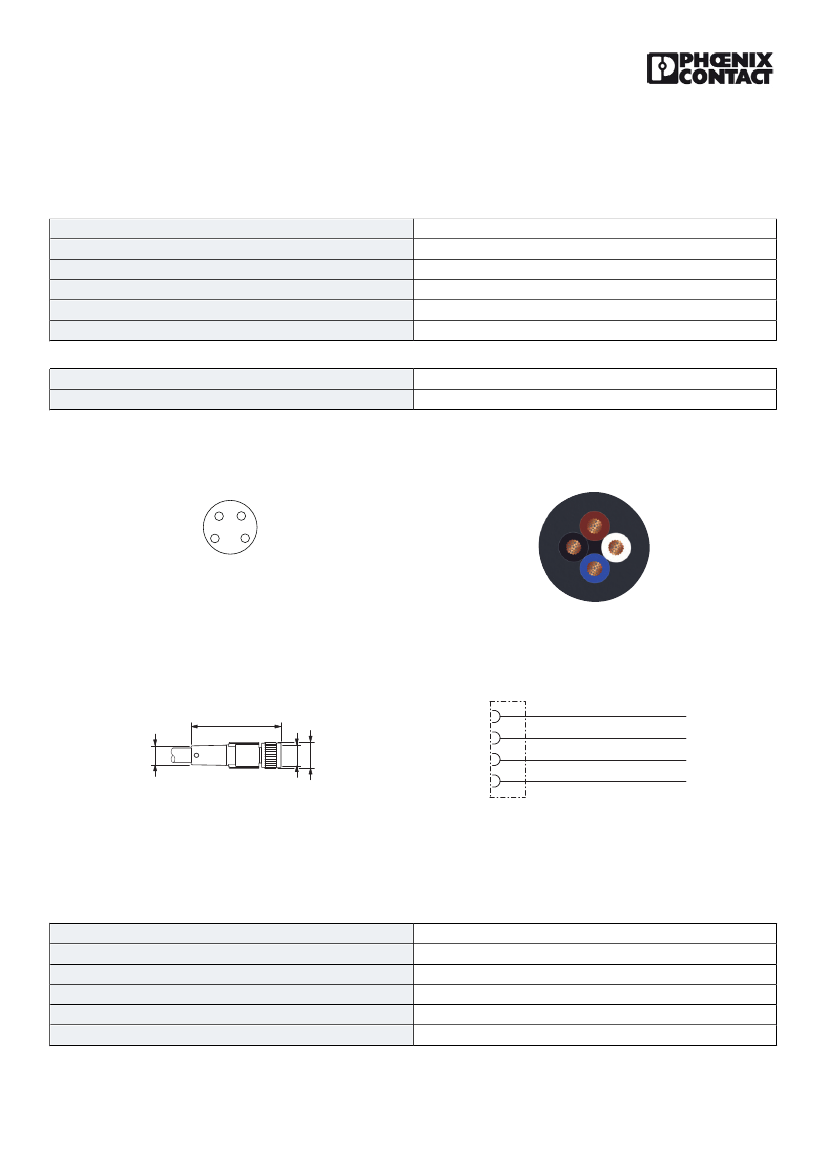

Drawings
Schematic diagram
Cable cross section
4
2
3
1
Pin assignment M8 socket, 4-pos., view female side
PVC black [PVC]
Dimensional drawing
Circuit diagram
33,7
1
2
BN
WH
BK
BU
Ø7,5
Ø10
M8
4
3
Socket M8 x 1, straight
Contact assignment of M8/M12 plugs/sockets
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
27060306
27060306
27061801
27061800
27279200
27279218
12/22/2018 Page 3 / 8
https://www.phoenixcontact.com/in/products/1401062
Sensor/actuator cable - SAC-4P-10,0-PVC/M 8FS - 1401062
Classifications
eCl@ss
eCl@ss 8.0
eCl@ss 9.0
27279218
27060311
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
ETIM 6.0
EC001855
EC001855
EC001855
EC001855
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
31251501
31251501
31251501
31251501
31251501
Approvals
Approvals
Approvals
UL Listed / cUL Listed / cULus Listed
Ex Approvals
Approval details
UL Listed
Nominal voltage UN
Nominal current IN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
30 V
4A
FILE E 221474
cUL Listed
Nominal voltage UN
Nominal current IN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
30 V
4A
FILE E 221474
12/22/2018 Page 4 / 8
https://www.phoenixcontact.com/in/products/1401062
Sensor/actuator cable - SAC-4P-10,0-PVC/M 8FS - 1401062
Approvals
cULus Listed

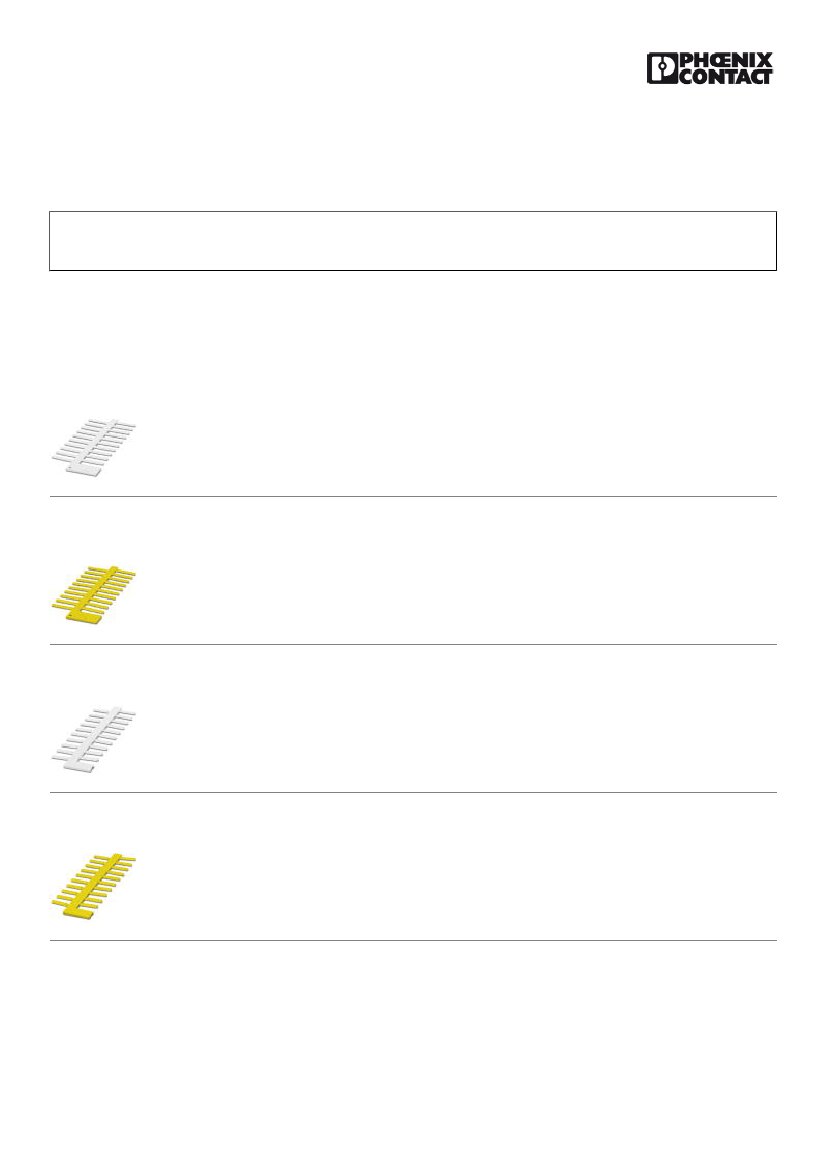

Accessories
