1336-6-08-01 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1336-6-08-01

1336-6-08-01: DescriptionBoard Connector, 8 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size100KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

1336-6-08-01 Overview

Board Connector, 8 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Receptacle

1336-6-08-01 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknow
body width	0.283 inch
subject depth	0.264 inch
body length	0.396 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	250VAC V
Durability	50 Cycles
Insulation resistance	1000000000 Ω
Manufacturer's serial number	1336
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.5118 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	8
Base Number Matches	1

Preview

Download Datasheet

View All

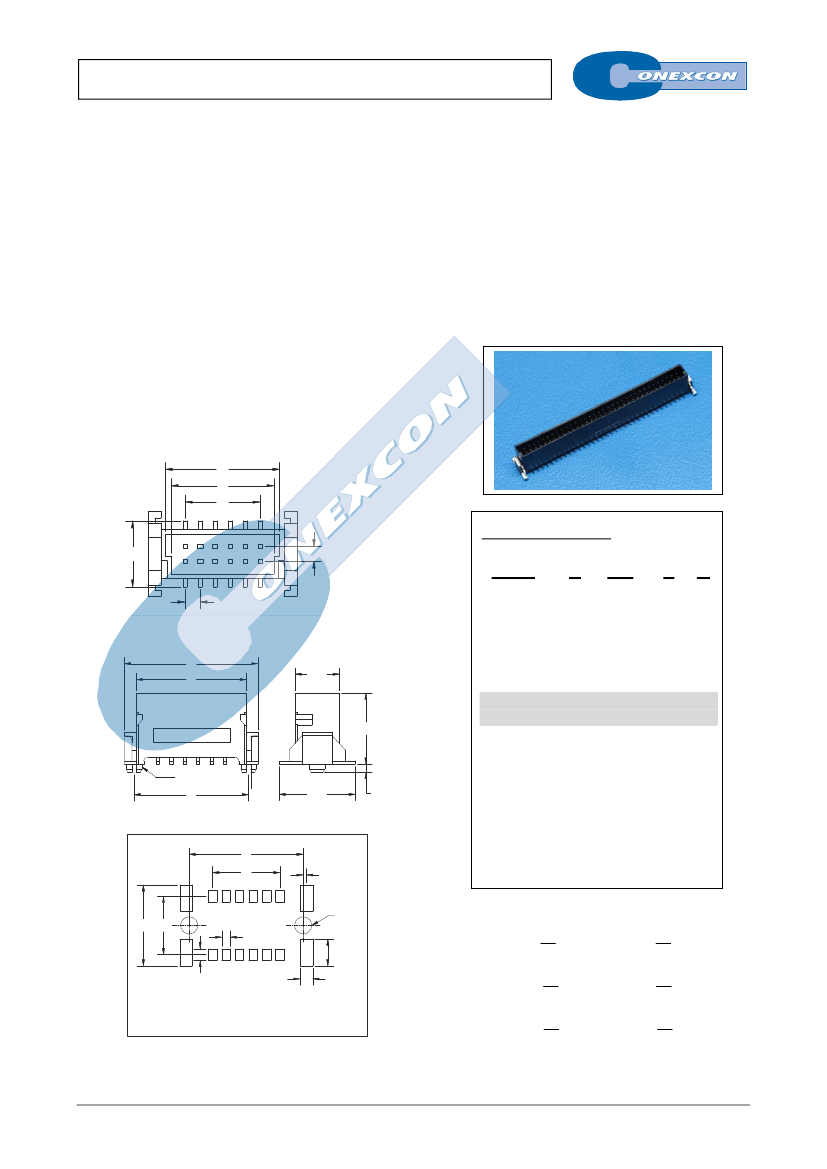

DUAL ROW TOP ENTRY SMT HEADER

1336 SERIES.

1.27 x 1.27 mm. (0.050 x 0.050”) pitch.

General Features

Electrical Features



Available in 6, 8, 10, 12, 14, 16, 20, 22, 26, 30, 34, 36, 40,

44, 50, 60, 68 and 80 circuits

Mates with IDC connectors 1335 series

Gold plated 0.40 x 0.30 mm pin

Fully shrouded with polarized slot

High profile 6.70 mm



Voltage rating: < 250V

Current rating: < 1 A

Contact resistance: < 30 mΩ

Dielectric withstanding Voltage: 250 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Insulator: LCP, glass reinforced, rated UL 94V-0

Terminal: Phosphor bronze

Operating temperature. -25ºC to +85ºC

RoHS compliant

Mechanical Features



Durability: 50 Cycles

Dimension Information

Ordering Information:

5.6

1.27

1336 -

1.27

T-

XX-

1. Connector Series

2. (T) Contact Plating

4.2



6.7

T =

Tin plated

T =

Gold flash over nickel

Recommended Finish

T =

15µ” gold over nickel

T =

30µ” gold over nickel



R 0.73

3. (XX) Number of circuits

7.2

0.76

Available in 6 through 80 circuits

5. (E) = Packing Options

0.3

E =

Tube + Pad

E =

Reel + Pad

ø1.6

7.6 5.5

0.8

2.5

1.1

1.2

Dimensions:

(In mm.)

1.27























1.08

1.27

















2.06

1.27

















4.98

1.27









RECOMMENDED PCB LAYOUT









2.78

1.27

















3.19

1.27









(XX) = Number of circuits

A-XX
