2551-6021: DescriptionBoard Connector, 2 Contact(s), 1 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking; CategoryThe connector The connector; File Size70KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

2551-6021 Overview

Board Connector, 2 Contact(s), 1 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking

2551-6021 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304385193
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.094 inch
subject depth	0.398 inch
body length	0.22 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
Durability	50 Cycles
maximum insertion force	3.9198 N
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	2551
Plug contact pitch	0.1 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.134 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	2
Evacuation force-minimum value	.29468 N

Preview

Download Datasheet

View All

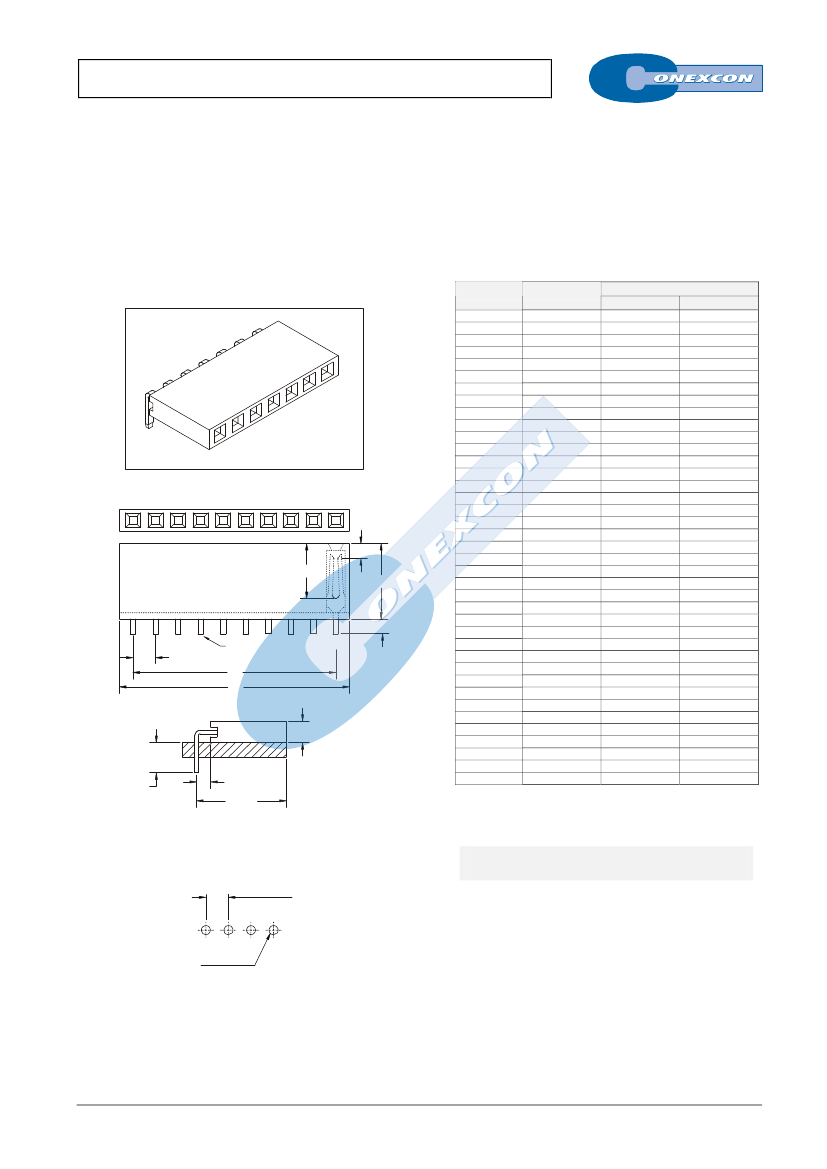

SINGLE ROW RIGHT ANGLE PCB SOCKET

2551 SERIES.

2.54mm(0.100”). For PCB Solder

Features



Available in 4 through 40 circuits

Insulator Material: P.B.T. UL 94V-0

Mates with 2.54mm pitch and 0.64mm pin headers

Low profile and high density PCB socket



Height: 2.40mm

Different plating options are available

High quality dual beam phosphor bronze contacts

Designed for board to board small spacing interconnection

Ordering and Dimensional Information

Circuit Size

02

03

04

05

06

07

08

09

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

Part Number

2551-T021

2551-T031

2551-T041

2551-T051

2551-T061

2551-T071

2551-T081

2551-T091

2551-T101

2551-T111

2551-T121

2551-T131

2551-T141

2551-T151

2551-T161

2551-T171

2551-T181

2551-T191

2551-T201

2551-T211

2551-T221

2551-T231

2551-T241

2551-T251

2551-T261

2551-T271

2551-T281

2551-T291

2551-T301

2551-T311

2551-T321

2551-T331

2551-T341

2551-T351

2551-T361

2551-T371

2551-T381

2551-T391

2551-T401

Dimensions

A

2,54(0,100)

5,08(0,200)

7,62(0,300)

10,16(0,400)

12,70(0,500)

15,24(0,600)

17,78(0,700)

20,32(0,800)

22,86(0,900)

25,40(1,000)

27,94(1,100)

30,48(1,200)

33,02(1,300)

35,56(1,400)

38,10(1,500)

40,64(1,600)

43,18(1,700)

45,72(1,800)

48,26(1,900)

50,80(2,000)

53,34(2,100)

55,88(2,200)

58,42(2,300)

60,96(2,400)

63,50(2,500)

66,04(2,600)

68,58(2,700)

71,12(2,800)

73,66(2,900)

76,20(3,000)

78,74(3,100)

81,28(3,200)

83,82(3,300)

86,36(3,400)

88,90(3,500)

91,44(3,600)

93,98(3,700)

96,52(3,800)

99,06(3,900)

B

5,59(0,220)

8,13(0,320)

10,67(0,420)

13,21(0,520)

15,75(0,620)

18,29(0,720)

20,83(0,820)

23,37(0,920)

25,91(1,020)

28,45(1,120)

30,99(1,220)

33,53(1,320)

36,07(1,420)

38,61(1,520)

41,15(1,620)

43,69(1,720)

46,23(1,820)

48,77(1,920)

51,31(2,020)

53,85(2,120)

56,39(2,220)

58,93(2,320)

61,47(2,420)

64,01(2,520)

66,55(2,620)

69,09(2,720)

71,63(2,820)

74,17(2,920)

76,71(3,020)

79,25(3,120)

81,79(3,220)

84,33(3,320)

86,87(3,420)

89,41(3,520)

91,95(3,620)

94,49(3,720)

97,03(3,820)

99,57(3,920)

102,11(4,020)

Dimensional Information

1.70

6.20

8.50

PIN 0.65X0.4

2.54

A

B

1.60

2.40

3.4

1.60

10.10

T = Contact Plating

RECOMMENDED HOLE PATTERN

2.54±0.05

.100±.002



T =

2.

Tin plated

T =

3.

Gold flash over 50µ" nickel

Recommended Finish

T =

5.

15µ” gold over 50µ” nickel

T =

6.

30µ” gold over 50µ” nickel

T =

13.

Selective gold flash over 50µ” nickel.

T =

15.

15µ” selective gold over 50µ” nickel

T =

16.

30µ” selective gold over 50µ” nickel

ø 1.02±0.05

.040±.002
