3559-5121 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3559-5121

3559-5121: DescriptionBoard Connector, 36 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size98KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric View All

3559-5121 Overview

Board Connector, 36 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle

3559-5121 Parametric

Parameter Name	Attribute value
Objectid	304386519
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.299 inch
body length	1.3 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
maximum insertion force	8.0064 N
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	3559
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	3
Number of rows loaded	3
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	15u inch
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	36
Evacuation force-minimum value	.7784 N

Preview

Download Datasheet

View All

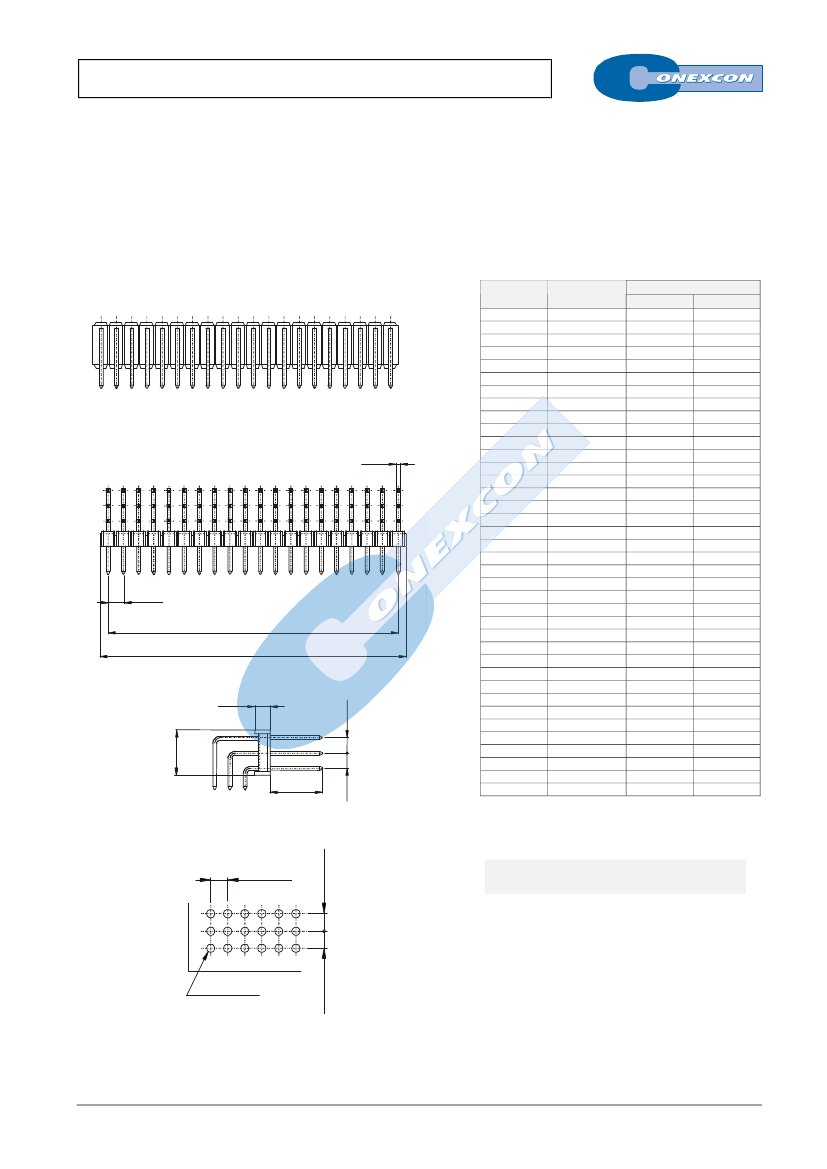

TRIPLE ROW RIGHT ANGLE HEADER

3559 SERIES.

2.54mm(0.100”). For PCB Solder

Features



Available in 9 through 120 circuits

Insulator Material: Glass filled polyester UL 94V-0

Pin omit options are available in any circuit

0.64mm square pin in copper alloy



Different pin length and plating options are available

Stackable row by row and end to end

Easy breakaway to desired circuit size

For other options consult the Sales Office

Ordering and Dimensional Information

Dimensions

7,62(0,300)

10,16(0,400)

12,70(0,500)

15,24(0,600)

17,78(0,700)

20,32(0,800)

22,86(0,900)

25,40(1,000)

27,94(1,100)

30,48(1,200)

33,02(1,300)

35,56(1,400)

38,10(1,500)

40,64(1,600)

43,18(1,700)

45,72(1,800)

48,26(1,900)

50,80(2,000)

53,34(2,100)

55,88(2,200)

58,42(2,300)

60,96(2,400)

63,50(2,500)

66,04(2,600)

68,58(2,700)

71,12(2,800)

73,66(2,900)

76,20(3,000)

78,74(3,100)

81,28(3,200)

83,82(3,300)

86,36(3,400)

88,90(3,500)

91,44(3,600)

93,98(3,700)

96,52(3,800)

99,06(3,900)

101,60(4,000)

10,16(0,400)

12,70(0,500)

15,24(0,600)

17,78(0,700)

20,32(0,800)

22,86(0,900)

25,40(1,000)

27,94(1,100)

30,48(1,200)

33,02(1,300)

35,56(1,400)

38,10(1,500)

40,64(1,600)

43,18(1,700)

45,72(1,800)

48,26(1,900)

50,80(2,000)

53,34(2,100)

55,88(2,200)

58,42(2,300)

60,96(2,400)

63,50(2,500)

66,04(2,600)

68,58(2,700)

71,12(2,800)

73,66(2,900)

76,20(3,000)

78,74(3,100)

81,28(3,200)

83,82(3,300)

86,36(3,400)

88,90(3,500)

91,44(3,600)

93,98(3,700)

96,52(3,800)

99,06(3,900)

101,60(4,000)

104,14(4.100)

Dimensional information

Circuit Size

Part Number

3559-T03C

3559-T04C

3559-T05C

3559-T06C

3559-T07C

3559-T08C

3559-T09C

3559-T10C

3559-T11C

3559-T12C

3559-T13C

3559-T14C

3559-T15C

3559-T16C

3559-T17C

3559-T18C

3559-T19C

3559-T20C

3559-T21C

3559-T22C

3559-T23C

3559-T24C

3559-T25C

3559-T26C

3559-T27C

3559-T28C

3559-T29C

3559-T30C

3559-T31C

3559-T32C

3559-T33C

3559-T34C

3559-T35C

3559-T36C

3559-T37C

3559-T38C

3559-T39C

3559-T40C

0.64

.025

2.54

.100

2.54

.100

2.54

.100

102

105

108

111

114

117

120

7.60

.299

2.54

.100

T = Contact Plating

2.54±0.05

.100±.002

2.54±0.05

.100±.002



T =

Tin plated

T =

Gold flash over 50µ" nickel

Recommended Finish

T =

15µ” gold over 50µ” nickel

T =

30µ” gold over 50µ” nickel

C = Pin Length

2.54±0.05

.100±.002

C =

Dim. H = 6.26mm

1.20±0.10

.047± .004

RECOMMENDED HOLE PATTERN
