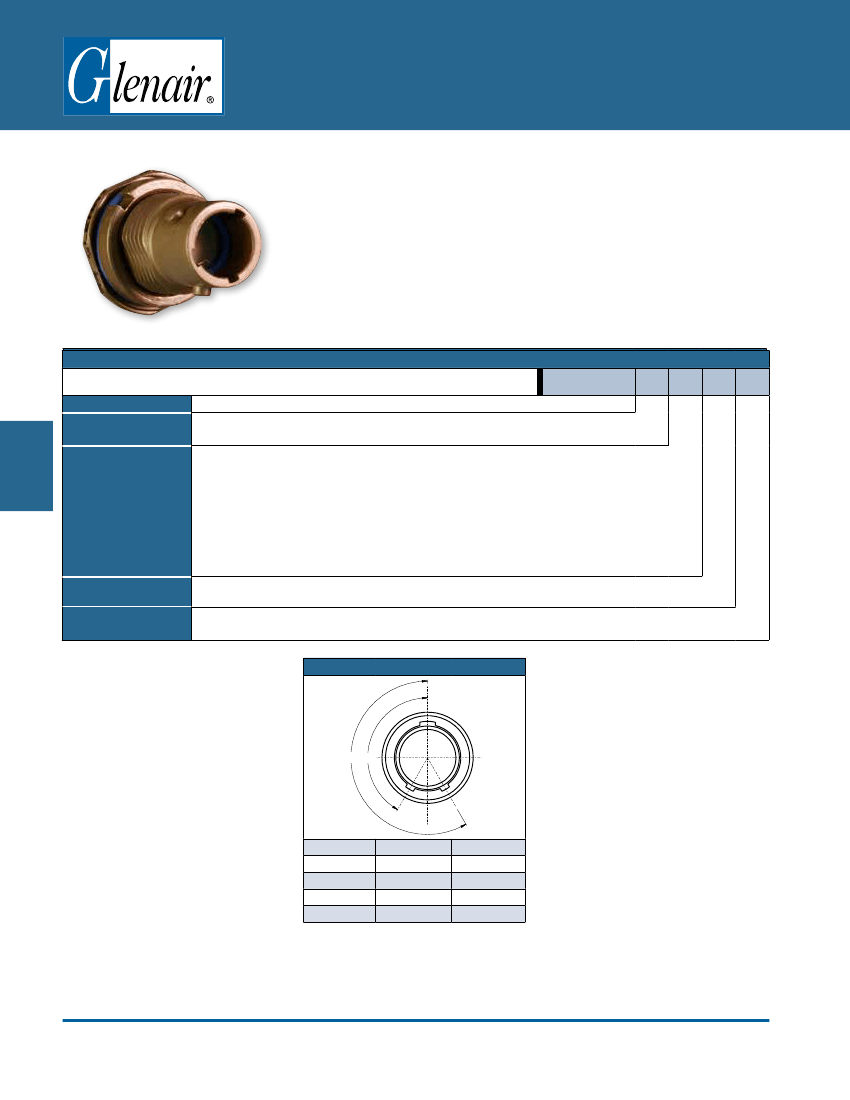

Series 80 Mighty Mouse
Dummy Receptacle for 803 Connectors

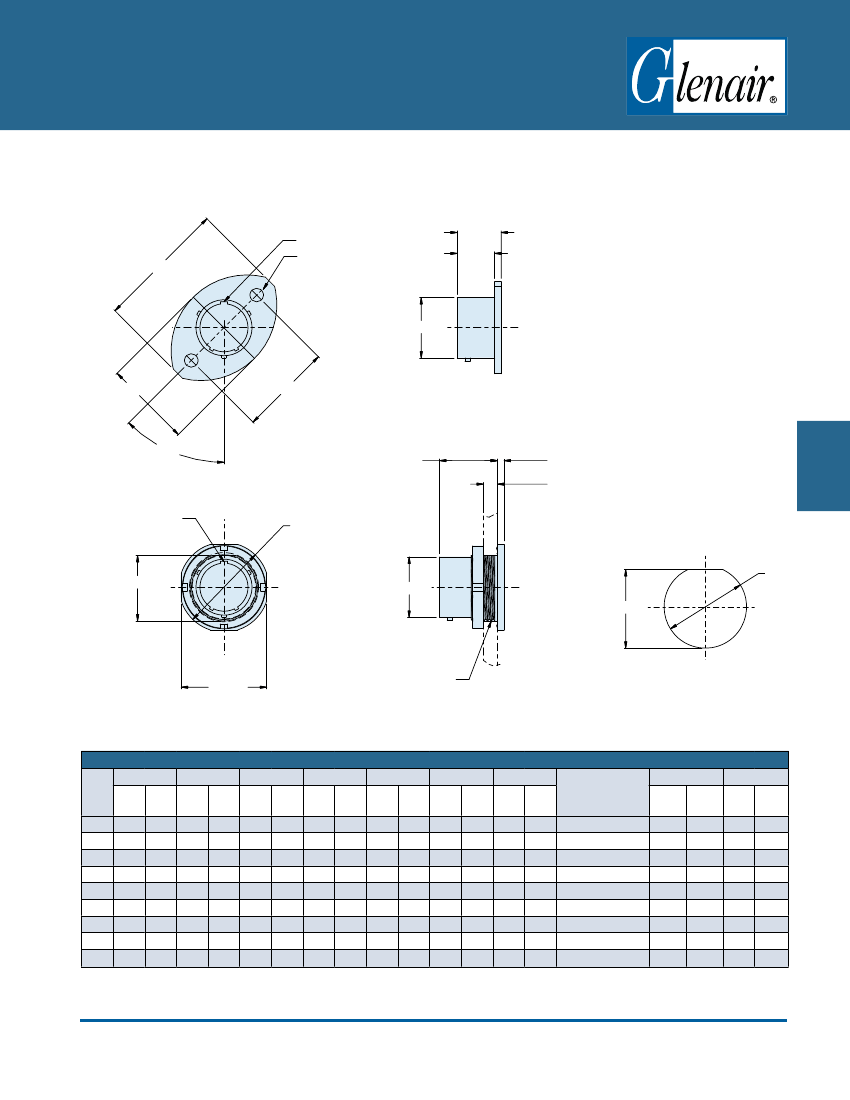

809-092 Bayonet Receptacle - Dimensions
These Series 803 bayone receptacle
dummy stowage receptacles for
shell size 5 thru 15, provide a safe a
convenient place to store and protect
cabled connectors when not in use
due to routine maintenance or repair
of plug cables.
X
Shell Material
and Finish
Accessories
Sample Part Number
Series (See Table I)
Shell Style
Shell Size
(See Table II)
Key Position
5, 6, 7, 8, 9, 10, 12, 14,15
N
= Normal,
X, Y, Z,
U
= Universal
© 2014 Glenair, Inc.
How To Order
809-092
809-092
809-092
02
= Flange Receptacle for front or rear panael mounting
panel mounting
07
= Jam nut receptacle for rear panel mounting
C
= Aluminum / Black Anodize
(Non-Conductive) RoHS Compliant
M
= Aluminum / Electroless Nickel
NF
= Aluminum / Cadmium with Olive Drab
ZN
= Aluminum / Zinc-Nickel with Olive Drab Chromate
Z1
= Stainless Steel / Passivated
ZB
= Stainless Steel / Olive Drab Chromate over Cadmium
ZC
= Stainless Steel / Zinc Cobalt Alloy / Black Chromate
07
-07
M
M
7
7
N
N
Series 803 Plug Key Positions
B° A°
Pos.
N
X
Y
Z
A°
150°
75°
95°
140°
B°
210°
210°
230°
275°
Dimensions in Inches (millimeters) are subject to change without notice.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
X-76
E-Mail: sales@glenair.com
809-092 Bayonet Receptacle - Dimensions
