RM04DBN1021 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> RM04DBN1021

RM04DBN1021: DescriptionFixed Resistor, Metal Glaze/thick Film, 0.0625W, 1020ohm, 50V, 0.5% +/-Tol, 200ppm/Cel, Surface Mount, 0402, CHIP, LEAD FREE; CategoryPassive components The resistor; File Size822KB，12 Pages; ManufacturerTA-I Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

RM04DBN1021 Overview

Fixed Resistor, Metal Glaze/thick Film, 0.0625W, 1020ohm, 50V, 0.5% +/-Tol, 200ppm/Cel, Surface Mount, 0402, CHIP, LEAD FREE

RM04DBN1021 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	2071773534
package instruction	CHIP, LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Chip
JESD-609 code	e3
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	0.32 mm
Package length	1 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	0.5 mm
method of packing	BULK CASSETTE
Rated power dissipation(P)	0.0625 W
Rated temperature	70 °C
resistance	1020 Ω
Resistor type	FIXED RESISTOR
size code	0402
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	200 ppm/°C
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	0.5%
Operating Voltage	50 V

Preview

Download Datasheet

View All

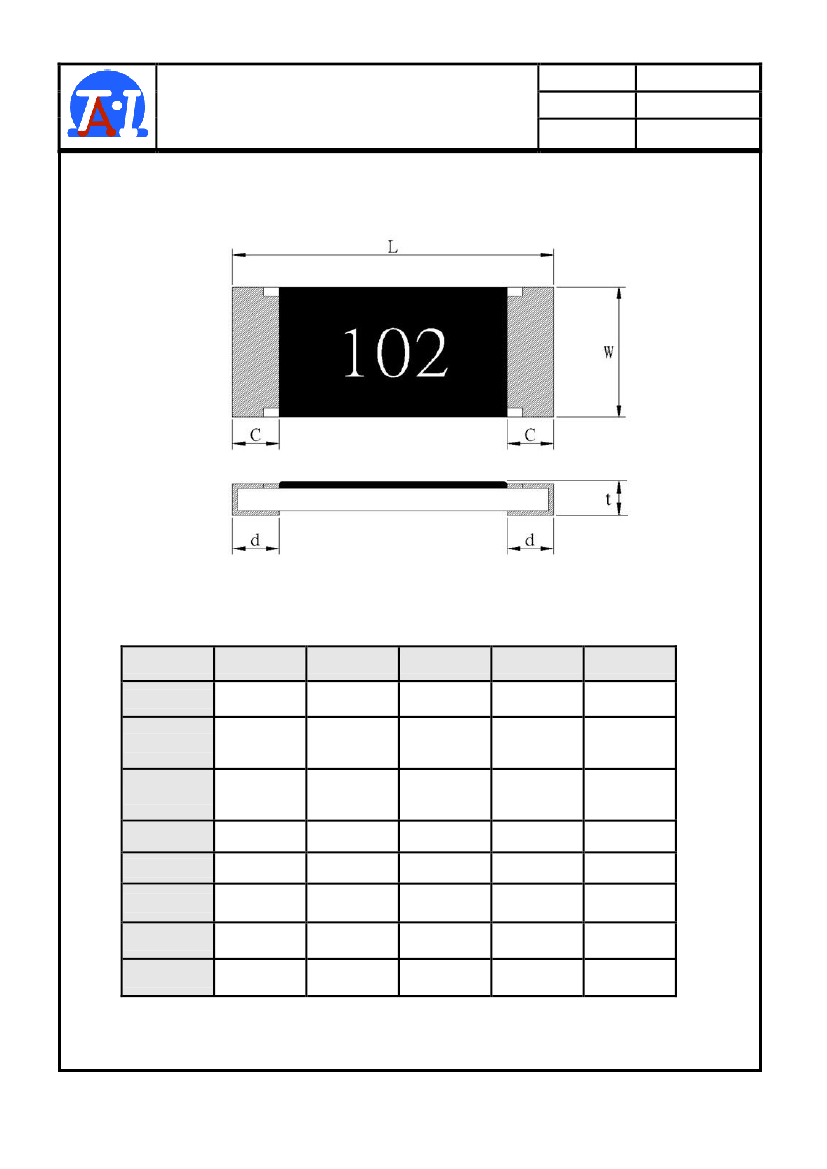

Thick Film Chip Resistors

( Lead-Free for RM series standard )

Halogen-Free

1. Scope :

Document No.

TRM-XX0S002A

Revise Date

page number

2013/05/16

1/12

This specification applies for the RM series of thick film chip resistors made by TA-I.

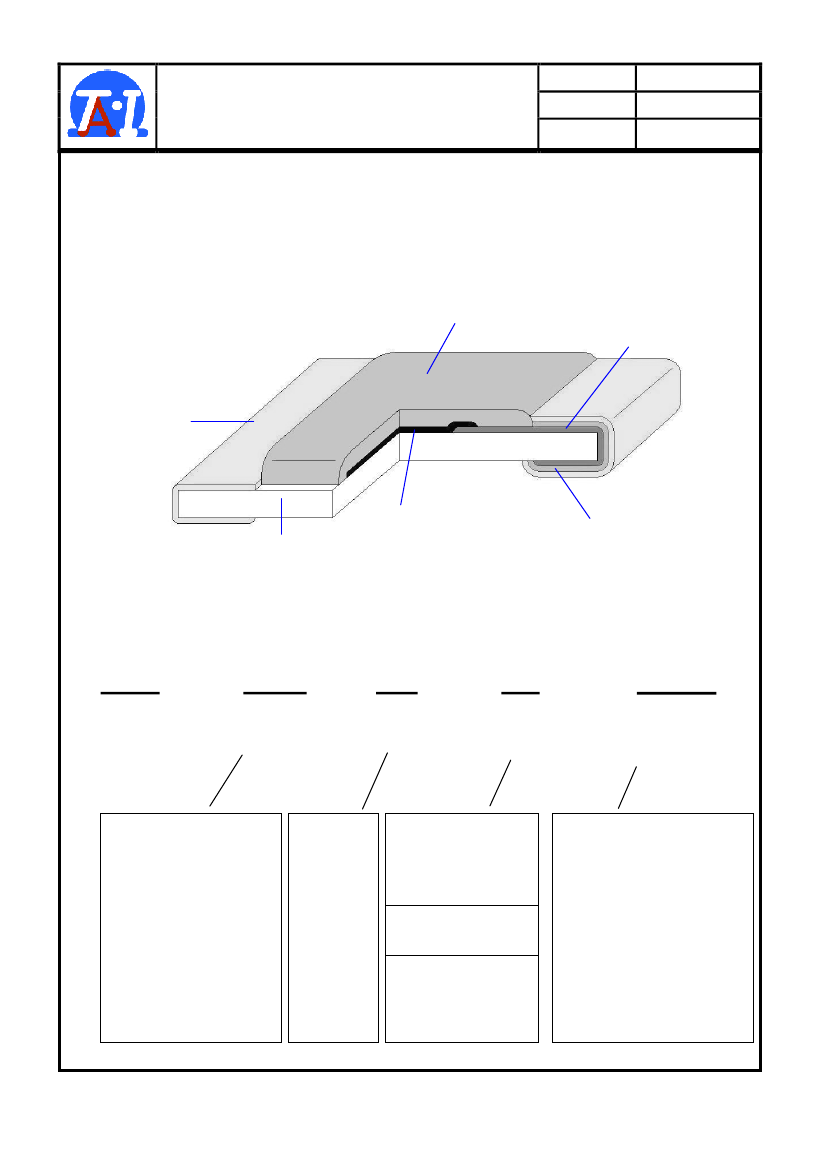

2. Construction:

Over Coat (Color : Black)

Conductor

Sn Plating

Resistive Element

Ceramic Substrate

Ni Plating

Type Designation:

Product Code

RM : Chip Resistor

Size

Power Rating

Tolerance

Packaging

103

Nominal

Resistance

02-0201(0603)

04-0402(1005)

06-0603(1608)

10-0805(2012)

12-1206(3216)

13-1210(3226)

20-2010(5025)

25-2512(6432)

1/20W

1/16W

1/10W

1/8W

1/4W

1/3W

1/2W

J-±5%

G-±2%

F-±1%

D-±0.5%

B-±0.1%

T-Paper Tape

E-Embossed Tape

B-Bulk Cassette

+N: Lead-Free

Special

L : 06 – 2mm pitch

paper Tape

3 digits, e.g.,:

(E-24) 103 = 10kΩ

0 = 0Ω

4 digits, e.g., :

(E-96) 1540 = 154Ω

43R2 = 43.2Ω

TA-I TECHNOLOGY CO., LTD
