3598.02.1420.085: DescriptionRF TNC Connector, Male, Cable Mount, Solder Crimp Terminal, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size359KB，7 Pages; ManufacturerIMS Connector Systems Gmbh; Environmental Compliance

Download Datasheet Parametric View All

3598.02.1420.085 Overview

RF TNC Connector, Male, Cable Mount, Solder Crimp Terminal, Plug, ROHS COMPLIANT

3598.02.1420.085 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1480404867
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	VSWR MAX AT 1 GHZ
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF TNC CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	BRASS
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	3598.02.1420.08
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation method	RIGHT ANGLE
Installation type	CABLE
Maximum operating frequency	4 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	SOLDER CRIMP
voltage standing wave ratio	1.15

Preview

Download Datasheet

View All

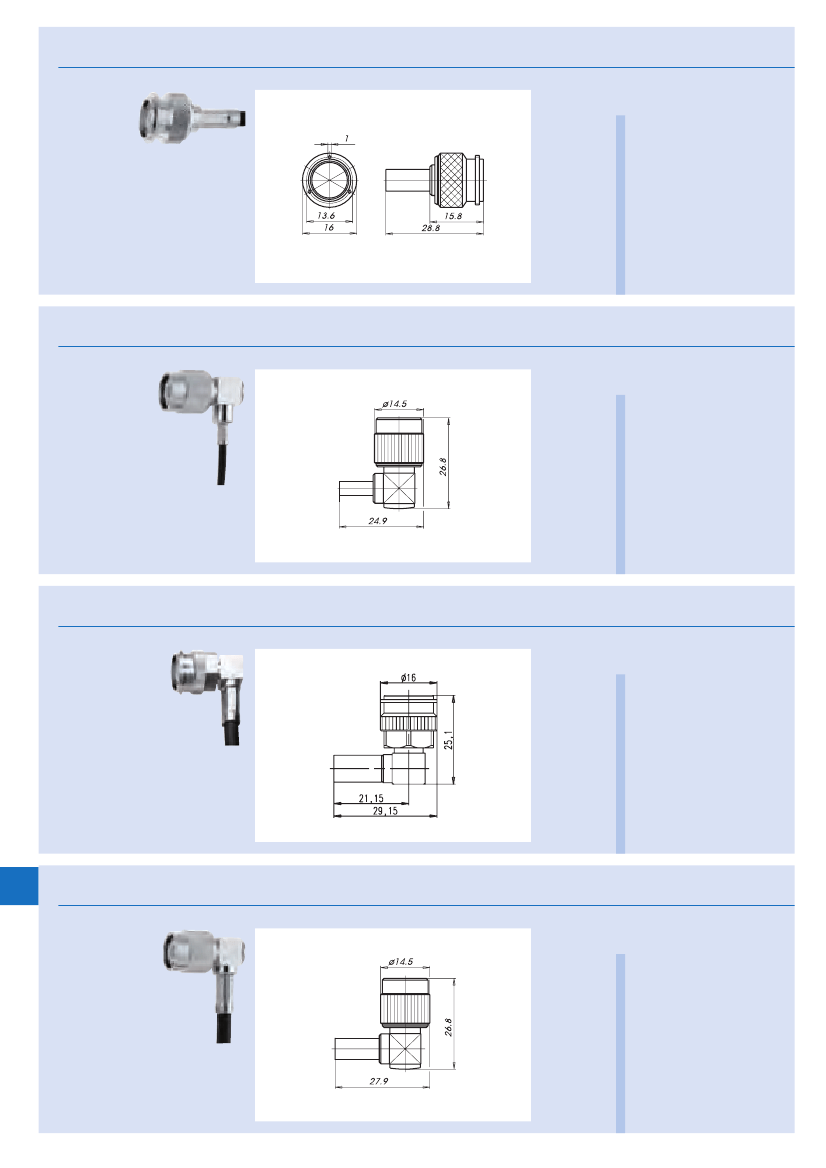

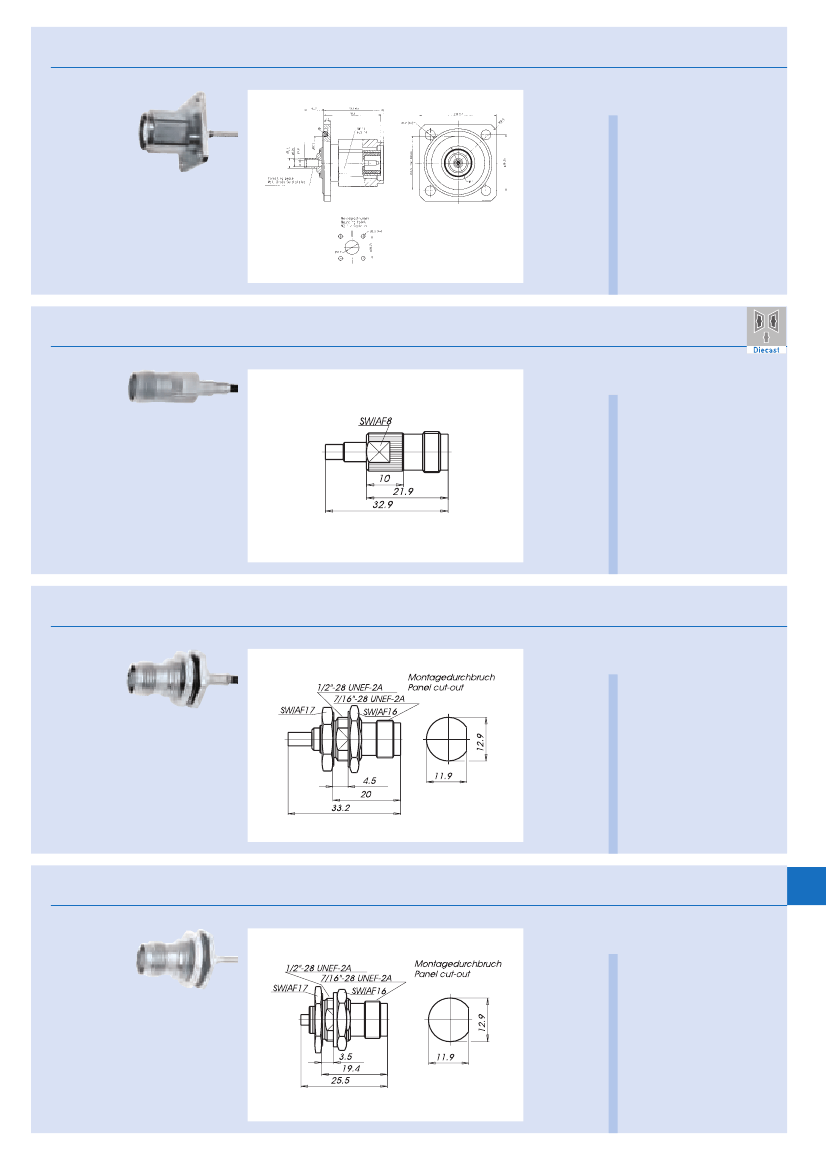

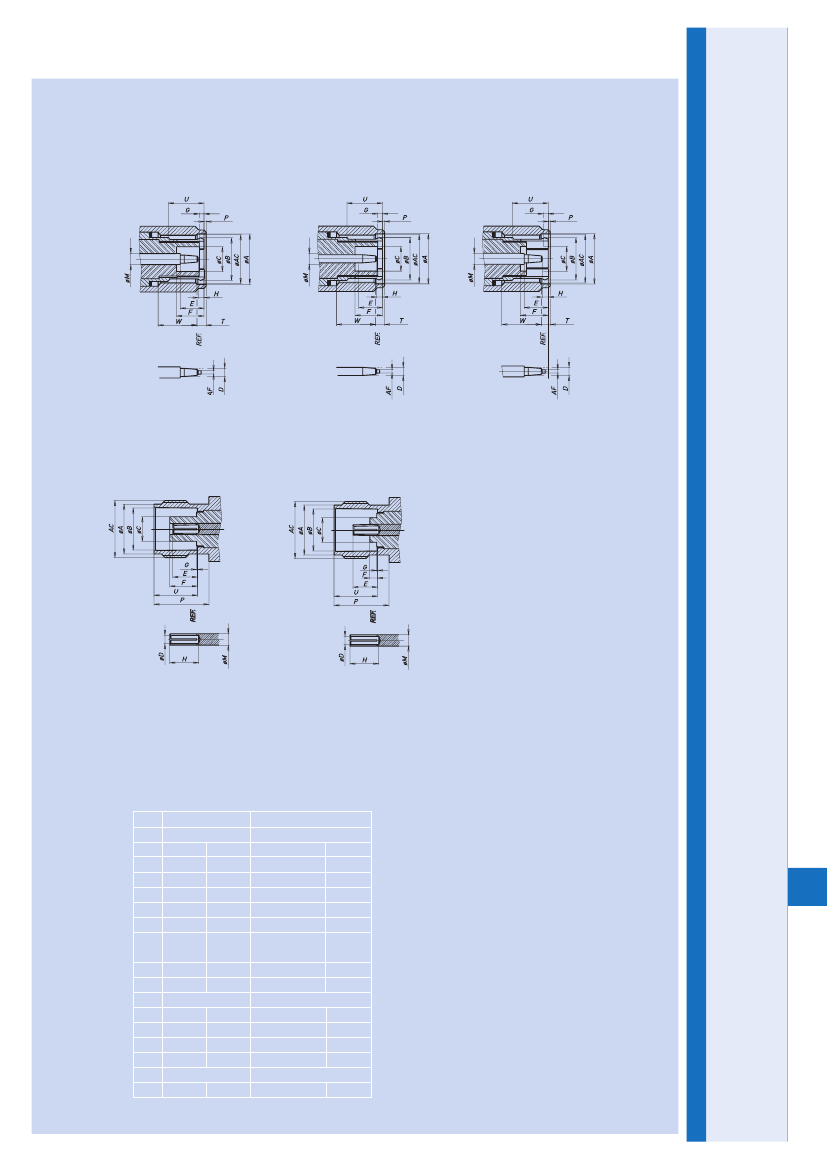

The T N C threaded interface con-

nectors are particularly suitable

for high vibration applications.

This connector range is suitable

for the standard ranges of flexible

and semi-rigid cables and is also

available in PCB and panel mount

versions.

The characteristic impedance of

the T N C coaxial connectors is

50 or 75 ohm.

T N C coaxial connectors meet the

specification of IEC 169-17 and

MIL-C-39012.

TNC RF-coaxial

connectors

TNC HF-Koaxial-

steckverbinder

TNC RF-coaxial connectors / TNC HF-Koaxialsteckverbinder

TNC

T NC ist eine schraubbare Verbin-

dung, die sich zum Einsatz in

Geräten mit starken Vibrationen

eignet.

Diese Steckerfamilie ist einsetz-

bar sowohl in Verbindung mit

allen gängigen Standard-, Flexi-

blen- oder Festmantelkabeln, als

auch für die Leiterplatten- und

Gehäusemontage.

Charakteristisch für T N C Koaxial-

steckverbinder ist der Wellen-

widerstand von 50 oder 75 Ohm.

TNC

T NC Koaxialsteckverbinder erfül-

len: IEC 169-17 und MIL-C-39012.
