580081

Description
Board Connector, 8 Contact(s), 2 Row(s), Female, 0.165 inch Pitch, Crimp Terminal, Locking, Plug
CategoryThe connector    The connector
File Size250KB,1 Pages
ManufacturerW+P Products GmbH
Download Datasheet Parametric View All

580081 Overview

Board Connector, 8 Contact(s), 2 Row(s), Female, 0.165 inch Pitch, Crimp Terminal, Locking, Plug

580081 Parametric

Parameter NameAttribute value
Objectid304380477
Reach Compliance Codecompliant
ECCN codeEAR99
subject depth0.799 inch
body length0.713 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact point genderFEMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage1500VAC V
Insulation resistance1000000000 Ω
insulator materialTHERMOPLASTIC
Manufacturer's serial number580
Plug contact pitch0.165 inch
Match contact row spacing0.165 inch
Installation option 1LOCKING
Installation option 2FRICTION LOCK
Installation typeCABLE
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
polarization keyPOLARIZED HOUSING
Rated current (signal)9 A
GuidelineUL
reliabilityCOMMERCIAL
Termination typeCRIMP
Total number of contacts8

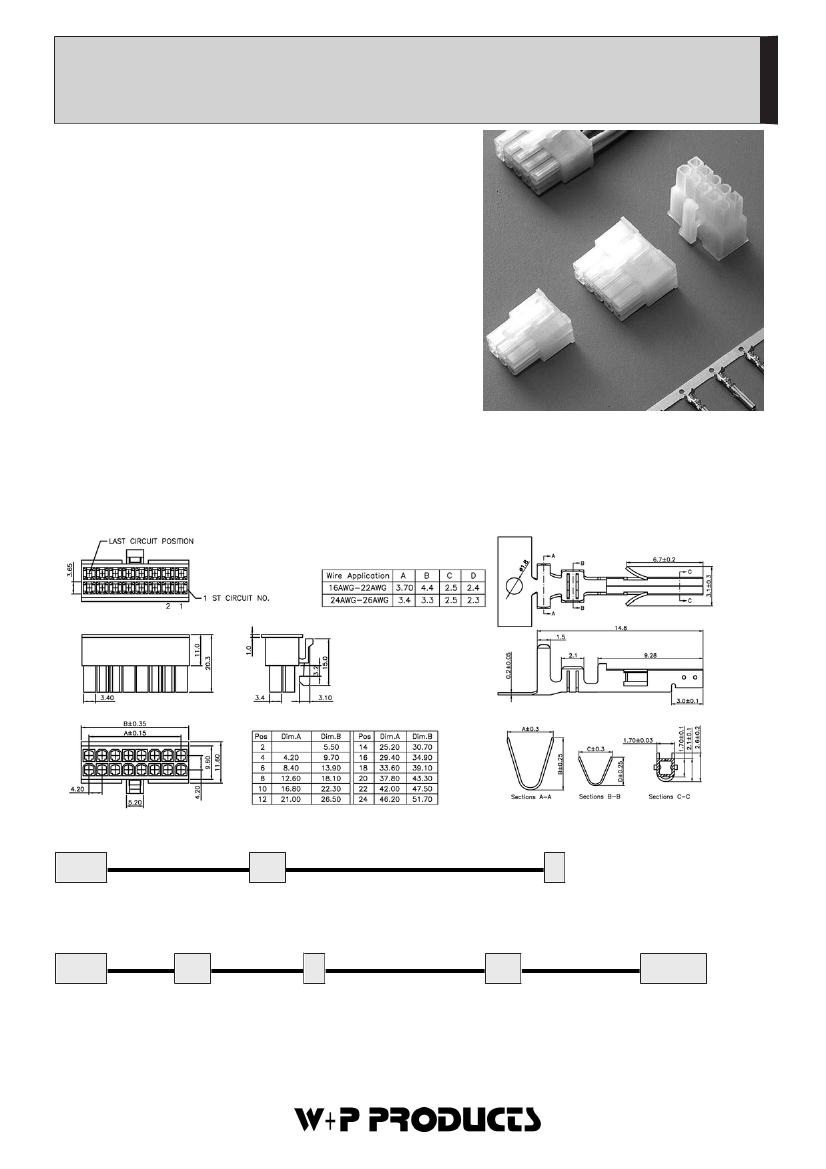

580
Crimp-Rast Buchsengehäuse RM 4,20mm
Friction Lock Female Header Pitch 4,20mm
Technische Daten /Technical
Data
Isolierkörper
Thermoplastischer Kunststoff, nach UL94 V-0
Insulator
Thermoplastic, rated UL94 V-0
Kontaktmaterial
Messing
Contact Material
Brass
Kontaktoberfläche
Lt. Oberflächenoptionen, über Ni (1,3 ... 2,5µm)
Contact Surface
Acc. to options (see below), over Ni (1,3 ... 2,5µm)
Aderquerschnitt
Lt. Optionen
Applicable wire Gauge
Lt. Optionen
Durchgangswiderstand
< 20mΩ
Contact Resistance
< 20mΩ
9
Isolationswiderstand
> 10
9
Insulation Resistance
> 10
Spannungsfestigkeit
1500V
AC
Test Voltage
1500V
AC
Nennstrom
9A
Current Rating
9A
Temperaturbereich
-40°C ... +105°C
Temperature Range
-40°C ... +105°C
Series
Contacts
*
Type
580
Series
Contacts
20
02-24
Zweireihig
Double row
1
1
Gehäuse
Housing
Type
Plating
Wire Gauge
*
580
01
2
2
Buchsenkontakt
Female contact
50
50
Verzinnt
Tin plated
1622
1822
AWG 18-22
2224
AWG 22-24
(
*
Bestellbeispiel - Bitte durch Ihre
Spezifikationen ersetzen.
*
Order example - To be replaced by your
specifications.)
TEL.: +49 5223 98507-0
FAX.: +49 5223 98507-50
E-MAIL: sales@wppro.com
INTERNET: www.wppro.com
