88001922 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 88001922

88001922: DescriptionUSB Connector, 19 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size194KB，2 Pages; ManufacturerW+P Products GmbH

Download Datasheet Parametric View All

88001922 Overview

USB Connector, 19 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking, Receptacle

88001922 Parametric

Parameter Name	Attribute value
Objectid	304368438
Reach Compliance Code	compliant
ECCN code	EAR99
Board mount options	LOCATING POSTS
subject depth	0.474 inch
body length	0.571 inch
Body/casing type	RECEPTACLE
Connector type	USB CONNECTOR
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact resistance	30 mΩ
Contact style	USB, SER A FLAT
Dielectric withstand voltage	500VDC V
Insulation resistance	100000000 Ω
insulator material	THERMOPLASTIC
Installation option 1	LOCKING
Installation option 2	DETENTS
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of ports	1
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.508 mm
Termination type	SURFACE MOUNT
Total number of contacts	19

Preview

Download Datasheet

View All

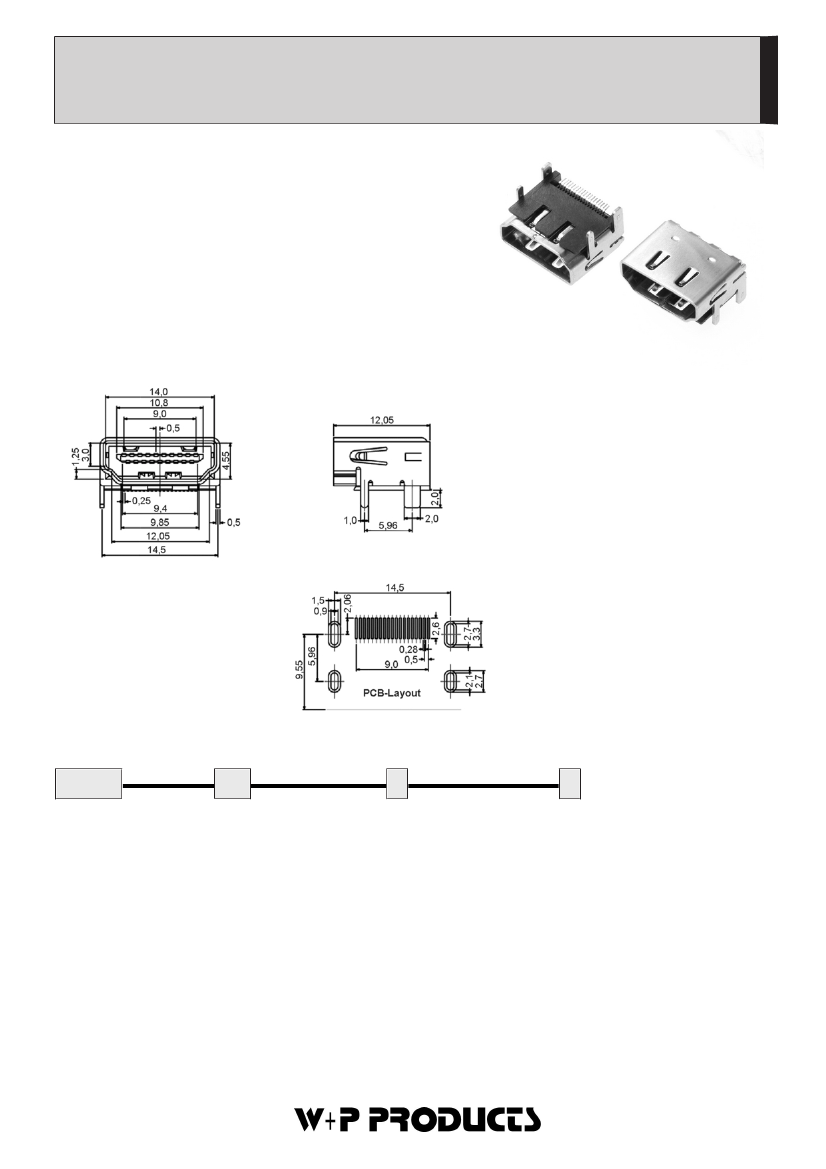

8800

SMT HDMI Steckverbinder - gewinkelt

SMT HDMI Connector - Right Angled

Technische Daten /Technical

Data

Isolierkörper

Thermoplastischer Kunststoff, nach UL94 V-0

Insulator

Thermoplastic, rated UL94 V-0

Kontaktmaterial

Kupferlegierung

Contact Material

Copper alloy

Durchgangswiderstand

< 30mΩ

Contact Resistance

< 30mΩ

Isolationswiderstand

> 10

Ω

Insulation Resistance

> 10

Ω

Spannungsfestigkeit

500V

@ 1min

Test Voltage

500V

@ 1min

Nennstrom

0,5A

Current Rating

0,5A

Temperaturbereich

-55°C ... +85°C

Temperature Range

-55°C ... +85°C

Verarbeitung

Reflow-Lötverfahren; weitere Informationen in Kapitel T

Processing

Reflow-soldering, detailed information in ch. T

Series

Contacts

Terminal

Type

8800

Buchse

Female

Gewinkelt

Right angled

TEL.: +49 5223 98507-0

FAX.: +49 5223 98507-50

E-MAIL: sales@wppro.com

INTERNET: www.wppro.com
