BF086-22-A-0300-N-D datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> BF086-22-A-0300-N-D

Preview

BF086-22-A-0300-N-D: DescriptionBoard Connector, 22 Contact(s), 1 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator,; CategoryThe connector The connector; File Size95KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BF086-22-A-0300-N-D Overview

Board Connector, 22 Contact(s), 1 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator,

BF086-22-A-0300-N-D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	316066607
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.11 inch
subject depth	0.169 inch
body length	1.756 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	100 Cycles
maximum insertion force	3.0024 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
Manufacturer's serial number	BF086
Plug contact pitch	0.079 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	22
Evacuation force-minimum value	.199882 N

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

8

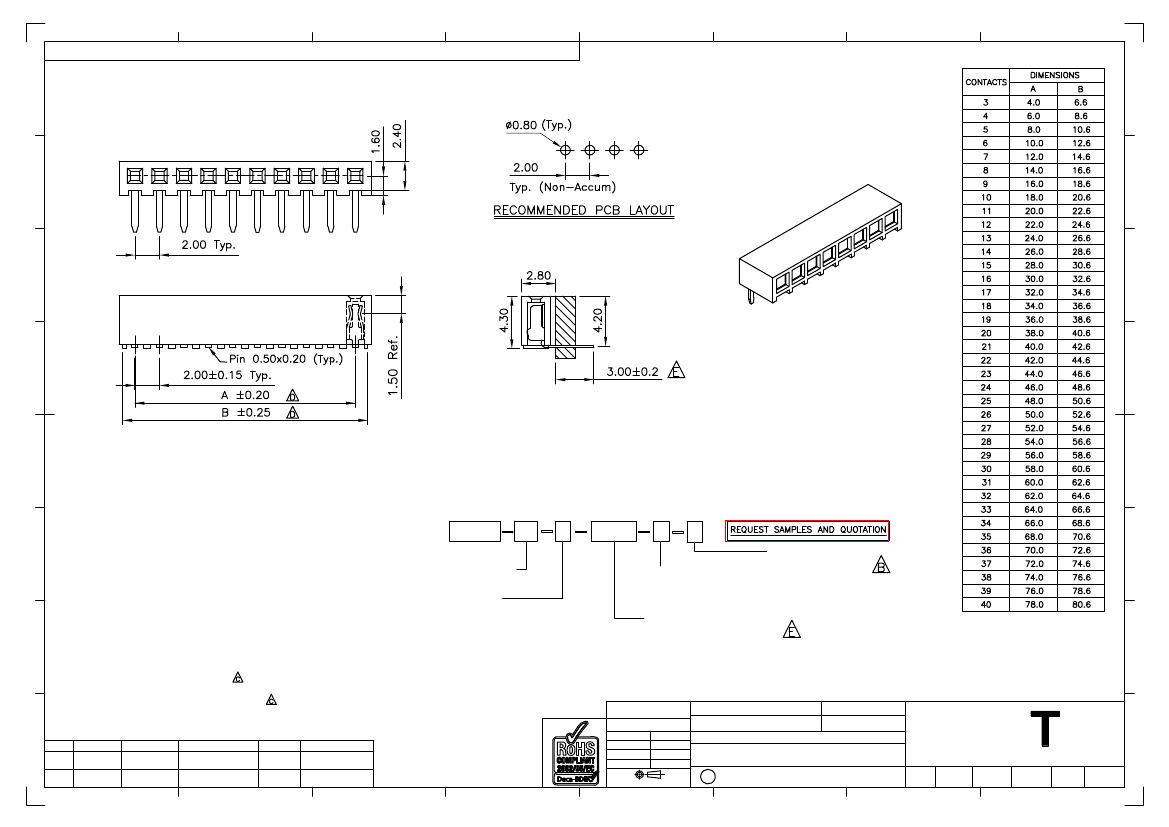

Global Connector Technology Ltd. - BF086: 2.0mm PITCH SOCKET, SINGLE ROW, THROUGH HOLE, HORIZONTAL

A

B

C

D

E

SPECIFICATIONS

规格

CURRENT RATING

电流额定值：

2 AMP

INSULATOR RESISTANCE

绝缘电阻值：

1000 MEGOHMS MIN.

CONTACT RESISTANCE

接触电阻值：

20 mOHMS MAX.

DIELECTRIC WITHSTANDING

耐电压：

AC 500 V

F

OPERATING TEMPERATURE

工½温度：

-40°C TO +105°C

CONTACT MATERIAL

端子物料：

PHOSPHOR BRONZE

INSULATOR MATERIAL

绝缘½物料

:

STANDARD

标准物料

: POLYAMIDE

聚醯胺

, NYLON 6T, UL 94-V0

OPTIONS

可选物料

: POLYESTER

聚酯

, LCP, UL 94-V0

SOLDERING PROCESS

可焊性

:

NYLON 6T (STANDARD

标准物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

:230°C for 5-10 sec.

G

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

LCP (OPTION

可选物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

:250°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

):

BF020

BF021

BF025

BF035

BF036

BF040

BF130

H

By

DETAIL

REV

DATE

LYH

DRAWING

RELEASE

A

09/03/09

CB

PACKING OPTIONS

CHANGED

Ordering Grid

BF086

No. of Contacts

03 to 40

XX

X

0300

X

Packing Options

D = Tube (Standard)

G = Plastic Box

F

Contact Plating

A = Gold Flash All Over (Standard)

B = Selective Gold Flash Contact Area/

Tin On Tail

C = Tin All Over

G = 10µ" Gold Contact Area/Tin On Tail

I = 30µ" Gold Contact Area/Tin On Tail

Insulator Material

N = Nylon 6T (Standard)

L = LCP

Insulator to Pin End (1/100mm)

0300 = 3.00mm

G

Tolerances

(Except as noted)

Part Number:-

Date:-

Dimensions in mm

X. ± 0.30

BF086

09 MAR 09

DR

SA

AJO

B

27/04/09

CHANGE TO SOLDER

ECN:

SELECTABLE

TEMP. INFORMATION BF086-001 LENGTH REMOVED

E

C

D

25/07/12

05/08/09

05/07/10

X.°±5°

Description:-

X.X ± 0.20

.X°±2°

2.0mm PITCH SOCKET, SINGLE ROW,

X.XX ± 0.15

.XX°±1°

THROUGH HOLE, HORIZONTAL

X.XXX ± 0.10 .XXX°±0.5°

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Third Angle Projection

www.globalconnectortechnology.com

Scale

NTS

GC

Material

See Note

H

C

Revision

E

Drawn by

LYH

E & OE

Sheet No.

1/1

1

2

3

4

5

6

7

8
