FMVPCL325CCES/L-30.000000M-GW datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> FMVPCL325CCES/L-30.000000M-GW

FMVPCL325CCES/L-30.000000M-GW: DescriptionOscillator; CategoryPassive components oscillator; File Size73KB，1 Pages; ManufacturerFrequency Management International

Download Datasheet Parametric View All

FMVPCL325CCES/L-30.000000M-GW Overview

Oscillator

FMVPCL325CCES/L-30.000000M-GW Parametric

Parameter Name	Attribute value
Objectid	106565581
Reach Compliance Code	compliant

Preview

Download Datasheet

View All

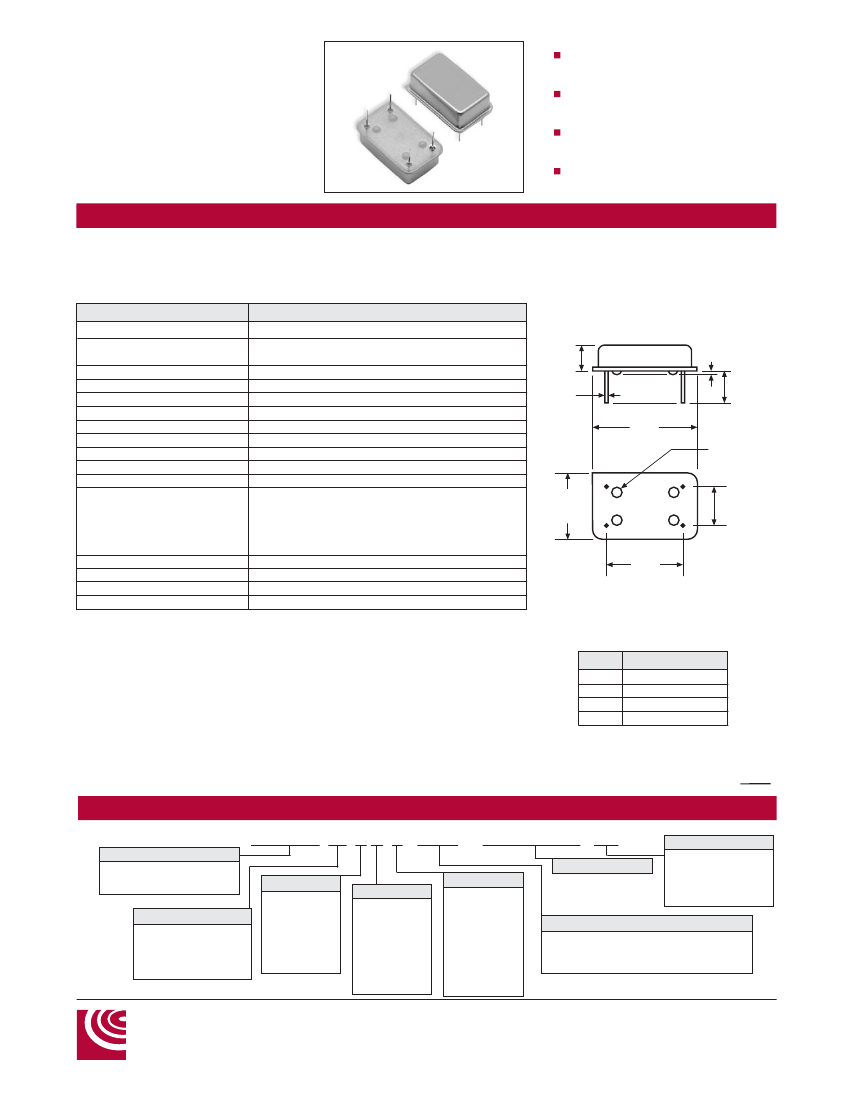

FMVPCL3

SERIES

3.3 Vdc PECL VCXO

3.3 Vdc PECL

Precise Clock Edges

High Frequency /Low Noise

SMD Gull-Wing Option

14 PIN DIP

SPECIFICATIONS

05|issue1|031406

Parameter

Frequency Range

Overall Frequency Tolerance

Operating Temperature Range

Storage Temperature

Supply Voltage (Vdd)

Supply Current

Symmetry (Duty Cycle)

Logic Type

Output “0” Level (VOL)

Output “1” Level (VOH)

Jitter (typical)

Phase Noise (typical)

Specification

30.0 - 160.0 MHz

±25 ppm to ±100 ppm

(Inclusive of Operating Temp., Supply Voltage and Load)

FULL SIZE 14 PIN DIP

0.240

(6.1)

MAX.

0.018

(0.46)

0.800

(20.3)

MAX.

0.510

(12.95)

MAX.

0.600

(15.24)

0.031

(0.76)

MAX

0.250

(6.35)

MAX.

Control Voltage (Vc)

Rise and Fall Time

Linearity

Aging

0 to +70° C Std. (See Temp. Range)

-55° to +125° C

+3.3 Vdc (±0.3Vdc)

100 mA max.

40/60% Std., 45/55% Avail. (See Spec. Options S)

ECL Squarewave, 100K Compatible

Vdd - 1.60 Vdc max.

Vdd - 1.02 Vdc min.

< 10 pico seconds, one sigma

10 Hz

-75dBc/Hz

100 Hz

-110dBc/Hz

1kHz

-125dBc/Hz

10kHz

-130dBc/Hz

100kHz

-140dBc/Hz

Nominal 2.5 Vdc, Range 0.5-4.5 Vdc, Positive Transfer

2 nS max.

±20% max. Std. , ±10% Available (See Spec. Option L)

±3 ppm first year max.

Insulated

Stand-Offs

0.300

(7.62)

All specifications subject to change without notice.

PIN FUNCTION TABLE

Function

Control Voltage (Vc)

Case Ground ( Vee)

Output

Supply Voltage (Vdd)

NOTE: Waveforms & Test Circuits on pages 48, 49

Standard Specifications for product indicated in

color

Dimensions:

Inches

(mm)

PART NUMBERING SYSTEM

Product Family

+3.3 Vdc PECL VCXO

Full-Size 14 Pin DIP

Overall Frequency Tol.

25 - ± 25 ppm

50 - ± 50 ppm

00 - ± 100 ppm

nn - ± Custom Value

MARKING: See Page 57, Format G

Options

GW - Gull Wing

PD - Parameter Data

CM - Custom Mark

BLANK - None Req’d.

FMVPCL3 00 C G A S / L - XXX.XXXXXX - CM

Frequency (MHz)

Min. Pullability

B - ± 75 ppm

C - ± 100 ppm

D - ± 125 ppm

E - ± 150 ppm

X - Custom

Z - No Spec.

Max. Pullability

C - ± 100 ppm

D - ± 125 ppm

E - ± 150 ppm

F - ± 175 ppm

G - ± 200 ppm

X - Custom

Z - No Spec.

Temp. Range

A 0 to 70 °C

B -20 to 70 °C

C -40 to 85 °C

D -10 to 50 °C

E -10 to 60 °C

F -30 to 60 °C

J 0 to 50 °C

X - Custom

Spec. Options

S - Tight Symmetry (45/55%) Duty Cycle

L - Linearity ±10% Max.

Blank - None Required (Std.)

FREQUENCY MANAGEMENT |

INTERNATIONAL

15302 Bolsa Chica Street

Huntington Beach, CA 92649

ph (714) 373-8100 | fx (714) 373-8700

1-800-800-XTAL

[9825]

www.fmi-inc.com
