PP2W0875C-472M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> PP2W0875C-472M

PP2W0875C-472M: DescriptionGeneral Purpose Inductor, 4700uH, 20%, 1 Element, RADIAL LEADED; CategoryPassive components inductor; File Size45KB，1 Pages; ManufacturerFenfa Electronics Ltd; Websitehttp://www.coilsfenfa.com

Download Datasheet Parametric View All

PP2W0875C-472M Overview

General Purpose Inductor, 4700uH, 20%, 1 Element, RADIAL LEADED

PP2W0875C-472M Parametric

Parameter Name	Attribute value
Objectid	1145505792
Reach Compliance Code	unknown
ECCN code	EAR99
DC Resistance	14.7 Ω
Nominal inductance(L)	4700 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	PP2W0875C
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Maximum rated current	0.11 A
Shape/Size Description	CYLINDRICAL PACKAGE
shield	YES
surface mount	NO
Terminal location	RADIAL
Terminal shape	FLAT
Test frequency	0.001 MHz
Tolerance	20%

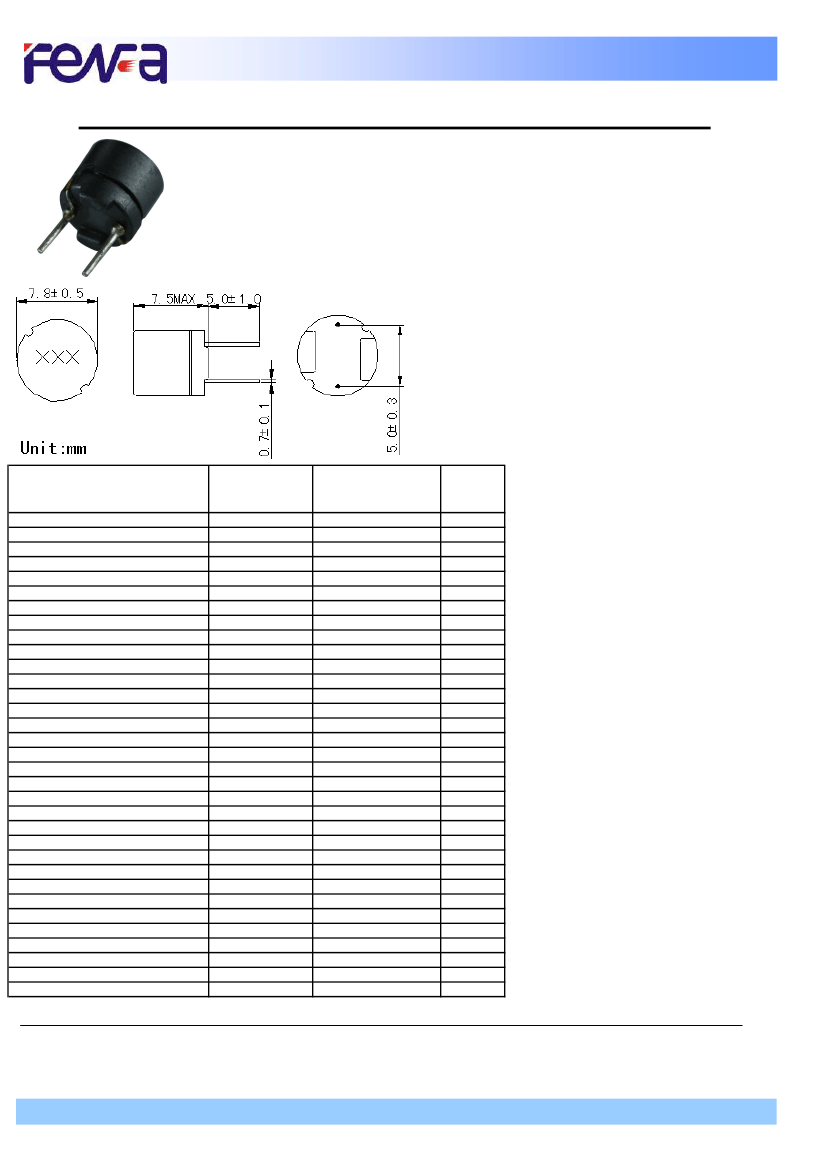

Preview

Download Datasheet

View All

PIN TYPE Power Inductors PP2W0875C Series

PP2W0875C Series ,Entrie winding core is encapsulated in

heat shriked ul tube or magnetically shielded. to provide

mechanical and environmental protection. Rugged reliability

and performance. For switchingpower supply with high

reliability. Efficiency and saturation. OA equipment choke.

High current low impedance.

P/N

L (uH)

±20%

DCR(mohm)

MAX

Isat

(A)

PP2W0875C-220M

80.0

1.60

PP2W0875C-270M

100.0

1.40

PP2W0875C-330M

140.0

1.30

PP2W0875C-390M

150.0

1.20

PP2W0875C-470M

170.0

1.10

PP2W0875C-560M

190.0

0.99

PP2W0875C-680M

210.0

0.89

270.0

PP2W0875C-820M

0.81

PP2W0875C-101M

320.0

100

0.74

PP2W0875C-121M

360.0

120

0.67

PP2W0875C-151M

510.0

150

0.60

PP2W0875C-181M

570.0

180

0.55

PP2W0875C-221M

760.0

220

0.50

PP2W0875C-271M

860.0

270

0.45

PP2W0875C-331M

970.0

330

0.41

PP2W0875C-391M

1280.0

390

0.37

PP2W0875C-471M

1440.0

470

0.34

PP2W0875C-561M

1610.0

560

0.31

PP2W0875C-681M

2070.0

680

0.28

PP2W0875C-821M

2330.0

820

0.26

PP2W0875C-102M

2720.0

1000

0.23

PP2W0875C-122M

3980.0

1200

0.21

PP2W0875C-152M

4500.0

1500

0.19

PP2W0875C-182M

6810.0

1800

0.17

PP2W0875C-222M

7560.0

2200

0.16

PP2W0875C-272M

8540.0

2700

0.14

PP2W0875C-332M

9740.0

3300

0.13

PP2W0875C-392M

12900.0

3900

0.12

PP2W0875C-472M

14700.0

4700

0.11

PP2W0875C-562M

20400.0

5600

0.099

PP2W0875C-682M

23000.0

6800

0.089

PP2W0875C-822M

30600.0

8200

0.081

In Bulk Packing

PP2W0875C-103M

35000.0

10000

0.074

Special inquiries besides the above common used types can be met on your requirement.

FENFA ELECTRONICS LTD.

Address: Rm 621, 6/F., Shing Yip Industrial Building,

19-21 Shing Yip Street, Kwun Tong, Hong Kong

Tel:

(852) 2372 0880, Fax: (852) 2372 0131

1.Inductance tested at 1KHz,0.1V;

2.SRF>13MHz measured using

Agilent / HP8753D network

Analyzer;

3.Inductance drop = 10% typ.

at rated Isat;

4.△T=40℃ rise typ. at Irms;

5.Operating temperature range

-40℃ to +125℃;

6. Electrical specifitions at +25℃;

http://www.coilsfenfa.com

fenfa@coilsfenfa.com

FENFA ELECTRONICS (DONGGUAN) CO., LTD.

Address: Xiakeng Industrial District,Changping Town,

Dongguan City,Guangdong,China

Tel:

86-769-86291668 Fax:86-769-83999028
