SYNTON
-
TECH CORPORATION
METAL OXIDE FILM RESISTORS
NON (NON-INDUCTIVE TYPE)
File No. :
Version :
Page :
Date :
NON-02-G
B
1/20
2012.05.18
1. SUBJECT :
This specification applies on the Metal Oxide Film Resistors
(non-inductive type) was made by
SYNTON-TECH
Corporation。
2. EXPLANATIONS OF ORDERING CODE
DESCRIPTION : NON 1W 5% 10Ω
SYNTON CODE :
NON
100
J
100
T
SERIES
METAL
OXIDE FILM
RESISTORS
NON
( NON-INDUC
TIVE TYPE )
POWER
025 : 1/4W
050 : 1/2W
100 : 1W
200 : 2W
300 : 3W
500 : 5W
700 : 7W
1000:10W
100 S : 1W
small Size
200 B : 2W
big Size
(Please see
detail of
Figure1)
TOLERANCE
F :
±1%
G :
±2%
J :
±5%
RESISTANCE
VALUE
E24 Series
3 Digits :
1R0 : 1Ω
2R2 : 2.2Ω
100 : 10Ω
E96 Series
4 Digits :
1R00 : 1Ω
2R20 : 2.2Ω
10R0 : 10Ω
1000 : 100Ω
(Please see
detail of
Figure7)
PACKAGE
T
=Tape Box
S
=Tape 26mm
TR
=Tape Reel
B
=Bulk
M / MK / MB=
Forming
horizontal type
F / FK / FKK=
Forming
vertical type
(Please see
detail of
Figure4&5,6)
APPROVED
CHECKED
DESIGNED
REMARK
DOCUMENT NO.
Carol
May
Chen
5/18 RE:SGS
0201010179
Confidential, Do Not Disseminate.
SYNTON
-
TECH CORPORATION
METAL OXIDE FILM RESISTORS
NON (NON-INDUCTIVE TYPE)
File No. :
Version :
Page :
Date :
NON-02-G
B
2/20
2012.05.18
3. ELECTRICAL CHARACTERISTICS
TYPE
Power Rating at
70℃
Operating Temp.
Range
Maximun
Working Volt.
Maximun
Overload Volt.
Dielectric
withstanding Volt.
NON- NON- NON- NON- NON- NON- NON- NON- NON- NON- NON- NON-
25
50S
50
100S 100 200S 200 300S 300 500S 500 700S
1/4W 1/2W 1/2W
1W
1W
2W
2W
3W
3W
5W
5W
7W
—55℃½＋155℃
200V 200V 200V 250V 300V 300V 300V 350V 450V 450V 500V 500V
300V 300V 350V 400V 500V 500V 500V 600V 700V 700V 800V 800V
250V 250V 300V 350V 400V 400V 400V 500V 600V 600V 700V 700V
1Ω~50
Ω
±350
ppm /
℃
Figure 1
Value Range
Temp.
Coefficient
4. POWER RATING
(1)Power Derating
: The rated power at the temperature in excess of
70
℃
shall be derated in accordance with figure2
0
100
70
Rated
Power
(%)
80
60
40
20
0
0
30
60
90
120
150
155
180
210
200
240
Ambient Temperature (℃)
Figure2
Confidential, Do Not Disseminate.
SYNTON
-
TECH CORPORATION
METAL OXIDE FILM RESISTORS
NON (NON-INDUCTIVE TYPE)
File No. :
Version :
Page :
Date :
NON-02-G
B
3/20
2012.05.18
(2)Rated Voltage :
The DC or AC(rms) continuous working voltage
corresponding to the rated power is determined
by the following formula:
E
=
RxP
Where E : Continuous rated DC or AC (rms) working voltage (v)
P : Rated power (w)
R : Resistance value (
Ω
)
Confidential, Do Not Disseminate.
SYNTON
-
TECH CORPORATION
METAL OXIDE FILM RESISTORS
NON (NON-INDUCTIVE TYPE)
File No. :
Version :
Page :
Date :
NON-02-G
B
4/20
2012.05.18

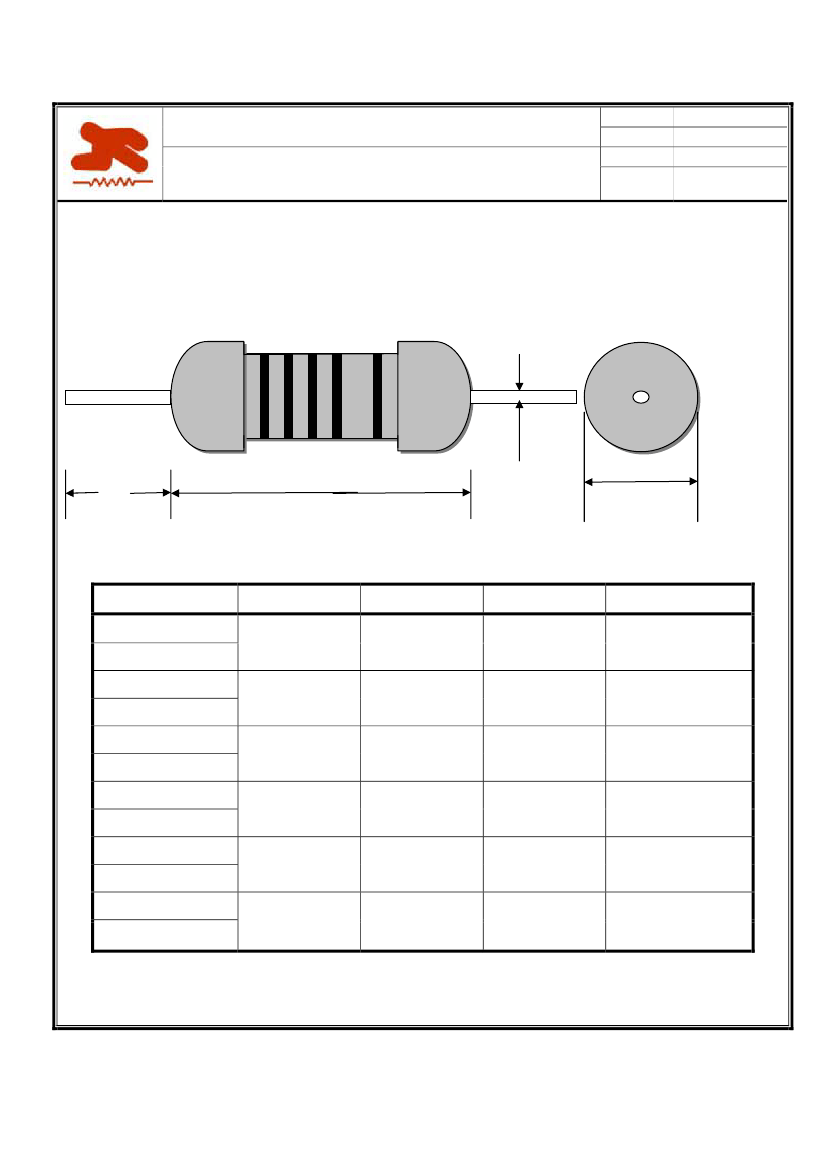

5. DIMENSIONS
d
H
L
D
Unit: m/m
TYPE
NON-25
NON-50S
NON-50
NON-100S
NON-100
NON-200S
NON-200
NON-300S
NON-300
NON-500S
NON-500
NON-700S
L
6.0 ± 0.5
9.0 ± 0.5
11 ± 1.0
15 ± 1.0
17 ± 1.0
24 ± 1.0
D
2.3 ± 0.3
3.2 ± 0.5
4.5 ± 0.5
5.0 ± 0.5
6.0 ± 0.5
8.0 ± 1.0
Figure3
H
25 ± 3
25 ± 3
35 ± 3
35 ± 3
35 ± 3
35 ± 3
d
0.54 ± 0.1
0.58 ± 0.1
0.75 ± 0.1
0.75 ± 0.1
0.75 ± 0.1
0.75 ± 0.1
Confidential, Do Not Disseminate.
SYNTON
-
TECH CORPORATION
METAL OXIDE FILM RESISTORS
NON (NON-INDUCTIVE TYPE)

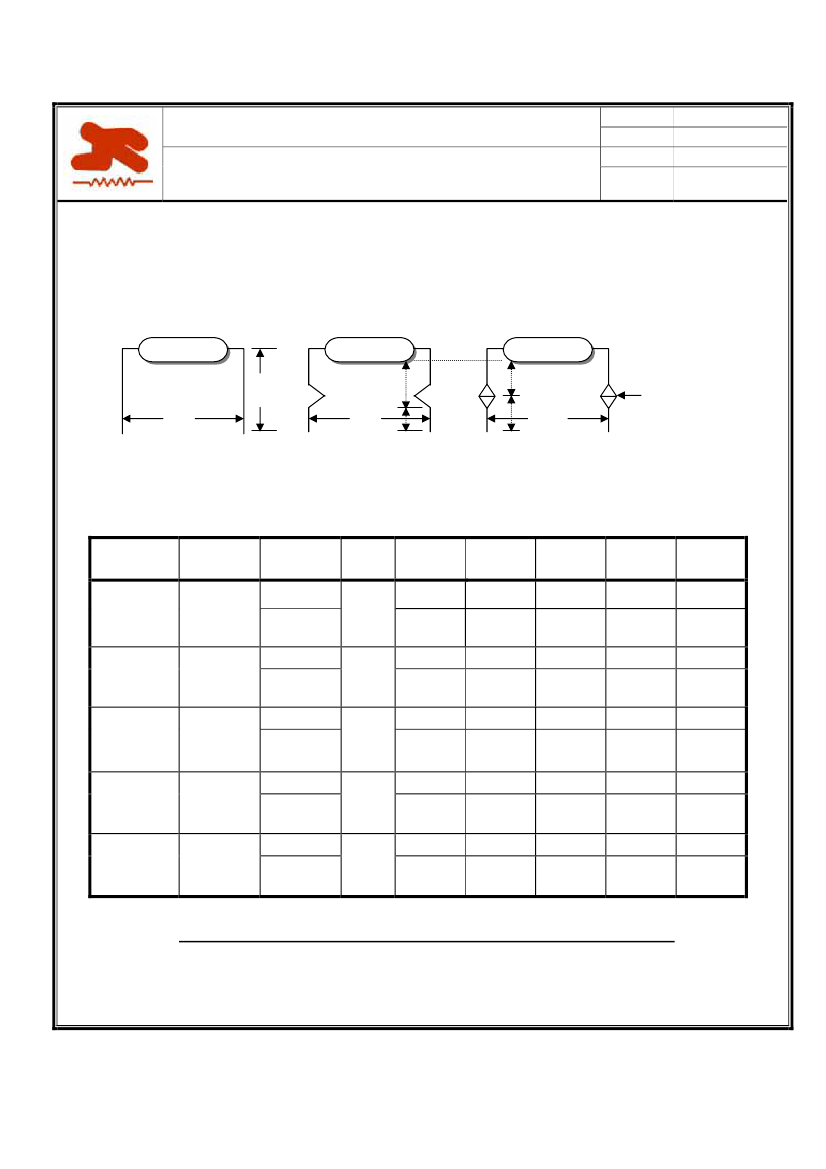

(1) FORMING PACKING
M / MK / MB= Forming horizontal type
File No. :
Version :
Page :
Date :
NON-02-G
B
5/20
2012.05.18
H
P
TYPE
P
MK
H1
H2
H3
H4
B
P
TYPE
M
TYPE
MB
TYPE
POWER
1/4W
1/2W
1/2W
1W
1W
2W
2W
3W
3W
5W
Forming
Type
M
MK
M
MK.MB
M
MK.MB
M
MK MB
M
MK MB
P
±
1
10~
H
±2.5
5~
─
10~
H1
±
1
─
5
8
─
5
8
─
5
8
─
5
8
─
8
H2
±
1
─
3~
─
3~
─
3~
─
3~
─
3~
Unit : m/m
H3
H4
±
1
±
1
─
─
─
5
8
─
5
8
─
5
8
─
8
─
─
─
5~
─
5~
─
5~
─
5~
NON-25
NON-50S
NON-50
NON-100S
NON-100
NON-200S
NON-200
NON-300S
NON-300
NON-500S
12.5~
─
10~
15~
─
10~
20~
─
10~
25~
─
Remark : 1. B = 1.15 ~,
2.
ALTERNATE MARKING METHOD ALSO AVAILABLE ON REQUEST.
Figure4
