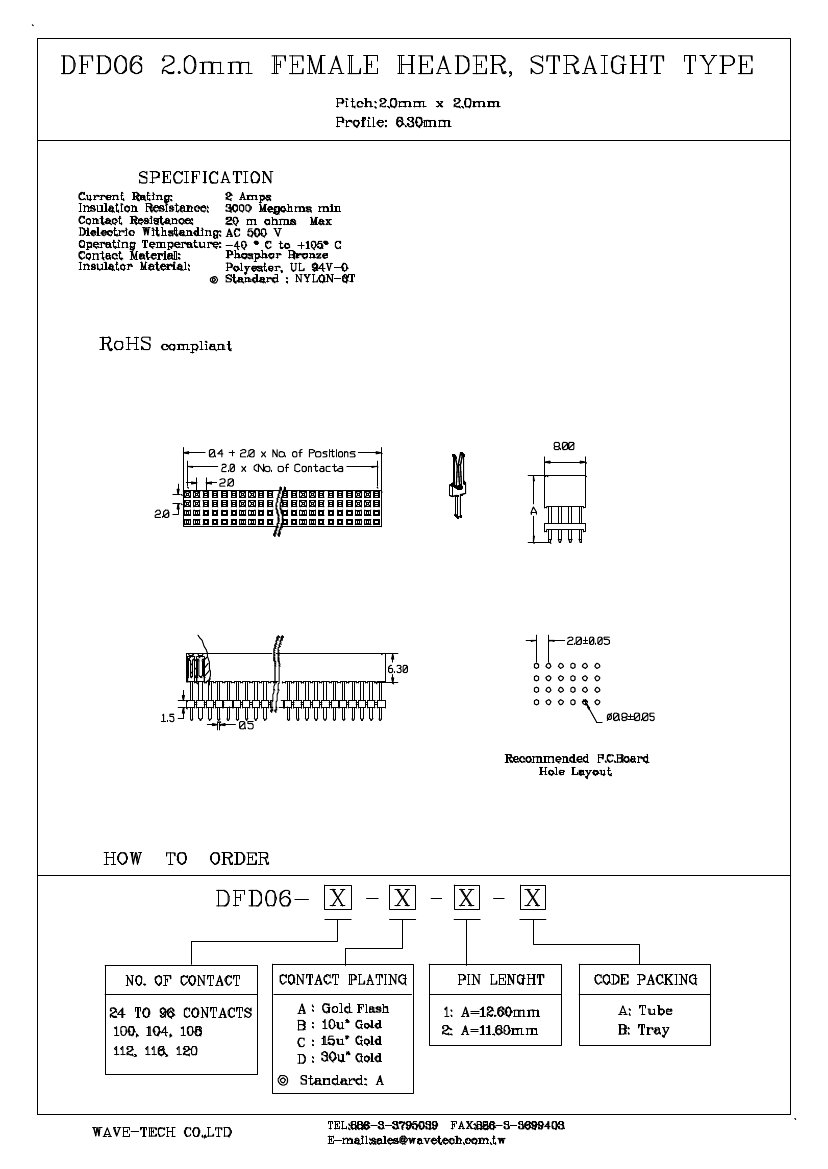

DFD06-36-A-1-B: DescriptionBoard Connector, 36 Contact(s), 4 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size56KB，1 Pages; ManufacturerWave Tech Co., Ltd.

Download Datasheet Parametric View All

DFD06-36-A-1-B Overview

Board Connector, 36 Contact(s), 4 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Plug

Parameter Name	Attribute value
Objectid	303822316
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	TRAY PACKAGING
body width	0.315 inch
body length	0.724 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	3000000000 Ω
insulator material	NYLON
Manufacturer's serial number	DFD06
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	FLASH inch
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	36
