200116MS014S600ZO datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 200116MS014S600ZO

Preview

200116MS014S600ZO: DescriptionBoard Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle; CategoryThe connector The connector; File Size187KB，1 Pages; ManufacturerSUYIN-USA; Websitehttp://www.suyinusa.com

Download Datasheet Parametric View All

200116MS014S600ZO Overview

Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle

200116MS014S600ZO Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	SLIM BOX PACKAGE WITHOUT CAP
body width	0.209 inch
subject depth	0.22 inch
body length	0.827 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulator color	BLACK
Manufacturer's serial number	200116MS
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	50u inch
Rated current (signal)	1.5 A
reliability	COMMERCIAL
Terminal length	0.096 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	14

Preview

Download Datasheet

View All

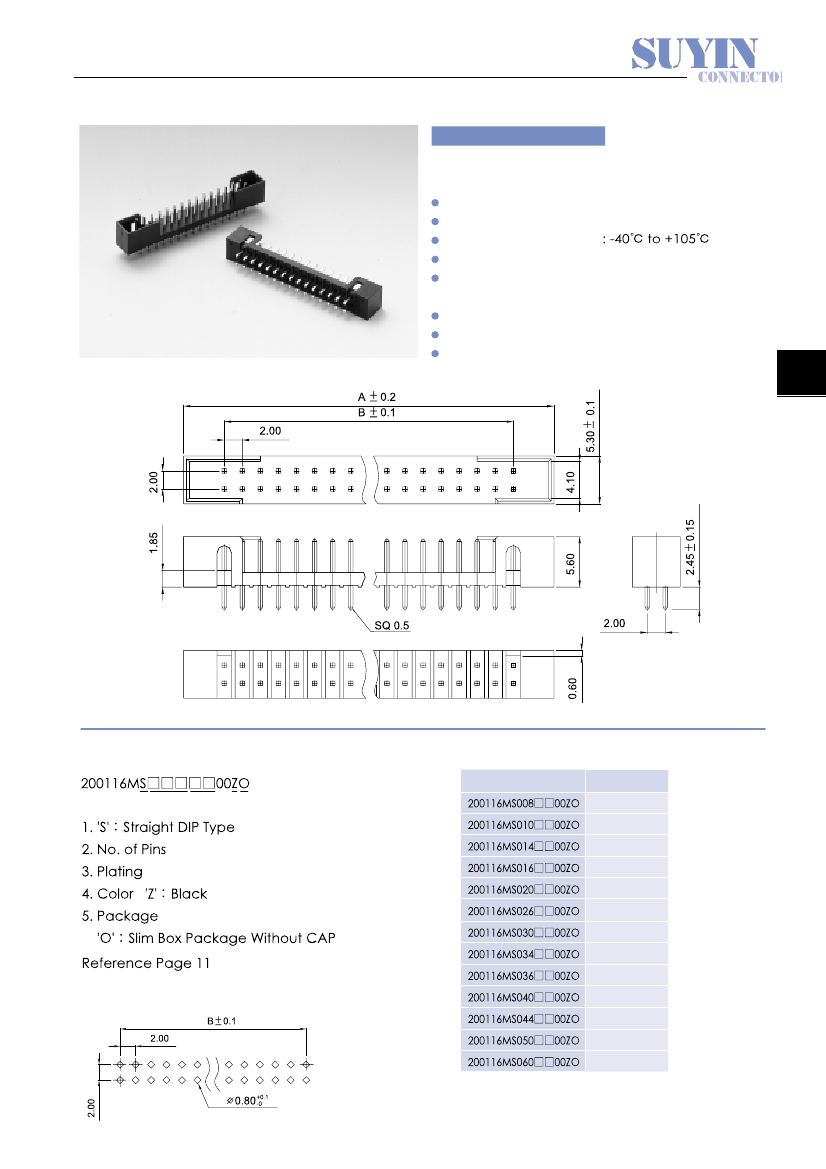

2.0mm DUAL ROW BOX HEADER

P.C.B. MOUNT TYPE

200116MS Series

Mates With SUYIN 200148 Series

Specifications:

8-60 Circuits

Insulator Material

Operating Temp.Range

Terminal Material

Plating

Max. Current Rating

Voltage Rating

Dielectric Strength

: Brass 65/35

: Contact-Selective Gold Plated

or Full Gold Plated

: 1.5A

: 150V AC

: 500V(Min. 60 Seconds)

2.0

mm

: Black High Temp . Plastic

Order Information

1

2

3

45

Dimensional Information

SUYIN P/NO.

DIM.A

15.0

17.0

21.0

23.0

27.0

33.0

37.0

41.0

DIM.B

6.0

8.0

12.0

14.0

18.0

24.0

28.0

32.0

34.0

38.0

42.0

48.0

58.0

Recommended P.C.B Layout

43.0

47.0

51.0

57.0

67.0

83
