33TS3004ST-88BSMT2 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 33TS3004ST-88BSMT2

Preview

33TS3004ST-88BSMT2: DescriptionTelecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size239KB，1 Pages; ManufacturerCONEC; Websitehttp://www.conec.com

Download Datasheet Parametric View All

33TS3004ST-88BSMT2 Overview

Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Surface Mount Terminal, Locking, Receptacle

33TS3004ST-88BSMT2 Parametric

Parameter Name	Attribute value
Objectid	1287921442
Reach Compliance Code	compliant
ECCN code	EAR99
Board mount options	PEG
body width	0.463 inch
subject depth	0.734 inch
body length	0.62 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact style	TELCOM, MODULAR
Insulator color	BLACK
insulator material	NYLON
Manufacturer's serial number	33TS3004
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
PCB contact pattern	RECTANGULAR
Plating thickness	6u inch
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	8

Preview

Download Datasheet

View All

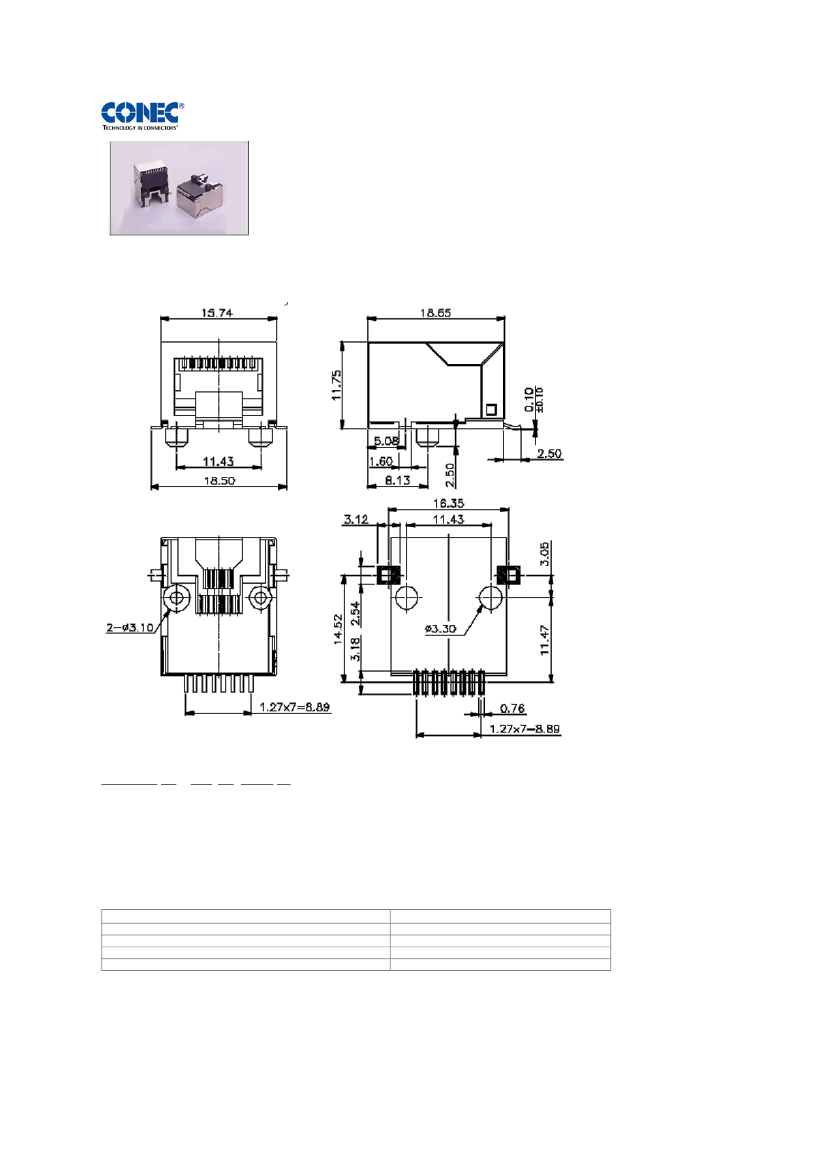

Very Low Profile PCB Jack(Side Entry,Shielded W/Tab SMT)

Materials

Housing: Nyloy 66 UL94V-0 Black

Contacts: 0.35mm thickness alloy, gold plating over nickel in contact area

Tin Plating over nickel in solder area

For RoHS compliant parts contact the factory for new part

numbers

Order Information--------------------------------------------------------------------

33TS3004 ST - 88

1

2

3

4

B SMT 1

5

6

1. Series No.

33TS3004

2.Contact Type

ST : Grounding tab of shield

3. No. Of Contacts

88:8P8C

1010:10P10C

4. Gold Plating

B: 6µ''

For other plating options

contact factory

5. Terminal Version

SMT type

6. Packaging

1: Packed in tray

2: Tape & reel request

Order Information

33TS3004ST-88BSMT1

33TS3004ST-88BSMT2

33TS3004ST-1010BSMT1

33TS3004ST-1010BSMT2

Order Number

33TS3004ST-88001

33TS3004ST-88002

33TS3004ST-10101

33TS3004ST-10102

1 von 1
