280-018P4H62JFNN datasheet, PDF

Datasheet> All Categories > The connector> The connector> 280-018P4H62JFNN

280-018P4H62JFNN: DescriptionD Subminiature Connector, 62 Contact(s), Male, Crimp Terminal,; CategoryThe connector The connector; File Size486KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

280-018P4H62JFNN Overview

D Subminiature Connector, 62 Contact(s), Male, Crimp Terminal,

280-018P4H62JFNN Parametric

Parameter Name	Attribute value
Objectid	1058297795
Reach Compliance Code	not_compliant
ECCN code	EAR99
body width	0.494 inch
subject depth	0.484 inch
body length	2.729 inch
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (50)
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
contact mode	STAGGERED
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
empty shell	YES
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
insulator material	THERMOSET
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation option 1	HOLE .115-.125
Installation option 2	LOCKING
Installation type	CABLE
Number of connectors	ONE
Number of rows loaded	3
Maximum operating temperature	200 °C
Minimum operating temperature	-65 °C
Options	WATERPROOF
Plating thickness	50u inch
Rated current (signal)	5 A
Shell surface	CADMIUM YELLOW CHROMATE
Shell material	ALUMINUM ALLOY
Housing size	4/C
Termination type	CRIMP
Total number of contacts	62

Preview

Download Datasheet

View All

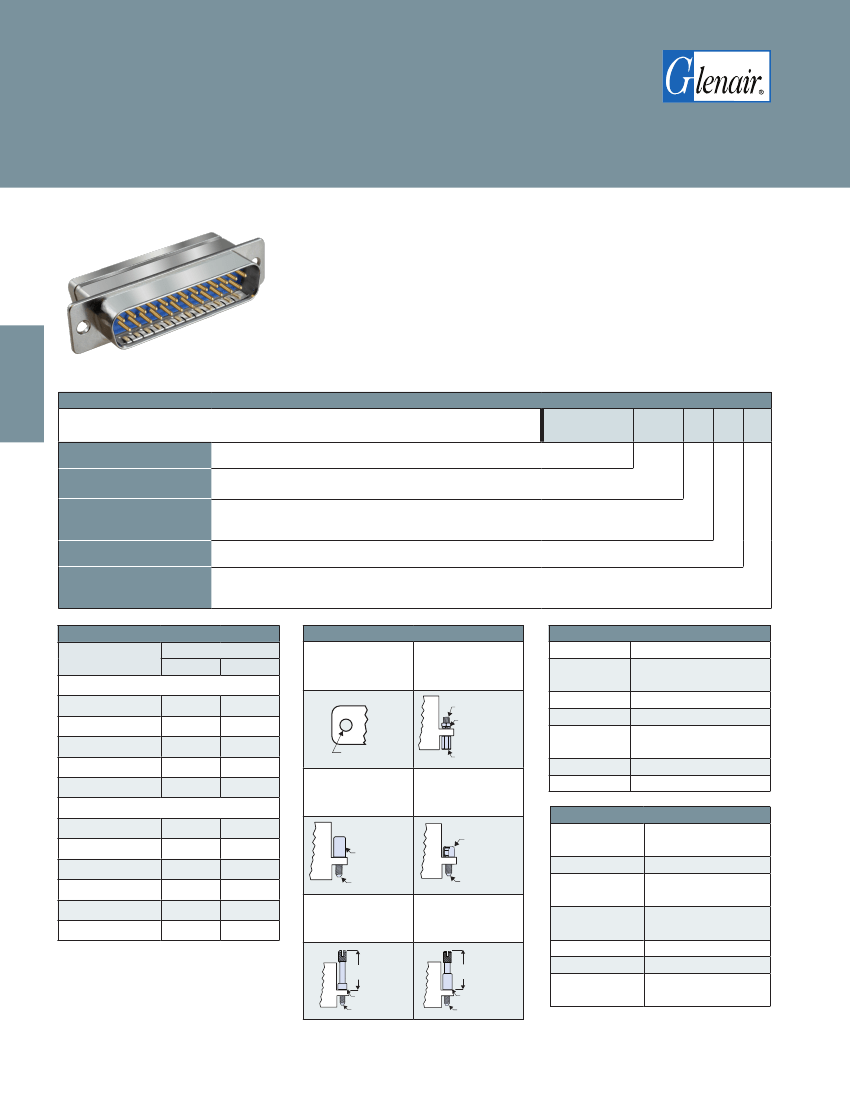

SERIES 28

HiPer-D

Standard and High-Density Connectors

280-018P pin connectors with standard M24308 type mounting

flange, crimp termination

HiPer-D® pin connectors feature crimp, rear-releaseable size #20 or #22 contacts.

Intermateable with standard M24308-type D-Subminiature connectors, the

HiPer-D® features a rugged machined aluminum shell, waterproof sealing and

optional ground springs for improved resistance to electromagnetic interference.

Gold-plated size #20 contacts conform to M39029/64-369 and accept #20 to

#24 AWG wire. Gold-plated size #22 contacts conform to M39029/58-360 and

accept #22 to #28 AWG wire. Contacts are packaged with connector. Terminate

contacts with crimp tools purchased separately. Glass-reinforced thermoset epoxy

insulators, copper alloy retention clips. Fluorosilicone face seal and rear grommet

meet IP67 immersion requirement. 1000 VAC, 5 Amps (#22) or 7.5 Amps (#20).

Ordering Information

Sample Part Number

Basic Part Number

Shell Size-

Contact Arrangement

Shell Finish

Ground Spring

Mating Hardware

280-018P

See Shell Size - Contact Arrangements Table

= Electroless Nickel

= Cadmium with Yellow Chromate

= Passivated Stainless Steel

= Supplied with EMI Ground Spring

= No Hardware (Through-Hole)

= Jackscrew, Hex Head, Low Profile

= Screwlock, Male, Hex Head, Low Profile

= Nickel-PTFE

= Gold

= No Ground Spring

= #4-40 Female Jackpost

= Jackscrew, Slot Head, Extended Length

= Screwlock, Male, Slot Head, Extended Length

Materials and Finishes

Aluminum alloy

Copper alloy, 50 microin.

gold plated

Thermoset epoxy

Copper alloy

Fluorosilicone rubber

Copper alloy, nickel plated

300 series stainless steel

280-018P

3S25

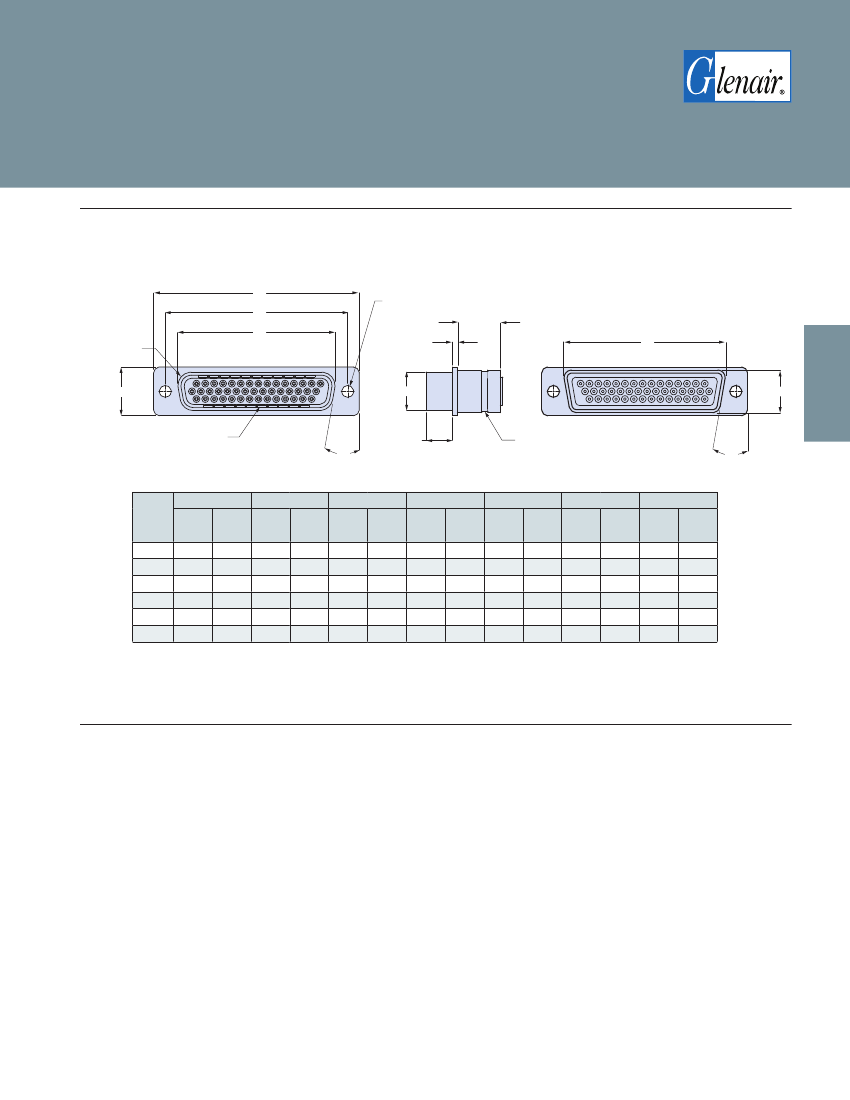

Shell Size - Contact Arrangements

Shell Size-

Contact Arr.

1S9

2S15

3S25

4S37

5S50

1H15

2H26

3H44

4H62

5H78

6H104

Contact Size and Qty

#20

#22

High Density

104

Mating Hardware

Thru-Hole

No Hardware

Female Jackpost

#4-40 UNC-2A

NUT AND

LOCKWASHER

Shell

Contacts

Insulators

Standard Density

Retention Clips

Grommet and

Seal

EMI Spring

Hardware

.115/.125

(2.92/3.18)

#4-40 UNC-2B

Captive Screwlock,

Hex Head

Captive Jackscrew,

Hex Head

RETAINER

Specifications

Current Rating

Test Voltage

#22 5 AMPS, #20 7.5

AMPS

1000 VAC RMS

5000 megohms

minimum

-65° C. to +200° C.

RETAINER

#4-40 UNC-2A

Slot-Head Extended

Jackscrew

1.1 (28)

MAX

RETAINER

#4-40 UNC-2A

Slot-Head Extended

Captive Screwlock

1.1 (28)

MAX

RETAINER

#4-40 UNC-2A

Insulation

Resistance

Operating

Temperature

Shock

Vibration,

Random

Ingress Protection IP 67

300 g.

43.92 g.

B-6

Rev. 09.04.02

Dimensions in Inches (millimeters) are subject to change without notice.
