C0603T249BAGBL7867: DescriptionCeramic Capacitor, Multilayer, Ceramic, 250V, 4.17% +Tol, 4.17% -Tol, C0G, 30ppm/Cel TC, 0.0000024uF, Surface Mount, 0603, CHIP; CategoryPassive components capacitor; File Size57KB，1 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com

Download Datasheet Parametric View All

C0603T249BAGBL7867 Overview

Ceramic Capacitor, Multilayer, Ceramic, 250V, 4.17% +Tol, 4.17% -Tol, C0G, 30ppm/Cel TC, 0.0000024uF, Surface Mount, 0603, CHIP

C0603T249BAGBL7867 Parametric

Parameter Name	Attribute value
Objectid	7310557147
package instruction	, 0603
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.0000024 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
JESD-609 code	e0
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	4.17%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, PAPER, 7 INCH
positive tolerance	4.17%
Rated (DC) voltage (URdc)	250 V
size code	0603
surface mount	YES
Temperature characteristic code	C0G
Temperature Coefficient	30ppm/Cel ppm/°C
Terminal surface	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND

Preview

Download Datasheet

View All

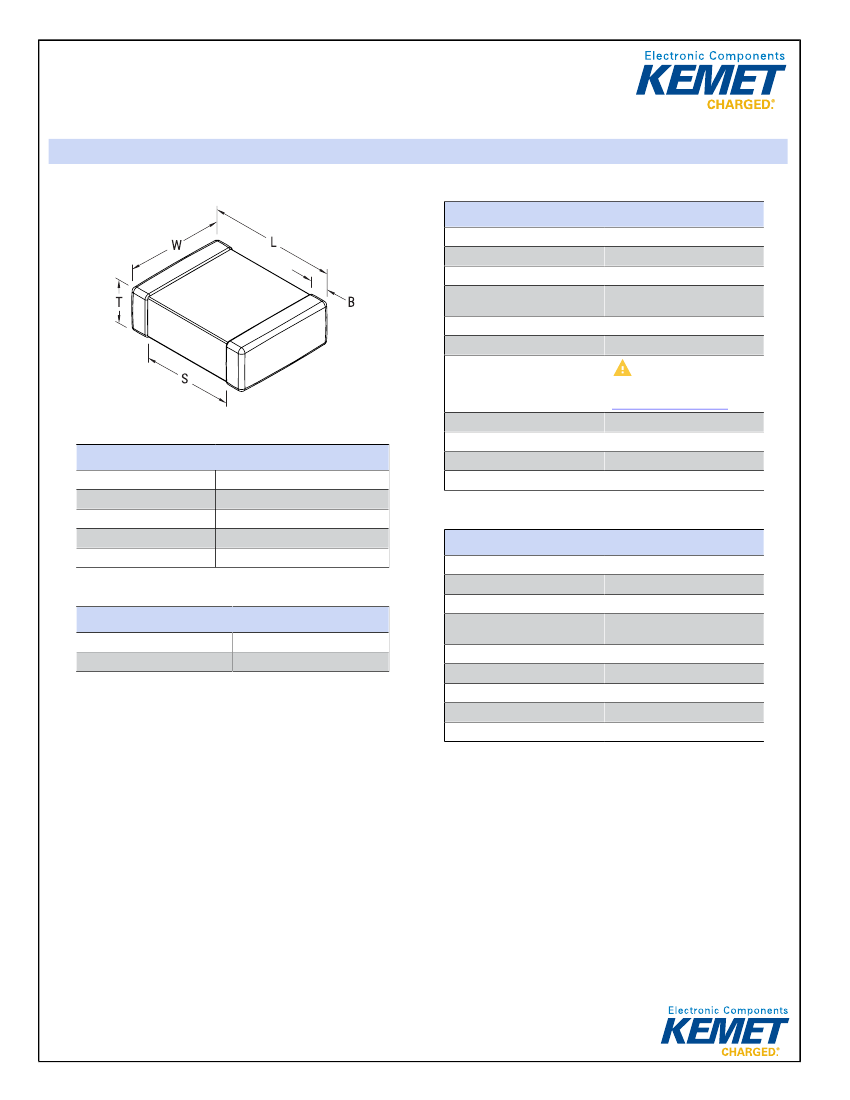

KEMET Part Number: C0603T249BAGBLTU

(C0603T249BAGBL7867)

SMD COTS C0G, Ceramic, COTS, 2.4 pF, +/-0.1 pF, 250 VDC, C0G, SMD, MLCC, COTS, Ultra-Stable, Low Loss, Class I, 0603

General Information

Supplier:

Series:

Style:

Description:

Features:

RoHS:

Prop 65:

REACH:

KEMET

SMD COTS C0G

SMD Chip

SMD, MLCC, COTS, Ultra-

Stable, Low Loss, Class I

Ultra-Stable, Low Loss, Class I

No

WARNING:

Cancer

and reproductive harm -

www.p65warnings.ca.gov.

SVHC (Pb – CAS 7439-92-1)

Lead (SnPb)

No

0603

Dimensions

L

W

T

S

B

1.6mm +/-0.15mm

0.8mm +/-0.15mm

0.8mm +/-0.07mm

0.7mm MIN

0.35mm +/-0.15mm

Termination:

Marking:

Chip Size:

Specifications

Capacitance:

Capacitance Tolerance:

Voltage DC:

Dielectric Withstanding

Voltage:

Temperature Range:

Temperature Coefficient:

Dissipation Factor:

Aging Rate:

Insulation Resistance:

2.4 pF

+/-0.1 pF

250 VDC

625 V

-55/+125C

C0G

0.10% 1MHz 25C

0% Loss/Decade Hour

100 GOhms

Packaging Specifications

Packaging:

Packaging Quantity:

T&R, 180mm, Paper Tape

4000

Statements of suitability for certain applications are based on our knowledge of typical operating conditions for such applications, but are not intended to constitute - and

we specifically disclaim - any warranty concerning suitability for a specific customer application or use. This Information is intended for use only by customers who have the

requisite experience and capability to determine the correct products for their application. Any technical advice inferred from this Information or otherwise provided by us

with reference to the use of our products is given gratis, and we assume no obligation or liability for the advice given or results obtained.

Generated 3/12/2019 - b44216a3-0d06-47ab-900b-6256ab4e89f1
