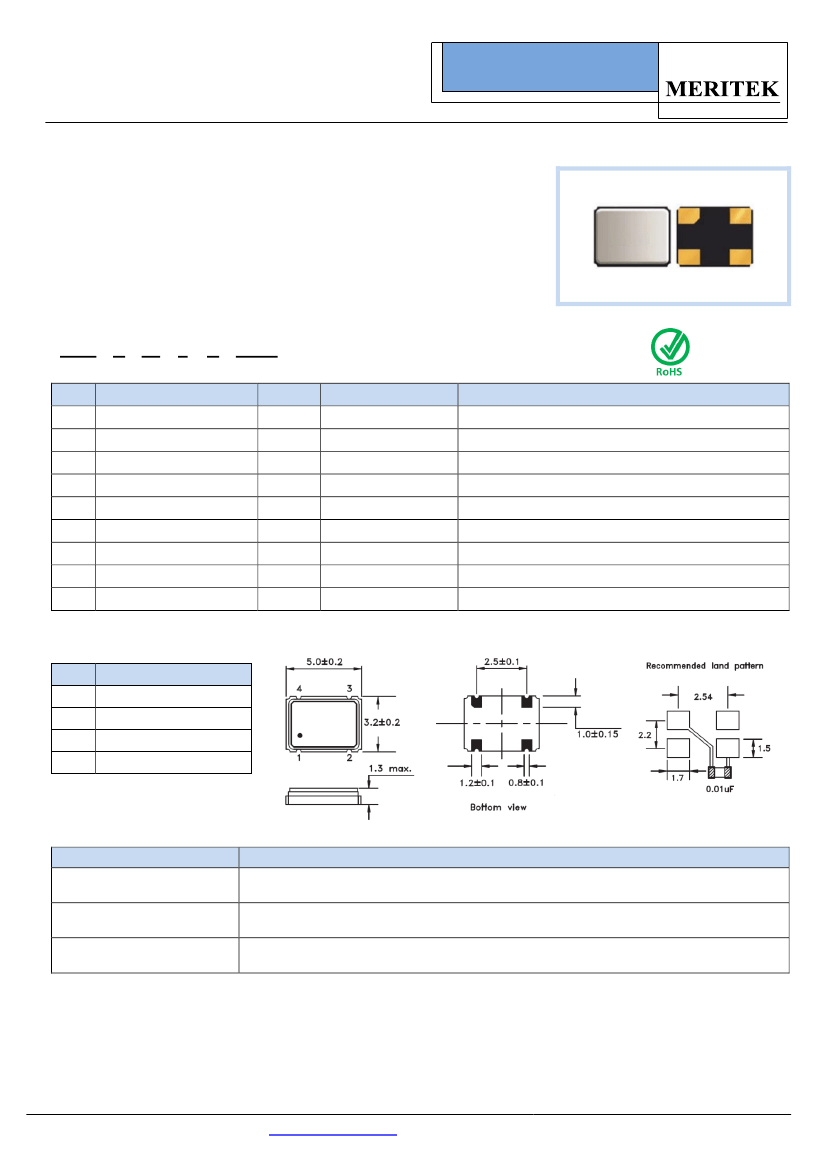

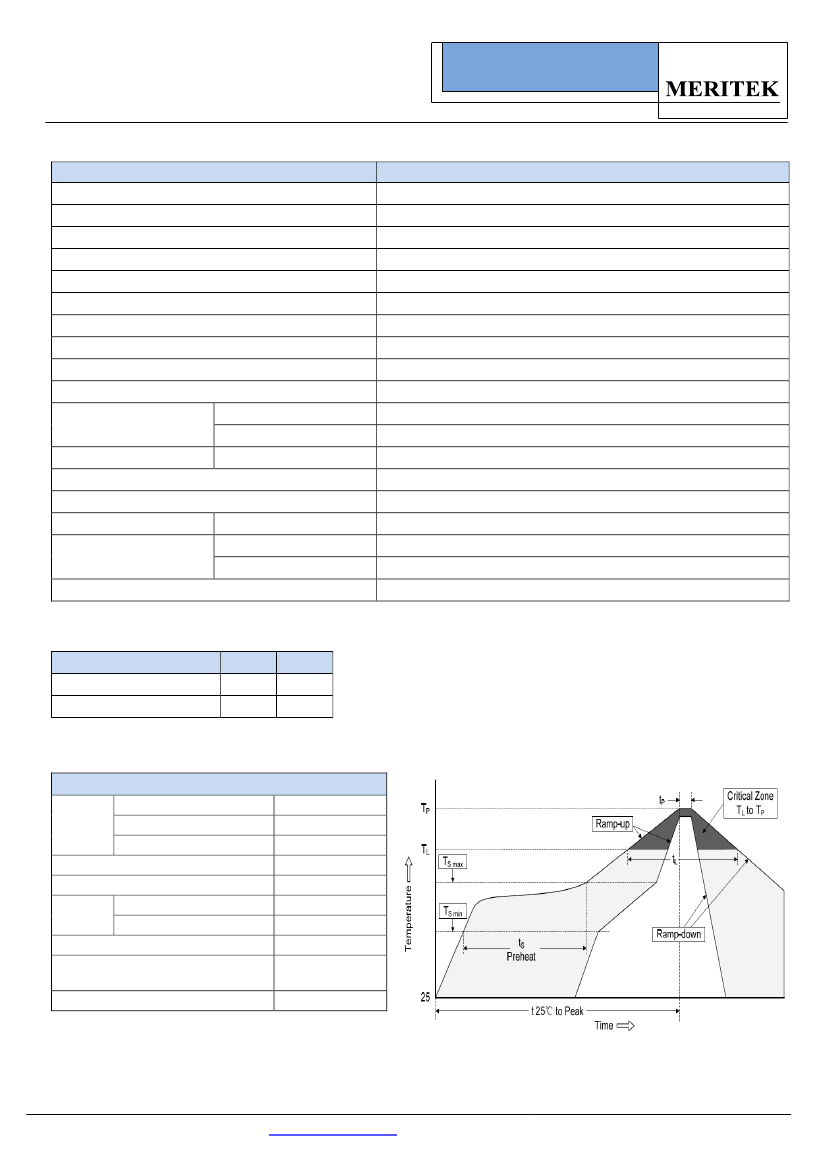

Ceramic SMD Crystal Oscillator
SMD 5.0 x 3.2mm HCMOS/TTL
F
EATURE
Output Logic: HCMOS/TTL
Small SMD Ceramic Package
High precision and high frequency stability
MO5C series
Applications: Wired Network, Mobile Communication, WiMAX, WLAN,
DSC, Set-Top Box, HDTV
P
ART
N
UMBERING
S
YSTEM
MO5
(1)
No
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
C 50
(2)
(3)
J
(4)
Item
C
(5)
24M0
(6)
Code
MO5
C
50
J
C
24M0
Blank
Blank
Blank
Description
Oscillator Unit
C: HCMOS/TTL
50: 5.0V
J: ±50ppm
C: -20~+70ºC
24M0: 24.000MHz
Blank: Tri-State
Blank: 15pF
Blank: 45/55%
Series Reference (options)
Ceramic SMD Crystal Oscillator 5.0x3.2mm 4 Pads
C: HCMOS/TTL
50: 5.0V
F: ±20ppm, G: ±25ppm, H: ±30ppm (see avail options)
A: -10~+60ºC, B: 0~+70ºC, I: -40~+85ºC (see options)
1M544 ~ 150M0 (M denotes decimal point)
N: No Connection
Blank: 15pF (Standard), Y: 50pF
T: 40/60%
Meritek Series
Logic
Supply Voltage
Frequency Stability
Operating Temp.
Frequency
Pin 1
Output Load
Duty Cycle
D
IMENSIONS AND
R
ECOMMENDED
P
ATTERN
Pin
1
2
3
4
(Unit:mm)
Function
Tri-State Enable/Disable
GND/Case
Output
Vdd
A
VAILABLE
O
PTIONS
Parameters
Supply Voltage
Frequency Stability
Operating Temp.
Part Number Options
18: 1.8V±10%, 25: 2.5V±10%, 33: 3.3V±10%
F: ±20ppm, G: ±25ppm, H: ±30ppm, J: ±50ppm, K: ±100ppm
A: -10~+60C, B: 0~+70C, C: -20~+70C, K: -30~+85C, I: -40~+85C, R: -40~+105C
Note: Custom options available. Contact Meritek for more information.
Meritek Electronics Corporation
|
www.meritekusa.com
Rev.8a 04/02/2018
Ceramic SMD Crystal Oscillator
SMD 5.0 x 3.2mm HCMOS/TTL
E
LECTRICAL
C
HARACTERISTICS
Parameters
Frequency Range
Logic
Supply Voltage
Frequency Stability
Operating Temperature
Storage Temperature
Duty Cycle
Aging @25°C (first year)
CMOS Load Max
TTL Load Max
Ouput Level (CMOS)
Supply Current
Standby Current
Start Up Time
Rise/ Fall Time (Tr/Tf)
Tri-State (Input Pin 1)
1.544MHz ~ 150.0MHz
Enable High or Float
Disable Low or GND
High (Logic 1)
Low (Logic 0)
5.0V
MO5C series
Characteristic
1.544 ~ 150.000 MHz
HCMOS/TTL
5.0V ±10% (see options)
±50 ppm (see options)
-20 ~ +70°C (see options)
-55 ~ +125°C
50±5%
±5 ppm
15pF/50pF max.
10TTL
90% Vdd min.
10% Vdd max.
55mA max.
10µA max
10mSec max.
10nSec max.
0.7 Vdd min.
0.3 Vdd max.
1pSec max.
(mA max.)
RMS Phase Jitter (12Khz~20MHz)
T
ABLE 1: SUPPLY CURRENT
Frequency
1.544 MHz ~ 31.999 MHz
32.00 MHz ~ 150.00MHz
15pF
35
45
50pF
40
55
R
ECOMMENDED
S
OLDERING
P
ROFILES
Reflow Condition
Pre
Heat
Temp. Min T
s(min)
Temp. Max T
s(max)
Time (min. to max.) (t
s
)
150°C
180°C
60~120 seconds
1°C/second max.
3°C/second max.
230°C
30~40 seconds
260°C
10 seconds max.
6°C/second
Average ramp up rate (T
L
) to peak
T
s(max)
to T
L
(Ramp-up rate)
Reflow
Temp. (T
L
)
Time (min. to max.) (t
L
)
Peak Temperature (T
P
)
Time within 5°C of actual peak
Temperature (t
p
)
Ramp-down Rate
*Specifications subject to change without notice.
Meritek Electronics Corporation
|
www.meritekusa.com
Rev.8a 04/02/2018
