MIC2798P-04VMTTR datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> MIC2798P-04VMTTR

MIC2798P-04VMTTR: DescriptionPOWER SUPPLY SUPPORT CKT; CategoryPower/power management The power supply circuit; File Size852KB，17 Pages; ManufacturerMicrel ( Microchip ); Websitehttps://www.microchip.com

Download Datasheet Parametric View All

MIC2798P-04VMTTR Overview

POWER SUPPLY SUPPORT CKT

MIC2798P-04VMTTR Parametric

Parameter Name	Attribute value
Objectid	8096270060
package instruction	HVSON, SOLCC6,.06,20
Reach Compliance Code	unknown
ECCN code	EAR99
Adjustable threshold	NO
Analog Integrated Circuits - Other Types	POWER SUPPLY SUPPORT CIRCUIT
JESD-30 code	S-PDSO-N6
length	1.6 mm
Number of channels	1
Number of functions	1
Number of terminals	6
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	HVSON
Encapsulate equivalent code	SOLCC6,.06,20
Package shape	SQUARE
Package form	SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Maximum seat height	0.6 mm
Maximum supply current (Isup)	0.006 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	1.65 V
surface mount	YES
Temperature level	AUTOMOTIVE
Terminal form	NO LEAD
Terminal pitch	0.5 mm
Terminal location	DUAL
Threshold voltage nominal	+0.4V
width	1.6 mm

Preview

Download Datasheet

View All

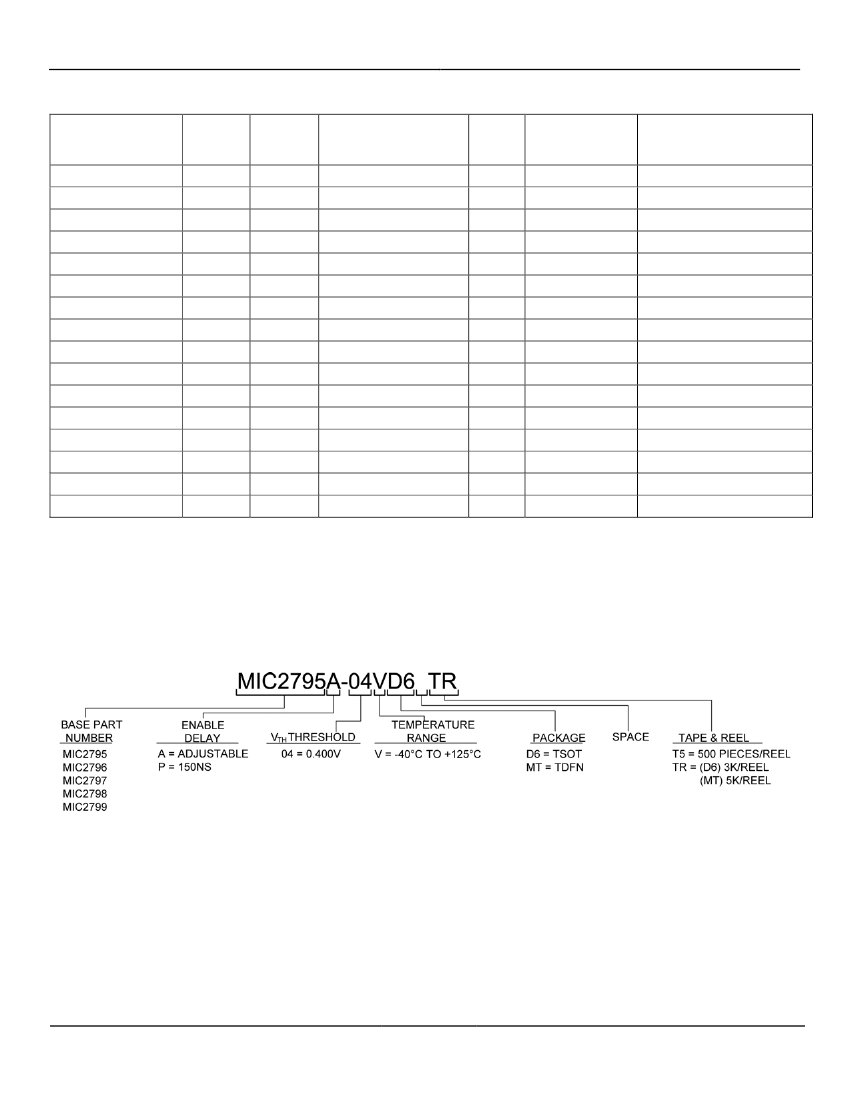

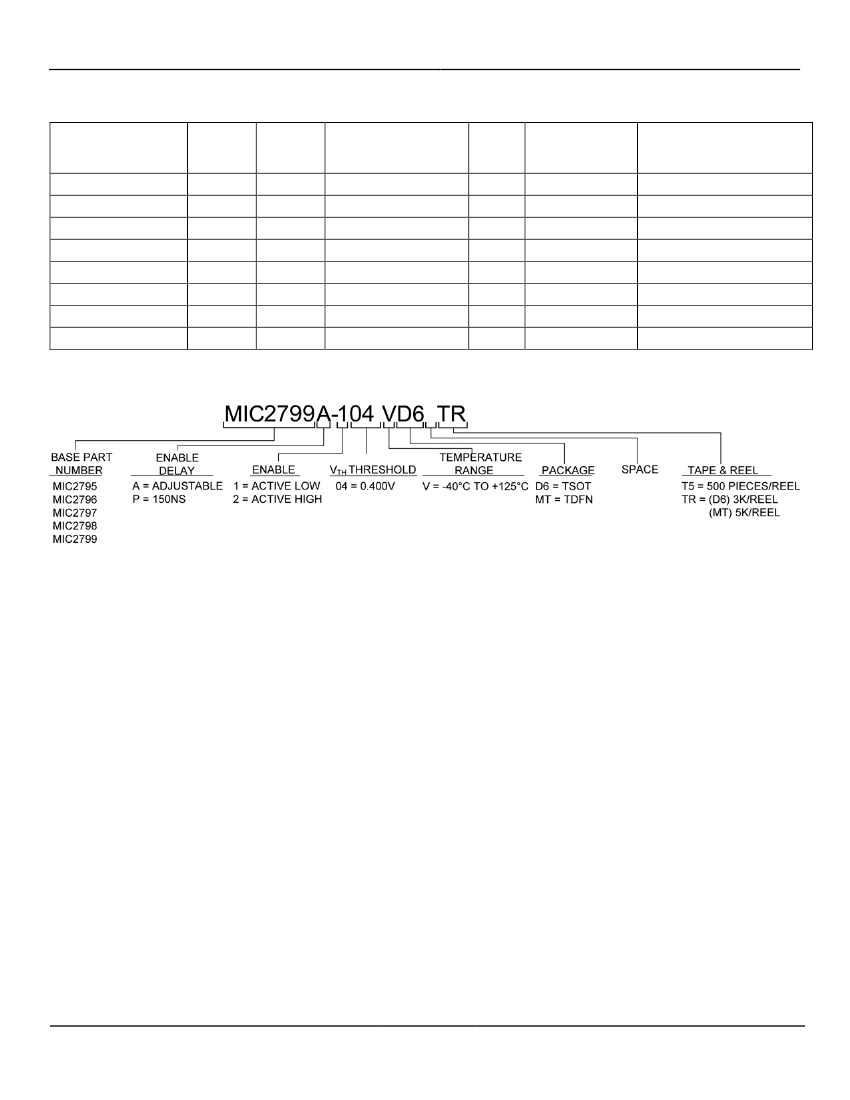

MIC2795/6/7/8/9

Supervisor with Fast Propagation Delay and

Capacitor-Programmable

Reset Delay

General Description

The MIC2795/6/7/8/9 is a low-current supervisor with

capacitor programmable reset delay time. It provides an

active-low or active-high enable input and active-high or

active-low open-drain, active-high or active-low push-pull

outputs. The output (OUT or /OUT) of the device initiates a

reset signal when the sense voltage drops below the

threshold voltage (0.4V) or the device is disabled. When

the device is enabled, the output will assert after the

capacitor adjustable delay time for both the sense and

enable paths. The A versions all feature a capacitor

adjustable delay time for both the sense and enable paths,

while the P versions all feature a fixed 150ns on the

enable delay and capacitor programmable delay with the

sense voltage. A capacitor placed between the CTH pin

and ground sets a reset delay time from 1.25ms to 10s.

Floating the CTH pin sets a 20ms reset delay time, and

connecting CTH to VDD sets a 320ms delay time.

The MIC2795/6/7/8/9 operates from a supply voltage of

1.65V to 5.5V, and guarantees an active-low reset output

for supply voltages equal to or greater than 1V. The device

is rated to operate over the temperature range of

−40°C

+125°C.

Datasheets and support documentation are available on

Micrel’s web site at:

www.micrel.com.

Features

•

1.65V to 5.5V operating supply voltage range

Ultra-low operating current: 2µA (typical)

Fast propagation delay: 10µs (typical)

0.4V threshold voltage with ±2.0% accuracy from –40°C

to +125°C

Programmable reset timeout delay (from 1.25ms to 10s)

Active-low/high multiple output options:

−

Open-drain active-low (MIC2798)

−

Open-drain active-high (MIC2797)

−

Push-pull active-low (MIC2796, MIC2799-2)

−

Push-pull active-high (MIC2795, MIC2799-1)

−40°C

to 125°C junction temperature range

6-pin TSOT

6-pin 1.6mm × 1.6mm Thin DFN

•

Applications

•

Microprocessor systems

•

Computers, Tablets

•

Intelligent instruments

Typical Application

Micrel Inc. • 2180 Fortune Drive • San Jose, CA 95131 • USA • tel +1 (408) 944-0800 • fax + 1 (408) 474-1000 •

http://www.micrel.com

March 12, 2015

Revision 1.0
