Thermal (T- and TA-Line)
https://www.schurter.com /PG17_20

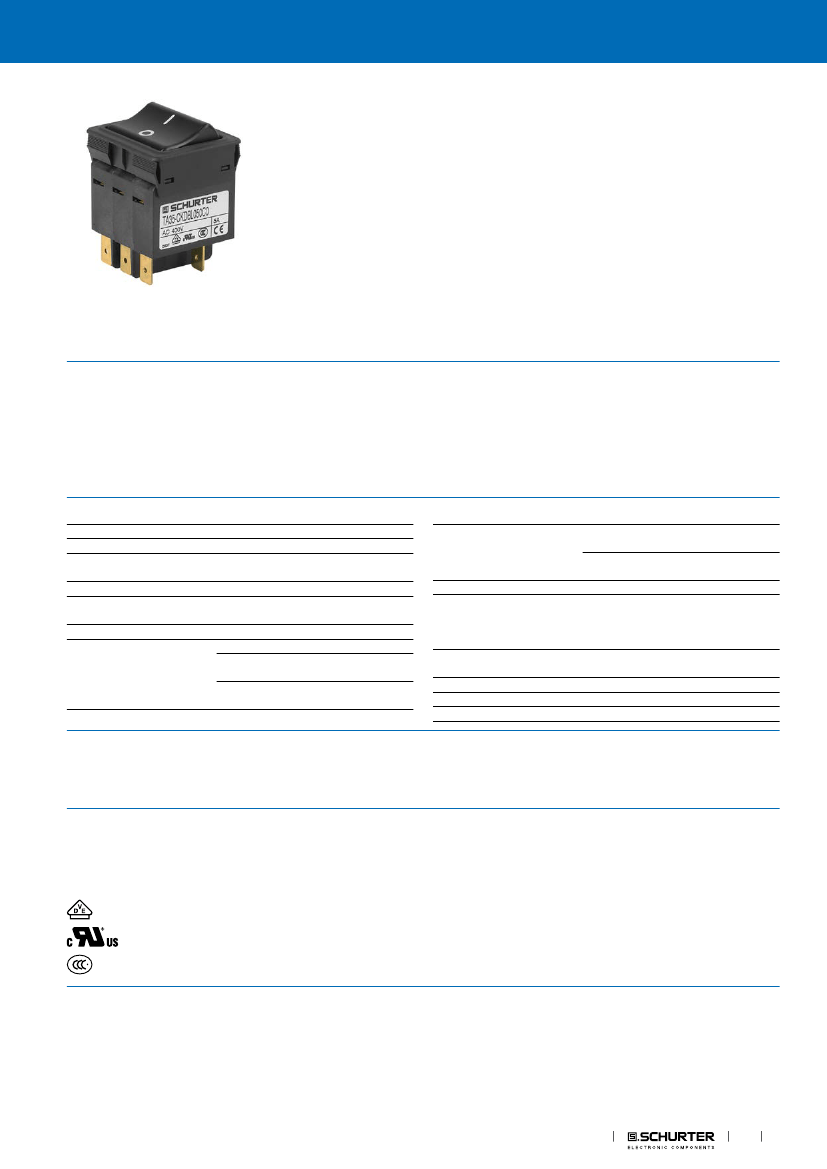

TA35 Rocker 3Pole
Circuit Breaker for Equipment thermal, Rocker actuation, 3 poles
See below:
Approvals and Compliances
Description
-
-
-
-
-
-
-
Thermal circuit breaker
3-pole
Snap-in version
Positively trip-free release
Different rocker colours
High configurability
Wide current range
Applications
-
-
-
-
-
Power tools
Industrial appliances
Equipment for construction
Cleaning equipment
Commercial and household kitchen appliances
Weblinks
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Detailed request for product, Product News
Technical Data
Rated Voltage AC
Rated current range AC
Conditional short circuit ca-
pacity
Degree of Protection
Dielectric Strength
Insulation Resistance
Lifetime
␣
␣
415 Y / 240 V; 50/60 Hz
0.05 - 12 A
0.05...12 A: 2 kA @ 415 VAC
from front side IP 40 acc. to IEC 60529
50 Hz: > 2.5 kV
Impulse 1.2/50
μs:
> 4 kV
500 VDC > 100 MΩ
mechanical: 50'000 switching cycles
AC: 1 x Ir, cos
φ
0.6:
50'000 switching cycles
DC: 1 x Ir, L/R = 2 - 3 ms:
50'000 switching cycles
Overload
␣
Ambient temperature
Vibration Resistance
IEC: min. 40 trips
@ 6 x Ir, cos
φ
0.6
UL / CSA: min. 50 trips
@ 1.5 x Ir, cos
φ
0.75
-30 °C to 60 °C
± 0.75 mm @ 10 - 60 Hz
acc. to IEC 60068-2-6, test Tc
10 G @ 60 - 500 Hz
acc. to IEC 60068-2-6, test Tc
30 G / 18 ms
acc. to IEC 60068-2-27, test Ea
Thermal
Rocker
43.0 - 45.0 g
Shock Resistance
Tripping Type
Actuation Type
Weight
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: TA35
Approval Logo
Certificates
VDE Approvals
UL Approvals
CQC Approvals
Certification Body
VDE
UL
CQC
Description
VDE Certificate Number: 40019754
UL File Number: E71572
CCC Certificate Number: 2013010307598660
Circuit Breakers
1
TA35 Rocker 3Pole
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Designed according to
Designed according to
Standard
IEC 60934
UL 1077
CSA C22.2 No. 235
GB 17701
Description
https://www.schurter.com /PG17_20
Thermal (T- and TA-Line)
Circuit-breakers for equipment (CBE)
Standard for Supplementary Protectors for Use in Electrical Equipment
Supplementary Protectors
Circuit-breaker for equipment
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Standard
IEC/UL 60950
Description
IEC 60950-1 includes the basic requirements for the safety of information
technologyequipment.
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG

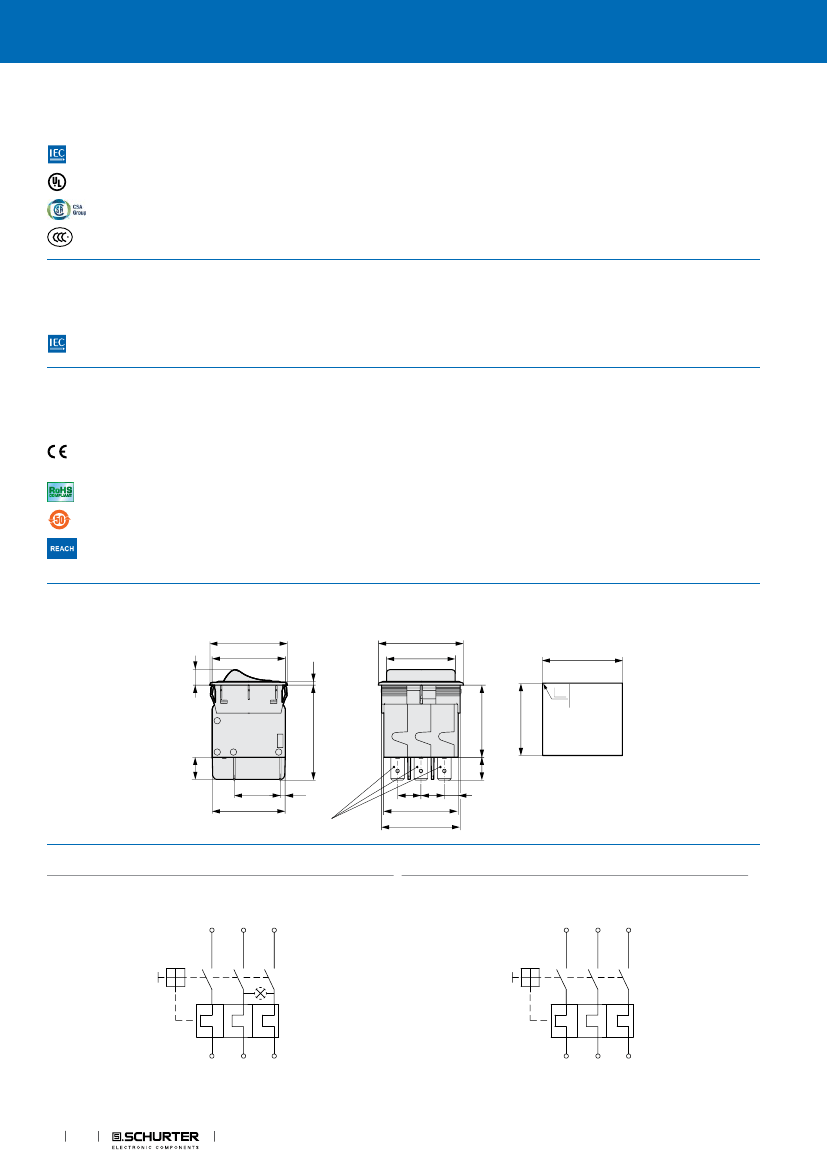

Dimension [mm]
36
34
7.2
1.7
40.5
31.9
37.5
+0.2
0
+0.3
+0.2
0
33.5
10.5
LINE
44.1
L
10.6
34
Panel 1.0 − 4.0 mm
21.3
33.8
2.3
11
11 6.1
37.4
34.5
6.3 x 0.8 mm
Diagrams
3-pole, 3 bimetal, illuminated
1)
P1
P2
P3
P1
3-pole, 3 bimetal, non illuminated
1)
P2
P3
4
5
6
4
5
6
2)
2)
1) Line, 2) Load
Codepos AAA = CD1
2
1) Line, 2) Load
Codepos AAA = CKD, CLD
Circuit Breakers
Thermal (T- and TA-Line)
https://www.schurter.com /PG17_20
TA35 Rocker 3Pole
The keys / codepos are listed in the key table of the basic function for selection.
Approvals
Approval
UL 1077
CSA C22.2
235
IEC 60934
Rated current
0.05...12 A
0.05...12 A
0.05...12 A
Rated voltage AC
415 Y/ 240 V
415 Y/ 240 V
415 Y/ 240 V
Rated voltage DC
-
-
-
GB 17701
0.05...12 A
415 Y/ 240 V
-
Typical internal resistance
Rated Current [A]
0.05
0.1
0.5
1.0
1.5
2.0
2.5
2.8
3.0
4.0
5.0
6.0
7.0
8.0
10.0
12.0
13.0
14.0
15.0
16.0
18.0
20.0
Internal Resistance [Ω]
200.000
70.000
2.750
0.720
0.340
0.187
0.115
0.089
0.059
0.059
0.044
0.028
0.0142
0.0142
0.0109
0.0086
0.0072
0.0072
0.0056
0.0056
0.0052
0.0052
TA35 Rocker 3-poles max. 12 A
Effect of ambient temperature
The units are calibrated for an ambient temperature of +23°C. To determine the rated cur-
rent for a lower or higher ambient temperature, use a correction factor (typical value) from
the table below:
Ambient temperature [°C]
-30
-20
0
+23
+40
+50
+60
Correction factor
0.76
0.81
0.90
1.00
1.06
1.10
1.14
Example: Rated current = 5 A; Environmental temperature = 50 °C; --> Correction factor =
1.10; Resulting current = 5.2 A --> Fount to next higher rated current: 6 A
Circuit Breakers
3
TA35 Rocker 3Pole
Time-Current-Curves
[min] [sec ]
10'000
TA35
<3A (TC-1, TC-2)
1, 2 pole
3 pole
https://www.schurter.com /PG17_20
Thermal (T- and TA-Line)
[min] [sec ]
10'000
TA35
>3-20A (TC-1, TC-2)
(3 pole
max. 12A)
1, 2, 3 pole
60
30
20
10
5
200
2`000
1`000
500
60
30
20
10
5
200
2`000
1`000
500
Time in Seconds
1
Time in Seconds
100
50
100
1
50
20
10
5
2
1
0,5
0,3
0,2
0,1
1,05 1,35
2
3
4
5
8
10
20
10
5
2
1
0,5
0,3
0,2
0,1
1,05 1,35
2
3
4
5
8
10
Multiple of Rated Current In
Reference Temperature +23°
Multiple of Rated Current In
Reference Temperature +23°
Config. Code
TA35
|
-
|
CBD
|
B
|
F
|
120
|
C0
|
-
|
CZMXX
|
The characters are placeholders for the correspondingly keys of selections from the key tables.
TA35
|
-
|
CBD
|
B
|
F
|
120
|
C0
|
-
|
CZMXX
|
= Basic function
Basic function
3-pole, 3 bimetal, illuminated 415 V
3-pole, 3 bimetal, without illumination
3-pole, 3 bimetal, momentary switch, without illumination
Configuration
key
CD1
CLD
Legend
Configuration
key
F
embossed
white printed
OFF
ON
CKD
0
I
H
TA35
|
-
|
CBD
|
B
|
F
|
120
|
C0
|
-
|
CZMXX
|
= Rocker colour
Rocker colour
Clear transparent
Red transparent
Green transparent
Orange transparent
Blue transparent
Black
Green
Red
White
Orange
Yellow
Configuration
key
1
3
4
6
7
B
G
R
W
X
Y
black printed
OFF
ON
K
white printed
L
black printed
0
I
M
TA35
|
-
|
CBD
|
B
|
F
|
120
|
C0
|
-
|
CZMXX
|
= Rated current
Rated current
without thermal overload protection / temporarily without VDE approval
0.05 A
0.1 A
0.2 A
0.3 A
0.4 A
0.5 A
0.8 A
Other rated currents on request
Configuration
key
C00
Z05
J01
J02
J03
J04
J05
J08
TA35
|
-
|
CBD
|
B
|
F
|
120
|
C0
|
-
|
CZMXX
|
= Legend
4
Circuit Breakers
0
I
Thermal (T- and TA-Line)
https://www.schurter.com /PG17_20
TA35 Rocker 3Pole
Configuration
key
J10
J12
J15
J20
J25
030
035
040
050
060
070
080
100
120
Rated current
1.0 A
1.2 A
1.5 A
2.0 A
2.5 A
3.0 A
3.5 A
4.0 A
5.0 A
6.0 A
7.0 A
8.0 A
10.0 A
12.0 A
Other rated currents on request
TA35
|
-
|
CBD
|
B
|
F
|
120
|
C0
|
-
|
CZMXX
|
= Reserve
Reserve
reserve
Configuration
key
C0
TA35
|
-
|
CBD
|
B
|
F
|
120
|
C0
|
-
|
CZMXX
|
= Accessories
Factory mounted accessories
Without cover
For subsequent fitting accessories see:
http://www.schurter.com/pdf/english/typ_TA35_Accessories.pdf
Configuration
key
All Variants
Basic function
Rocker colour
Legend
Rated current
Accessories
Config. Code
Order Number
3-pole, 3 bimetal, without illumination
3-pole, 3 bimetal, without illumination
3-pole, 3 bimetal, without illumination
3-pole, 3 bimetal, without illumination
3-pole, 3 bimetal, without illumination
3-pole, 3 bimetal, without illumination
3-pole, 3 bimetal, without illumination
3-pole, 3 bimetal, without illumination
3-pole, 3 bimetal, without illumination
3-pole, 3 bimetal, illuminated 415 V
█
Most Popular.
Black
White
Black
White
Black
Black
White
Black
White
Red transparent
white printed
embossed
white printed
embossed
white printed
white printed
embossed
white printed
embossed
white printed
2.5 A
3.0 A
4.0 A
5.0 A
5.0 A
6.0 A
10.0 A
10.0 A
12.0 A
12.0 A
Without cover
Without cover
Without cover
Without cover
Without cover
Without cover
Without cover
Without cover
Without cover
Without cover
TA35-CKDBHJ25C0
TA35-CKDWF030C0
TA35-CKDBH040C0
TA35-CKDWF050C0
TA35-CKDBH050C0
TA35-CKDBH060C0
TA35-CKDWF100C0
TA35-CKDBH100C0
TA35-CKDWF120C0
TA35-CD13L120C0
4435.0229
4435.0025
4435.0232
4435.0044
4435.0048
4435.0233
4435.0050
4435.0235
4435.0017
4435.0414
█
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
Packaging Unit
Accessories
10 Pcs
Description
TA35 Accessories
Screw-on collar with cover, IP65
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
product selected for their own applications.
Circuit Breakers
5
19.01.2018
