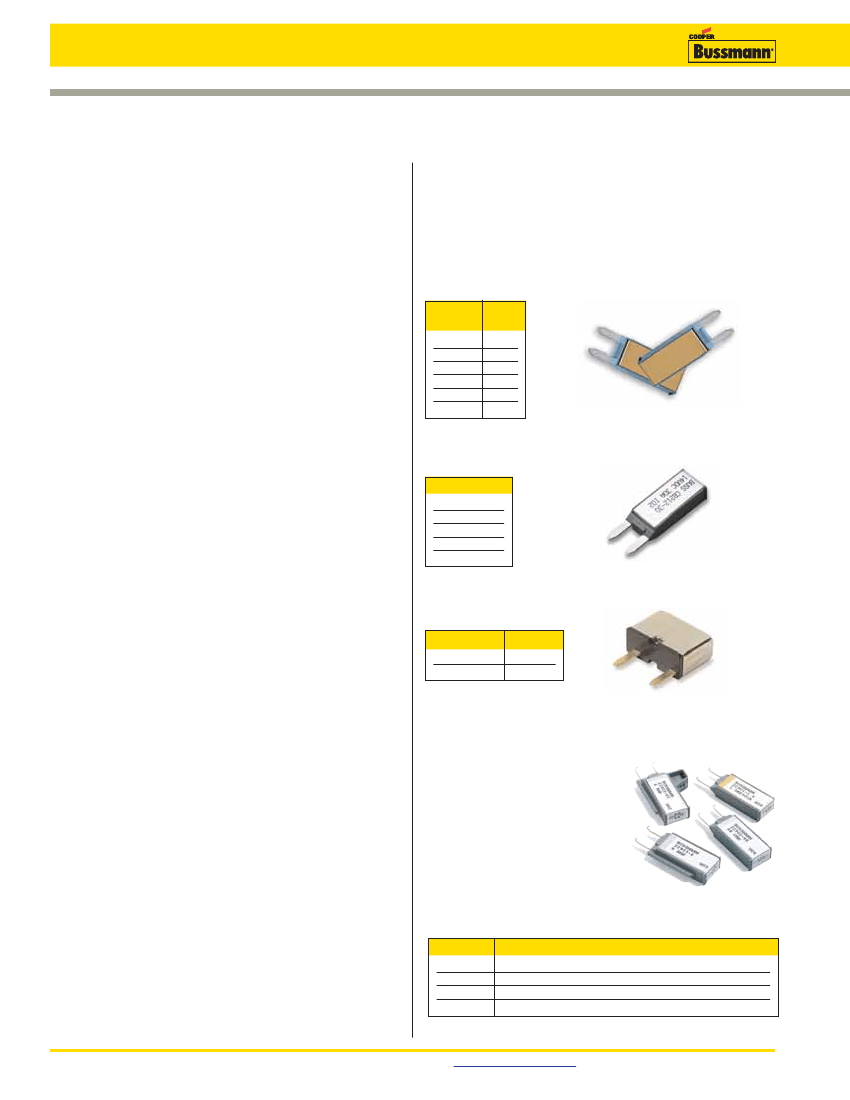

Automotive Circuit Breakers
Cooper Bussmann offers the industry's largest selection of automotive
circuit breakers including both OEM-style and fuse-replacement devices.
Circuit breakers are designed to offer a variety of performance
characteristics including three types of reset.
(NOTE: Always follow the OEM's recommendations when replacing circuit
breakers. Replace only with the same type breaker in aftermarket
applications.)
Type I - Automatic Reset
Circuit breaker automatically resets after opening. If the fault still exists, the
breaker will continue to cycle between ON and OFF positions until the
overload is corrected. These devices are sometimes called "cycling
breakers." Type I/Automatic Reset circuit breakers do not address, or
correct, overcurrent or fault conditions. They only react by cycling OFF and
ON. Any overcurrent or fault condition that causes any Type I circuit breaker
to operate should be corrected as soon as possible. Continual vehicle
operation under an overcurrent or fault condition (causing the Type I circuit
breaker to cycle) is NOT recommended.
Type II - Modified Reset
The circuit breaker will remain tripped (in the OFF position) as long as
there's power to the circuit, due to an internal resistor. Type II breakers can
be reset by turning off the circuit, or by turning off the ignition switch. These
devices are sometimes called "non-cycling breakers." Several Cooper
Bussmann Type II breakers feature silver-colored bodies.
Type III - Manual Reset
The circuit breaker will remain tripped (in the OFF position) until an indicator
button or lever is manually reset. Type III breakers are also available with a
switchable feature, which allows you to use an external button to disable the
circuit. Cooper Bussmann circuit breakers feature our patented fail-safe
technology - offering an innovative element design which combines the
resetable performance of circuit breakers with the short-circuit protection of
a fuse.
• Resetable, to work like a normal "cycling" breaker, in low overload
conditions.
• Under severe overload or short-circuit conditions, the breaker's element
will open to prevent damage to the circuit.
Blade-Type Breakers
Cooper Bussmann blade-type circuit breakers are available in several reset
modes that correspond to SAE categories: SAE Type I (automatic reset), SAE
Type II (modified reset) and SAE Type III (manual reset). All Cooper
Bussmann blade-type circuit breakers utilize carefully designed and
manufactured snap-acting thermal elements with precious metal electrical
contacts.
See page 6 for circuit breaker specifications.
ATM Footprint Breakers
CB211 and CB212 Cooper Bussmann ATM footprint breakers match the
blade footprint of ATM fuses. Ultra-thin, to fit in tight spaces - they're the
smallest automotive circuit breakers on the market. Cooper Bussmann ATM
footprint breakers comply with SAE standard J553.
CB211 Type I ATM Footprint Circuit Breaker
Part No.
(Amps)
CB211-7
1
/
2
CB211-10
CB211-15
CB211-20
CB211-25
CB211-30
Blister
Pack
X
X
X
X
X
CB212 Type II ATM Footprint Circuit Breaker
Part No. (Amps)
CB212-10
CB212-15
CB212-20
CB212-25
CB212-30
MMB Type I Wide ATM Footprint Circuit Breaker
For GM Vehicles
Part No. (Amps)
MMB-15
MMB-20
OEM No.
12135171
12135072
Mini Devices
Transorb, resistor and diode vehicle-style electrical protection devices easily
install in common ATM fuse holders. These circuit protection devices provide
voltage and current limiting functionality to
vehicle circuitry; and are designed for the
on- and off-highway requirements of heavy
trucks, RV, construction, agriculture, ATV and
material handling equipment.
•
Transorb
- Protects against voltage
spikes. Clamp rating: 27Vdc.
Power rating: 1500W
•
Resistor
- Drops circuit voltage.
Power rating: 5W. Resistance: 68W.
•
Diode
- Prevents reverse current flow. Amp rating: 6A.
Part No.
CB22901-1.5
CB22902-68
CB22903-6
CB22903-6V
Description
Transorb voltage spike protector
Resistor voltage drop device
Diode reverse current protector
Diode reverse current protector with wing key
12
For product information and data sheets, visit
www.cooperbussmann.com
Consumer Aftermarket Catalog
Automotive Circuit Breakers

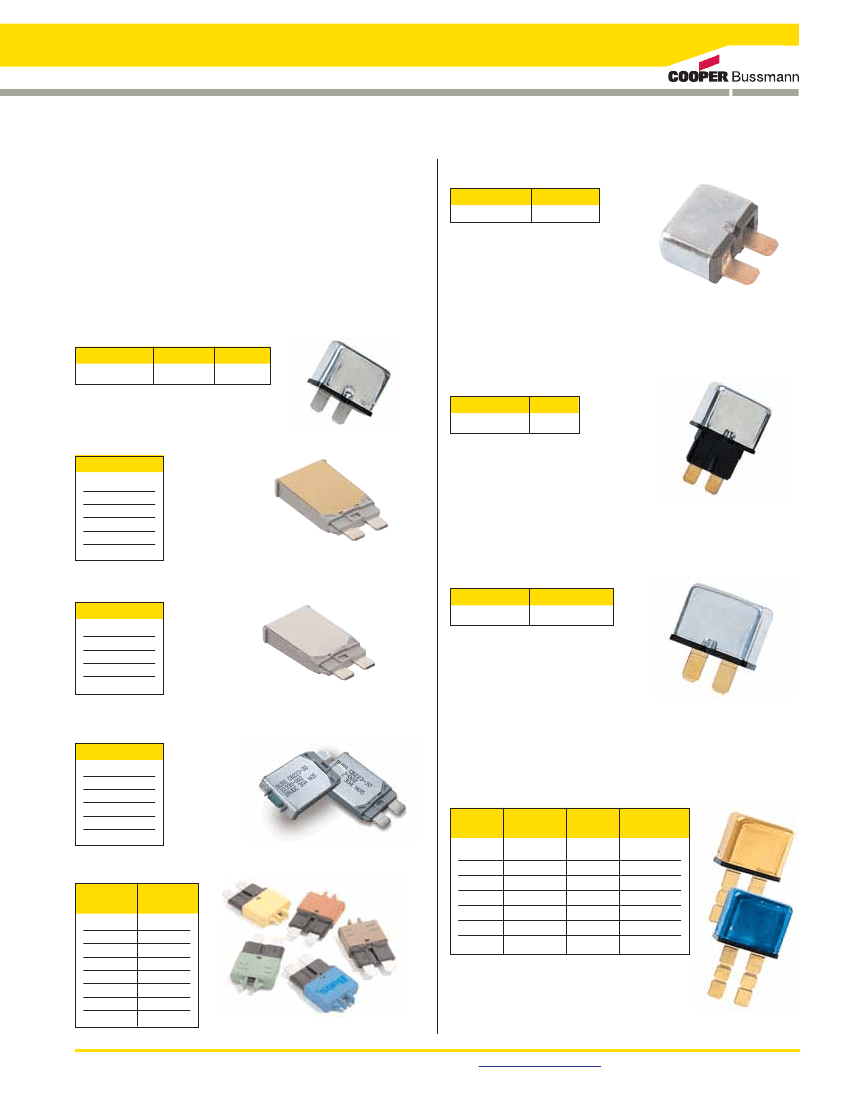

ATC Breakers
CB221 and CB222 breakers are designed to fit ATC style fuse panels.
Cooper Bussmann ATC breakers are the thinnest available in the
aftermarket. These devices comply with SAE standard J553.
CB227 complies with SAE J553 and SAE J1171 for ignition protection.
Cooper Bussmann also offers three ATC-style breakers as replacement
parts for specific OEM applications - ACB-20, CCB-25, and FCB-20.
CBB-30 Type II ATC Footprint Circuit Breaker
Part No. (Amps)
CBB-30
Blister Pack
X
ACB-20 Type I ATC Footprint Circuit Breaker for GM Vehicles
Part No. (Amps) Blister Pack
ACB-20
X
OEM No.
12040816
CCB-25 Type I ATC Footprint Circuit Breaker For
Chrysler Vehicles
Part No. (Amps) OEM No.
BP/CCB-25
4527053
CB221 Type I ATC Footprint Circuit Breakers
Part No. (Amps)
CB221-7
1
/
2
CB221-10
CB221-15
CB221-20
CB221-25
CB221-30
FCB-20 Type II ATC Footprint Circuit Breaker for Ford Vehicles
CB222 Type II ATC Footprint Circuit Breakers
Part No. (Amps)
Part No. (Amps)
CB222-10
CB222-15
CB222-20
CB222-25
CB222-30
BP/FCB-20
OEM No.
D9AB-14526-BA
CB223 Type III ATC Footprint Circuit Breakers
Part No. (Amps)
CB223-7
1
/
2
CB223-10
CB223-15
CB223-20
CB223-25
CB223-30
UCB Type I ATC Footprint Circuit Breakers
UCB breakers feature "snap-off" universal blades that can easily be sized to
fit applications where fuse block spacing is tight, or the fuse terminal is
recessed.
Color
Code
Plain
Brown
Red
Blue
Yellow
Plain
Green
Part No.
(Amps)
UCB-6
UCB-8
UCB-10
UCB-15
UCB-20
UCB-25
UCB-30
Blister Tri-Lingual
Pack
Blister
CB227 Type III ATC Footprint Low-Profile Circuit Breakers
Color
Code
Tan
Moss Green
Brown
Red
Blue
Yellow
White
Green
Part No.
(Amps)
CB227-5
CB227-6
CB227-7
1
/
2
CB227-10
CB227-15
CB227-20
CB227-25
CB227-30
X
X
X
X
X
X
X
For product information and data sheets, visit
www.cooperbussmann.com
13
Consumer Aftermarket Catalog
Automotive Circuit Breakers

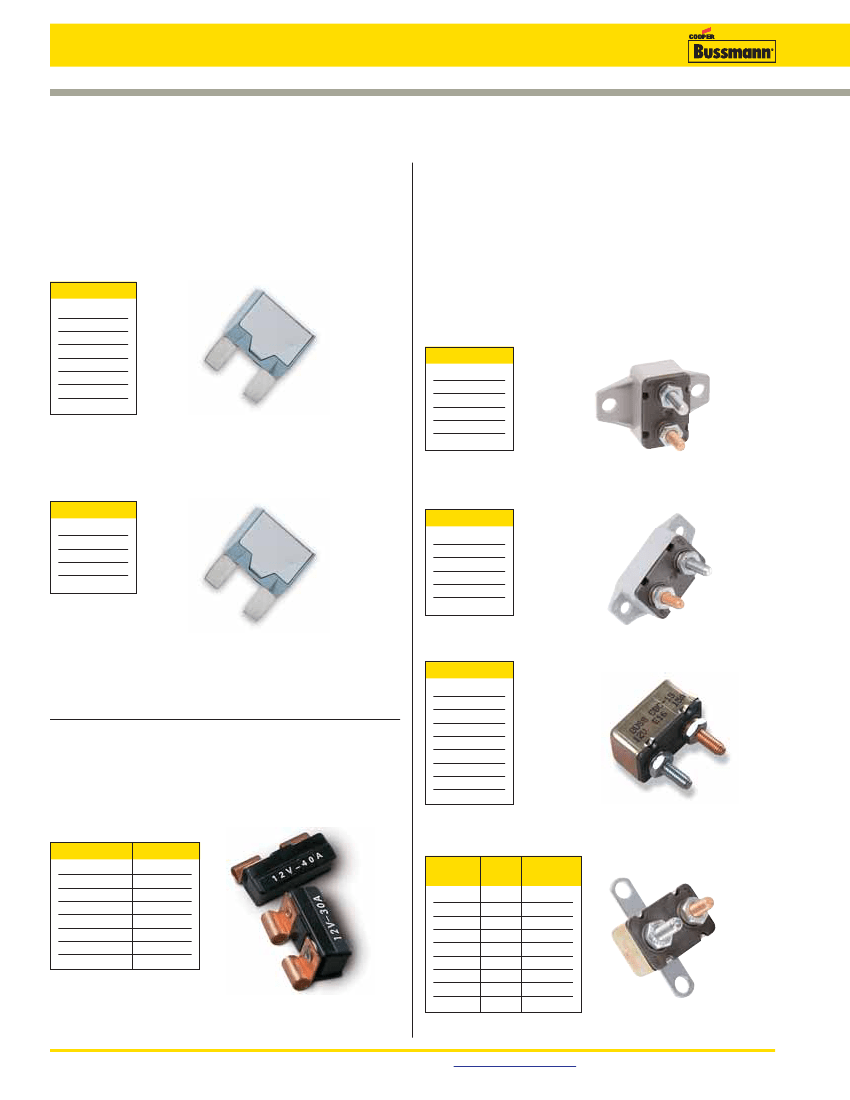

Maxi Breakers
Identical in size to Maxi-style fuses. The only breakers on the
market to match the Maxi's footprint and body dimensions.
Heavy-Duty Breakers
Used in many heavy-duty and truck applications. Use ring terminals to
connect breaker into circuit.
Cooper Bussmann stud-type circuit breakers feature our patented fail-safe
technology, and are available in styles: without bracket; with mounting
bracket; waterproof, with mounting bracket and with combination blade and
stud terminals. Complies with SAE standard J553.
CB1911 Type I MAX Footprint Circuit Breakers
Part No. (Amps)
CB1911-10
CB1911-15
CB1911-20
CB1911-25
CB1911-30
CB1911-35
CB1911-40
CB1911-50
CB123-B Type III 10-32 Stud-Mount Circuit Breakers with Crosswise
Bracket and Cover
Part No. (Amps)
CB123-10B
CB123-15B
CB123-20B
CB123-30B
CB123-40B
CB123-50B
CB1921 Type II MAX Footprint Circuit Breakers
Part No. (Amps)
CB1921-10
CB1921-15
CB1921-20
CB1921-25
CB1921-30
CB123-HB Type III 10-32 Stud-Mount Circuit Breakers with Lengthwise
Bracket and Cover
Part No. (Amps)
CB123-10HB
CB123-15HB
CB123-20HB
CB123-30HB
CB123-40HB
CB123-50HB
CBC Type I 10-32 Stud-Mount Circuit Breakers
Part No. (Amps)
CBC-8
CBC-10
CBC-15
CBC-20
CBC-25
CBC-30
CBC-35
CBC-40
CBC-50
Glass Tube Breakers
CBF Type II Circuit Breakers For Use In Glass Tube Fuse Holders and
Blocks
CBF circuit breakers can be used to replace glass fuses in
1
/
4
” x 1
1
/
4
” small
dimension fuse blocks.
Part No. (Amps)
CBF-6
CBF-10
CBF-15
CBF-20
CBF-25
CBF-30
CBF-35
CBF-40
Blister Pack
CBC-B Type I 10-32 Stud-Mount Circuit Breakers with
Crosswise Bracket
Part No.
(Amps)
CBC-8B
CBC-10B
CBC-15B
CBC-20B
CBC-25B
CBC-30B
CBC-35B
CBC-40B
CBC-50B
Blister
Pack
Tri-Lingual
Blister
X
X
X
X
X
X
X
X
14
For product information and data sheets, visit
www.cooperbussmann.com
Consumer Aftermarket Catalog
Automotive Circuit Breakers

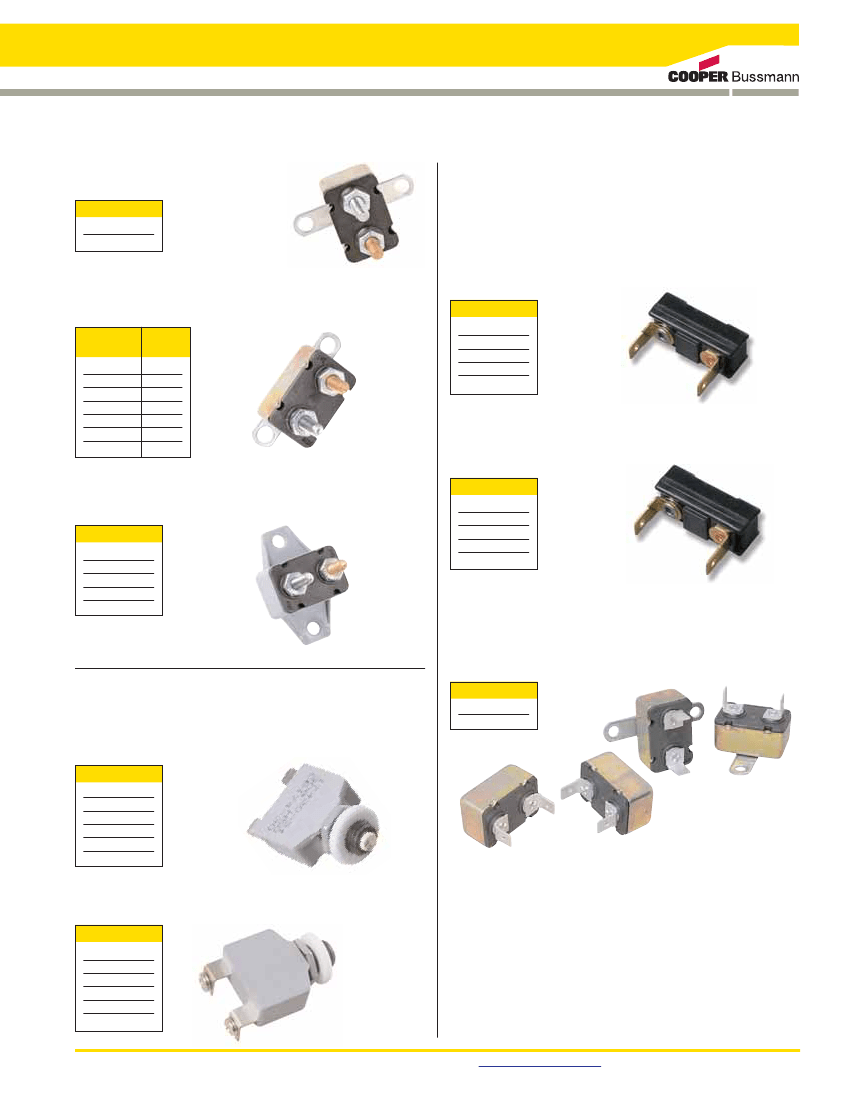

CBC-BWP Type I 10-32 Stud-Mount
Weatherproof Circuit Breakers
Part No. (Amps)
CBC-20BWP
CBC-30BWP
Quick-Connect Breakers
Used in trucks, RVs, boats, buses, etc. offered with
1
/
4
" quick-connect or 90°
bent screw terminals.
CBT-M Type II Circuit Breakers For Mack Trucks with
1
/
4
" Blades on 1" Centers
CBC-HB Type I 10-32 Stud-Mount Circuit Breakers with
Lengthwise Bracket
Part No.
(Amps)
CBC-10HB
CBC-15HB
CBC-20HB
CBC-25HB
CBC-30HB
CBC-40HB
CBC-50HB
Blister
Pack
Part No. (Amps)
CBT-10M
CBT-15M
CBT-20M
CBT-25M
CBT-30M
X
X
X
X
CBT-N Type II Circuit Breakers For Navistar Trucks with
1
/
4
" Blades on 1.08" Centers
Part No. (Amps)
CBP-BA Type I 10-32 Stud-Mount Circuit Breakers with
Crosswise Bracket
Part No. (Amps)
CBP-20BA
CBP-25BA
CBP-30BA
CBP-40BA
CBP-50BA
CBT-10N
CBT-15N
CBT-20N
CBT-25N
CBT-30N
CBU Type I Circuit Breakers with
1
/
4
" Quick-Connect Terminals on 0.99"
Centers (30B with crosswise bracket)
Panel-Mount Breakers
Used in trucks, RVs, boats, buses, etc. offered with 1/4" quick-connect or
90° bent screw terminals.
CB174 Type III Circuit Breakers with
1
/
4
" Quick-Connect Terminals
Part No. (Amps)
CB174-8
CB174-10
CB174-15
CB174-20
CB174-25
CB174-30
CBU-30B
Part No. (Amps)
CBU-6
CBU-30B
CBU-6
CB174B Type III Circuit Breakers with
90° 5-32 Screw Terminals
Part No. (Amps)
CB174B-10
CB174B-15
CB174B-20
CB174B-25
CB174B-30
CB174B-40
For product information and data sheets, visit
www.cooperbussmann.com
15
