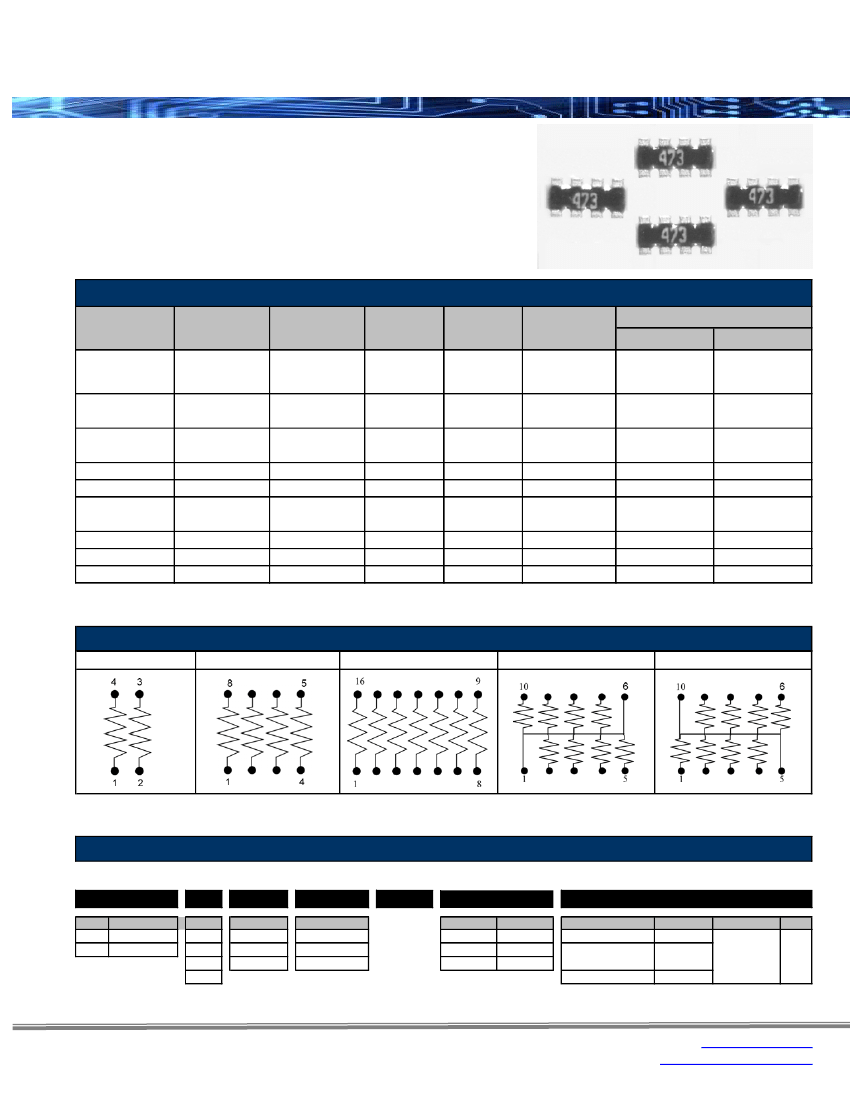

RAV Series
Convex Termination Chip Resistor Array
Features:
•
•
•
•
•
•
•
•
Thick film resistor element
Multiple circuit types available
Ideal SMD substitute for leaded networks
RoHS compliant / lead-free available (RAVF)
Auto-placement capability
Square corner construction standard
Zero ohm jumper available
RAV 324D is standard with scalloped corner
Stackpole Electronics, Inc.
Resistive Product Solutions
Electrical Specifications
Type / Code /
# of Elements /
Circuit Type
RAV 052D
Power Rating
(per element)
@ 70ºC
0.031W
Power Rating
(Entire Array)
@ 70ºC
0.063W
Maximum
Working
Voltage (1)
12.5V
Maximum
Overload
Voltage
25V
Resistance
Temperature
Coefficient
±200 ppm/ºC
±300 ppm/ºC
±500 ppm/ºC
±200 ppm/ºC
±300 ppm/ºC
±200 ppm/ºC
±300 ppm/ºC
±200 ppm/ºC
±200 ppm/ºC
±200 ppm/ºC
±250 ppm/ºC
±200 ppm/ºC
±200 ppm/ºC
±200 ppm/ºC
Ohmic Range (Ω) and Tolerance
1%
-
-
-
10 - 1M
-
10 - 1M
-
10 - 1M
10 - 1M
10 - 1M
-
22 - 1M
-
-
2%, 5%
1K - 1M
10 - 1K
3 - 10
10 - 1M
1 - 9.9
10 - 1M
1 - 9.9
1 - 10M
1 - 10M
-
1 - 1M
10 - 1M
22 - 1M
22 - 1M
RAV 102D
RAV 104D
RAV 162D
RAV 164D
RAV 168D
RAV 324D
RAV 328N
RAV 328R
0.063W
0.063W
0.063W
0.063W
0.063W
0.125W
0.063W
0.063W
0.125W
0.250W
0.125W
0.250W
0.500W
0.250W
0.500W
0.500W
25V
25V
50V
50V
25V
200V
25V
25V
50V
50V
100V
100V
50V
400V
50V
50V
(1) Lesser of
√PR
or maximum working voltage.
Schematics
Isolated Circuit - 2D
Isolated Circuit - 4D
Isolated Circuit - 8D
Bussed Circuit - N
Bussed Circuit - R
How to Order
SEI Type
Code
Number of
Elements
Circuit Type
Nominal
Resistance
Tolerance
Packaging
RAV
Type Description
RAV
Convex
RAVF Convex RoHS
16
Code
05
10
16
32
4
Elements
2
4
8
D
Circuit Type
D = Isolated
N = Bussed
R = Bussed
10K
5%
Tolerance
1%
2%
5%
Values
E24
E24
E24
SEI Types
052D, 102D, 104D
162D, 164D, 168D,
328N, 328R
324D
R
Pkg Qty
10,000
5,000
4,000
Description Code
Reel
R
Rev Date: 06/21/2010
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
29
www.seielect.com
marketing@seielect.com
RAV Series
Convex Termination Chip Resistor Array
Stackpole Electronics, Inc.
Resistive Product Solutions
RAV - 8 Resistors / 10 Terminations (N/R)
RAV - 2 Resistors / 4 Terminations (D)
RAV - 4 Resistors / 8 Terminations (D)

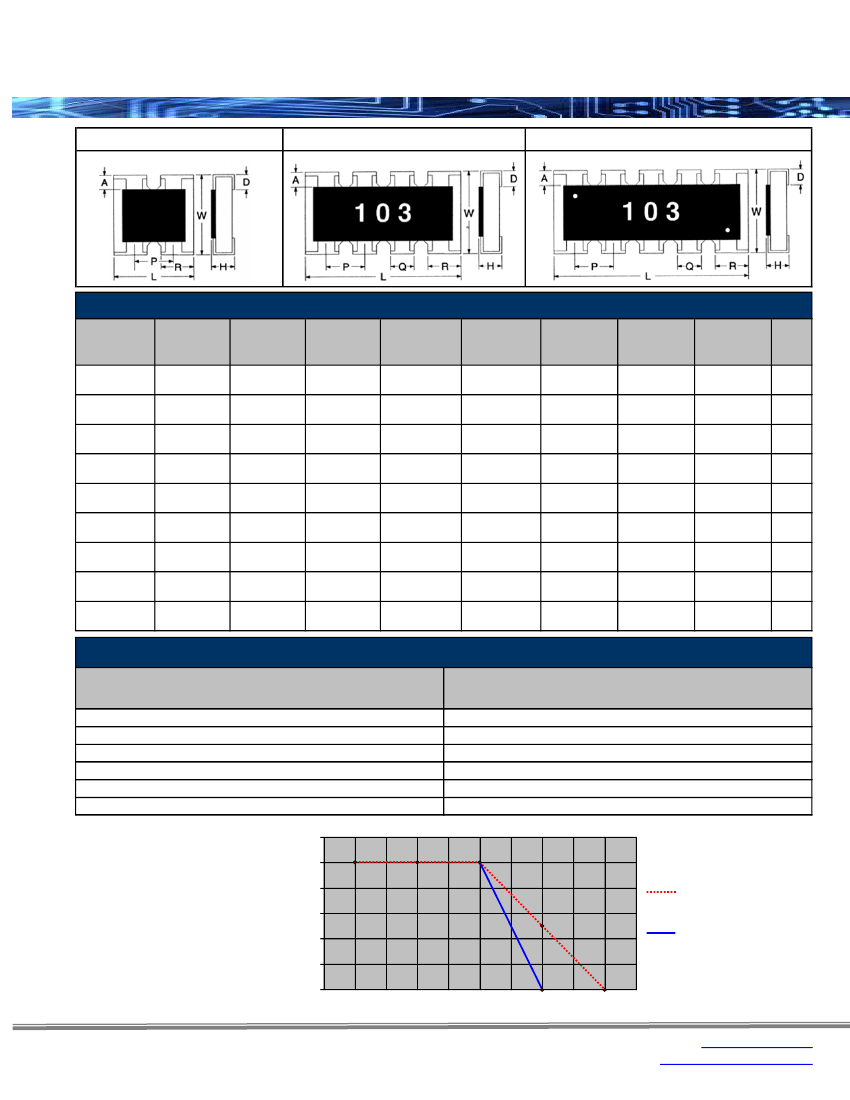

Mechanical Specifications
Type / Code /
# of Elements /
Circuit Type
RAV 052D
RAV 102D
RAV 104D
RAV 162D
RAV 164D
RAV 168D
RAV 324D
RAV 328N
RAV 328R
L
Body Length
0.31 ± 0.004
0.8 ± 0.1
0.039 ± 0.004
1 ± 0.1
0.079 ± 0.008
2 ± 0.2
0.063 ± 0.006
1.6 ± 0.15
0.126 ± 0.008
3.2 ± 0.2
0.158 ± 0.008
4.0 ± 0.2
0.2 ± 0.008
5.08 ± 0.2
0.126 ± 0.006
3.2 ± 0.15
0.126 ± 0.006
3.2 ± 0.15
W
Body Width
0.024 ± 0.004
0.6 ± 0.1
0.039 ± 0.004
1 ± 0.1
0.039 ± 0.006
1 ± 0.15
0.063 ± 0.006
1.6 ± 0.15
0.063 ± 0.008
1.6 ± 0.2
0.063 ± 0.006
1.6 ± 0.15
0.122 ± 0.008
3.1 ± 0.2
0.063 ± 0.006
1.6 ± 0.15
0.063 ± 0.006
1.6 ± 0.15
H
Body Height
0.012 ± 0.002
0.3 ± 0.05
0.014 ± 0.004
0.35 ± 0.1
0.014 ± 0.006
0.35 ± 0.15
0.02 ± 0.006
0.5 ± 0.15
0.02 ± 0.004
0.5 ± 0.1
0.016 ± 0.004
0.4 ± 0.1
0.022 ± 0.004
0.55 ± 0.1
0.02 ± 0.004
0.55 ± 0.1
0.02 ± 0.004
0.55 ± 0.1
P
Element
Spacing
(0.02)
(0.50)
0.026 ± 0.002
0.65 ± 0.05
0.02 ± 0.006
0.5 ± 0.15
0.031 ± 0.002
0.8 ± 0.05
0.031 ± 0.002
0.8 ± 0.05
0.02 ± 0.006
0.5 ± 0.15
0.5 ± 0.004
1.27 ± 0.1
0.025 ± 0.002
0.64 ± 0.05
0.25 ± 0.002
0.64 ± 0.05
Q
Termination
Width
-
-
-
0.016 ± 0.008
0.4 ± 0.2
-
0.02 ± 0.004
0.5 ± 0.1
0.012 ± 0.004
0.3 ± 0.1
0.031 ± 0.008
0.8 ± 0.2
0.013 ± 0.006
0.34 ± 0.15
0.013 ± 0.006
0.34 ± 0.15
R
Termination
Width
0.014 ± 0.004
0.35 ± 0.1
0.013 ± 0.002
0.33 ± 0.05
0.016 ± 0.006
0.4 ± 0.15
0.024 ± 0.006
0.6 ± 0.15
0.02 ± 0.004
0.5 ± 0.1
0.016 ± 0.004
0.4 ± 0.1
-
0.019 ± 0.006
0.49 ± 0.15
0.019 ± 0.006
0.49 ± 0.15
D
Bottom
Termination
0.006 ± 0.002
0.15 ± 0.05
0.01 ± 0.002
0.25 ± 0.05
0.01 ± 0.004
0.25 ± 0.1
0.012 ± 0.006
0.3 ± 0.15
0.012 ± 0.006
0.3 ± 0.15
0.012 ± 0.008
0.3 ± 0.2
0.012 ± 0.008
0.3 ± 0.2
0.01 ± 0.006
0.25 ± 0.15
0.01 ± 0.006
0.25 ± 0.15
A
Top
Termination
0.006 ± 0.004
0.15 ± 0.1
0.006 ± 0.004
0.15 ± 0.1
0.008 ± 0.004
0.2 ± 0.1
0.012 ± 0.006
0.3 ± 0.15
0.012 ± 0.008
0.3 ± 0.2
0.012 ± 0.008
0.3 ± 0.2
0.02 ± 0.008
0.5 ± 0.2
0.012 ± 0.008
0.3 ± 0.2
0.012 ± 0.008
0.3 ± 0.2
Unit
Inches
mm
Inches
mm
Inches
mm
Inches
mm
Inches
mm
Inches
mm
Inches
mm
Inches
mm
Inches
mm
Performance Characteristics
Test
Load Life in Moisture
Temperature cycle
Load Life
Resistance to Soldering heat
Terminal Adhesion
Short Time Overload
Test Results (JIS C 5202)
±3%
±1%
±3%
±1%
±1%
±2%
Power Derating Curve:
120
100
% Rated Power
80
60
40
20
0
-55
0
70
125
155
Ambient Temperature (deg. C)
125
-55
0
70
RAV102D, RAV104D,
RAV162D, RAV164D,
RAV168D
RAV052D, RAV324D,
RAV328N, RAV328R
Rev Date: 06/21/2010
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
30
www.seielect.com
