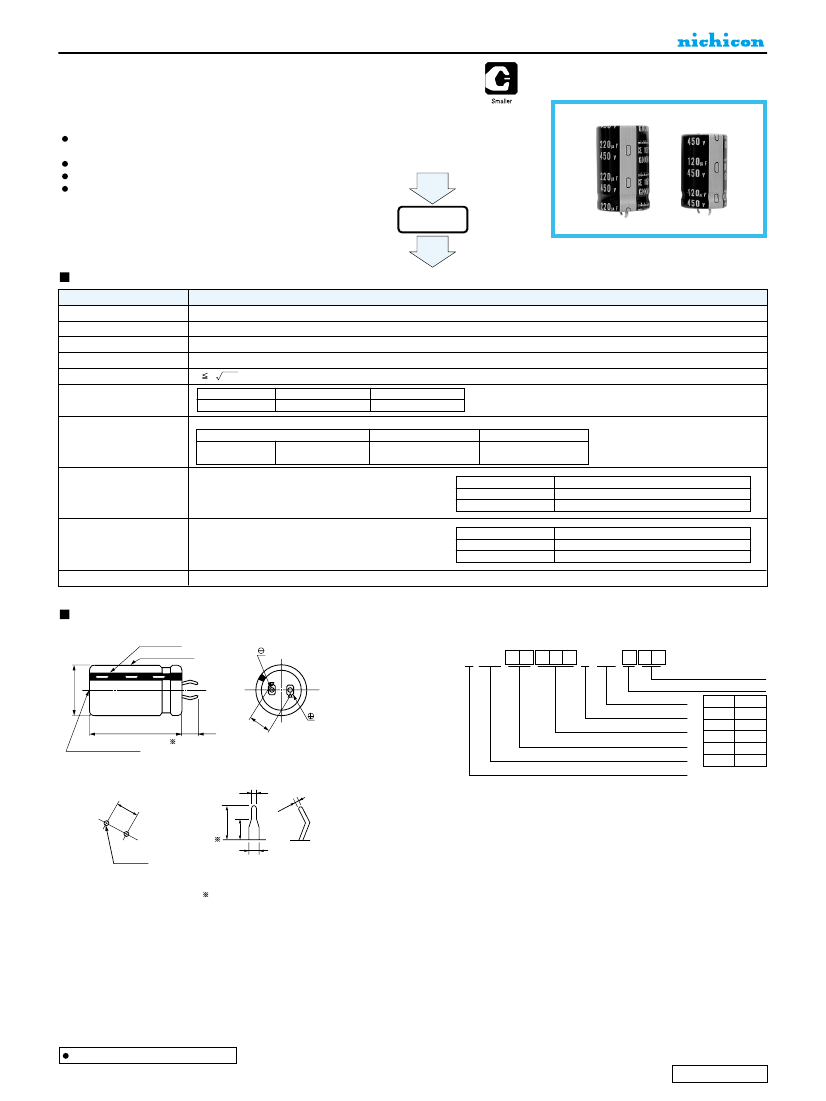

ALUMINUM ELECTROLYTIC CAPACITORS
GN
Snap-in Terminal Type, 105
°C
Smaller-Sized
series
Withstanding 3000 hours application of rated ripple current at
105°C.
One rank smaller case sized than GU series.
Addition of 500V rated voltage.
Compliant to the RoHS directive (2002/95/EC).
GU
Smaller
GN
Smaller
Specifications
Item
GG
Performance Characteristics
Category
Temperature Range
Rated
Voltage Range
Rated
Capacitance Range
Capacitance Tolerance
Leakage Current
–
40 to +105°C (160 to 250V) ,
–
25 to +105°C (350 to 500V)
160 to 500V
56 to 3300µF
± 20% at 120Hz, 20°C
I
3 CV(µA) (After 5 minutes' application of rated voltage) [C : Rated Capacitance (µF) V : Voltage (V)]
Rated voltage (V)
tan
δ
(MAX.)
Tangent of loss angle (tan
δ)
160 to 420
0.15
450 to 500
0.20
160 to 250
4
Measurement frequency : 120Hz at 20°C
Stability at Low Temperature
Rated voltage (V)
350 to 500
8
Capacitance change
tan
δ
Leakage current
Measurement frequency : 120Hz
Temperature : 20 °C
Impedance ratio
ZT/Z20 (MAX.)
Z
–
25°C/ Z+20°C
Endurance
The specifications listed at right shall be met when the
capacitors are restored to 20
°C
after D.C. bias plus
rated ripple current is applied for 3000 hours at 105
°C
,
the peak voltage shall not exceed the rated voltage.
After storing the capacitors under no load at 105°C
for 1000hours and then performing voltage treatment
based on JIS C 5101-4 clause 4.1 at 20°C,
they shall meet the characteristic requirements listed at right.
Printed with white color letter on black sleeve.
Within ± 20% of the initial capacitance value
200% or less than the initial specified value
Less than or equal to the initial specified value
Capacitance change
tan
δ
Leakage current
Within ± 20% of the initial capacitance value
200% or less than the initial specified value
Less than or equal to the initial specified value
Shelf Life
Marking
Drawing
Polarity bar
Sleeve (P.E.T.)
φD
+1MAX.
Type numbering system (Example : 400V 180
µ
F)
1
2
3
4
5
6
7
8
9
10 11
12
13 14
L GN 2 G 1 8 1 M EL A 3 0
Case length code
Case dia. code
Configuration
10
Capacitance tolerance (± 20%)
Rated capacitance (180µF)
L
±
2
Pressure relief vent
4.0± 0.5
Rated voltage (400V)
Series name
Type
0.8
+0.2
-0.1
4.0± 0.5
0.8
-
.2
+0 .1
0
φD
20
22
25
30
35
Code
Y
Z
A
B
C
10
±
0.1
2-2φ
±
0.1
(PC board hole dimensions)
2.5
1.5
+0.2
-0.1
(Terminal dimensions)
The other terminal is also available upon request.
Please refer page 280 for schematic of dimensions.
Minimum order quantity : 50pcs.
Dimension table in next page.
CAT.8100B
