BYV133B-35: Description20A, 35V, SILICON, RECTIFIER DIODE; CategoryDiscrete semiconductor diode; File Size38KB，6 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

BYV133B-35 Overview

20A, 35V, SILICON, RECTIFIER DIODE

BYV133B-35 Parametric

Parameter Name	Attribute value
Maker	NXP
Reach Compliance Code	compli
ECCN code	EAR99
Other features	WITHSTAND REVERSE VOLTAGE TRANSIENTS, SURGE CAPABILITY
application	GENERAL PURPOSE
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.94 V
JESD-30 code	R-PSSO-G3
Maximum non-repetitive peak forward current	110 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Maximum output current	20 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	35 V
surface mount	YES
technology	SCHOTTKY
Terminal form	GULL WING
Terminal location	SINGLE
Base Number Matches	1

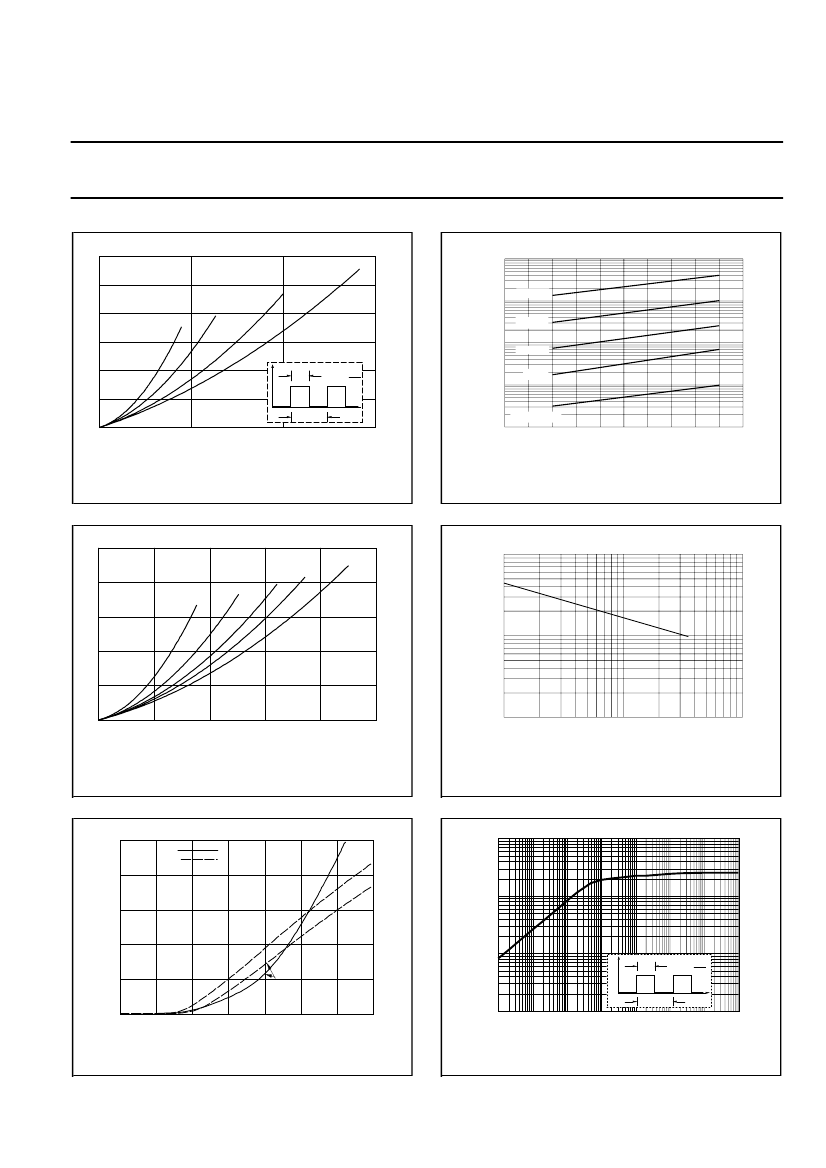

Preview

Download Datasheet

View All

Philips Semiconductors

Product specification

Rectifier diodes

Schottky barrier

FEATURES

• Low forward volt drop

• Fast switching

• Reverse surge capability

• High thermal cycling performance

• Low thermal resistance

BYV133, BYV133B series

SYMBOL

QUICK REFERENCE DATA

= 35 V/ 40 V/ 45 V

k 2

O(AV)

= 20 A

≤

0.6 V

GENERAL DESCRIPTION

Dual, common cathode schottky rectifier diodes in a conventional leaded plastic package and a surface mounting

plastic package. Intended for use as output rectifiers in low voltage, high frequency switched mode power supplies.

The BYV133 series is supplied in the SOT78 conventional leaded package.

The BYV133B series is supplied in the SOT404 surface mounting package.

PINNING

tab

DESCRIPTION

anode 1 (a)

cathode (k)

anode 2 (a)

cathode (k)

SOT78 (TO220AB)

tab

SOT404

tab

1 23

LIMITING VALUES

Limiting values in accordance with the Absolute Maximum System (IEC 134)

SYMBOL PARAMETER

CONDITIONS

BYV133-

BYV133B-

RRM

RWM

O(AV)

FRM

FSM

Peak repetitive reverse

voltage

Working peak reverse

voltage

Continuous reverse voltage

Average rectified forward

current (both diodes

conducting)

Repetitive peak forward

current (per diode)

Non-repetitive peak forward

current per diode

Peak repetitive reverse

surge current per diode

Operating junction

temperature

Storage temperature

≤

120 ˚C

square wave;

= 0.5;

≤

120 ˚C

square wave;

= 0.5;

≤

120 ˚C

t = 10 ms

t = 8.3 ms

sinusoidal; T

= 125 ˚C prior to

surge; with reapplied V

RRM(max)

pulse width and repetition rate

limited by T

j max

- 65

MIN.

MAX.

100

110

150

175

UNIT

˚C

RRM

stg

It is not possible to make connection to pin 2 of the SOT404 pckage.

May 1998

Rev 1.100
