BG160-12-C-C-N-E datasheet, PDF

Datasheet> All Categories > The connector> The connector> BG160-12-C-C-N-E

BG160-12-C-C-N-E: DescriptionBoard Connector, 12 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug,; CategoryThe connector The connector; File Size102KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BG160-12-C-C-N-E Overview

Board Connector, 12 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug,

BG160-12-C-C-N-E Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Global Connector Technology
Reach Compliance Code	compli
Other features	ROHS COMPLIANT
body width	0.197 inch
subject depth	0.535 inch
body length	0.62 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrie
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
JESD-609 code	e3
Manufacturer's serial number	BG160
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.191 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	12
Base Number Matches	1

Preview

Download Datasheet

View All

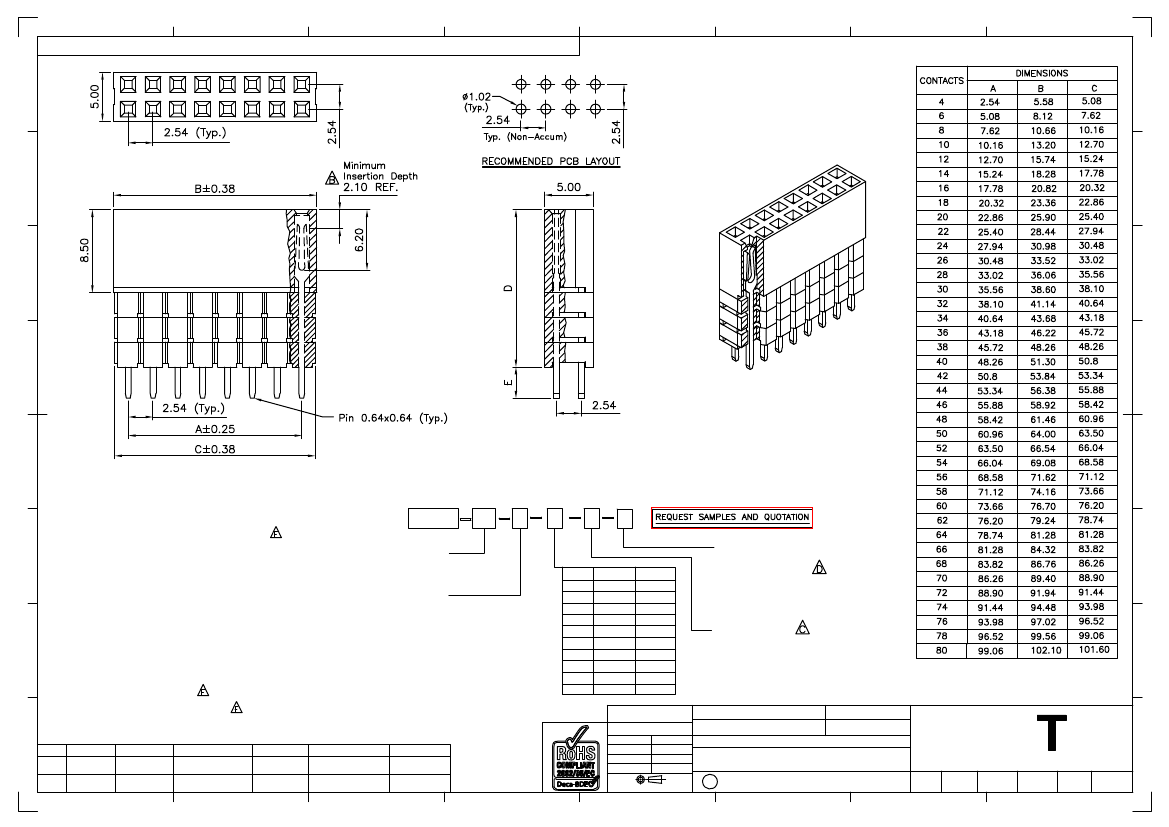

Global Connector Technology Ltd. - BG160: 2.54mm PITCH ELEVATED SOCKET, DUAL ROW , THROUGH-HOLE, VERTICAL

FEATURES

特点

ACCEPTS 0.64mm SQUARE PIN HEADER

接受0.64mm的SQUARE

PIN HEADER

SPECIFICATIONS

规格

CURRENT RATING

电流额定值

: 3 AMPS

INSULATOR RESISTANCE

绝缘电阻值

: 1000 MEGOHMS MIN.

CONTACT RESISTANCE

接触电阻值

: 20 m OHMS MAX

DIELECTRIC WITHSTANDING

耐电压:

AC 500 V

OPERATING TEMPERATURE

工½温度

: -40° TO +105°C

CONTACT MATERIAL

端子物料

: PHOSPHOR BRONZE

INSULATOR MATERIAL

绝缘½物料

STANDARD

标准物料:

POLYAMIDE

聚醯胺,

NYLON 6T, UL 94-V0

OPTIONS

可选物料:

POLYESTER

聚酯,

LCP, UL 94-V0

OR POLYESTER

聚酯,

PBT, UL94-V0

SOLDERING PROCESS

可焊性:

NYLON 6T (STANDARD标准物料) -

IR REFLOW

回流焊:

260°C for 10 sec.

WAVE

波峰焊:

230°C for 5-10 sec.

MANUAL SOLDER

人工焊接:

350°C for 3-5 sec

PBT (OPTION

可选物料)

- MANUAL SOLDER人工焊接: 330°C for 3-5 sec.

(NOT SUITABLE FOR HI-TEMP PROCESS

不适合高温处理

)

LCP (OPTION

可选物料)

IR REFLOW

回流焊:

260°C for 10 sec.

WAVE

波峰焊:

250°C for 5-10 sec.

MANUAL SOLDER

人工焊接:

350°C for 3-5 sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

BG025

BG040

BG045

BG050

BG065

BG070

BG085

DETAIL

REV

DATE

LYH

DRAWING

RELEASE

30/10/06

DIMENSION

AMENDMENT

09/03/09

Ordering Grid

BG160

No. of Contacts

04 to 80

Packing Options

D = Tube (Standard)

E = Tube with Cap

F = Tube with Film

G = Plastic Box

Contact Plating

A = Gold Flash All Over

B = Selective Gold Flash Contact

Area/Tin On Tail

C = Tin All Over

G = 10µ" Gold Contact Area/Tin On Tail

I = 30µ" Gold Contact Area/Tin On Tail

Standard = Gold Flash All Over

DIM D

11.05

13.59

16.13

11.05

13.59

16.13

18.67

DIM E

2.30

7.35

4.85

2.30

12.2

9.65

7.10

4.60

3.0

4.06

Tolerances

(Except as noted)

Insulator Material

N = Nylon 6T (Standard)

P = PBT

L = LCP

Part Number:-

Date:-

Dimensions in mm

X. ± 0.30

BG160

Description:-

30 OCT 06

STANDARD INSULATOR

PACKING OPTIONS

CHANGE TO SOLDER

CHANGE TO

CHANGED

MATERIAL CHANGED

TEMP. INFORMATION SPECIFICATION

X.X ± 0.20

X.XX ± 0.15

X.XXX ± 0.10

X.°±5°

.X°±2°

.XX°±1°

.XXX°±0.5°

2.54mm PITCH ELEVATED SOCKET, DUAL ROW,

THROUGH HOLE, VERTICAL

www.globalconnectortechnology.com

Scale

NTS

Material

See Note

12/03/09

27/04/09

05/08/09

30/12/09

Third Angle Projection

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

Drawn by

LYH

E & OE

Sheet No.

1/1
