2N688M datasheet, PDF - EEWORLD Datasheet

2N688M: DescriptionSILICON CONTROLLED RECTIFIER,400V V(DRM),16A I(T),TO-208VARM6; CategoryAnalog mixed-signal IC Trigger device; File Size166KB，4 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

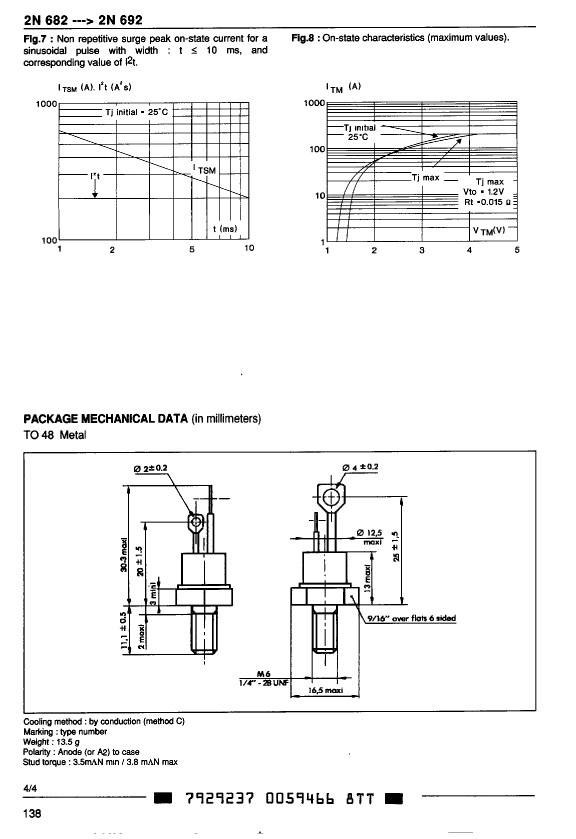

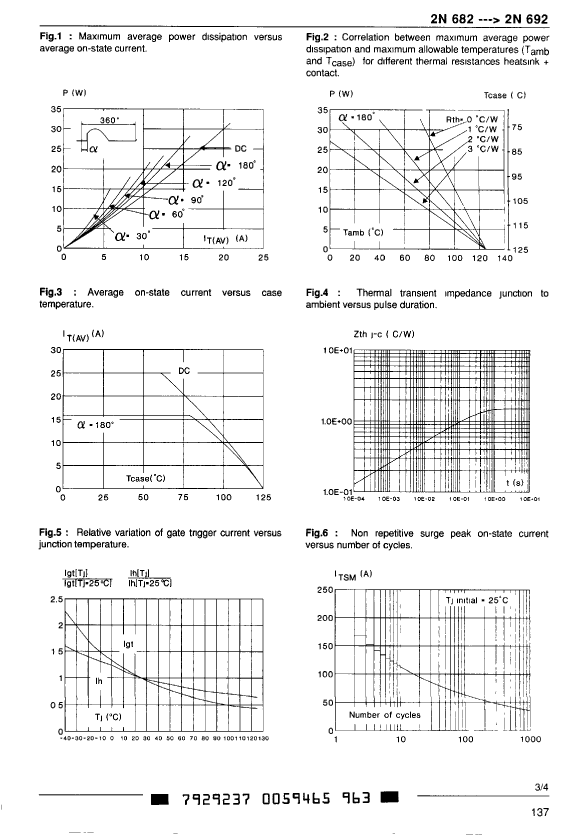

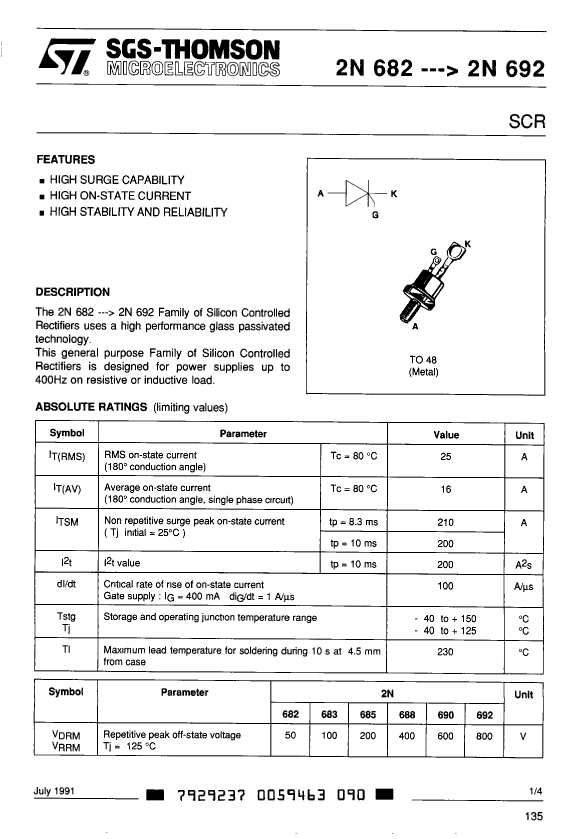

2N688M Overview

SILICON CONTROLLED RECTIFIER,400V V(DRM),16A I(T),TO-208VARM6

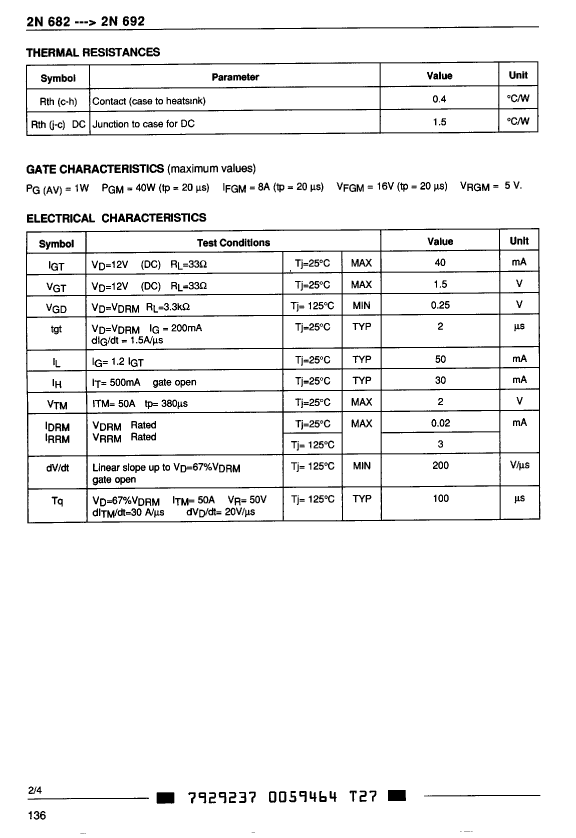

Parameter Name	Attribute value
Reach Compliance Code	compli
ECCN code	EAR99
Critical rise rate of minimum off-state voltage	250 V/us
Maximum DC gate trigger current	40 mA
Maximum DC gate trigger voltage	2 V
On-state non-repetitive peak current	150 A
Maximum on-state current	16000 A
Off-state repetitive peak voltage	400 V
surface mount	NO
Trigger device type	SCR
Base Number Matches	1

	2N688M	2N692M	2N690M	2N683M	2N685M	2N682M
Description	SILICON CONTROLLED RECTIFIER,400V V(DRM),16A I(T),TO-208VARM6	SILICON CONTROLLED RECTIFIER,800V V(DRM),16A I(T),TO-208VARM6	SILICON CONTROLLED RECTIFIER,500V V(DRM),16A I(T),TO-208VARM6	SILICON CONTROLLED RECTIFIER,100V V(DRM),16A I(T),TO-208VARM6	SILICON CONTROLLED RECTIFIER,200V V(DRM),16A I(T),TO-208VARM6	SILICON CONTROLLED RECTIFIER,50V V(DRM),16A I(T),TO-208VARM6
Reach Compliance Code	compli	compli	compli	compli	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Critical rise rate of minimum off-state voltage	250 V/us	250 V/us	250 V/us	250 V/us	250 V/us	250 V/us
Maximum DC gate trigger current	40 mA	40 mA	40 mA	40 mA	40 mA	40 mA
Maximum DC gate trigger voltage	2 V	2 V	2 V	2 V	2 V	2 V
On-state non-repetitive peak current	150 A	150 A	150 A	150 A	150 A	150 A
Maximum on-state current	16000 A	16000 A	16000 A	16000 A	16000 A	16000 A
Off-state repetitive peak voltage	400 V	800 V	500 V	100 V	200 V	50 V
surface mount	NO	NO	NO	NO	NO	NO
Trigger device type	SCR	SCR	SCR	SCR	SCR	SCR
Base Number Matches	1	1	1	1	1	-
