Quick Reference Guide
Standard Flexible Printed Circuit (FPC) Connectors
- 0.5mm, 1.0mm & 1.25mm Pitch
As the demands for higher-density packaging of electronic equipment increase, the use of flexible printed circuits (FPC) to
reduce size, weight and assembly costs has expanded.
As with our fine pitch FPC product, our larger pitch FPC connectors are also an ideal solution for routing signal through your
device when standard wire-to-board products are too large or impractical. Set on larger centerline pitch, these FPC products
are generally found in larger mobile devices such as hand-held scanners, cameras and GPS units; as well as in larger applications
such as set-top boxes, business equipment and industrial controls.
FPC interconnects of this size are also commonly found on devices that have low-definition displays, touch panels or screens.
This makes it very easy to identify potential FPC interconnect opportunities.
TE Connectivity's FPC solutions are available in 0.25mm, 0.3mm, 0.4mm, 0.5mm, 1.0mm and 1.25mm centerline spacing.
In this quick reference guide we introduce items with 0.5mm, 1.0mm and 1.25mm centerline spacing.
FEATURES AND BENEFITS
•
Multiple Centerline Spacing Options
•
ZIF and non-ZIF Versions Available
•
Top and Bottom Contact Options
•
Requires No Application Tooling
PRODUCT APPLICATIONS
•
Consumer Electronics
•
Business Equipment
•
Industrial Equipment
- Hand-Held Scanners
- POS Devices / Payment Terminals
- Set-Top Boxes
- PCs
- PC Peripherals
- Industrial Controls
- Gas Pumps
- ATMs
- Slot Machines
•
Medical Equipment
te.com/products/fpc
TE Connectivity
Standard FPC Connectors - 0.5mm, 1.0mm, 1.25mm Pitch
Basic Information
Multiple Centerlines
Measuring Centerline –
Connector Side
Measuring Centerline –
Cable Side

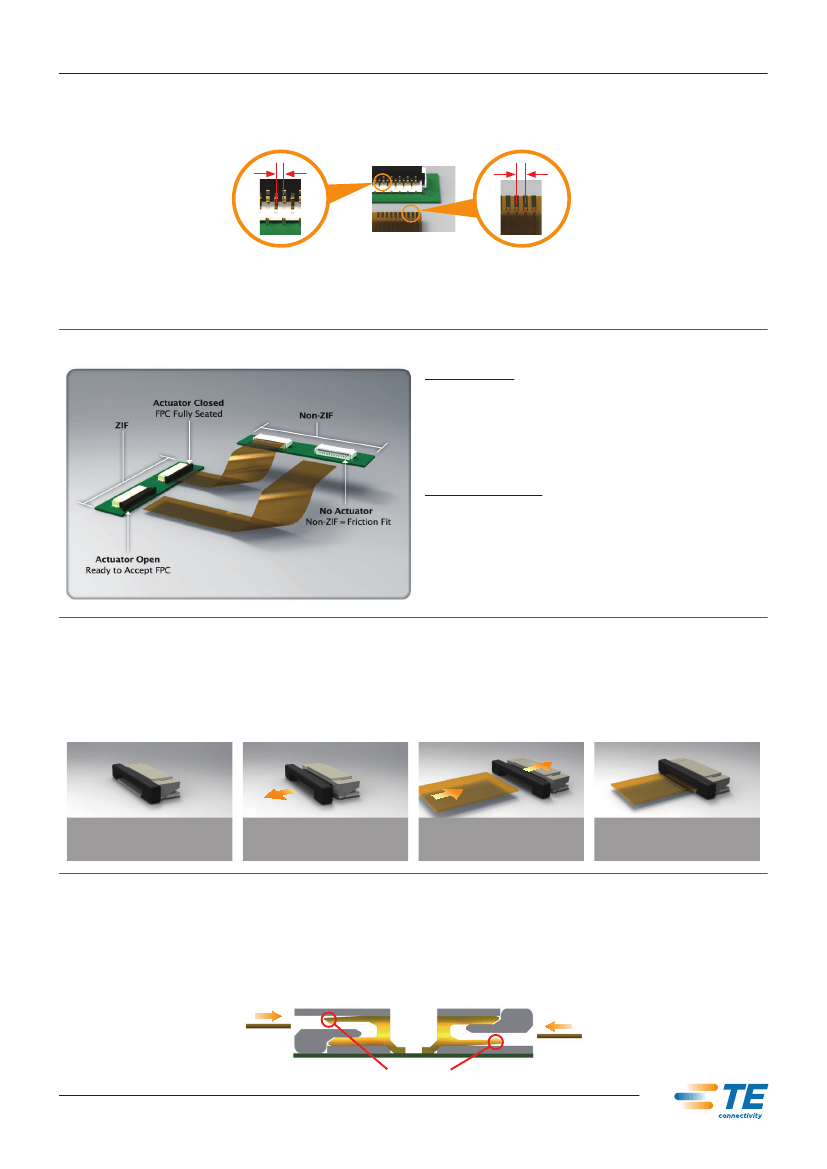

Centerline can be measured many different ways; however, in general, it is simply the spacing between the center of
one contact and the center of its neighboring contact.
Here you can see an example of the centerline spacing on an FPC connector and the centerline spacing on a flexible
printed circuit cable.
ZIF and non-ZIF
ZIF Connectors
・
Use an actuator to secure the flex cable
・
Less wear on contacts
・
Increase mating cycle count
・
Provide added retention
・
Better for high vibration environments
Non-ZIF Connectors
・
Use friction to secure the flex cable
・
Lower mating cycle count
・
Better for static applications
・
Smaller and lighter weight than equivalent ZIF counterpart
・
Take up less board real-estate
・
Typically less expensive than equivalent ZIF counterpart
Stuffer Actuator (Plunger Style)
Many of our larger pitch ZIF-style FPC connectors use a stuffer-type actuator [See Below]. Stuffer actuators use a
slightly different method to secure an FPC cable into the connector than the flip-lock versions [For flip-lock versions,
see Fine Pitch FPC Connector Quick Reference Guide, document number 8-1773459-2].
Stuffer actuators are typically used in vertical applications for ease of use: however right angle versions are also available.
Step One:
Starting State
Step Two:
Slide Stuffer forward to open
Step Three:
Insert the FPC into the connector &
slide stuffer backward to close
Step Four:
The FPC is now securely mated with
the connector
Upper (Top) Contact vs Lower (Bottom) Contact
Many of our fine pitch FPC products are available in both Upper (top) or Lower (bottom) contact versions. This attribute
simply represents which portion of the contact the flexible printed circuit interacts with. As you can see from the image
below, the FPC contacts are formed in a “U” shape. Only one prong of that “U” shaped contact interfaces with the flexible
printed circuit contacts. Choosing the correct contact design is generally based on the orientation of the flexible printed
circuit as described below.
If the contacts of the
flexible printed circuit are
facing up (away from the
board) then the upper
contact version is required.
Upper(Top) Contact
Lower(Bottom) Contact
FPC
FPC
Contact Point
If the contacts of the flexible
printed circuit are facing
down (towards the board)
then the lower contact
version is required.
te.com/products/fpc
TE Connectivity
0.5mm pitch (All PNs are ZIF style)
Standard FPC Connectors - 0.5mm, 1.0mm, 1.25mm Pitch
1
PCB
ORIENTATION CONTACT MOUNT ACTUATOR PLATING
TYPE
STYLE
FEATURES
2
3
4
5
6
7
8
9
10
11
12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
BASE PN 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60
POSITION SIZE
-5 -6 -7 -8 -9 -10 -11 -12 -13 -14 -15 -16 -17 -18 -19 -20 -21 -22 -23 -24 -25 -26 -27 -28 -29 -30
30 GOLD
TOP
SMT
STUFFER
GOLD
FLASH
30 GOLD
LOW
HALOGEN
STUFFER
RIGHT
ANGLE
BOTTOM
SMT
GOLD
FLASH
NARROW
BODY
BLACK
HOUSING
90 DEGREE
FLIP-LOCK
FLIP -
LOCK
GOLD
FLASH
105 DEGREE
FLIP-LOCK
60 POSITION
NARROW
BODY
1775560
-31 -32 -33 -34 -35 -36 -37 -38 -39 -40 -41 -42 -43 -44 -45 -46 -47 -48 -49 -50
-5 -6 -7 -8 -9 -10 -11 -12 -13 -14 -15 -16 -17 -18 -19 -20 -21 -22 -23 -24 -25 -26 -27 -28 -29 -30
1734839
-31 -32 -33 -34 -35 -36 -37 -38 -39 -40 -41 -42 -43 -44 -45 -46 -47 -48 -49 -50
-5 -6 -7 -8 -9 -10 -11 -12 -13 -14 -15 -16 -17 -18 -19 -20 -21 -22 -23 -24 -25 -26 -27 -28 -29 -30
1775635
-31 -32 -33 -34 -35 -36 -37 -38 -39 -40 -41 -42 -43 -44 -45 -46 -47 -48 -49 -50
-12
2041324
-12
1735842
-5 -6 -7 -8 -9 -10 -11 -12 -13 -14 -15 -16 -17 -18 -19 -20 -21 -22 -23 -24 -25 -26 -27 -28 -29 -30
1775628
-31 -32 -33 -34 -35 -36 -37 -38 -39 -40 -41 -42 -43 -44 -45 -46 -47 -48 -49 -50
-5 -6 -7 -8 -9 -10 -11 -12 -13 -14 -15 -16 -17 -18 -19 -20 -21 -22 -23 -24 -25 -26 -27 -28 -29 -30
1775333
-31 -32 -33 -34 -35 -36 -37 -38 -39 -40 -41 -42 -43 -44 -45 -46 -47 -48 -49 -50 -51 -52 -53 -54 -55
-4
2041070
-6
-8
-10
-12
-16
-18
-20
-26
-30
2041215
-1
1.0mm pitch (PNs are ZIF and non-ZIF styles, see "FEATURES" for details）
1
PCB
ORIENTATION CONTACT MOUNT ACTUATOR PLATING
TYPE
STYLE
FEATURES
2
3
4
5
6
7
8
9
10
11
12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
BASE PN 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60
POSITION SIZE
VERTICAL
N/A
SMT
STUFFER
GOLD
FLASH
TIN
-3 -4 -5 -6 -7 -8 -9 -10 -11 -12 -13 -14 -15 -16 -17 -18 -19 -20 -21 -22
ZIF
1734248
-40
-4 -5 -6 -7 -8 -9 -10 -11 -12 -13 -14 -15 -16 -17 -18 -19 -20 -21 -22 -23 -24 -25 -26 -27 -28 -29 -30
TOP
RIGHT
ANGLE
BOTTOM
SMT
FLIP -
LOCK
SMT
VERTICAL
N/A
T/H
N/A
TIN
-4 -5 -6 -7 -8 -9 -10 -11 -12 -13 -14 -15 -16 -17 -18 -19 -20 -21 -22 -23 -24 -25 -26 -27 -28 -29 -30
non-ZIF
84984
-4 -5 -6 -7 -8 -9 -10 -11 -12 -13 -14 -15 -16 -17 -18 -19 -20 -21 -22 -23 -24 -25 -26 -27 -28 -29 -30
SMT
TOP
T/H
RIGHT
ANGLE
SMT
BOTTOM
T/H
N/A
TIN
-4 -5 -6 -7 -8 -9 -10 -11 -12 -13 -14 -15 -16 -17 -18 -19 -20 -21 -22 -23 -24 -25 -26 -27 -28 -29 -30
non-ZIF
1734779
non-ZIF
1734798
N/A
TIN
-4 -5 -6 -7 -8 -9 -10 -11 -12 -13 -14 -15 -16 -17 -18 -19 -20 -21 -22 -23 -24 -25 -26 -27 -28 -29 -30
non-ZIF
84983
-4 -5 -6 -7 -8 -9 -10 -11 -12 -13 -14 -15 -16 -17 -18 -19 -20 -21 -22 -23 -24 -25 -26 -27 -28 -29 -30
non-ZIF
84981
GOLD
FLASH
-4
ZIF
2041084
-4 -5 -6 -7 -8 -9 -10 -11 -12 -13 -14 -15 -16 -17 -18 -19 -20 -21 -22 -23 -24 -25 -26 -27 -28 -29 -30
non-ZIF
84982
-6
-8
-10
-12
-16
-25
-30
SMT
STUFFER
ZIF
84953
-4 -5 -6 -7 -8 -9 -10 -11 -12 -13 -14 -15 -16 -17 -18 -19 -20 -21 -22 -23 -24 -25 -26 -27 -28 -29 -30
STUFFER
TIN
ZIF
84952
-24 -25 -26 -27 -28 -29 -30
1.25mm pitch (All PNs are non-ZIF style)
1
ORIENTATION
CONTACT
PCB ACTUATOR
PLATING
TYPE
MOUNT
STYLE
FEATURES
2
3
4
5
6
7
8
9
10
11
12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
BASE PN 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60
POSITION SIZE
-4 -5 -6 -7 -8 -9 -10 -11 -12 -13 -14 -15 -16 -17 -18 -19 -20 -21 -22 -23 -24 -25 -26 -27 -28 -29 -30
VERTICAL
RIGHT
ANGLE
N/A
T/H
TOP
N/A
TIN
-4 -5 -6 -7 -8 -9 -10 -11 -12 -13 -14 -15 -16 -17 -18 -19 -20 -21 -22 -23 -24 -25 -26 -27 -28 -29 -30
non-ZIF
84533
-31 -32 -33 -34 -35 -36 -37 -38 -39 -40
non-ZIF
84534
-31 -32 -33 -34 -35 -36 -37 -38 -39 -40
