228030-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 228030-3

228030-3: DescriptionCABLE TERMINATED, FEMALE, SMC CONNECTOR, CRIMP, PLUG; CategoryThe connector The connector; File Size63KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

228030-3 Overview

CABLE TERMINATED, FEMALE, SMC CONNECTOR, CRIMP, PLUG

228030-3 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	APPLICABLE CABLE: RG 179
Body/casing type	PLUG
Connector type	RF SMC CONNECTOR
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	228030
Installation method	RIGHT ANGLE
Installation type	CABLE
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP
Base Number Matches	1

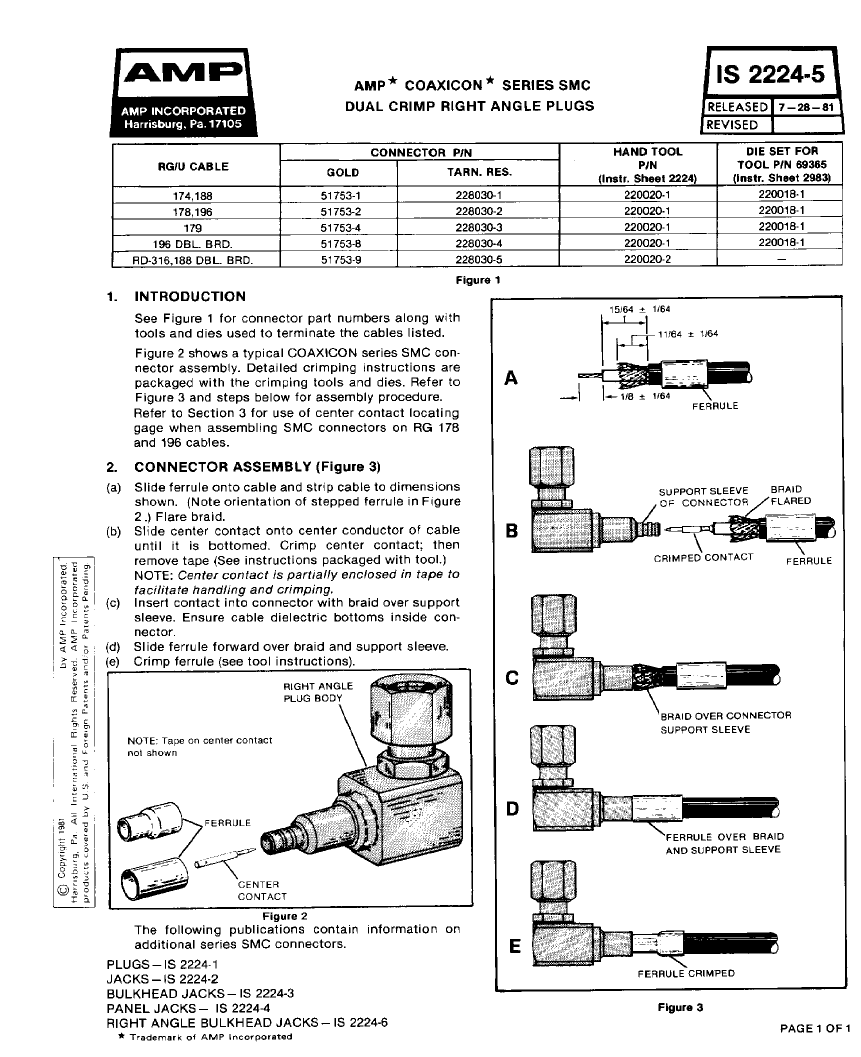

Preview

Download Datasheet

View All

228030-3 Related Products

	228030-3	228030-2	228030-1	51753-1	228030-4	228030-5	51753-2	51753-8
Description	CABLE TERMINATED, FEMALE, SMC CONNECTOR, CRIMP, PLUG	CABLE TERMINATED, FEMALE, SMC CONNECTOR, CRIMP, PLUG	CONNECTOR, CABLE TERMINATED, FEMALE, SMC CONNECTOR, CRIMP, PLUG	CONNECTOR, CABLE TERMINATED, FEMALE, SMC CONNECTOR, PLUG	CONNECTOR, CABLE TERMINATED, FEMALE, SMC CONNECTOR, CRIMP, PLUG	CABLE TERMINATED, FEMALE, SMC CONNECTOR, CRIMP, PLUG	CONNECTOR, CABLE TERMINATED, FEMALE, SMC CONNECTOR, PLUG	CABLE TERMINATED, FEMALE, SMC CONNECTOR, CRIMP, PLUG
Reach Compliance Code	unknow	unknow	unknow	unknown	unknown	unknown	unknown	unknow
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	RF SMC CONNECTOR	RF SMC CONNECTOR	RF SMC CONNECTOR	RF SMC CONNECTOR	RF SMC CONNECTOR	RF SMC CONNECTOR	RF SMC CONNECTOR	RF SMC CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Coupling type	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	228030	228030	228030	51753	228030	228030	51753	51753
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO	NO	NO	NO	NO	NO
Other features	APPLICABLE CABLE: RG 179	APPLICABLE CABLES: RG 178; RG 196	APPLICABLE CABLES: RG 174; RG 188	INSERTION LOSS MAX AT 4GHZ	-	-	INSERTION LOSS MAX AT 4GHZ	-
Termination type	CRIMP	CRIMP	CRIMP	-	CRIMP	CRIMP	-	CRIMP
Base Number Matches	1	1	1	1	1	1	-	-
Maker	-	-	-	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity
