U20D10D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> U20D10D

U20D10D: DescriptionRectifier Diode, 1 Phase, 2 Element, 10A, 100V V(RRM), Silicon, TO-247,; CategoryDiscrete semiconductor diode; File Size141KB，2 Pages; ManufacturerMOSPEC; Websitehttp://www.mospec.com.tw/eng/index.html

Download Datasheet Parametric Compare View All

U20D10D Overview

Rectifier Diode, 1 Phase, 2 Element, 10A, 100V V(RRM), Silicon, TO-247,

U20D10D Parametric

Parameter Name	Attribute value
package instruction	R-PSFM-T3
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	FREE WHEELING DIODE, LOW POWER LOSS
application	EFFICIENCY
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.975 V
JEDEC-95 code	TO-247
JESD-30 code	R-PSFM-T3
Maximum non-repetitive peak forward current	225 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	10 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Maximum repetitive peak reverse voltage	100 V
Maximum reverse current	10 µA
Maximum reverse recovery time	0.035 µs
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Base Number Matches	1

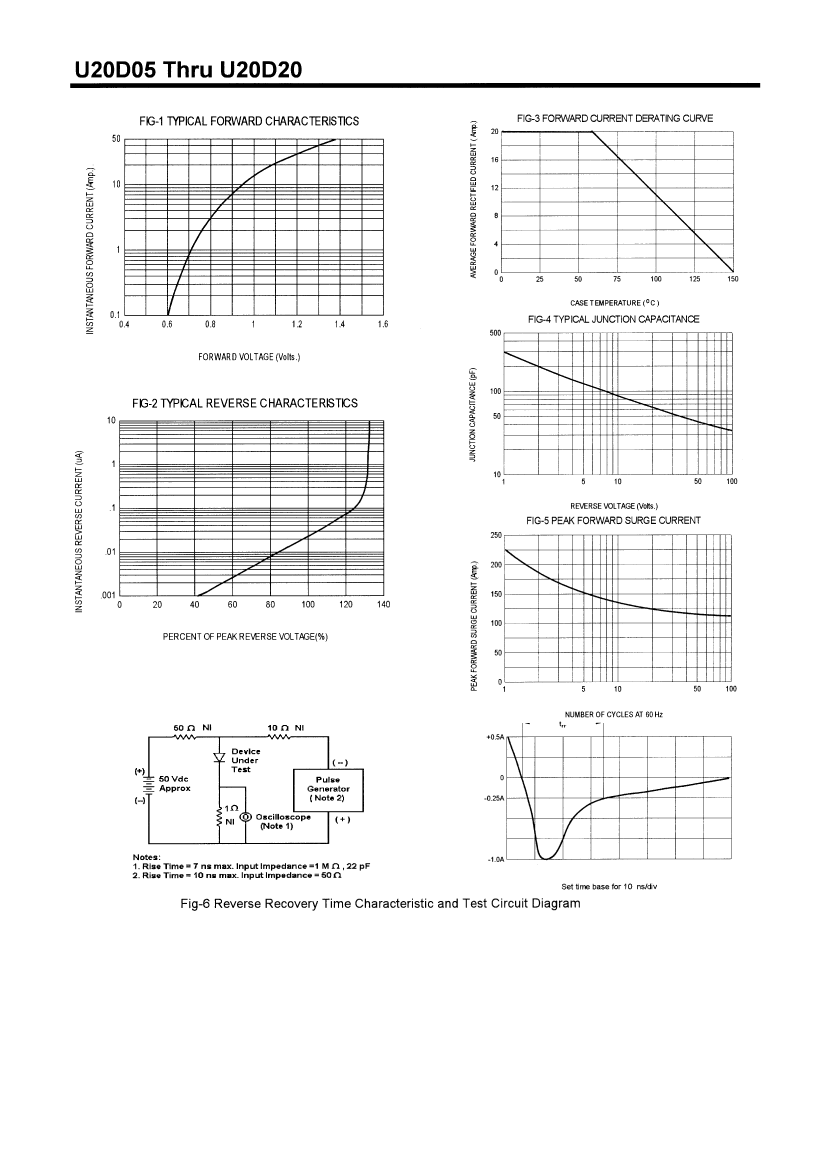

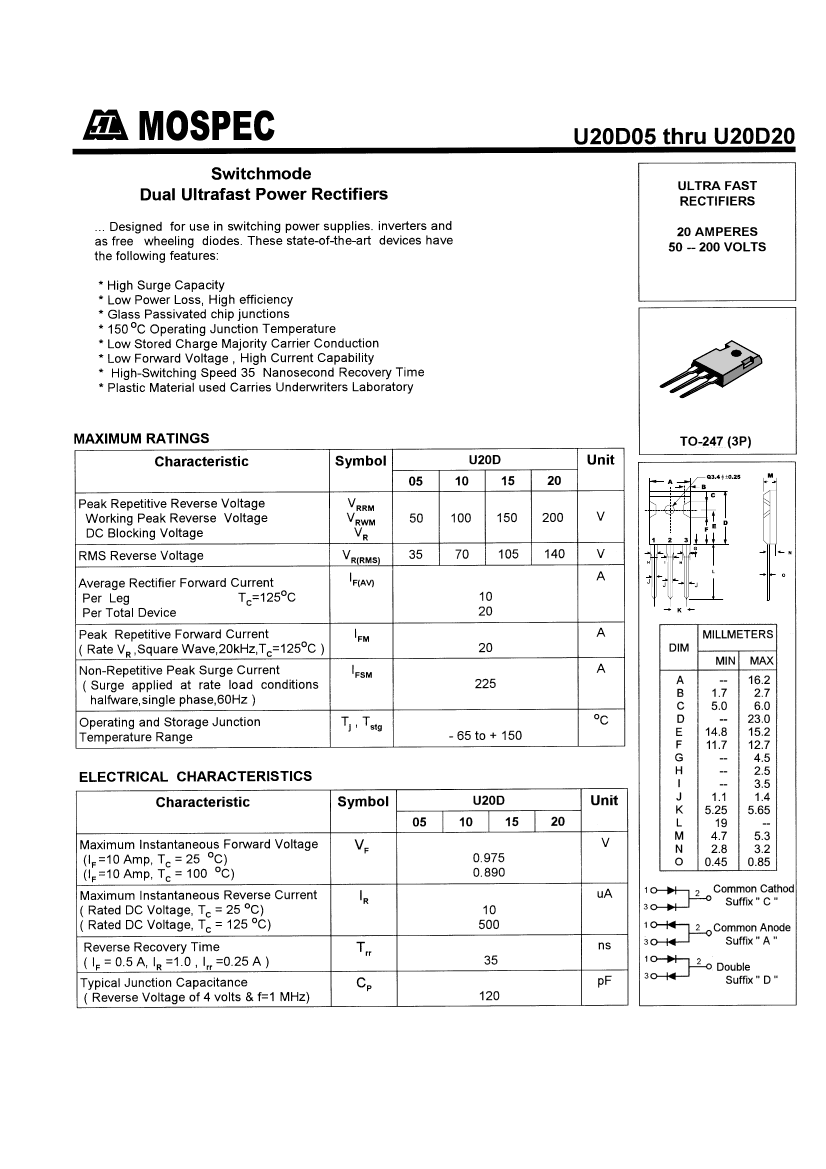

Preview

Download Datasheet

View All

U20D10D Related Products

	U20D10D	U20D10A	U20D10C	U20D05C	U20D05D	U20D15C	U20D20C
Description	Rectifier Diode, 1 Phase, 2 Element, 10A, 100V V(RRM), Silicon, TO-247,	Rectifier Diode, 1 Phase, 2 Element, 10A, 100V V(RRM), Silicon, TO-247,	Rectifier Diode, 1 Phase, 2 Element, 10A, 100V V(RRM), Silicon, TO-247,	Rectifier Diode, 1 Phase, 2 Element, 10A, 50V V(RRM), Silicon, TO-247,	Rectifier Diode, 1 Phase, 2 Element, 10A, 50V V(RRM), Silicon, TO-247,	Rectifier Diode, 1 Phase, 2 Element, 10A, 150V V(RRM), Silicon, TO-247,	Rectifier Diode, 1 Phase, 2 Element, 10A, 200V V(RRM), Silicon, TO-247,
package instruction	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow
Other features	FREE WHEELING DIODE, LOW POWER LOSS	FREE WHEELING DIODE, LOW POWER LOSS	FREE WHEELING DIODE, LOW POWER LOSS	FREE WHEELING DIODE, LOW POWER LOSS	FREE WHEELING DIODE, LOW POWER LOSS	FREE WHEELING DIODE, LOW POWER LOSS	FREE WHEELING DIODE, LOW POWER LOSS
application	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	COMMON ANODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.975 V	0.975 V	0.975 V	0.975 V	0.975 V	0.975 V	0.975 V
JEDEC-95 code	TO-247	TO-247	TO-247	TO-247	TO-247	TO-247	TO-247
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Maximum non-repetitive peak forward current	225 A	225 A	225 A	225 A	225 A	225 A	225 A
Number of components	2	2	2	2	2	2	2
Phase	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Maximum output current	10 A	10 A	10 A	10 A	10 A	10 A	10 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Maximum repetitive peak reverse voltage	100 V	100 V	100 V	50 V	50 V	150 V	200 V
Maximum reverse current	10 µA	10 µA	10 µA	10 µA	10 µA	10 µA	10 µA
Maximum reverse recovery time	0.035 µs	0.035 µs	0.035 µs	0.035 µs	0.035 µs	0.035 µs	0.035 µs
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
ECCN code	EAR99	EAR99	-	EAR99	EAR99	-	-
Base Number Matches	1	1	1	1	1	-	-
