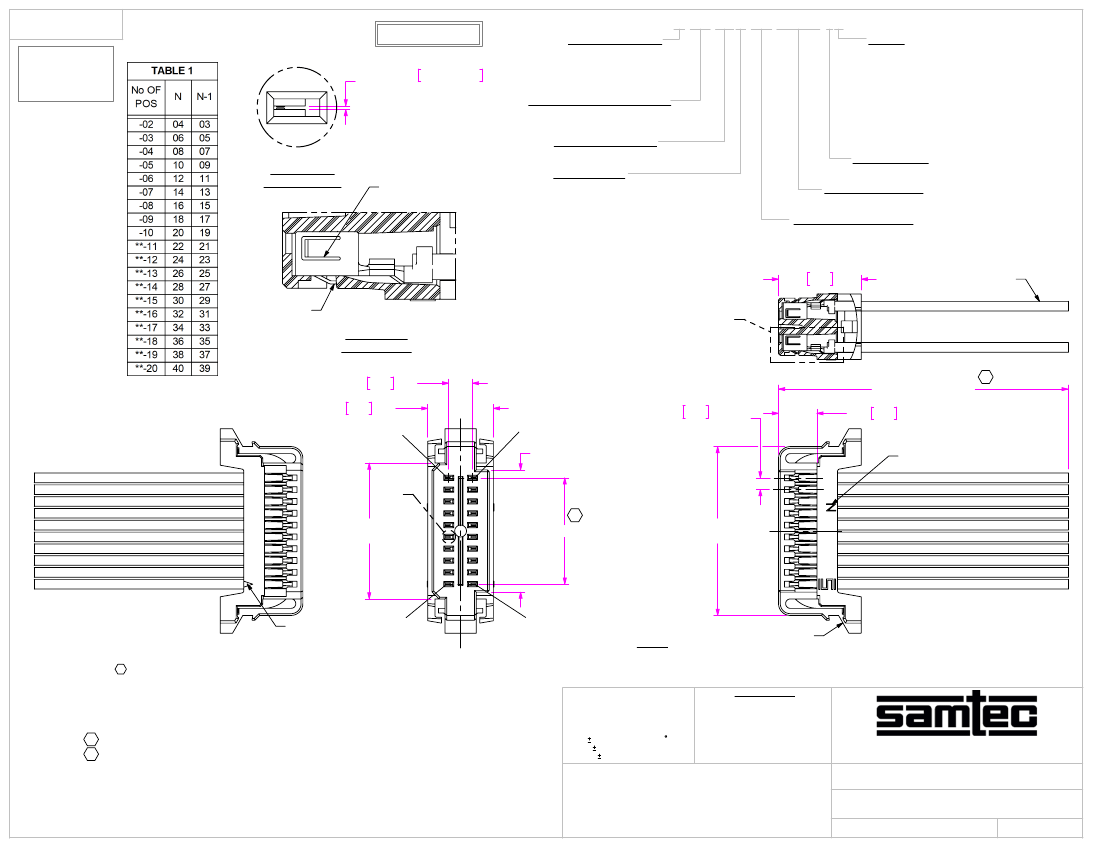

REVISION H
DO NOT
SCALE FROM
THIS PRINT
DESIGNED & DIMENSIONED
IN MILLIMETERS[INCHES]
PATENT PENDING
S1SDX-XX-XXX-XX-XX.XX-LX
FEP CABLE OPTION
-T: FEP INSULATION
(ONLY AVAILABLE IN 28 AWG)
LEAVE BLANK FOR PVC
(SEE NOTE 8)
No OF POSITIONS (PER ROW)
-02 THRU -10
**-11 THRU **-20
WIRE GAUGE (AWG)
-28, -30
PINOUT
(LEAVE BLANK FOR SINGLE END ASSEMBLY)
-1: "N" INDICATOR DOWN, CROSSED
PIN 1 TO PIN 1 (SEE FIG 2, SHT 2)
-2: "N" INDICATOR DOWN, STRAIGHT
PIN 1 TO PIN 2 (SEE FIG 3, SHT 2)
-3: "N" INDICATOR UP, CROSSED
PIN 1 TO PIN N (SEE FIG 4, SHT 3)
-4: "N" INDICATOR UP, STRAIGHT
PIN 1 TO PIN N-1 (SEE FIG 5, SHT 3)
LATCH OPTION
-L: PLASTIC LATCH
ASSEMBLED LENGTH
(SPECIFY IN INCHES) 01.80 IN MINIMUM
PLATING SPECIFICATION
-T: BRIGHT ACID TIN TIN CONTACT AND TAIL
-GF: 3µ" GOLD CONTACT AND TAIL
DWCX-XX-XX-XXX
(SEE TABLE 2, SHT 2)
0.050±0.040 .0020±.0016
(TYP) REF
DETAIL 'A'
SCALE 18 : 1
C-309-01-XX
COLOR CODE
-C COLOR CODE WIRE
(SEE TABLE 4, SHT 2)
LEAVE BLANK FOR STANDARD WIRE
(SEE TABLE 2, SHT 2)
(NOT AVAILABLE WITH S1SDT)
(** = NOT RELEASED FOR PRODUCTION)
7.00 .276 REF
SEE NOTE 6
DETAIL 'B'
SCALE 8 : 1
(** = NOT RELEASED
FOR PRODUCTION)
2.00 .079 REF
5.55 .219 REF
N-1 (SEE TABLE 1)
C
L
N (SEE TABLE 1)
'B'

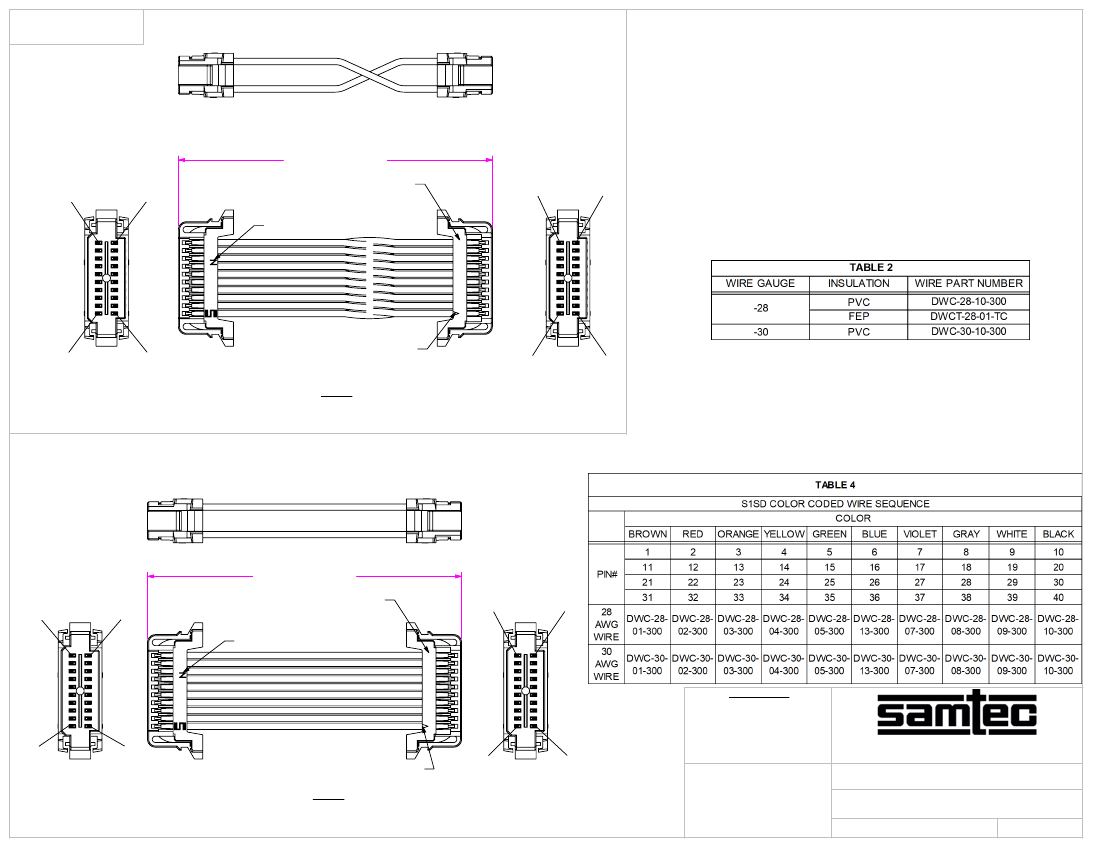

ASSEMBLIED LENGTH
(SEE NOTE 4)
1.00 .039 (TYP)
(TOL NON-ACCUM)
3.25 .128 REF
C
(No OF POS + 0.35[.014]) REF
"N" INDICATOR
'A'
(No OF POS +
1.50[.059]) REF
C
(No OF POS - 1.00[.039])
(No OF POS +
C
L
4.30[.169]) REF
POS 1 INDICATOR
NOTES:
01
02
S1SD-10-XXX-XX-XX.XX-L SHOWN
FIG 1
ISD1-XX
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. MINIMUM PUSHOUT FORCE: SIGNAL: 4.445N[1.0 LB].
3. PARTS TO BE PACKAGED IN BAG.
4. FOR ASSEMBLIED LENGTHS LESS THAN 12.0[305], TOLERANCE SHALL BE
± 3.18[.125], FOR OTHER LENGTHS, TOLERANCE SHALL BE ± 2%.
5. REFER TO CRIMP SPECIFICATIONS FOR CRIMP AND STRIP DIMENSIONS,
TOLERANCES, TOOLING, AND ITS REQUIREMENTS.
C
6. CONTACT MUST BE INSERTED UNTIL RETENTION FEATURE LOCKS IN PLACE.
C
7. ALL FINISHED GOODS ARE TO BE ELECTRICALLY TESTED INCLUDING HI-POT TEST
AT 1000 VOLTS DC. AFTER FINAL ELECTRICAL TEST, LABEL WITH 1 ET STAMP
ON THE BODY.
8. ASSEMBLIES USING THE FEP OPTION ARE FOR CRIMP APPLICATIONS ONLY.
9. REFER TO CRIMP SPECIFICATIONS PRINT FOR STRIP AND CRIMP DIMENSIONS,
TOLERANCES, TOOLING, AND ITS REQUIREMENTS.
10. CUT LENGTH IS ASSEMBLY LENGTH MINUS OVERALL LENGTH SUBTRACTOR.
11. TABLE 3 IS DELETED AND REPLACED WITH EQUATIONS.
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN MILLIMETERS.
TOLERANCES ARE:
DECIMALS
X.X: 0.3 [.01]
2
X.XX: 0.13 [.005]
X.XXX: 0.051 [.0020]
ANGLES
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
MATERIAL:
INSULATOR: NYLON UL94V-2, COLOR: WHITE
CONTACT: PHOS BRONZE
DO NOT SCALE DRAWING
SHEET SCALE: 3:1
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
1MM S1SD CABLE ASSEMBLY
S1SDX-XX-XXX-XX-XX.XX-LX
06/22/2013
SHEET
1
OF
3
F:\DWG\MISC\MKTG\S1SDX-XX-XXX-XX-XX.XX-LX-MKT.SLDDRW
BY:
VICKY Z
REVISION H
ASSEMBLIED LENGTH
(SEE NOTE 4)
(SEE TABLE 1, SHT 1)
N-1
N
END 1
"N" INDICATOR DOWN
END 2
(SEE TABLE 1, SHT 1)
N-1
N
"N" INDICATOR UP
01
02
POS 1 INDICATOR
01
02
S1SD-10-XXX-XX-XX.XX-L1 SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
FIG 2
ASSEMBLIED LENGTH
(SEE NOTE 4)
(SEE TABLE 1, SHT 1)
N-1
N
"N" INDICATOR UP
END 1
"N" INDICATOR DOWN
END 2
(SEE TABLE 1, SHT 1)
N-1
N
01
02
POS 1 INDICATOR
S1SD-10-XXX-XX-XX.XX-L2 SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
01
02
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
DESCRIPTION:
DWG. NO.
FIG 3
1MM S1SD CABLE ASSEMBLY
S1SDX-XX-XXX-XX-XX.XX-LX
06/22/2013
SHEET
2
OF
3
F:\DWG\MISC\MKTG\S1SDX-XX-XXX-XX-XX.XX-LX-MKT.SLDDRW
BY:
VICKY Z
REVISION H

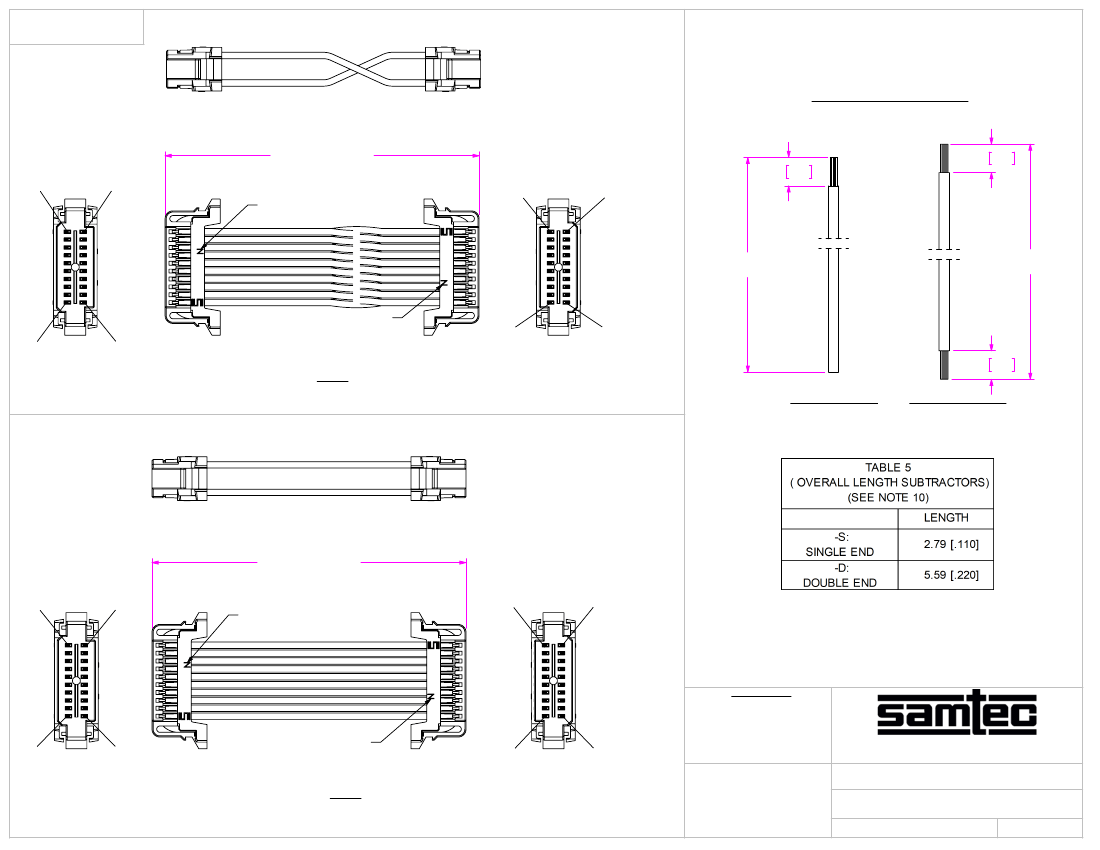

CABLE CUT IN-PROCESS
(SEE TABLE 1, SHT 1)
N-1
N
ASSEMBLIED LENGTH
(SEE NOTE 4)
END 1
"N" INDICATOR UP
END 2
02
01
1.40 .055
1.40 .055
OVERALL LENGTH
(SEE TABLE 5)
OVERALL LENGTH
(SEE TABLE 5)
"N" INDICATOR UP
01
02
N
N-1
1.40 .055
(SEE TABLE 1, SHT 1)
S1SD-10-XXX-XX-XX.XX-L3 SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
FIG 4
-S: SINGLE END
-D: DOUBLE END
ASSEMBLIED LENGTH
(SEE NOTE 4)
(SEE TABLE 1, SHT 1)
N-1
N
END 1
"N" INDICATOR UP
END 2
02
01
01
02
"N" INDICATOR UP
N
N-1
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
(SEE TABLE 1, SHT 1)
S1SD-10-XXX-XX-XX.XX-L4 SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
F:\DWG\MISC\MKTG\S1SDX-XX-XXX-XX-XX.XX-LX-MKT.SLDDRW
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
DESCRIPTION:
DWG. NO.
FIG 5
1MM S1SD CABLE ASSEMBLY
S1SDX-XX-XXX-XX-XX.XX-LX
VICKY Z
06/22/2013
SHEET
3
OF
3
BY:
MCU
