F-215
SEMS–125–02–03.0–H–D
SEML–145–02–03.0–H–D–WT
™
SYSTEM
SEM–130–02–03.0–H–D–WT
SEM–110–02–03.0–H–D–WT
(0,80 mm) .0315"
SEM, SEMS, SEML SERIES

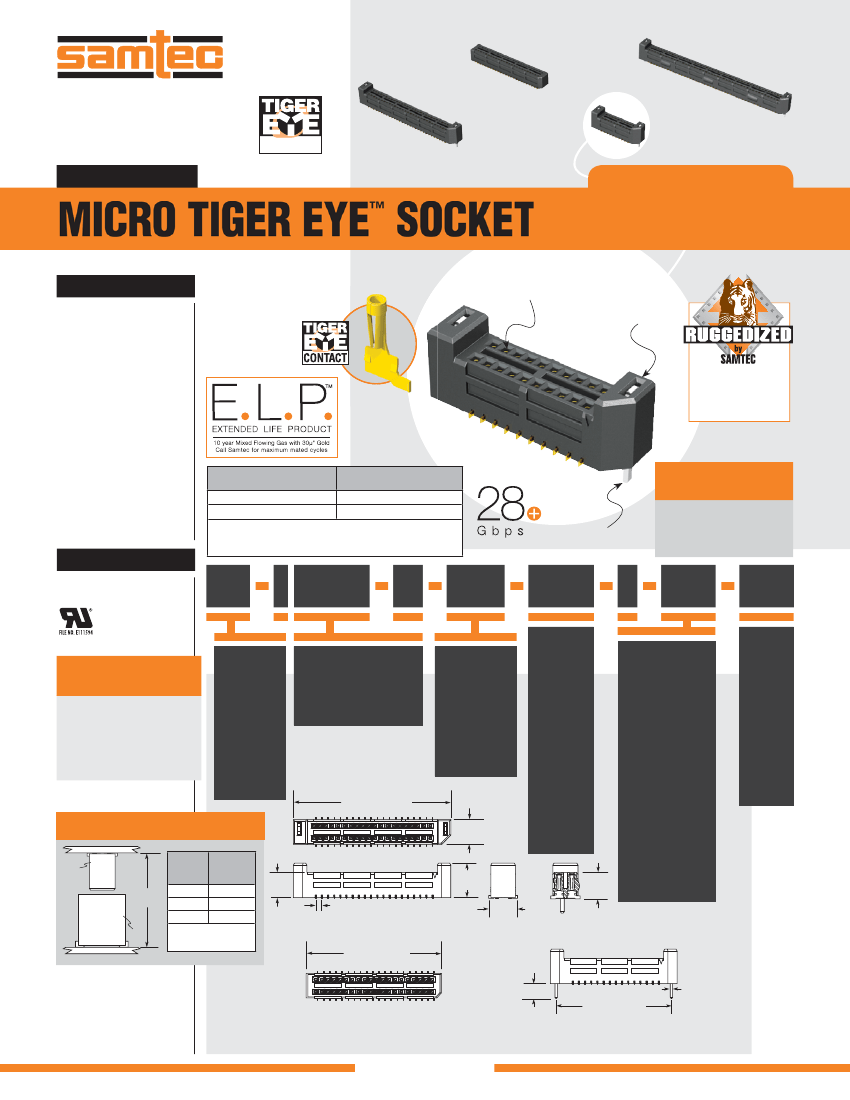

MICRO TIGER EYE SOCKET
SPECIFICATIONS
For complete specifications and
recommended PCB layouts
see www.samtec.com?SEM,
www.samtec.com?SEMS or
www.samtec.com?SEML
Insulator Material:
Black Liquid Crystal Polymer
Contact Material:
BeCu
Plating:
Au or Sn over 50µ" (1,27 µm) Ni
Operating Temp Range:
-55°C to +125°C
Current Rating (SEM/TEM):
2.6 A per pin
(1 pin powered per row)
RoHS Compliant:
Yes
™
SEM, SEML Mates with:
TEM
SEMS Mates with:
TEMS
™
High reliability
Tiger Eye
™
contacts
Choice of
mated heights
• Passes
10 year MFG
• Locking clip option
• Weld tab option
Processing:
Lead-Free Solderable:
Yes
SMT Lead Coplanarity:
(0,10 mm) .004" max
TEM/SEM
Rated @ 3dB Insertion Loss*
6 mm Stack Height
Single-Ended Signaling
12 GHz / 24 Gbps
Differential Pair Signaling
17 GHz / 34 Gbps
*Test board losses de-embedded from performance data.
Complete test data available at www.samtec.com?SEM or
contact sig@samtec.com
ALSO AVAILABLE
(MOQ Required)
Weld
tab
• Other sizes
• Other platings
Contact Samtec.
RECOGNITIONS
For complete scope of
recognitions see
www.samtec.com/quality
TYPE
STRIP
1
NO. PINS
PER ROW
02
STACK
HEIGHT
PLATING
OPTION
D
OPTION
OTHER
OPTION
–FG
OTHER
SOLUTIONS
• Board Stacking:
See SFM, TFM Series
• Cable Assemblies:
See SFSD, TFSD Series
Contact Samtec.
SEM
= Tiger Eye
Strip
™
05, 10, 15, 20, 25
30, 35, 40, 45, 50
(SEM/SEML only)
(Standard sizes)
–03.0
= 6 mm, 7 mm
or 10 mm
Stack Height
when mated with
TEM/TEMS
Series
(SEML only
available with
6 mm Stack
Height)
= Gold Flash
Leave blank
for SEMS
–K
= (3,50 mm)
.138" DIA
Polyimide
film Pick &
Place Pad
(Required
for SEMS)
–G
= 10µ"
(0,25 µm)
Gold on
contact,
Gold Flash
on tail
–A
= Alignment Pin
(Not available
with –LC or –WT)
SEMS
= Tiger Eye
™
Slim Strip
–LC
= Locking Clip
(Not available
with –A or –WT)
(Manual placement
required)
–TR
= Tape &
Reel
(Required
for SEMS)
SEML
= Tiger Eye
Friction Lock
™
–H
= 30µ"
(0,76 µm)
Gold on
contact,
Gold Flash
on tail
(No. of Positions x (0,80) .0315)
+ (4,50) .177
02
MATED HEIGHT
TEM
MATED
LEAD HEIGHT*
STYLE
6 mm
–03.0
7 mm
–04.0
10 mm
–07.0
*Processing
conditions will
affect mated height.
01
(3,20)
.126
–WT
= Weld Tab
(Not available
with –A or –LC)
(Required callout
for SEML)
SEM
MATED
HEIGHT
(3,30)
.130
(0,80) .0315
SEM
(No. of Positions
x (0,80) .0315)
+ (1,60) .063
(4,50)
.177
(3,75)
.148
(3,50)
.138
SEML
TEM
(1,89)
.074
(No. of Positions
x (0,80) .0315)
+ (3,00) .118
(0,30)
.012
SEMS
Note:
Some sizes, styles and
options are non-standard,
non-returnable.
–WT OPTION
