MIC5209YM TR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > MIC5209YM TR

MIC5209YM TR: DescriptionLDO Regulator Pos 1.8V to 15V 0.5A 8-Pin SOIC N T/R; File Size2MB，18 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com; Environmental Compliance

Download Datasheet Parametric Compare View All

MIC5209YM TR Overview

LDO Regulator Pos 1.8V to 15V 0.5A 8-Pin SOIC N T/R

MIC5209YM TR Parametric

Parameter Name	Attribute value
EU restricts the use of certain hazardous substances	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±1
Output Type	Adjustable
Output Voltage (V)	1.8 to 15
Maximum Output Current (A)	0.5
Minimum Input Voltage (V)	2.5
Maximum Input Voltage (V)	16
Maximum Dropout Voltage @ Current (V)	0.5@500mA\|0.3@150mA\|0.175@50mA\|0.06@100uA
Line Regulation	0.05%/V
Load Regulation	0.5%
Typical Ground Current @ Full Load (mA)	8
Junction to Ambient	50°C/W
Junction to Case	20°C/W
Special Features	Thermal Protection\|Reverse Battery Protection\|Current Limit
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	125
Packaging	Tape and Reel
Supplier Package	SOIC N
Pin Count	8
Mounting	Surface Mount
Package Height	1.48
Package Length	4.93
Package Width	3.94
PCB changed	8

Preview

Download Datasheet

View All

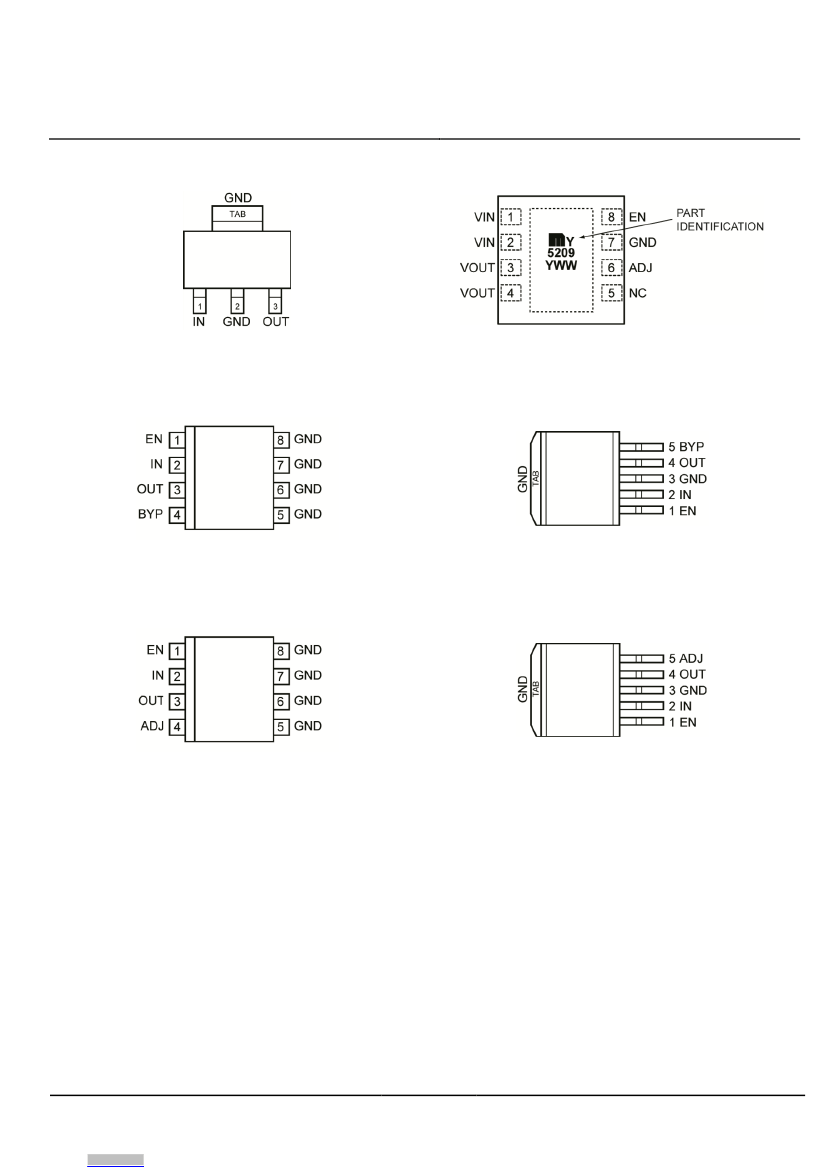

MIC5209

500mA Low-Noise LDO Regulator

General Description

The MIC5209 is an efﬁcient linear voltage regulator with

very low dropout voltage, typically 10mV at light loads and

less than 500mV at full load, with better than 1% output

voltage accuracy

Designed especially for hand-held, battery-powered

devices, the MIC5209 features low ground current to help

prolong battery life. An enable/shutdown pin on SO-8 and

TO-263- 5 versions can further improve battery life with

near-zero shutdown current.

Key features include reversed-battery protection, current

limiting, overtemperature shutdown, ultra-low-noise

capability (SO-8 and TO-263-5 versions), and availability

in thermally-efﬁcient packaging. The MIC5209 is available

in adjustable or ﬁxed output voltages.

Datasheets and support documentation are available on

Micrel’s web site at:

www.micrel.com.

Features



Output voltage range: 1.8V





Meets Intel Slot 1 and Slot 2 requirements



Guaranteed 500mA output over the full operating

temperature range



Low 500mV maximum dropout voltage at full load



Extremely tight load and line regulation



Thermally-efﬁcient surface-mount package



Low temperature coefﬁcient



Current and thermal limiting



Reversed-battery protection



No-load stability



1% output accuracy



Ultra-low-noise capability in SO-8 and TO-263-5



Ultra-small 3mm × 3mm DFN package

Applications



Pentium II Slot 1 and Slot 2 support circuits

Laptop, notebook, and palmtop computers

Cellular telephones

Consumer and personal electronics

SMPS post-regulator/DC-to-DC modules

High-efﬁciency linear power supplies

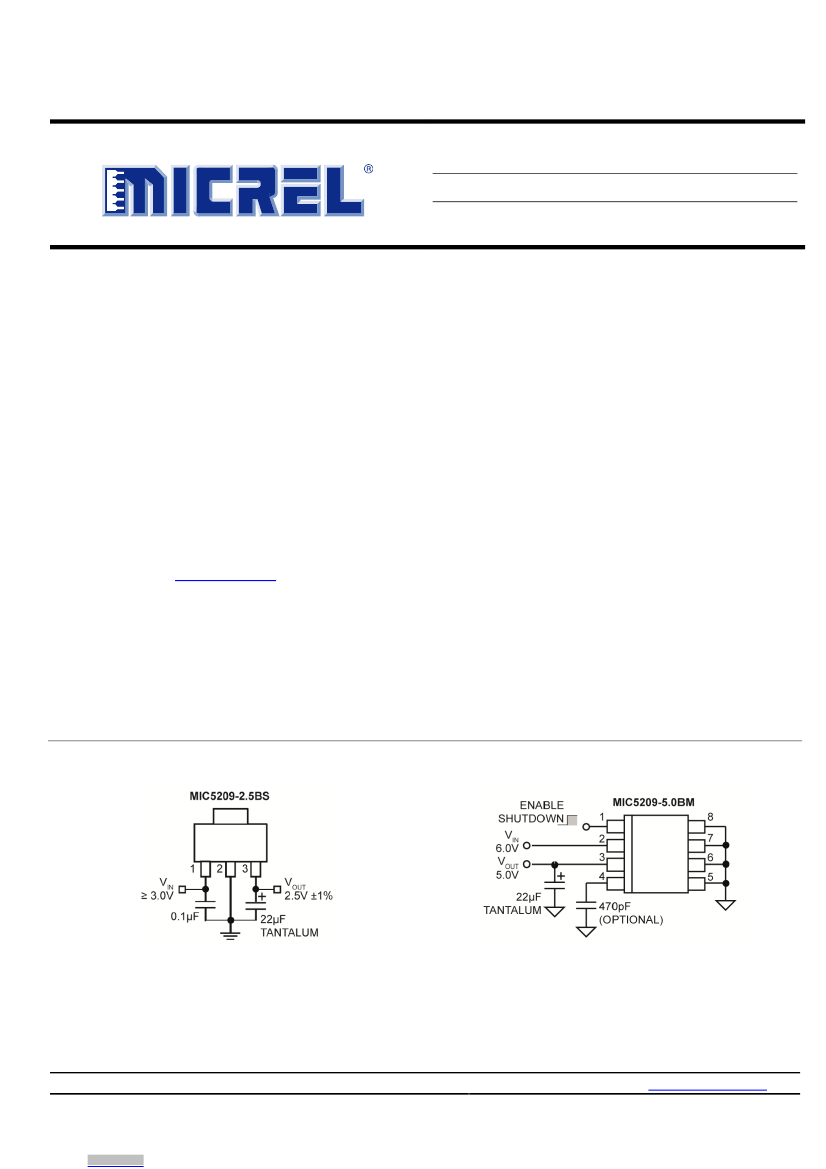

Typical Application

3.3V Nominal Input Slot 1 Power Supply

Ultra-Low Noise 5V Regulator

Intel is a registered trademark of Intel Corporation.

Micrel Inc. • 2180 Fortune Drive • San Jose, CA 95131 • USA • tel +1 (408) 944-0800 • fax + 1 (408) 474-1000 •

http://www.micrel.com

July 15, 2014

Revision 3.1
